Description

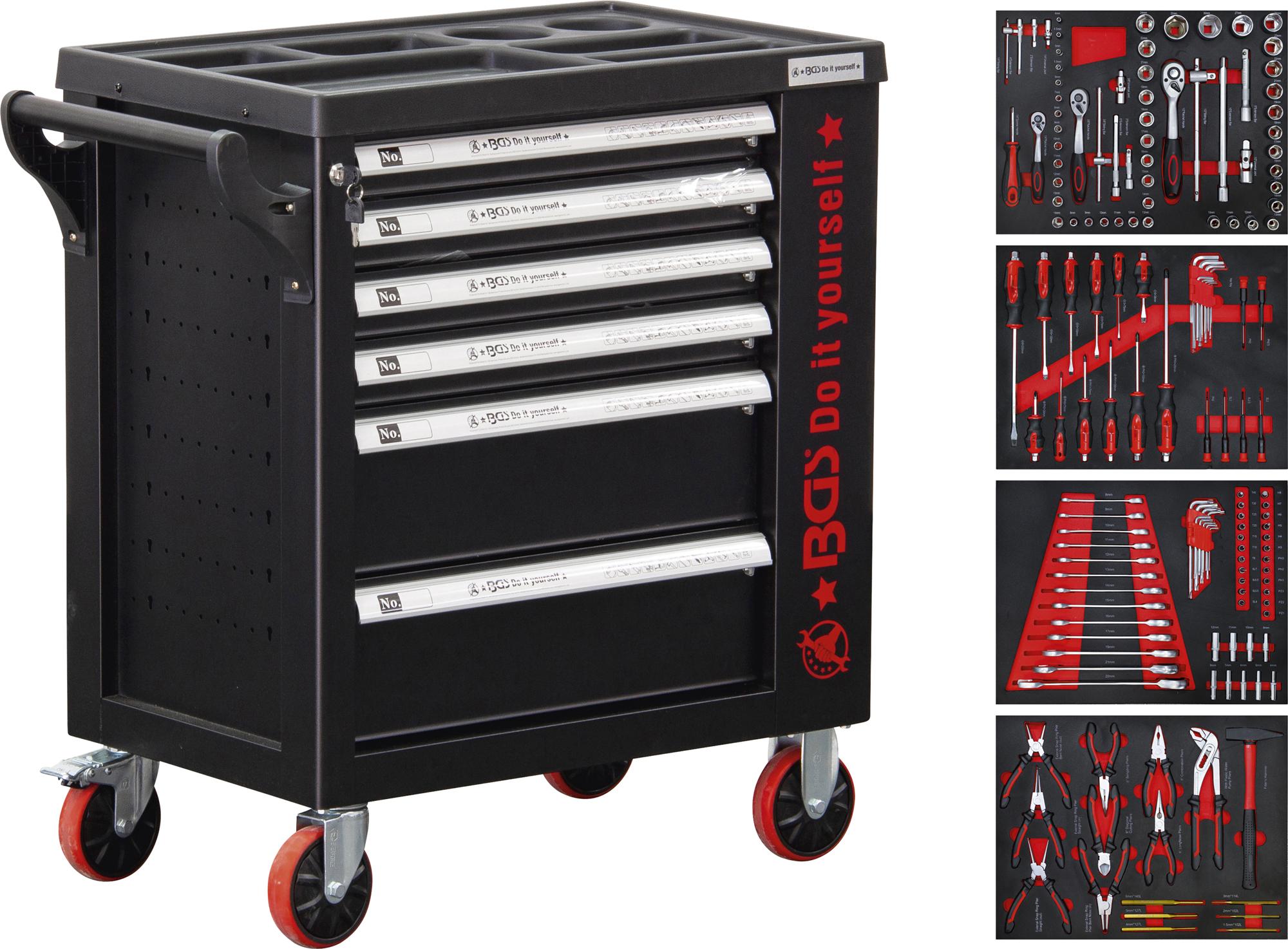

4 ball bearing castors Ø 120 mm, thereof 2 castors lockable
each drawer individually secured, with safety lock
with separate cabinet (depth: 125 mm) and side door individually lockable
includes 4 EVA foam trays with the following tools:

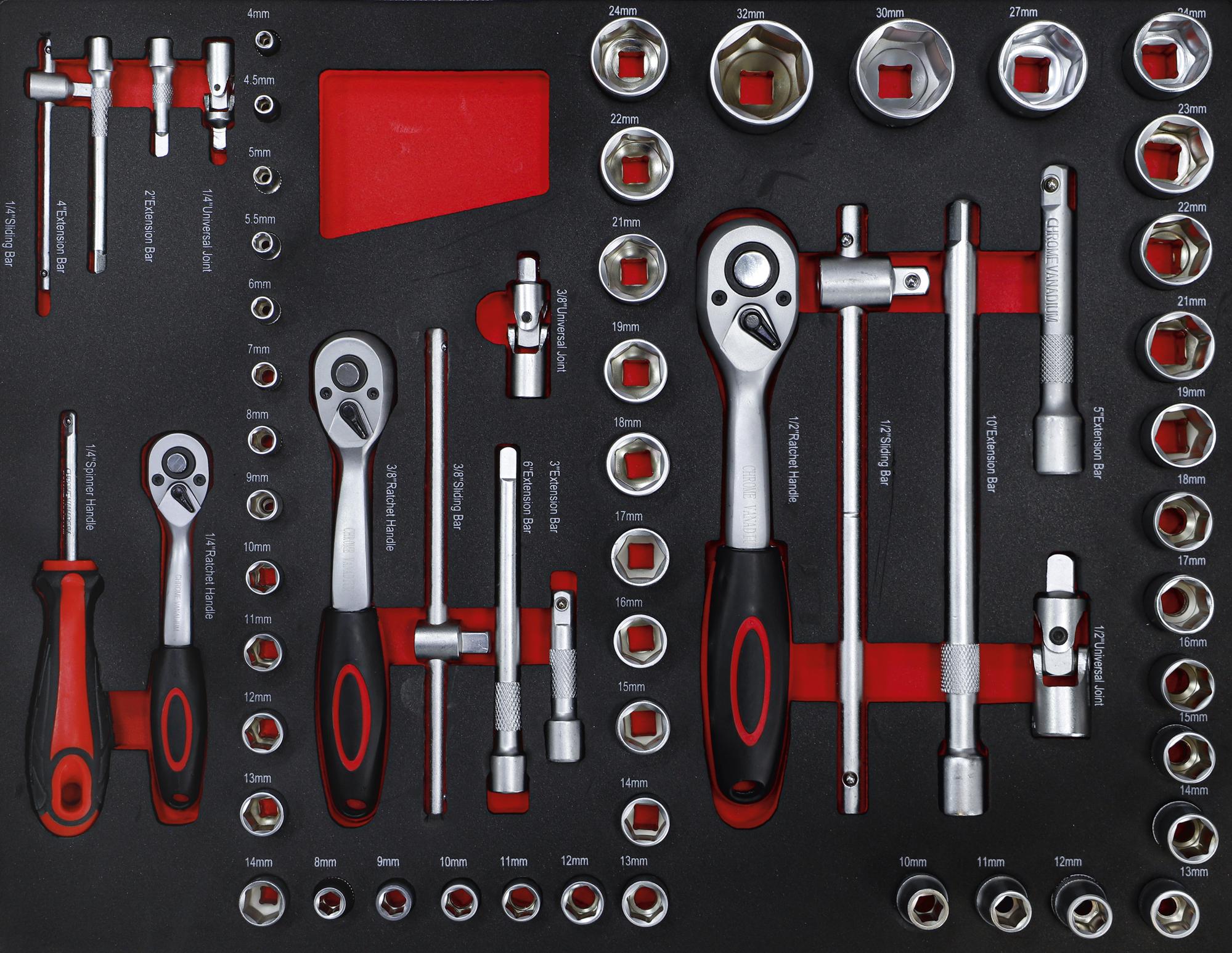

socket set, 6.3 mm (1/4"), 10 mm (3/8"), 12.5 mm (1/2") drive, 61 pcs.
6.3 mm (1/4") drive
1 reversible ratchet, fine tooth, external square 6.3 mm (1/4") drive
13 sockets, hexagon 4 - 4.5 - 5 - 5.5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 mm
2 extension bars, external square 6.3 mm (1/4"), 50 and 100 mm
1 sliding bar, external square 6.3 mm (1/4"), 115 mm
1 universal joint, external square 6.3 mm (1/4")
1 spinner handle, external square 6.3 mm (1/4"), 150 mm
10 mm (3/8") drive
1 reversible ratchet, fine tooth, external square 10 mm (3/8")
15 sockets, hexagon 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 - 24 mm
2 extension bars, external square 6.3 mm (1/4"), 75 and 150 mm
1 sliding bar, external square 10 mm (3/8"), 175 mm
1 universal joint, external square 10 mm (3/8")
12.5 mm (1/2") drive
1 reversible ratchet, fine tooth, external square 12.5 mm (1/2")
17 sockets, hexagon 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 - 23 - 24 - 27 - 30 - 32 mm
2 extension bars, external square 12.5 mm (1/2"), 125 and 250 mm
1 sliding bar, external square 12.5 mm (1/2"), 250 mm
1 universal joint, external square 12.5 mm (1/2")
screwdriver and L-Type wrenches, 27 pcs.
go-through blade
ergonomically shaped "soft grip" handle
5 screwdrivers slot SL, with external hexagon SL 6.0 x 38 mm - 5.0 x 75 mm - 4.0 x 100 mm - 6.0 x 100 mm - 8.0 x 200 mm
1 screwdriver slot SL, 3 x 75 mm
5 screwdriver cross slot PH, with external hexagon PH2 x 38 mm – PH1 x 75 mm – PH1 x 100 mm – PH1 x 100 mm – PH3 x 200 mm
1 screwdriver cross slot PH, PH0 x 75 mm
3 precision screwdriver slot SL, 2 x 115 mm - 2.5 x 115 mm - 3 x 115 mm, blade length 40 mm
3 precision screwdriver cross slot PH, PH2 x 115 mm - PH2.5 x 115 mm - PH3 x 115 mm, blade length 40 mm
9 L-type wrenches, internal hexagon / internal Hexagon with ball head 1.5 - 2 - 2.5 - 3 - 4 - 5 - 6 - 8 - 10 mm

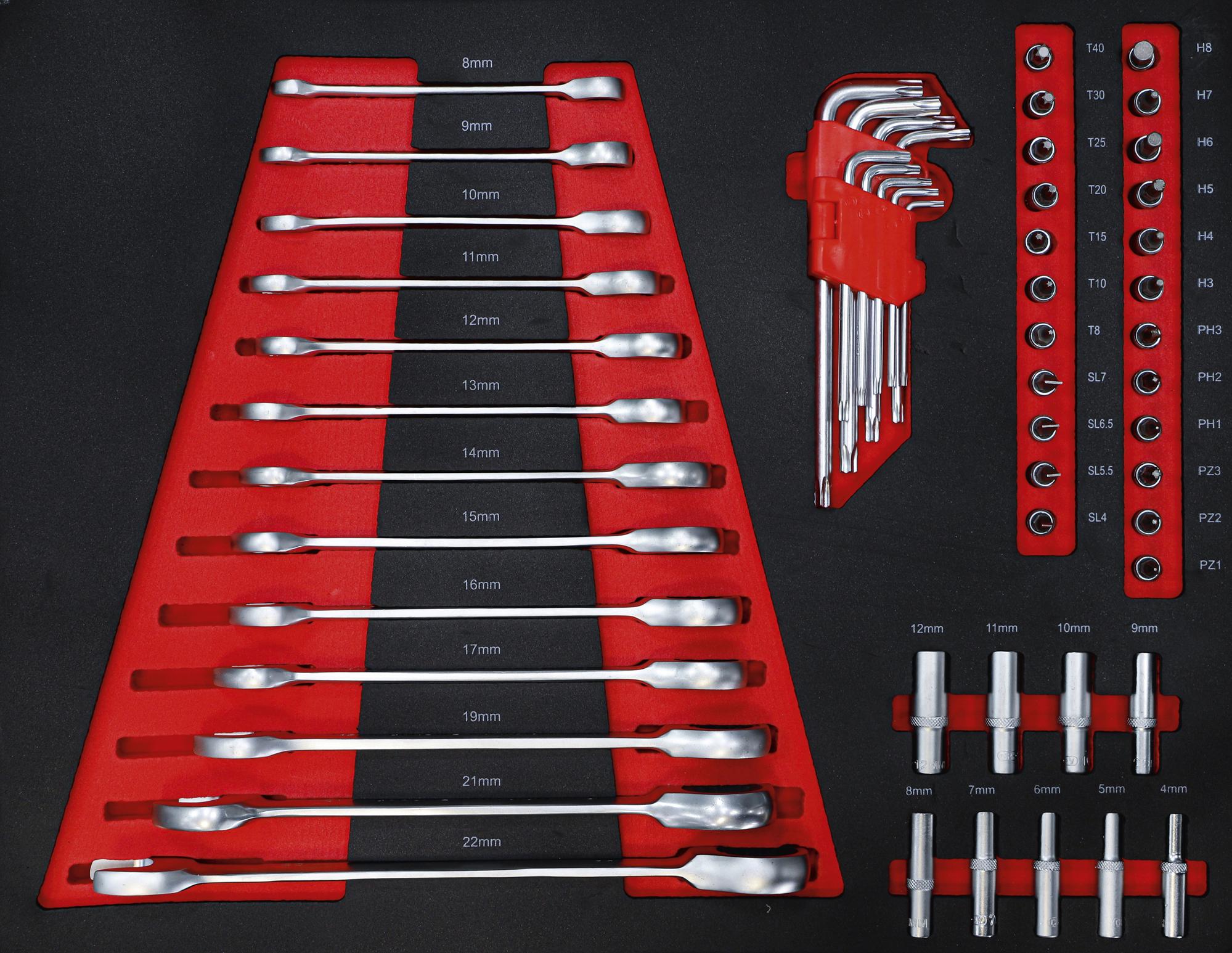

bits/L-type wrenches/ratchet comination wrenches, 54 pcs.
13 ratchet combination wrenches 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 19 - 21 - 22 mm
9 sockets, hexagon, 6.3 mm (1/4") drive, deep, 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 mm
7 bit sockets, 6.3 mm (1/4") drive, T-Star (for Torx) T8 - T10 - T15 - T20 - T25 - T30 - T40
6 bit sockets, 6.3 mm (1/4") drive, internal hexagon 3 - 4 - 5 - 6 - 7 - 8 mm
3 bit sockets, 6.3 mm (1/4") drive, cross slot PH PH1 - PH2 - PH3
3 bit sockets, 6.3 mm (1/4") drive, cross slot PZ, PZ1 - PZ2 - PZ3
4 bit sockets, 6.3 mm (1/4") drive, slot SL 4 - 5.5 - 6.5 - 7 mm
9 L-type wrenches, T-Star (for Torx), T10 - T15 - T20 - T25 - T27 - T30 - T40 - T45 - T50

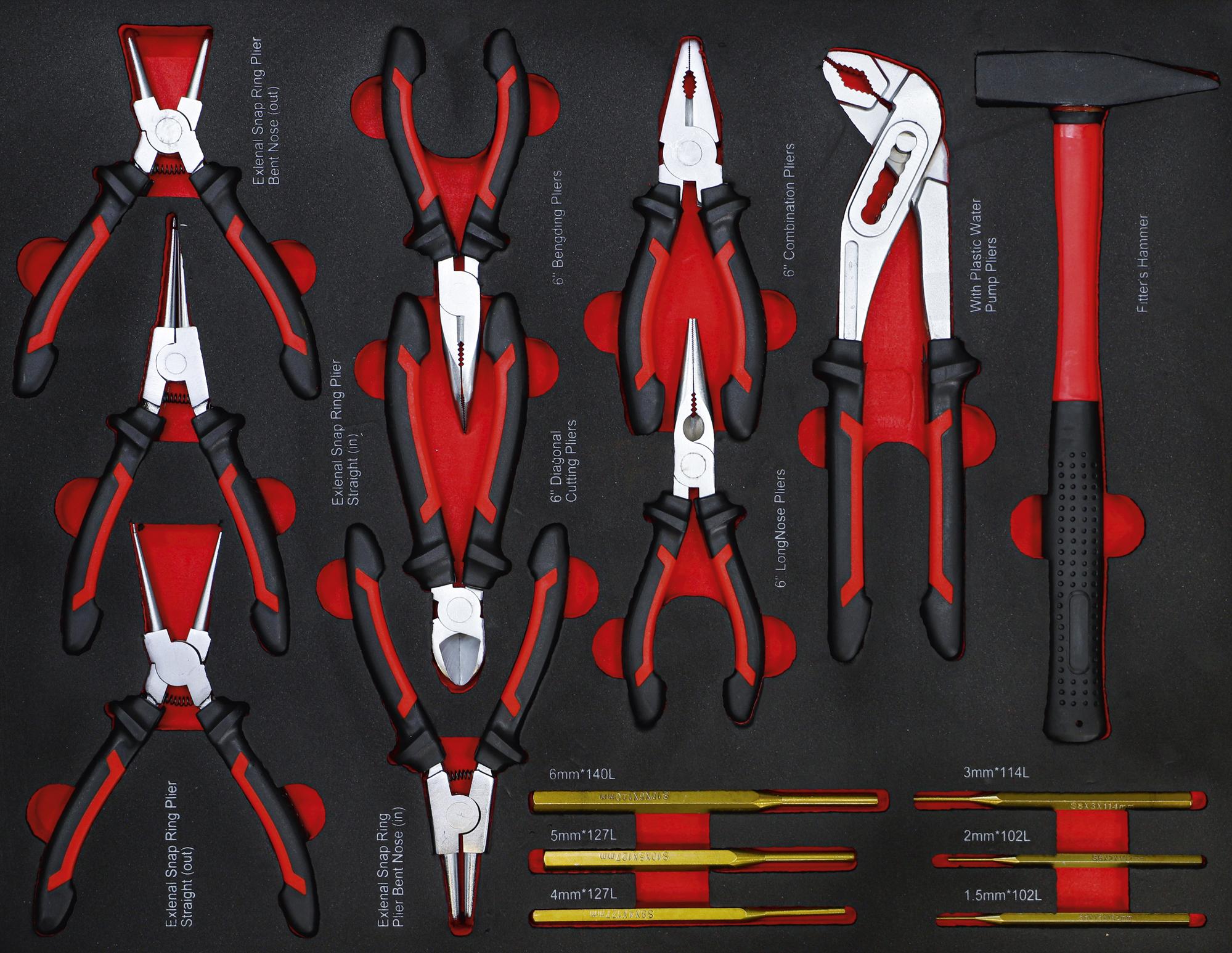

hammer, pliers, pin punches, 16 pcs.
1 circlip pliers for external circlips, angled, 175 mm, opening width max. 29 mm
1 circlip pliers for external circlips, straight, 175 mm, opening width max. 35mm
1 circlip pliers for internal circlips, angled, 175 mm, opening width max. 32 mm
1 circlip pliers for internal circlips, straight, 175 mm, opening width max. 36 m
1 bent nose pliers, 150 mm
1 long nose pliers, 150 mm
1 combination pliers, 150 mm
1 diagonal side cutter, 150 mm
1 water pump pliers, 250 mm
1 machinist's hammer, fibreglass shaft, head wight 300 g
6 pin punches, varnished, 1.5 x 100 mm - 2 x 100 mm - 3 x 110 mm - 4 x 125 mm - 5 x 125 mm - 6 x 140 mm
Technical data
Number of Drawers 6 Piece(s)
Drawer pull-out 100 %
Height 895 mm
Width 760 mm
Depth 460 mm
Drawer width 525 mm
Drawer depth 400 mm
Drawer height 50 mm
Gross weight 81000 g
