Description
Technical data
suitable for thin material made of non-ferrous metal, plastic as well as sheet steel
circular, deburring-free drilling and reaming of sheet metal, pipes and profiles in materials up to 5 mm thickness
deburring up to 2.5 mm material thickness
sheets are centered, drilled, reamed and deburred in a single operation
absolutely smooth running
high cutting performance

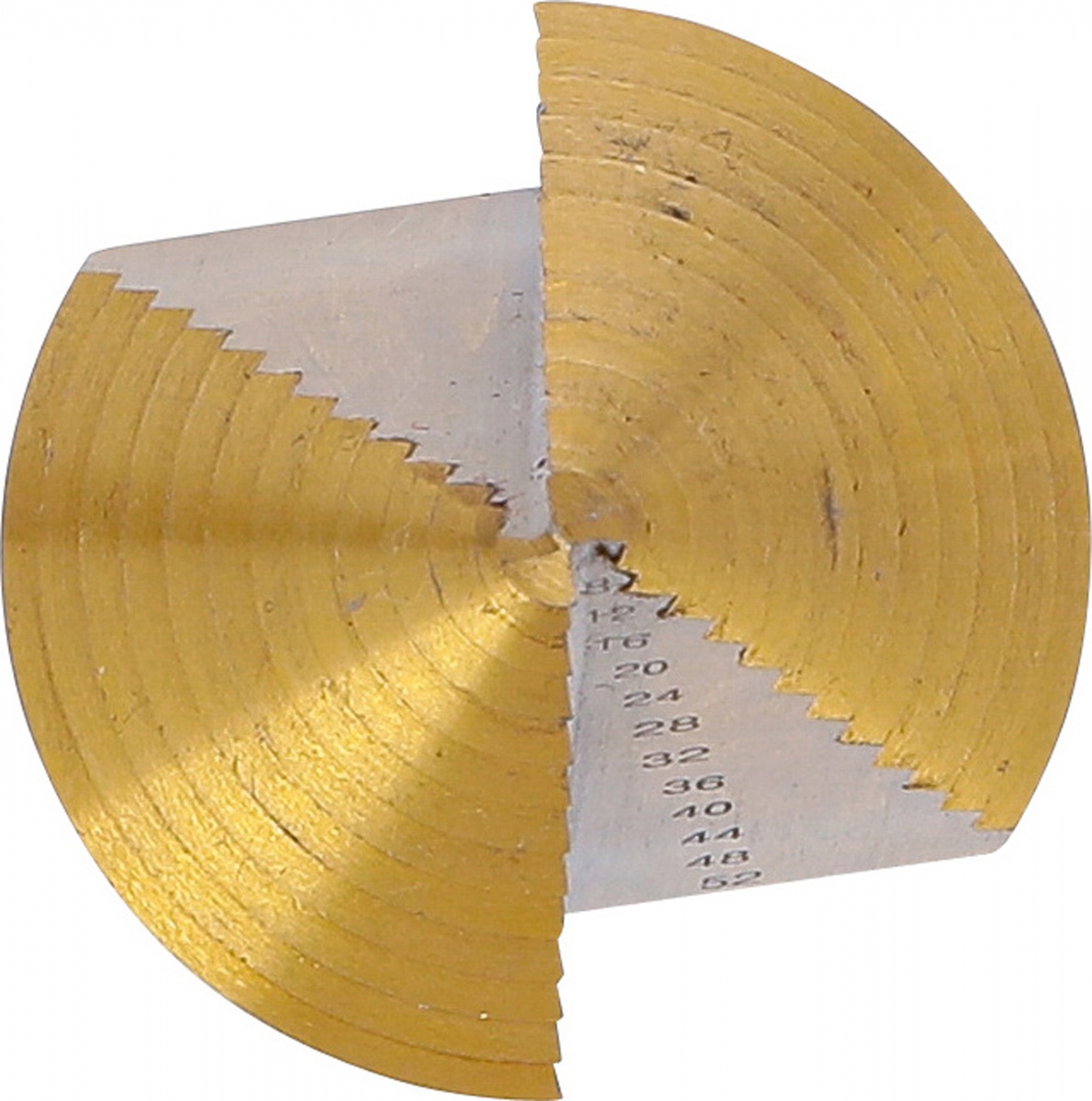

tip with fully ground cross cut
right-hand cutting
with triangular shank (Ø 13 mm) for reliable power transmission

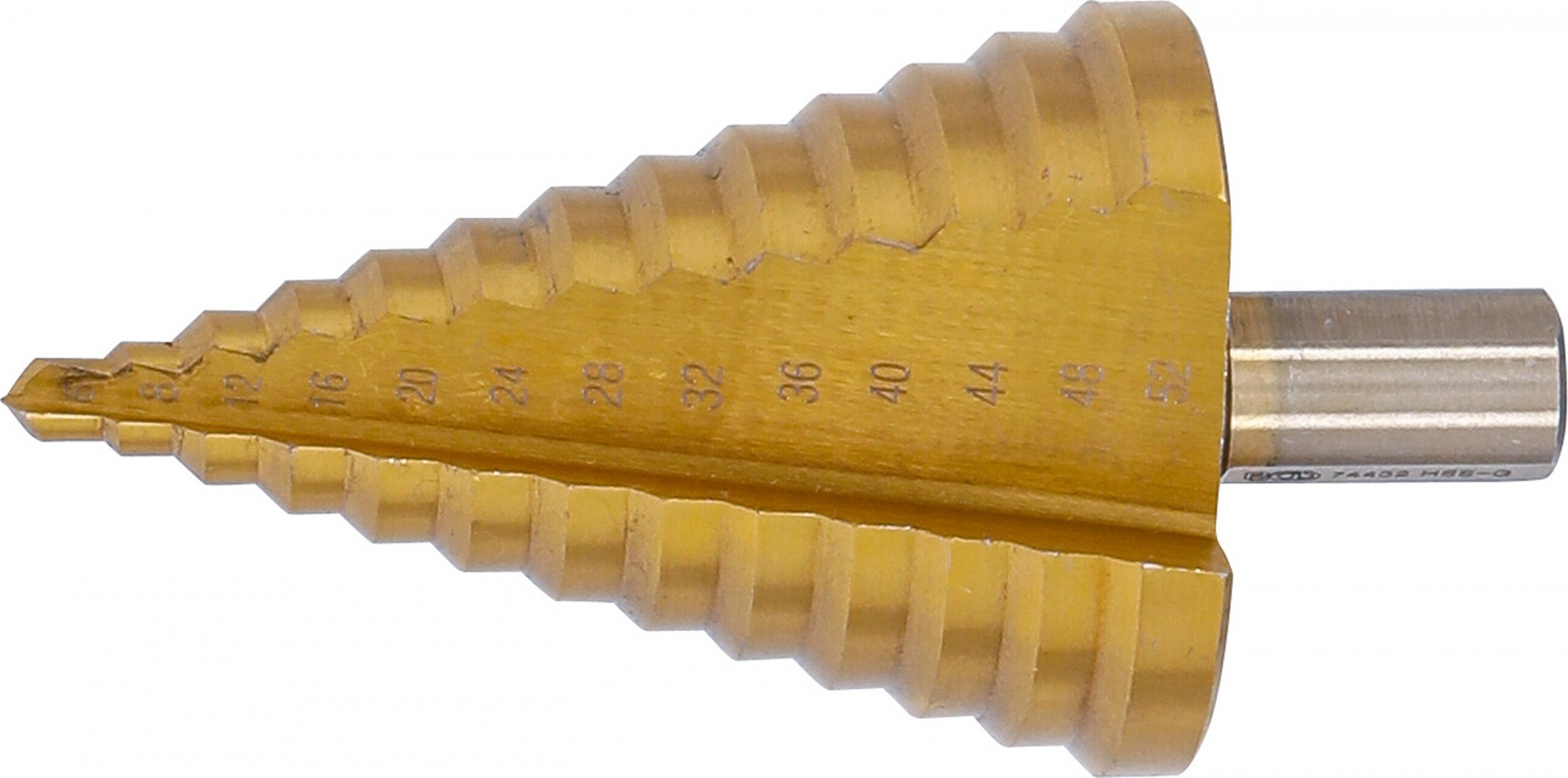

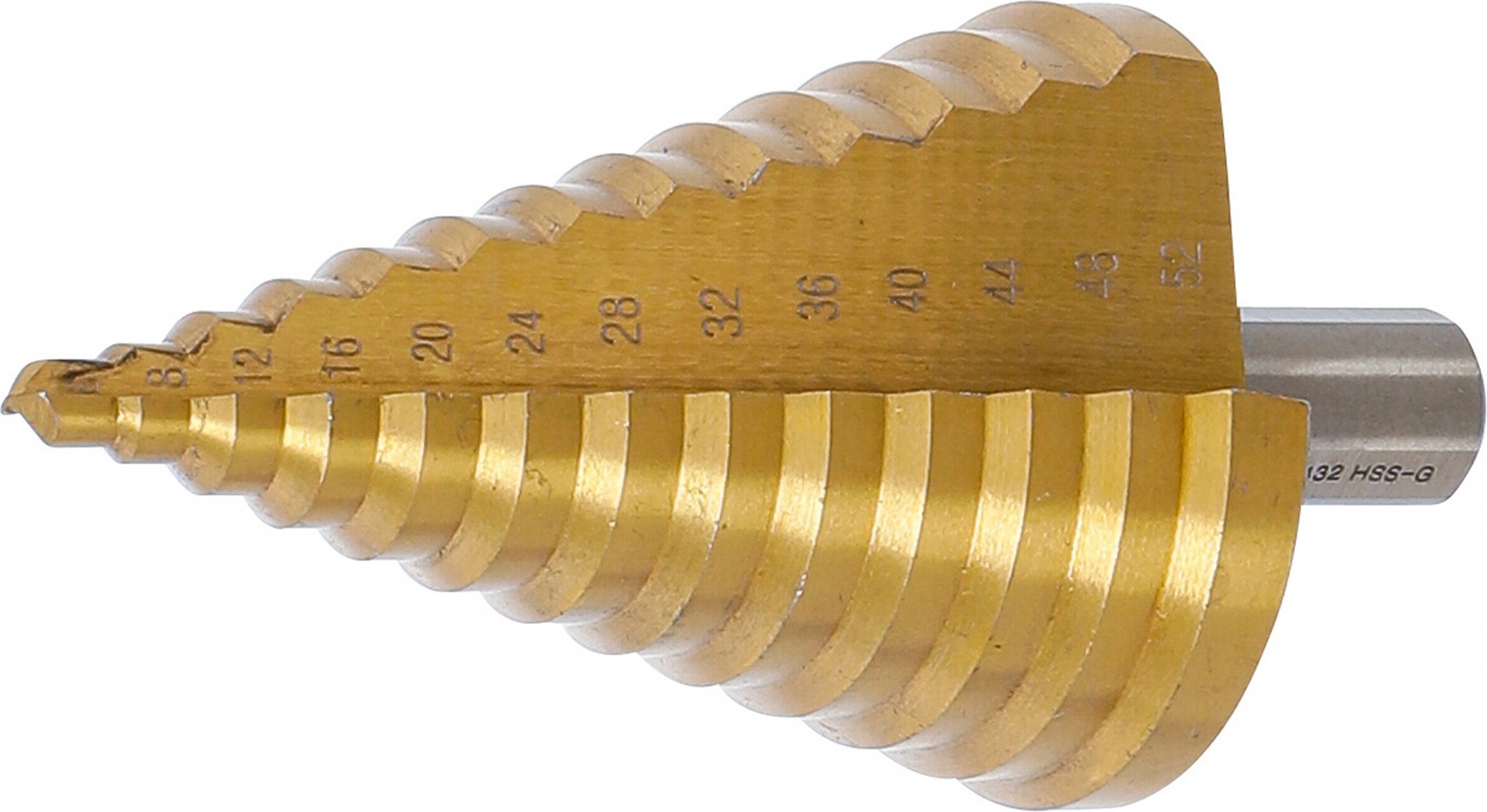

drilling steps: 6, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52 mm
split point: 118°
