Description:
Brand:
Index
YT-08060
Barcode
5906083128776
Unit of measure
PCE
Volume
771.12
Weight
104

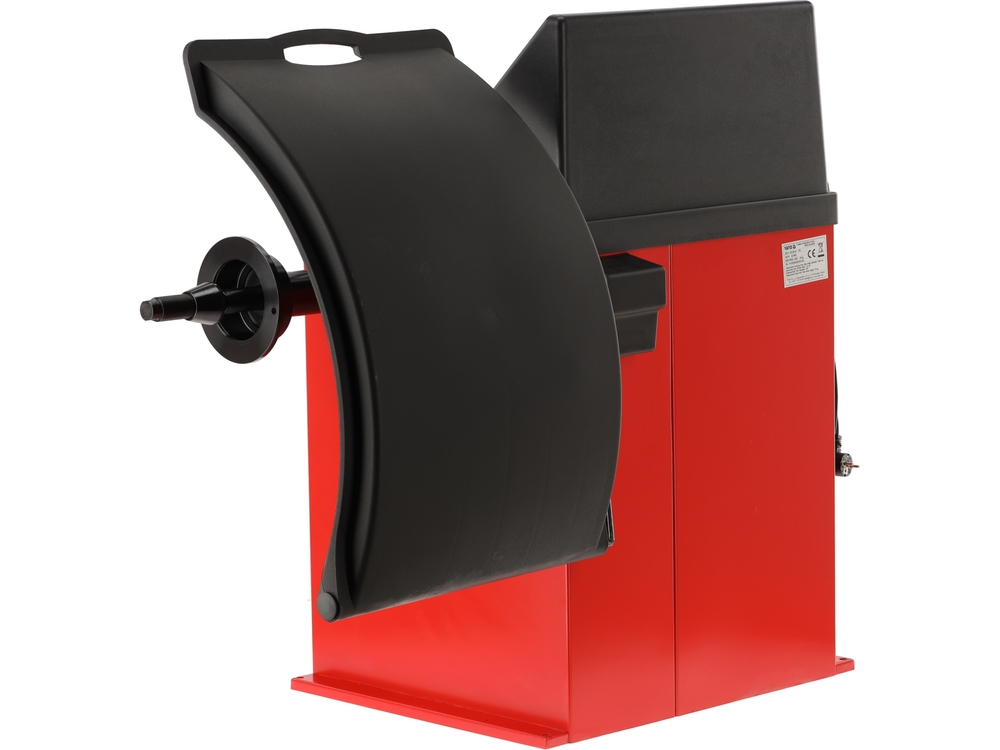

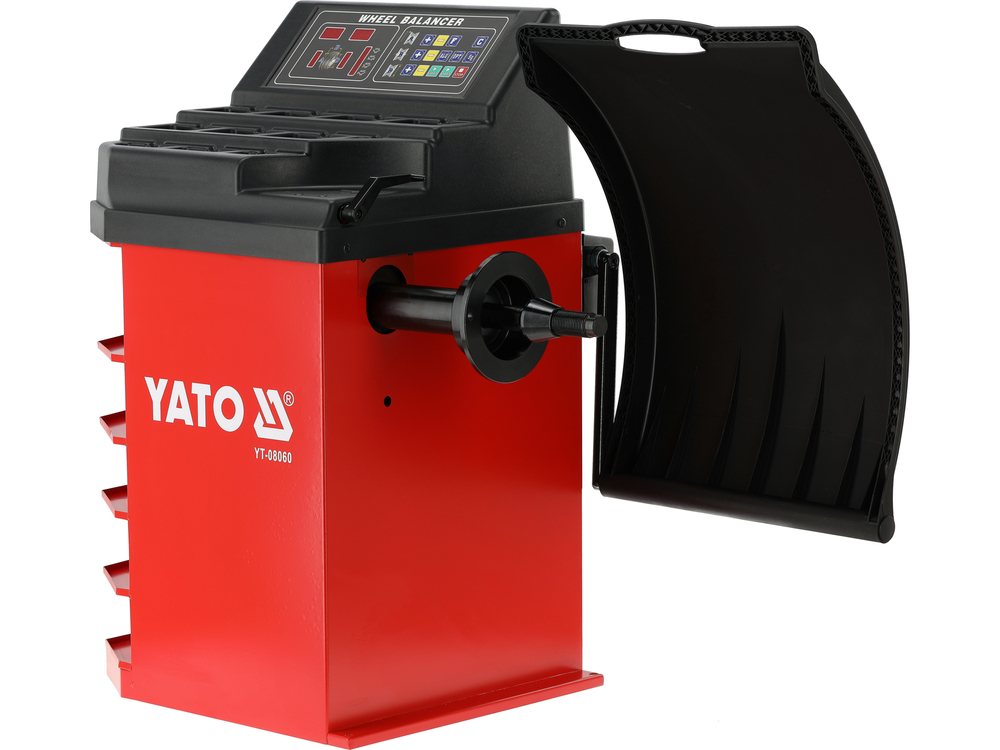

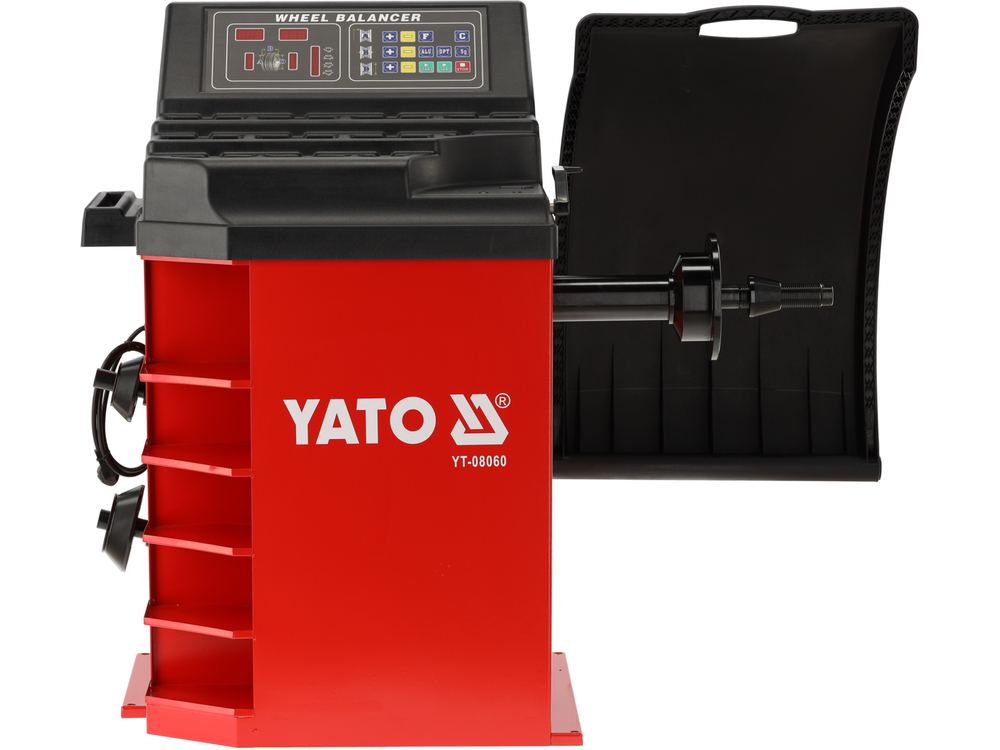

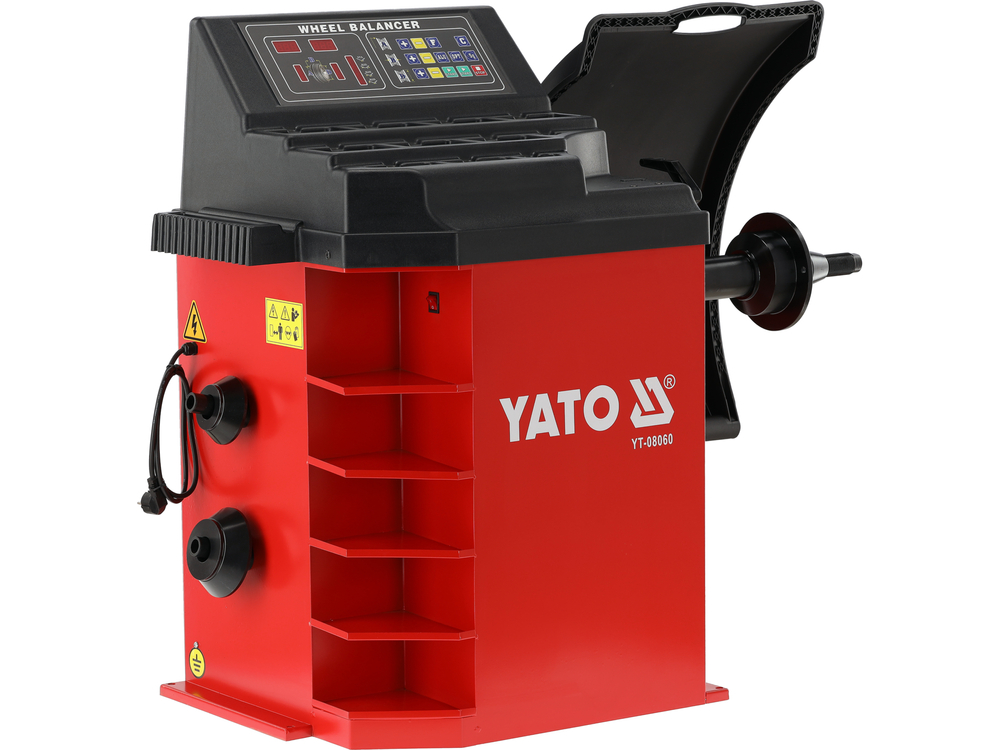

The YT-08060 wheel balancer is designed for precise wheel balancing during tire repair and service work. The device quickly detects imbalances and identifies the locations for corrective weights, improving ride comfort, reducing vibration, and reducing tire and suspension component wear.
The machine is equipped with an electronic measurement system, an easy-to-read control panel, and a protective wheel cover. It supports steel and aluminum rims in a wide range of sizes, offering various balancing modes tailored to the rim type and weight installation method. Short measurement cycle times and high balancing accuracy enable efficient wheel service in a professional workshop environment.
Key Features:
Designed for balancing passenger car and light commercial vehicle wheels
Balancing accuracy of ±1 g
Electronic measuring system with digital display of results
Supports steel and aluminum rims
Automatic positioning of correction weights
Protective cover for increased safety
Control panel with measurement and diagnostic functions
Static and dynamic balancing capabilities
Auto-calibration function
Unbalance optimization function to reduce the number of weights used
Concealed mounting of adhesive weights on aluminum rims possible
Sturdy workshop design with shelves for accessories

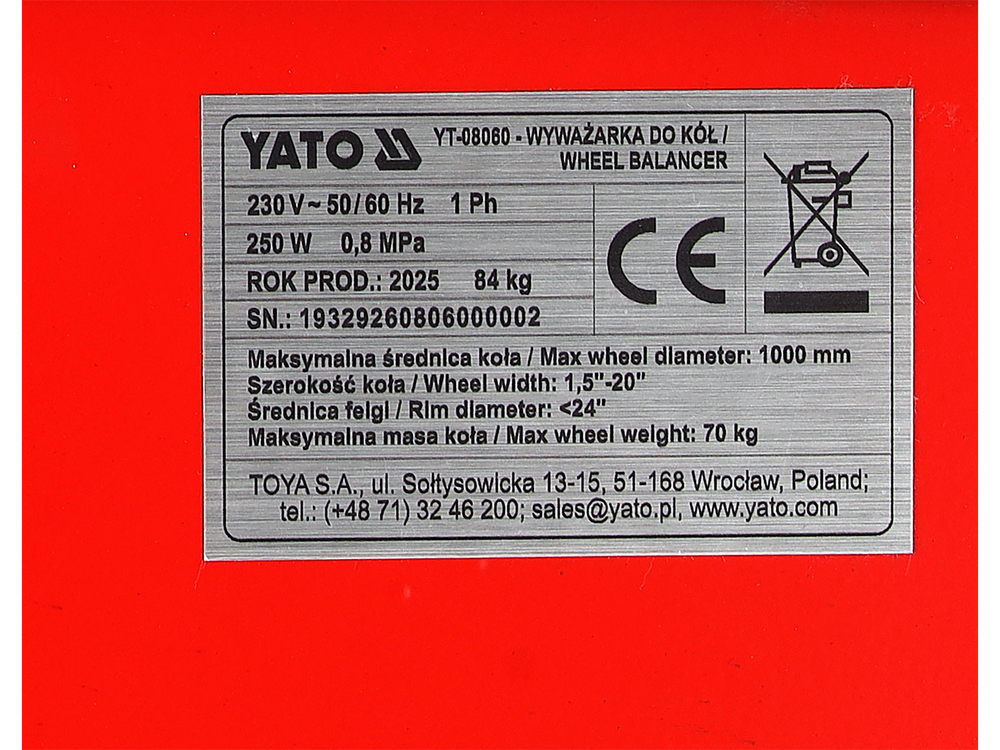

Technical Specifications:
Motor power: 250 W
Working pressure: 0.8 MPa
Number of phases: 1
Balancing accuracy: ±1 g
Balancing speed: 200-250 rpm
Measuring cycle time: 7-9 s
Device weight: 84 kg kg
Working range:
Rim diameter: 10"-24"
Rim width: 1.5"-20"
Maximum wheel diameter: 1000 mm
Maximum wheel weight: 70 kg
Balancing modes:
NORMAL – balancing of steel rims and lightweight aluminum rims with clip-on weights
STATIC – static balancing, suitable for, among others, For motorcycle wheels
ALU1 – balancing aluminum rims with adhesive weights
ALU2 – balancing aluminum rims with concealed weight mounting on the outer side
ALU3 – mixed mode using clip-on and adhesive weights
S (Special) – mode designed for aluminum rims with non-standard geometry
Additional functions:
automatic measurement cycle
reading residual imbalance below 5 g
recalculation of results after wheel parameter changes without the need for re-measurement
tire-rim alignment optimization function
auto-calibration of the measuring system
visualization of the correction weight positions using LED indicators
concealed mounting of adhesive weights behind the rim spokes
Equipment and operating components:

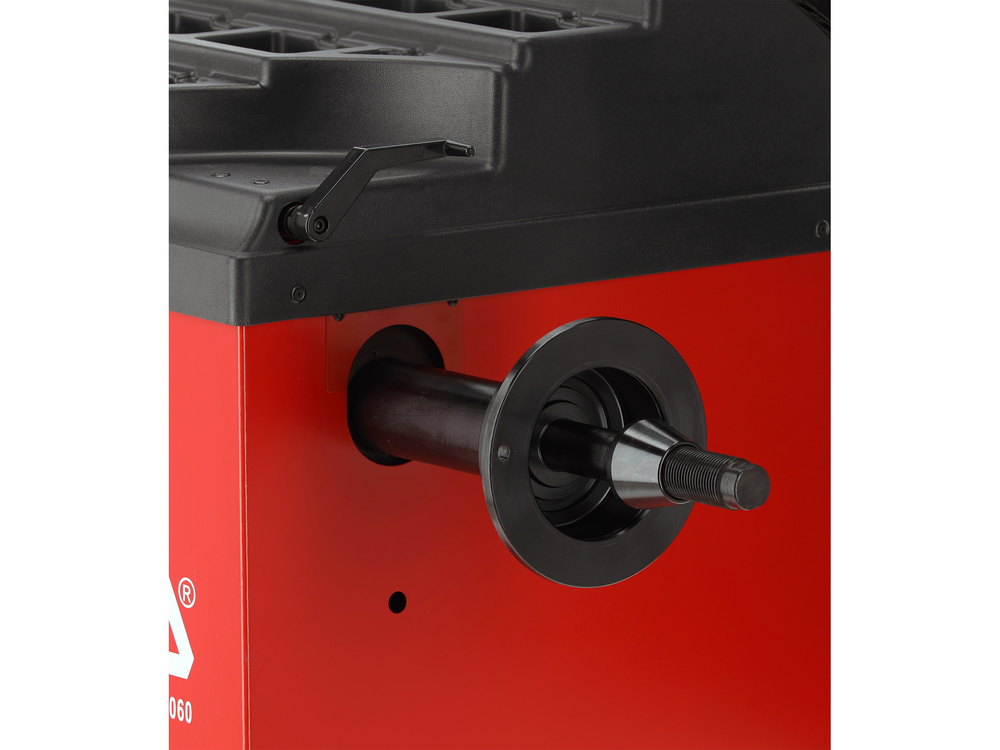

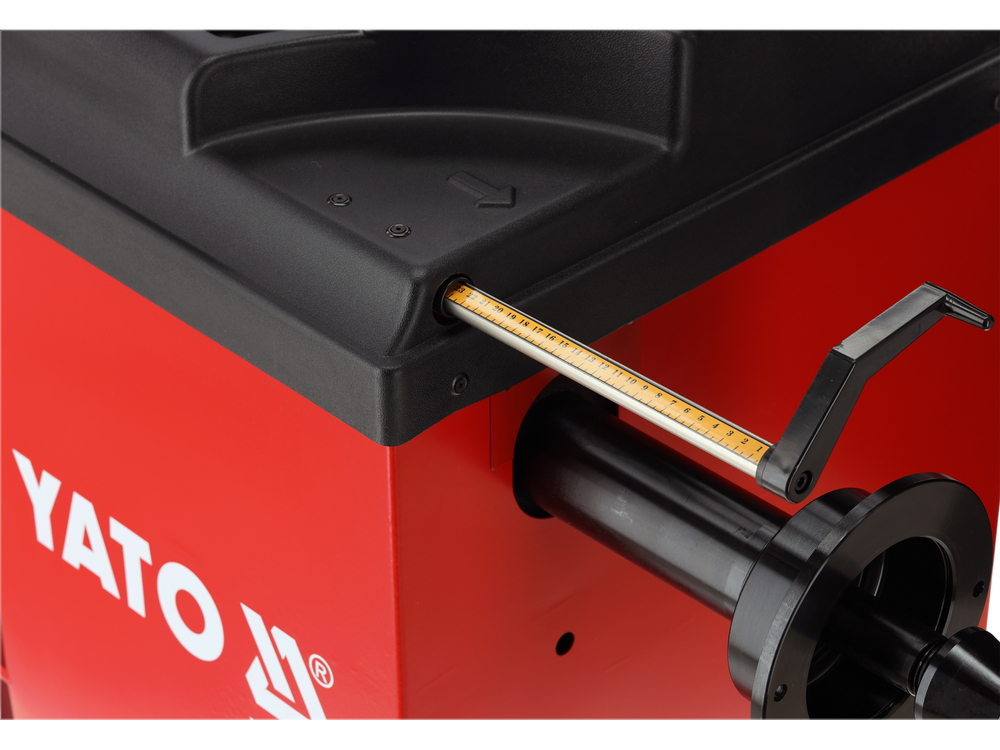

balancer shaft
centering cones
support flange

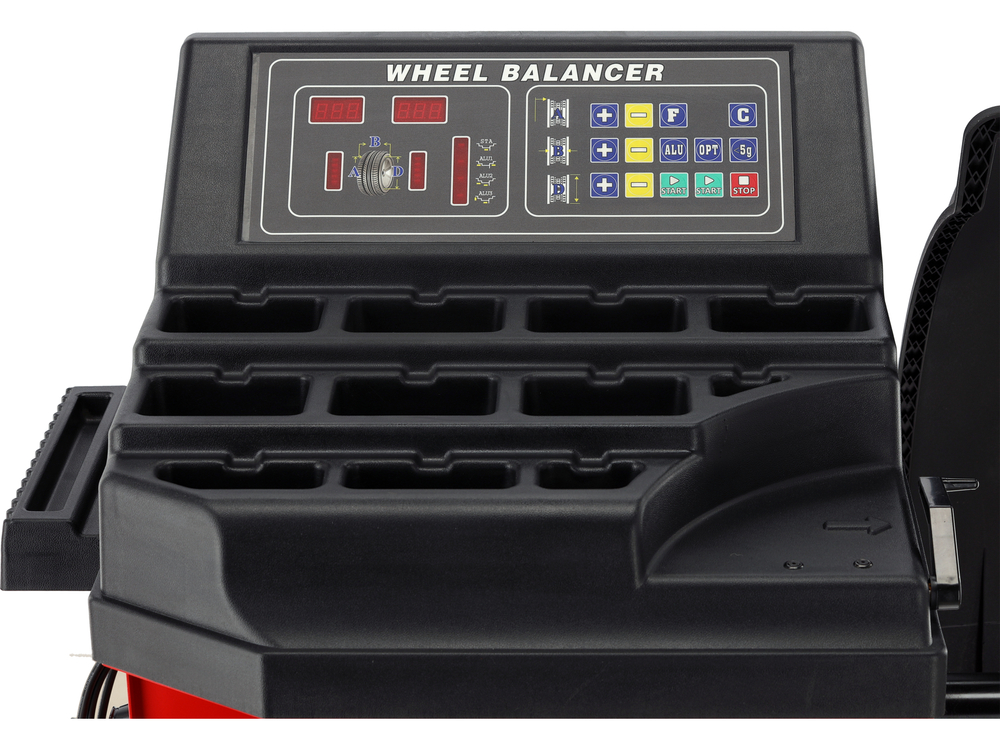

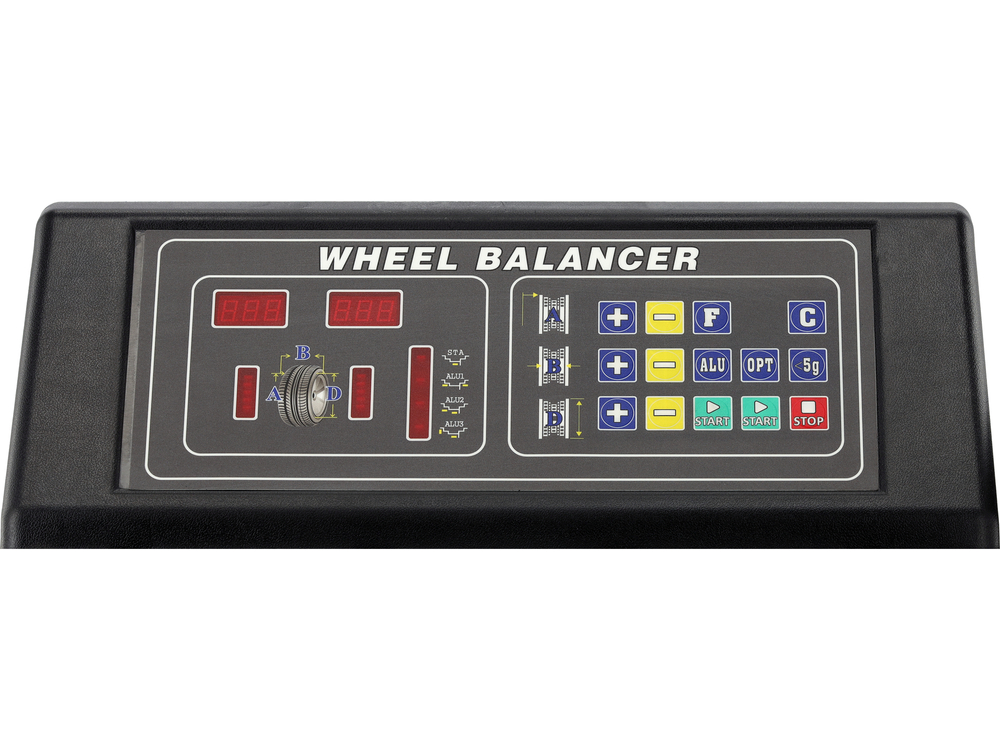

control panel with displays

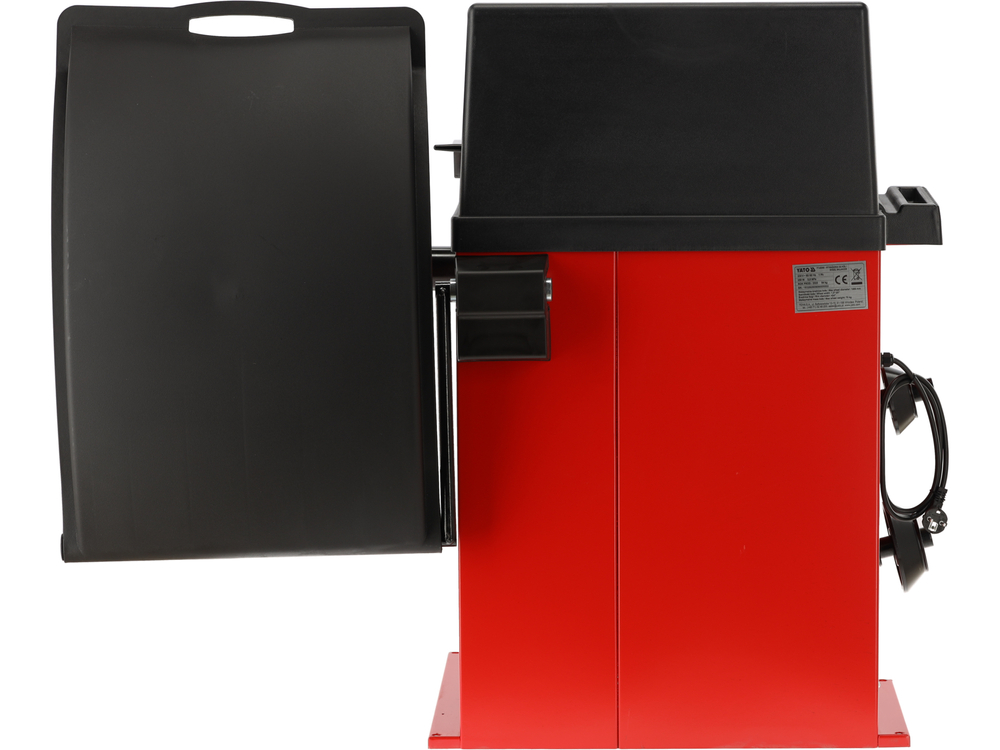

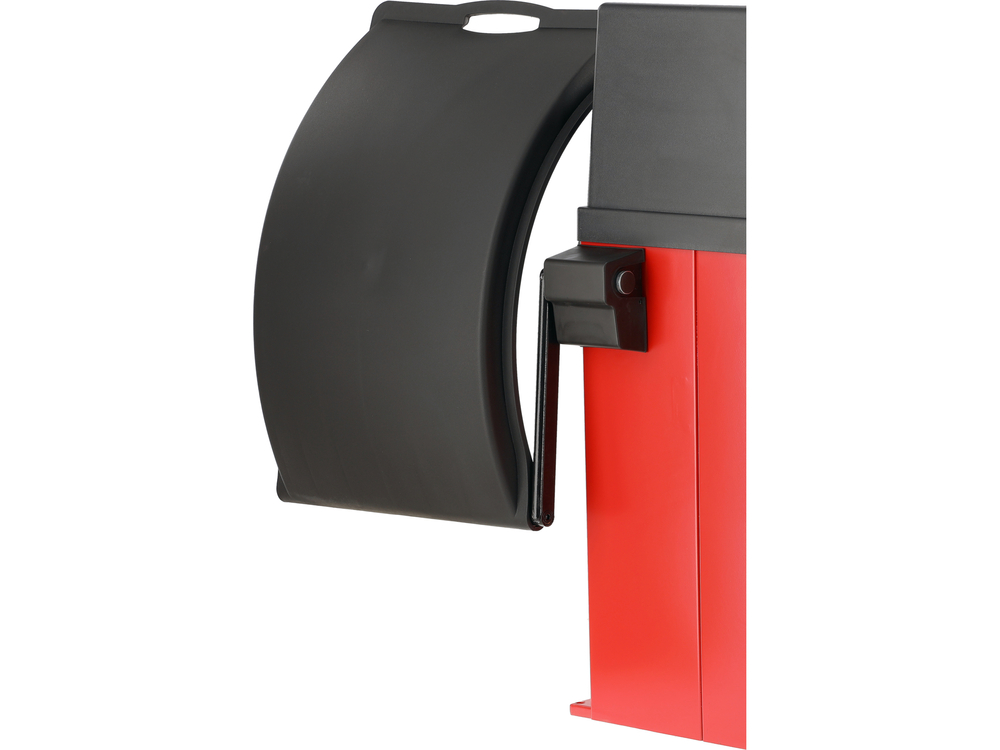

wheel protection cover

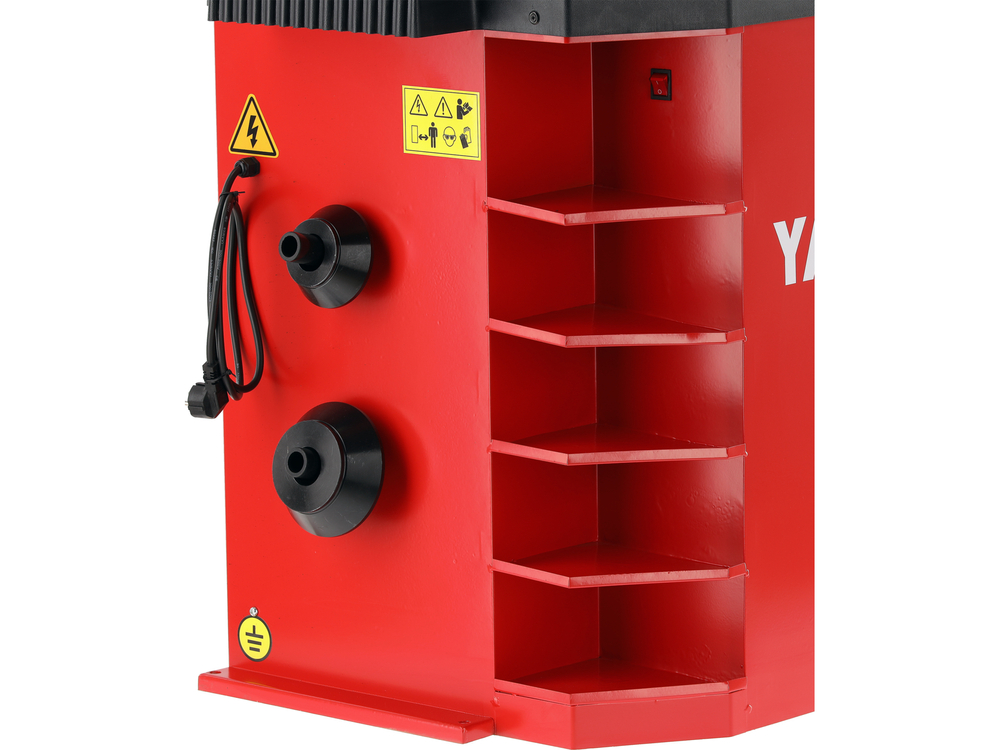

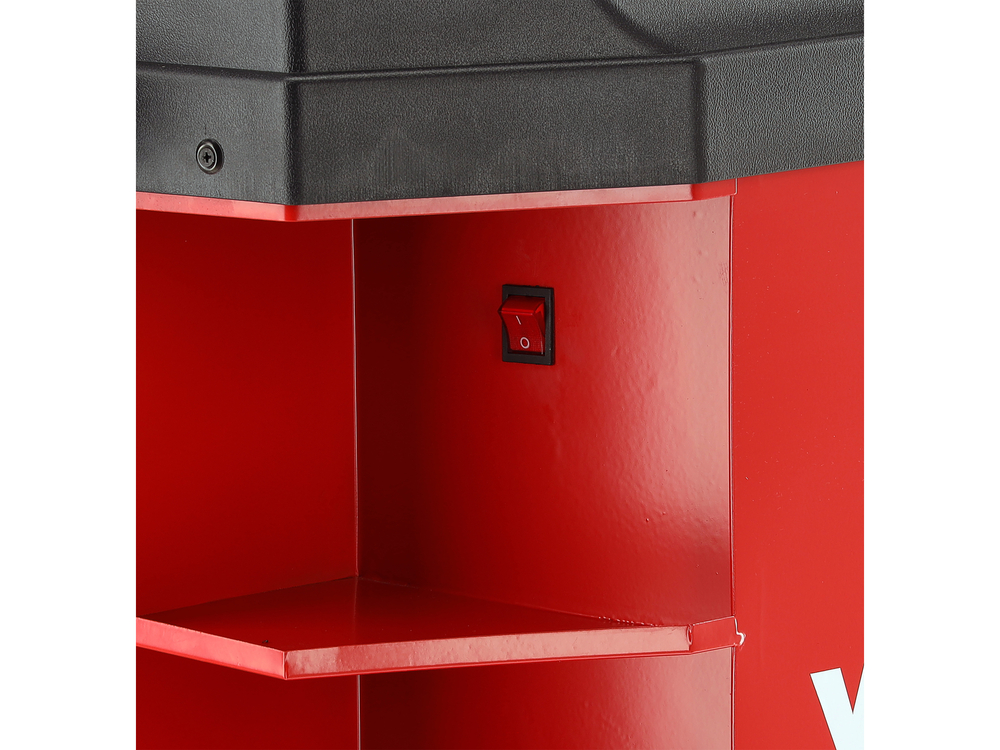

accessory shelves
power cord with plug
