Description:
Brand:
Description

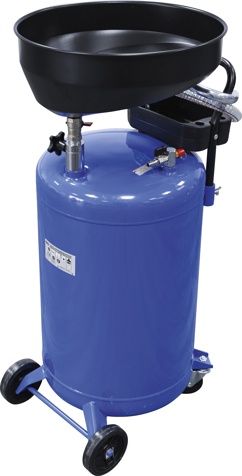

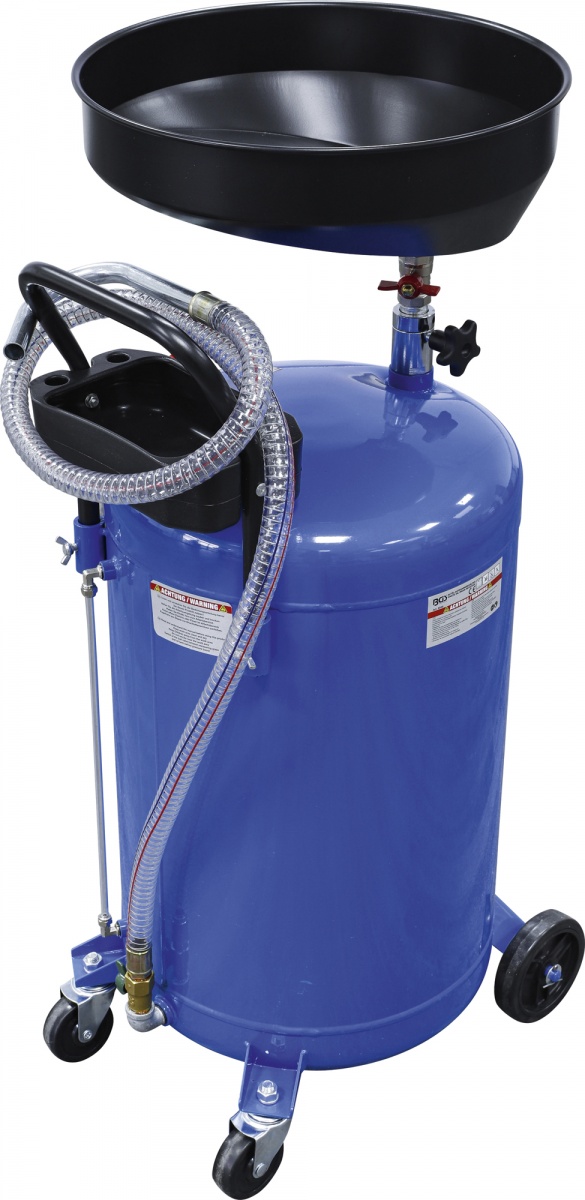

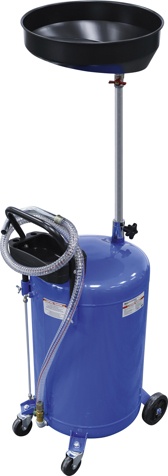

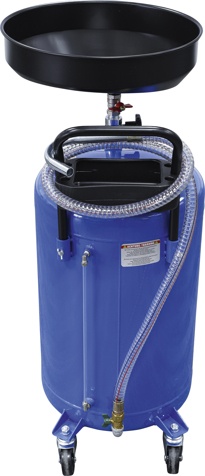

serves to collect engine, transmission, differential oil or antifreeze
pneumatic pressure emptying with safety valve
stop tap and clamping screw for pressure drainage
mobile and steerable container with extra-large plastic wheels
with moving handle
centrally mounted and height-adjustable round drip tray
transparent level indicator with measuring scale
clear fabric hose for emptying the container
collection tank: 380 mm
opening pressure (safety valve): approx. 0.6 bar (8 psi)
collection funnel diameter: max. 420 mm
drainage pipe diameter: 25 mm
drainage pipe length: 720 mm
Technical data
Length 440 mm
Width 520 mm
Height 910 mm
Packaging suitable for wall hanging No
Weight 18 kg
Max. working pressure 6,3 bar
Tank capacity 70 l
Hose length 150 cm
