Description:
Brand:
Index
YT-90333
Barcode
5906083135095
Unit of measure
PCE
Volume
372.294
Weight
94
Attributes
Power
3.2 kW
Rotations
3600 min⁻¹
Power
4.35 KM
Engine (motor) capacity
149 cm³
Functions
emergency switch, hour meter
Tamping foot size
340x290 mm
Fuel type
unleaded petrol E10
Fuel tank capacity
2.8 l
Oil type
SAE 15W-40
Oil tank capacity
0.5 l
Starting type
manual
Engine (motor) type
Loncin LC165F-3H
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Ignition plug type
F7RTC
Cooling
air
Impact force
13.7 kN
Max. jump height
85 mm
Vibration frequency
640-680/10.7-11.3 vpm/Hz
Acoustic pressure
85.39 ± 3.0 dB(A)
Acoustic power
105.26 ± 1.52 dB(A)
Vibrations
42.65 ± 3.0 m/s²
Weight
80 kg
Set includes
vibrating jumper, transport wheels, engine cover
Application
compaction of cohesive soils (clays and silts), sand, gravel, foundation backfill, excavations for water and sewage installations and electrical installations, cable trenches,
Application cont’d
substrates for paving stones, curbs and edging

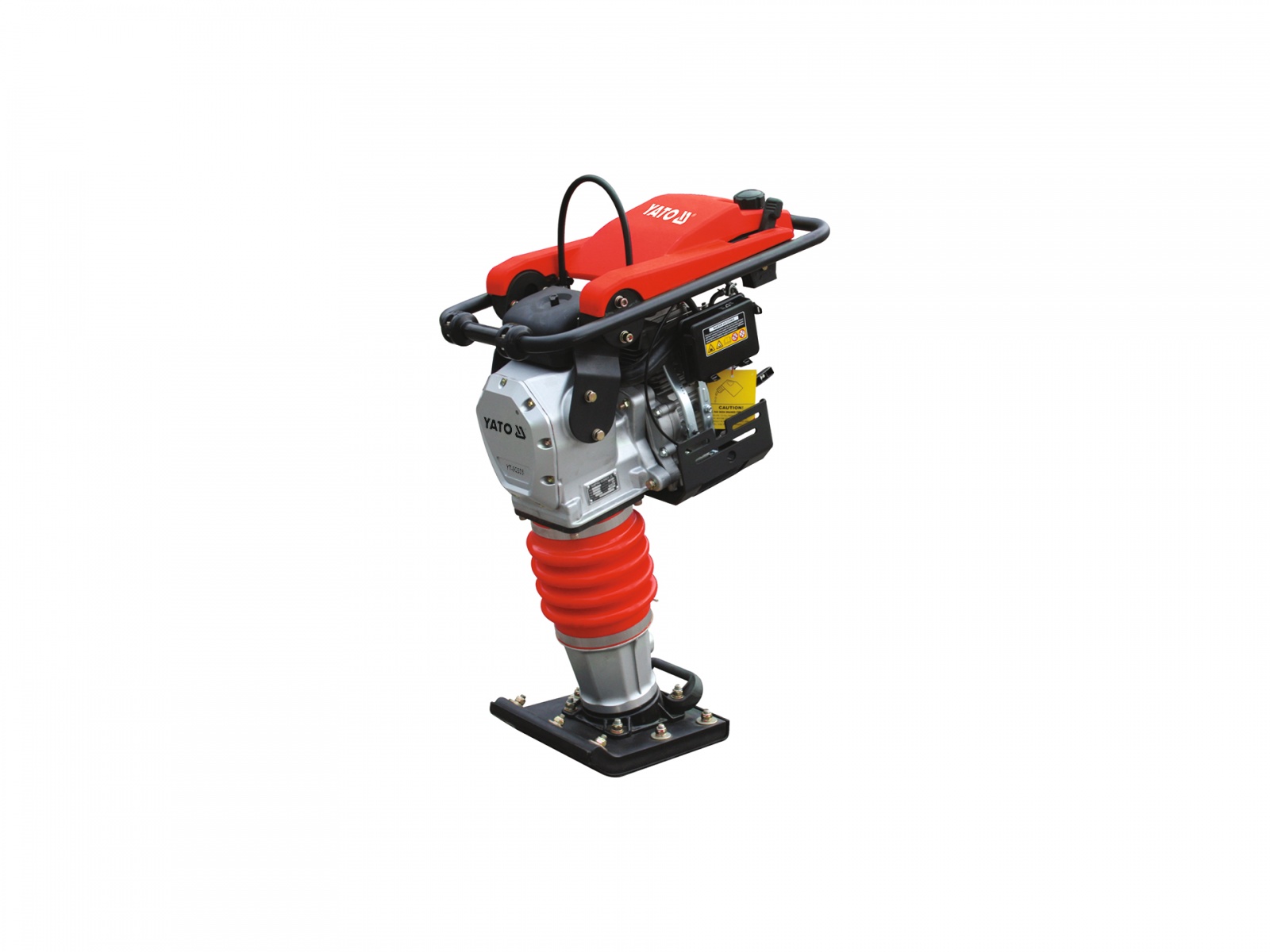

The YATO YT-90333 vibratory rammer is a professional construction machine designed for the intensive compaction of cohesive soils, sand, gravel, and backfill in trenches and confined spaces. An impact force of 13.7 kN, a shoe stroke of up to 85 mm, and an operating weight of 80 kg ensure effective compaction of challenging substrates during earthworks, road construction, paving, and utility installation projects.
The machine is powered by an efficient Loncin LC165F-3H Stage V engine delivering 4.0 HP (3.2 kW). A dual air filter system minimizes the ingress of dust and contaminants into the intake, which is crucial when working in dusty environments. Standard equipment also includes an engine guard, transport wheels, an emergency stop switch, and an hour meter to track operating time and schedule maintenance. Technical specifications:
Type: vibratory rammer
Engine: Loncin LC165F-3H, 4-stroke, single-cylinder
Emission standard: EU Stage V
Engine power: 3.2 kW (4.0 HP)
Engine displacement: 149 cc
Rotational speed: 3600 rpm
Fuel tank capacity: 2.8 l
Maximum impact force: 13.7 kN
Maximum shoe stroke: 85 mm
Impact frequency: 640–680 blows/min
Shoe dimensions: 340 x 290 mm
Noise level: 108 dB
Operating weight: 80 kg
Design and materials:
Loncin LC165F-3H engine ensuring reliable operation and fuel efficiency
Dual air filter preventing dust and contaminants from entering the engine
Durable steel shoe resistant to abrasion and heavy-duty use
Robust engine guard protecting the power unit from mechanical damage
Transport wheels for easy movement around the construction site
Emergency stop switch for quick shutdown when operation needs to be halted
Hour meter for tracking operating time and scheduling maintenance
Shock-absorbing handle to minimize vibration transfer to the operator
Application:
The vibratory rammer is designed for compaction of:
cohesive soils such as clay and silt
sand
gravel
foundation backfill
utility trenches (water, sewage, and electrical)
cable trenches
sub-bases for paving stones, edging, and kerbs
An impact force of 13.7 kN and a shoe stroke of up to 85 mm ensure effective soil compaction during demanding construction tasks. Its compact design makes the unit easy to maneuver in excavations, utility trenches, and other confined spaces.
