Description:
Brand:
Index
YT-90330
Barcode
5906083135088
Unit of measure
PCE
Volume
372.294
Weight
94
Attributes
Power
1 kW
Rotations
3600 min⁻¹
Power
1.36 KM
Engine (motor) capacity
35.8 cm³
Tamping foot size
280x145 mm
Fuel type
unleaded petrol E10
Fuel tank capacity
0.7 l
Oil type
SAE 10W-40
Oil tank capacity
0.08 l
Starting type
manual
Engine (motor) type
Honda GX35
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Ignition plug type
CMR5H
Cooling
air
Impact force
9.1 kN
Max. jump height
50 mm
Vibration frequency
790/13.2 vpm/Hz
Acoustic pressure
83.90 ± 3.0 dB(A)
Acoustic power
103.73 ± 1.55 dB(A)
Vibrations
4.32 ± 3.0 m/s²
Weight
34 kg
Application
compaction of cohesive soils (clay, silt), sand, gravel, backfill around foundations, excavations for installations, cable and sewage trenches, substrate for paving stones and curbs

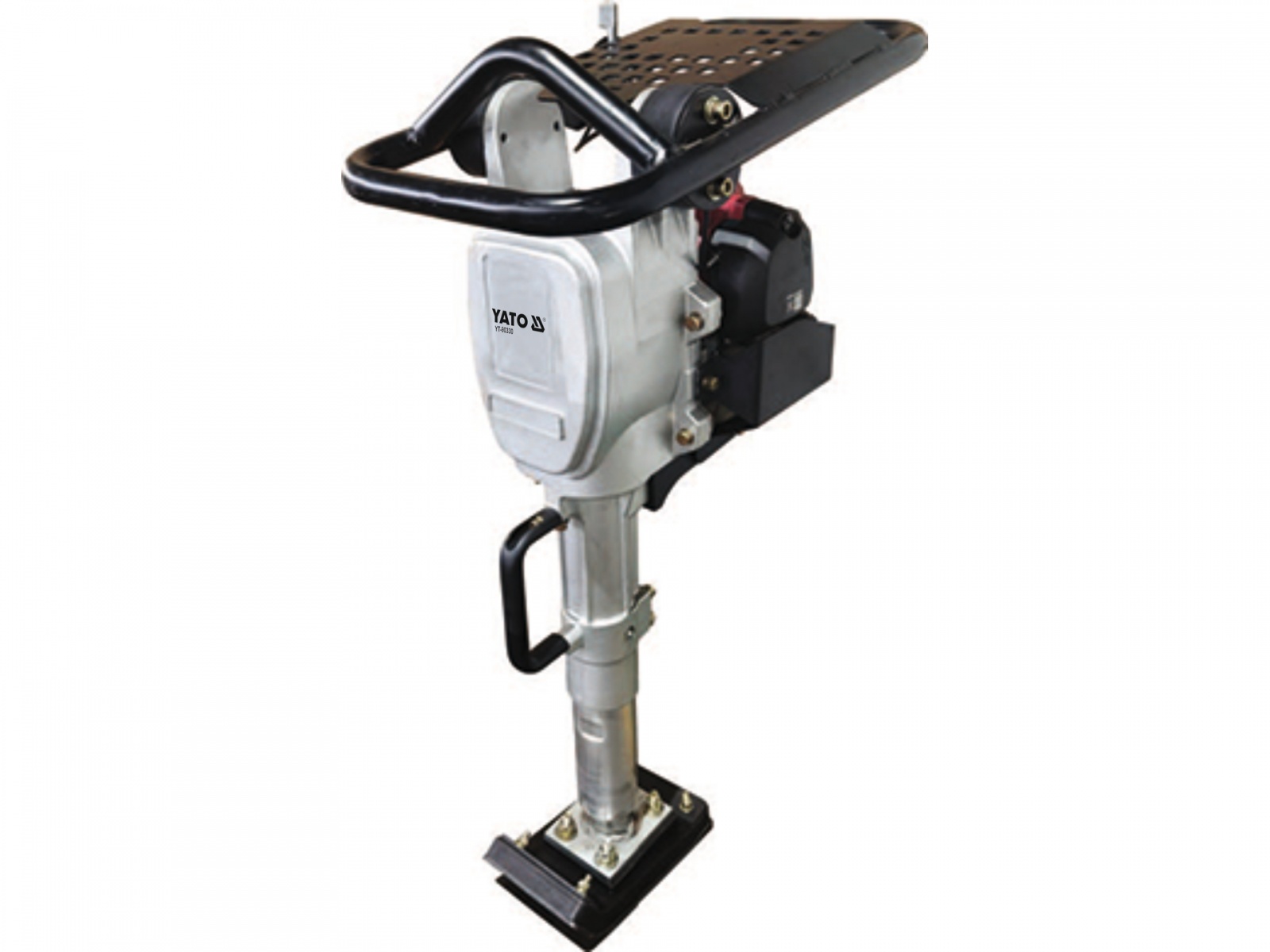

The YATO YT-90330 vibratory rammer is a professional construction machine designed for compacting cohesive soils, sand, gravel, and backfill in areas inaccessible to plate compactors. Its low weight of 34 kg and narrow 280 × 145 mm shoe make it easy to maneuver in trenches, utility ditches, near foundations, and in other confined spaces.
The unit is powered by a 1.0 kW (1.3 HP) Honda GX35 Stage V four-stroke engine, ensuring easy starting, low fuel consumption, and smooth, reliable operation. An impact force of 9.1 kN, a shoe stroke of up to 50 mm, and an operating frequency of 700–790 blows/min ensure effective soil compaction. A vibration-dampened handle minimizes vibration transfer to the operator, while a sturdy frame protects the engine and components during operation and transport. Technical specifications:
Type: vibratory rammer
Engine: Honda GX35, 4-stroke
Emission standard: EU Stage V
Engine power: 1.0 kW (1.3 hp)
Engine displacement: 35.8 cm³
Rotational speed: 3600 rpm
Fuel tank capacity: 0.7 l
Maximum impact force: 9.1 kN
Maximum shoe stroke: 50 mm
Impact frequency: 700–790 blows/min
Shoe dimensions: 280 x 145 mm
Noise level: 108 dB
Operating weight: 34 kg
Design and materials:
Honda GX35 engine ensuring reliable operation, easy starting, and low fuel consumption
Durable steel shoe resistant to abrasion and heavy-duty use
Robust protective frame safeguarding the engine and components during operation and transport
Cushioned handle reducing vibration transmitted to the operator
Efficient impact mechanism ensuring effective soil compaction
Compact design facilitating work in narrow and hard-to-reach areas
Applications:
The vibratory rammer is designed for compacting:
Cohesive soils such as clay and loam
Sand and gravel
Backfill around foundations
Utility trenches
Cable and sewer trenches
Sub-base for paving stones and curbs
Low weight and compact shoe ...with a width of 145 mm allow for precise maneuvering of the machine in narrow trenches and other confined spaces. The rammer is ideal for situations where using a larger plate compactor would be difficult or impossible.
