Description:
Brand:
for counterholding the vibration damper
required for loosening and tightening the central screw on the crankshaft pulley
for hand operation

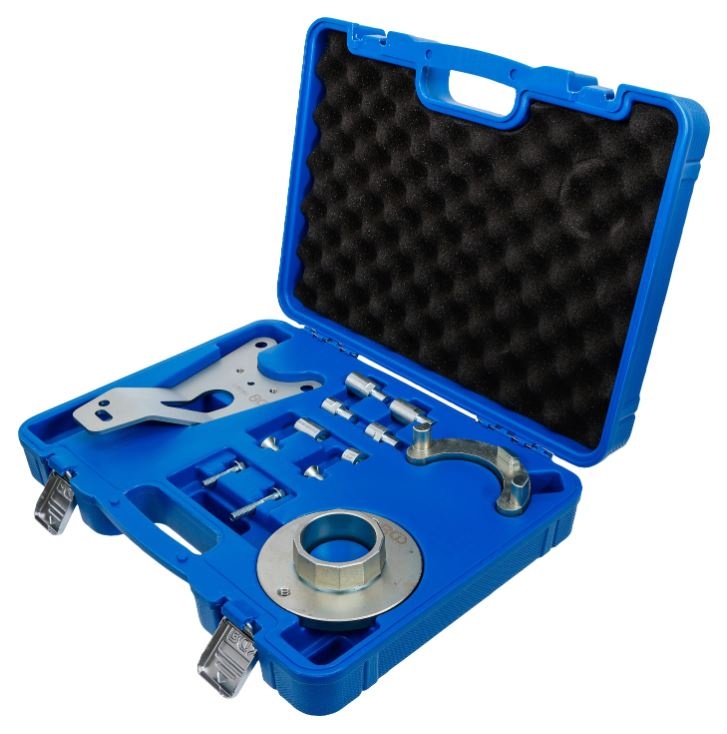

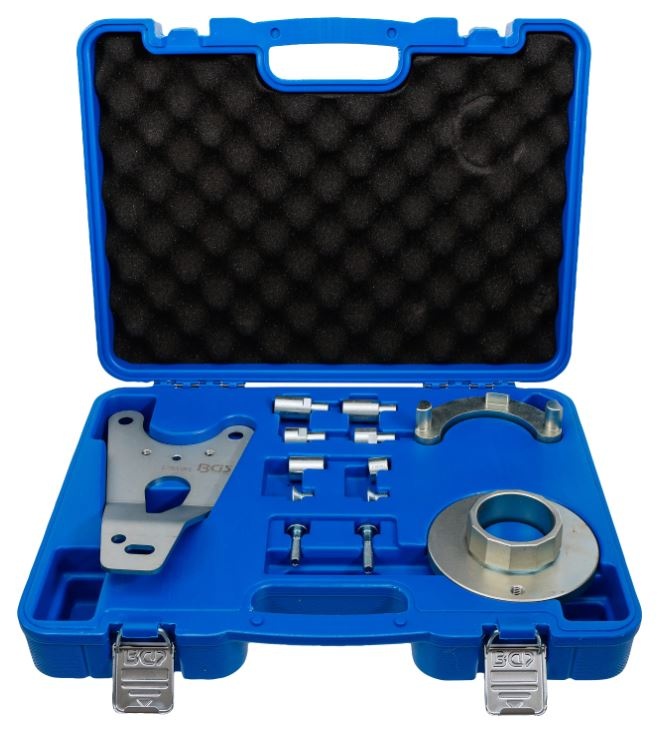

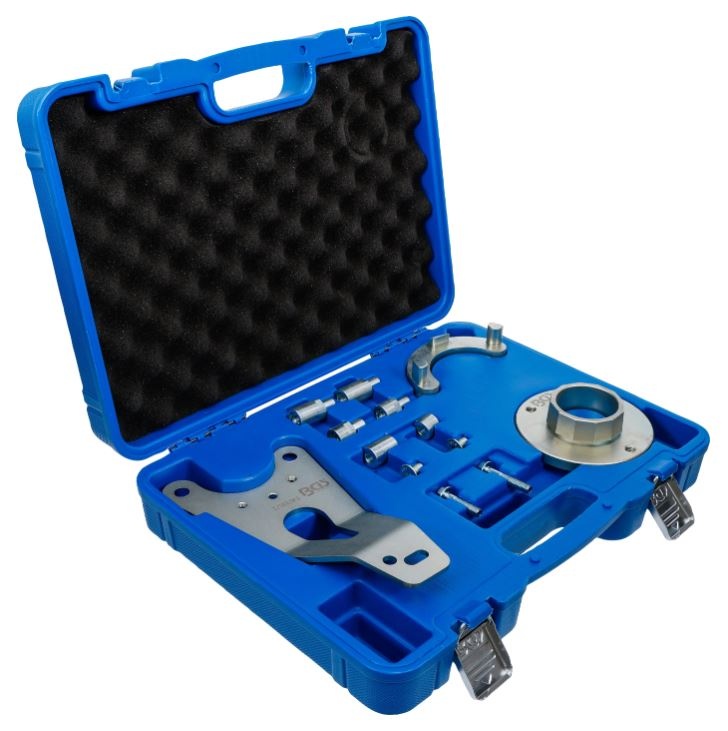

the tool is protected in the plastic compartment and stowed in the recess in a non-slip manner

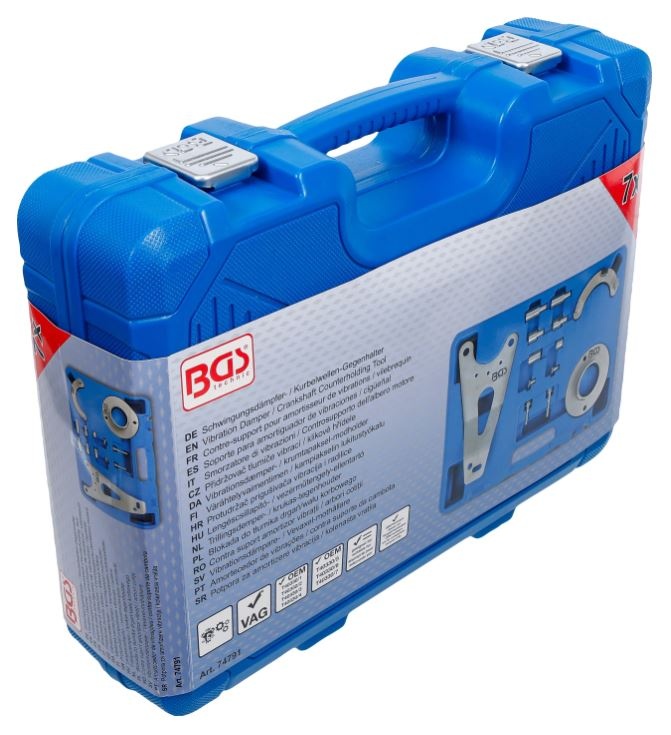

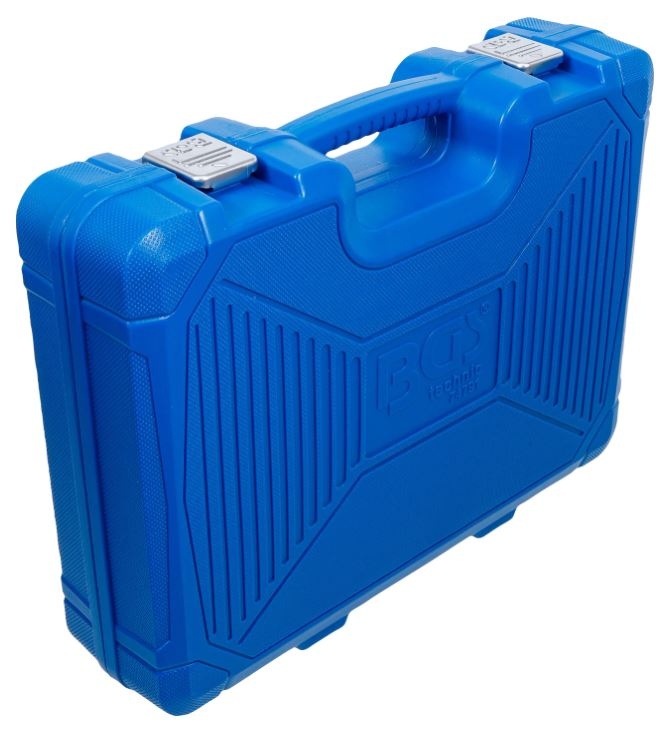

safe and tidy storage in blow mold case
suitable for:
VAG models with EA825, EA837 and EA839 generation engines
for the following vehicle models and engines:
Audi RS4 B9, RS5 F5, RS6, A6 C8, A7 C8, A8 D5, Q7, Q8, SQ5 FY
2.9L TFSI biturbo: DCAB, DECA
3.0L TFSI Turbo: CWGD, CZSE, DLZB, DCBE, DCBD, EALD
4.0L TFSI Turbo: CWWB, DCUE, DHUB, DJPB, DWRB
Volkswagen Touareg III
2.9L TFSI twin-turbo: DCAB, DECA, DRGC, MDC.AB, MDG.PA, MCS.ZA
3.0L TFSI Turbo: CWGD, DLZB, DCBE, MDC.BE, MCX.TA
Porsche Macan (95B) GTS, Cayenne III, Panamera II
Volkswagen Touareg
2.9L TFSI twin-turbo: MDC.AB, MDG.PA, MCS.ZA
3.0L TFSI Turbo: MDC.BE, MCS.ZA, MCX.TA

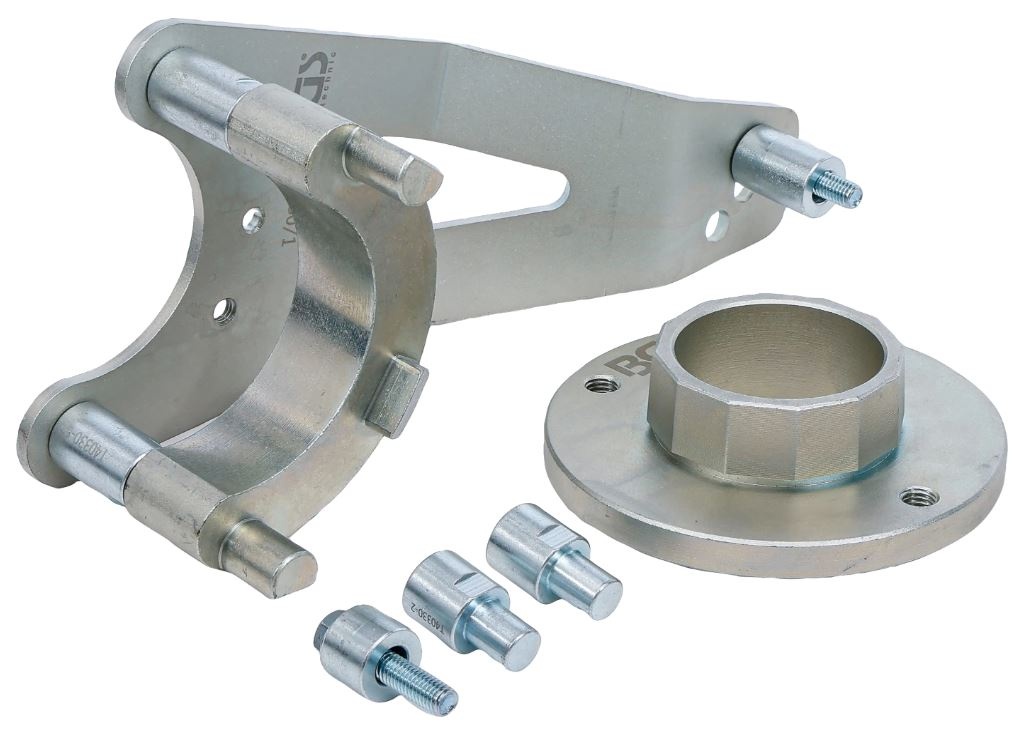

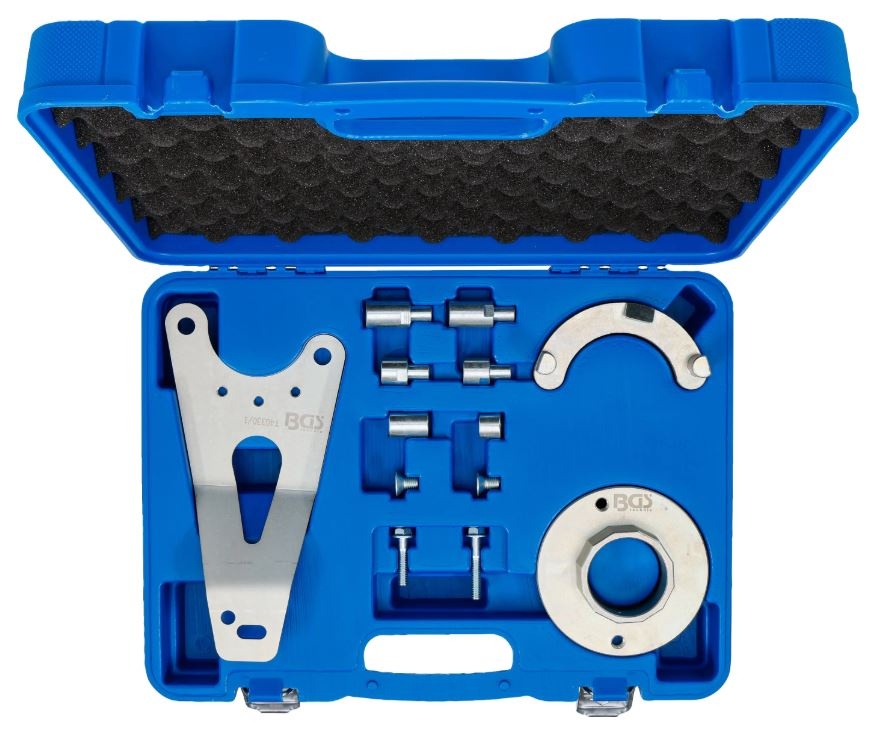

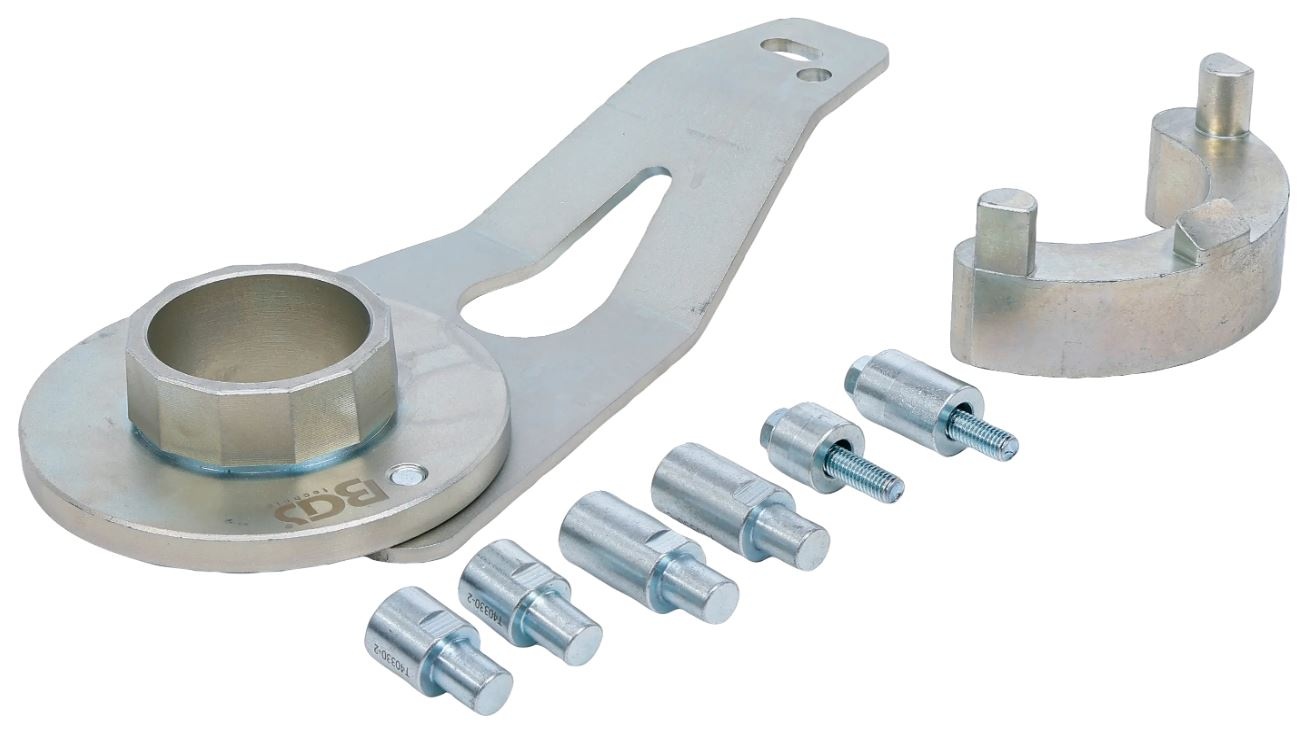

Scope of delivery:
1 base plate, to be used as OEM T40330/1
2 retaining bolts, short, to be used as OEM T40330/2
1 spacer sleeve with screw, short, to be used as OEM T40330/3
1 retaining ring for 3-hole fixing, to be used as OEM T40330/4
1 retaining plate, internal dodecagon, to be used as OEM T40330/5
2 retaining bolts, long, to be used as OEM T40330/6
1 spacer sleeve with screw, long, to be used as OEM T40330/7
2 fixing screws for retaining bolts
Warnings and Safety Instructions
Risk of injury: To avoid injury, use special tools only for the intended tasks. Make sure that the tool is in perfect condition before using it. Wear protective gloves and goggles to protect yourself from flying parts.
To be used as OEM1:
Audi
T40330/1
T40330/2
T40330/3
T40330/4
T40330/5
T40330/6
T40330/7
To be used as OEM2:
Seat
T40330/1
T40330/2
T40330/3
T40330/4
T40330/5
T40330/6
T40330/7
To be used as OEM3:
Å koda
T40330/1
T40330/2
T40330/3
T40330/4
T40330/5
T40330/6
T40330/7
To be used as OEM4:
Volkswagen
T40330/1
T40330/2
T40330/3
T40330/4
T40330/5
T40330/6
T40330/7
Packaging suitable for wall hanging:
No
Number of parts:
10
Package dimensions (LxwxH) :
428 x 317 x 109 mm
Gross weight: 4.418 kg
Deutschland / Germany
