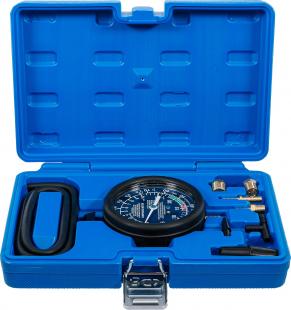

Vacuum and Fuel Pump Tester (9069)

(2)

Description:

Description
for checking mechanical fuel pumps, fuel lines and for leakage test on throttle valves, intake manifolds, vacuum hoses, etc.
pressure / vacuum gauge with rubber bumpers and hanging hook, Ø 89 mm
includes flexible hose and adaptor
vacuum measuring range: 0 - 25 in HG (0 - 70 cm HG)
pressure measuring range: 0 - 0.7 kg/cm² (0 - 10 psig)
Technical data
Gross weight 822 g
