Description

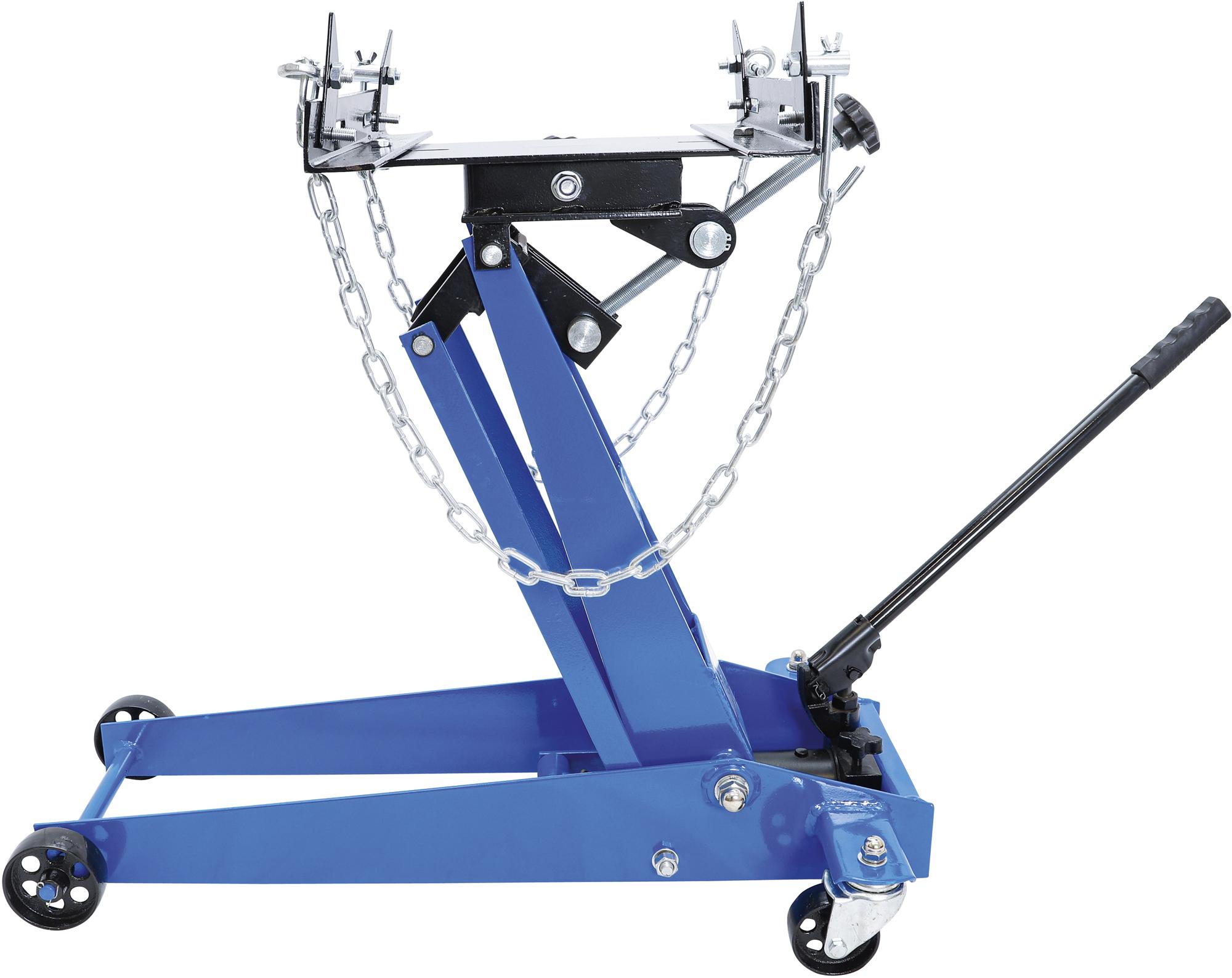

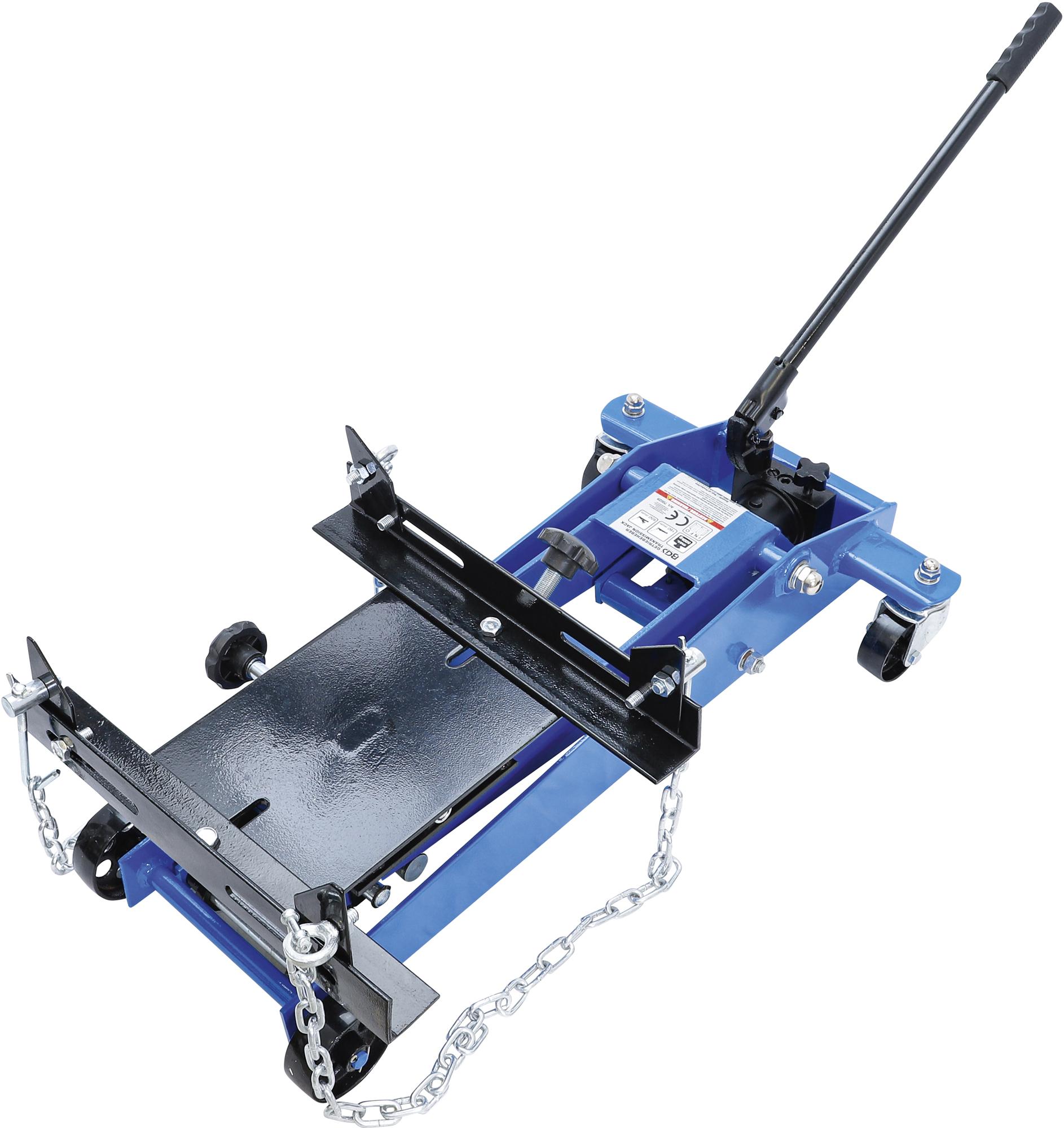

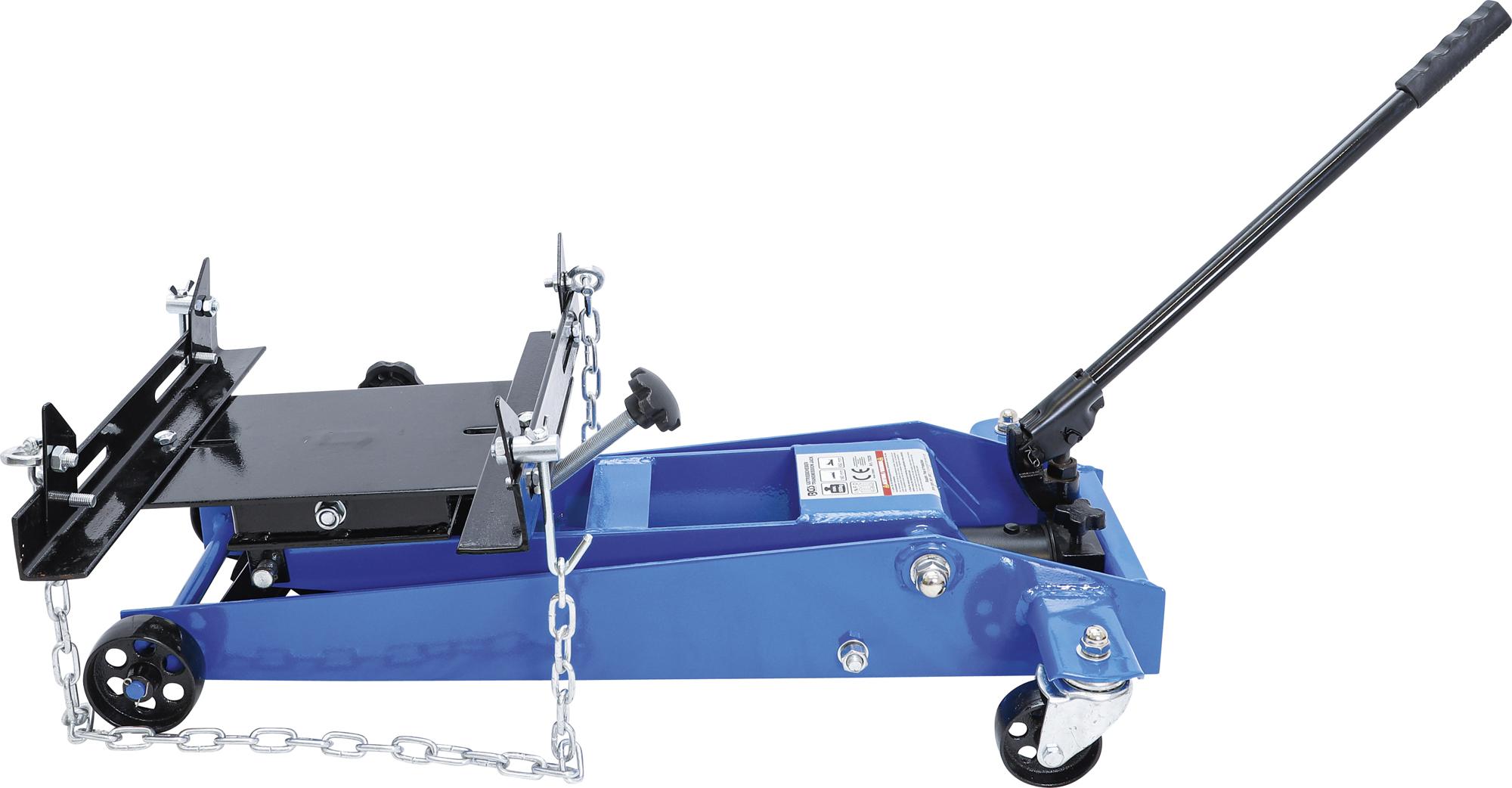

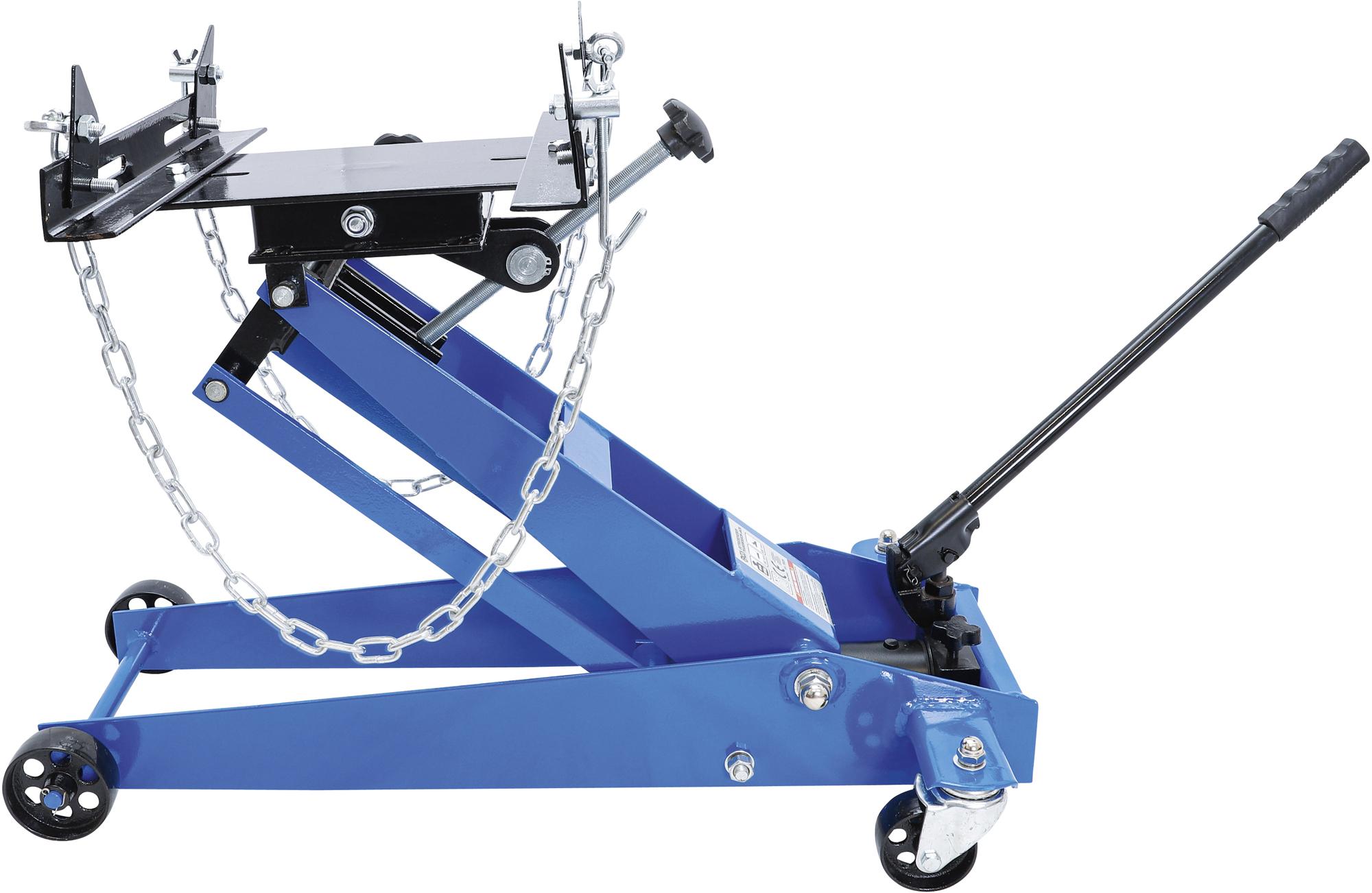

for assembling and disassembling engines, gearboxes and rear axles
heavy duty version
for uncomplicated lifting by using a hydraulic hand pump
stepless regulation and precise positioning
extra deep working area
loads can be lowered in a controlled manner
with safety valve
head plate angle and inclination adjustable by using knurled screws
including wide retaining rails (400 mm) with retaining chains (790 mm) for securing the transmission / gearbox
the distance between the holding rails can be adjusted individually from 235 to 335 mm
good maneuverability with 4 oil and acid-proof metal castors
2 fixed castors Ø 88.5 mm
2 swivel castors Ø 75 mm
dimensions of head plate: 340 x 200 mm
lifting capacity max.: 500 Kg
lifting height min.: 160 mm
lifting height max.: 650 mm
dimensions: 79 x 42.5 x 165 mm
net weight: 37 Kg
material: steel
Technical data
Material Steel
Gross weight 44200 g
Net weight (kg) 37 kg
Lifting height min. 160 mm
Lifting height max. 650 mm
Number of swivel castors 2 Piece(s)
Castor diameter 75 | 88,5 mm
Number of fixed castors 2 Piece(s)
