Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type
with range viewing window
Tool holder size
3/8" (9.5 mm)
Torque
10-60 Nm
Tolerance
CW ±3, CCW ±5 %
Calibration certificate
yes
Length
310 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Rotation direction switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07692

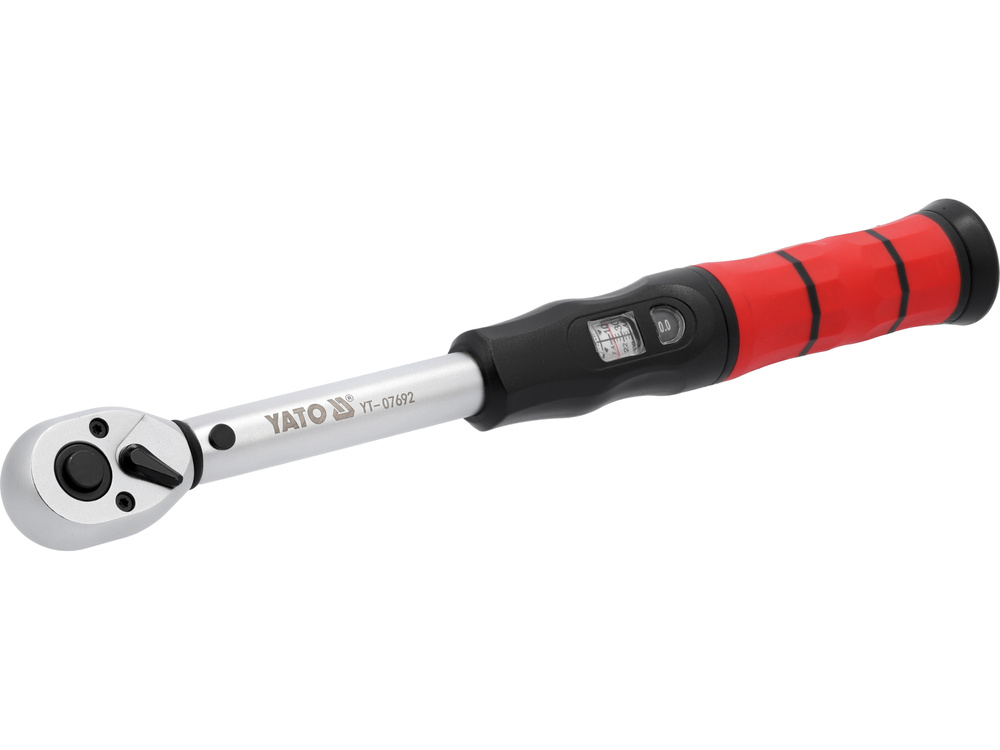

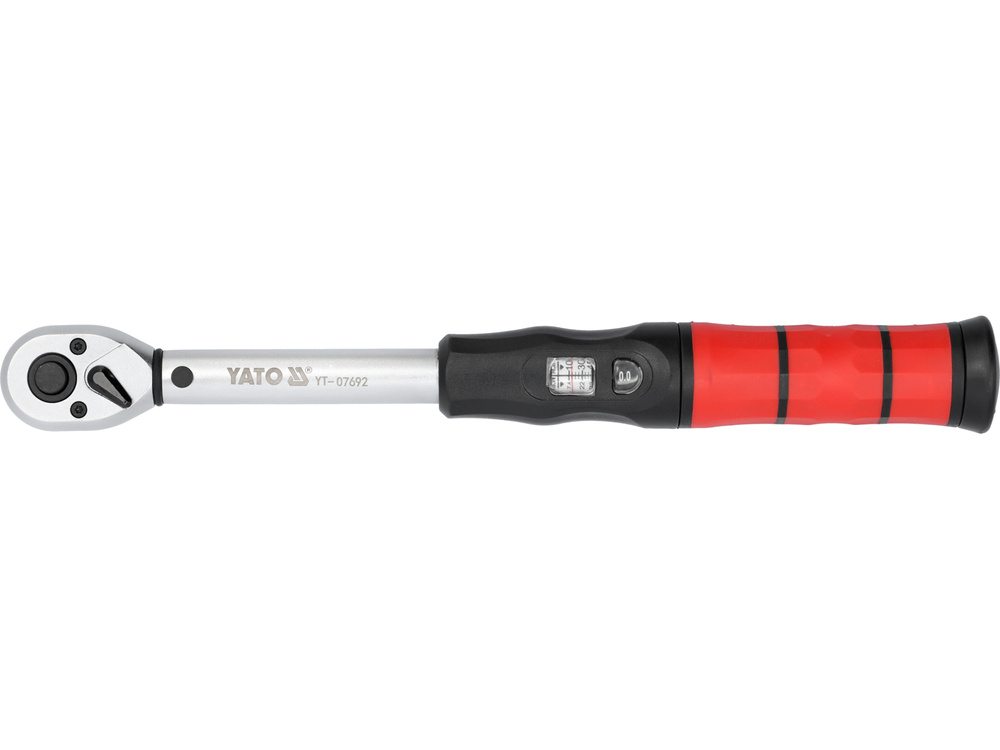

3/8" torque wrench with double range viewing window.
working range: 10-60 Nm
push-pull mechanism at the end of the handle locks the required torque

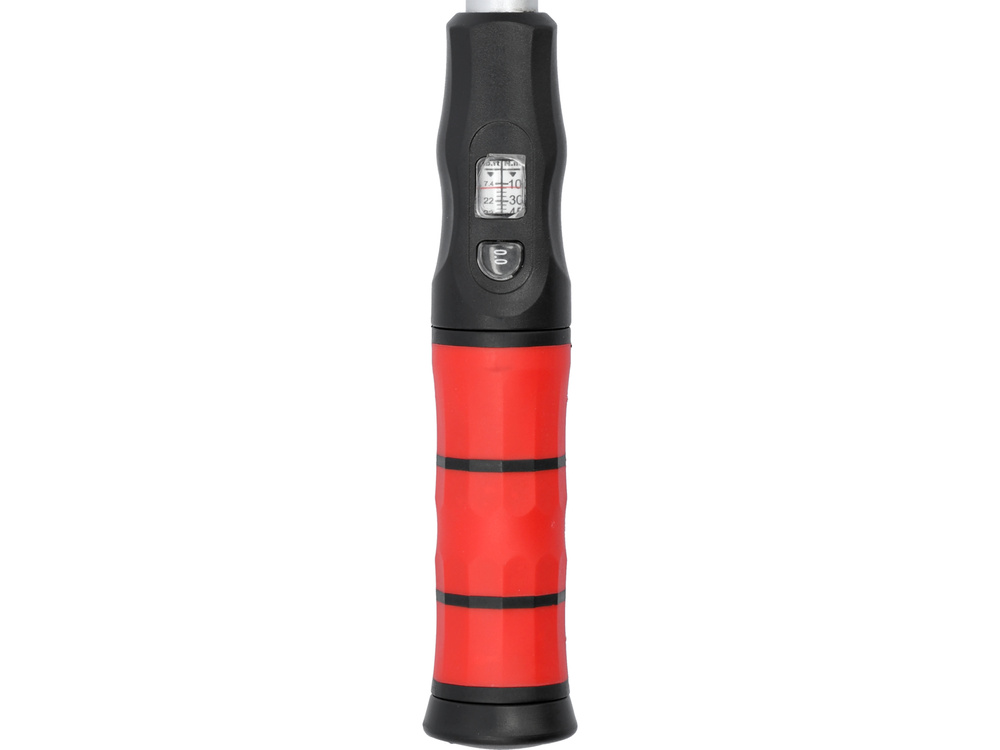

special double window design with clear display
accuracy: +/- 3% (CW +/- 3%, CCW +/- 5%)
main metric and inch scale

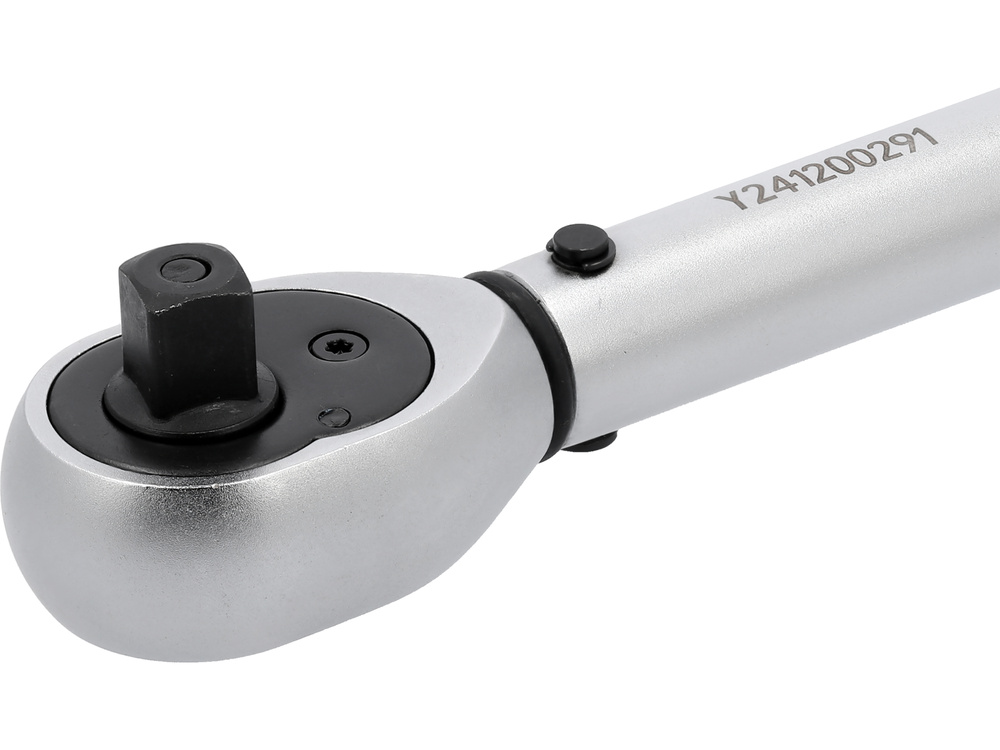

ratchet head made of high-alloy CrMo SCM-440 steel
ergonomic handle made of 40 Cr steel ensures comfort during long-term work
number of teeth: 72T
reverse switch
length: 310 mm
*Each wrench has a unique serial number, which makes it easy to track original data.
