Description:
Brand:
Index
YT-07717
Barcode
5906083134609
Unit of measure
KPL
Volume
17.052
Weight
5.667
The YT-07717 is a comprehensive set of precision tools designed for the controlled tightening of threaded connections to a specific torque. Three wrenches with varying drive sizes and operating ranges allow for the selection of the right tool for the task at hand. The 2 to 220 Nm range covers everything from precision work requiring low torque to tightening connections that demand high torque levels.
Each wrench features a ratchet head made of 42CrMo steel and a shaft made of 45# steel, ensuring adequate mechanical strength and load resistance. Aluminum handles provide a secure grip and a rigid structure during torque setting and application.
Factory calibration ensures a measurement accuracy of ±3% for clockwise (CW) tightening and ±5% for counter-clockwise (CCW) operation. The wrench mechanism signals when the set value is reached with a distinctive click, facilitating controlled tightening without exceeding the required torque.
The set includes a wide range of accessories. Universal joints and three extension bars make it easier to work on connections located in hard-to-reach areas. Standard and impact sockets (1/2"), spark plug sockets (3/8"), and 16 bit sockets (1/4") allow for handling fasteners with various profiles and sizes.
Key features:
set of 3 torque wrenches with 1/4", 3/8", and 1/2" drives
operating ranges:
1/4" (6.3 mm) – 2–24 Nm, length 243–253 mm
3/8" (9.5 mm) – 10–60 Nm, length 295–305 mm
1/2" (12.7 mm) – 40–220 Nm, length 463–485 mm
72-tooth (72T) ratchet mechanism enabling operation with a small working angle
calibration accuracy ±3% (CW) / ±5% (CCW)
AS-Drive profile increasing contact area with the bolt head and reducing the risk of edge damage
heads made of 42CrMo steel
shafts made of 45# steel
aluminum handles ensuring durability and a secure grip
sockets and extensions made of 50BV30 steel
impact sockets made of 42CrMo steel
bits made of S2 steel
1/4" and 1/2" universal joints
three extensions with lengths of 75 mm, 75 mm, and 125 mm
signal indicating the set torque has been reached

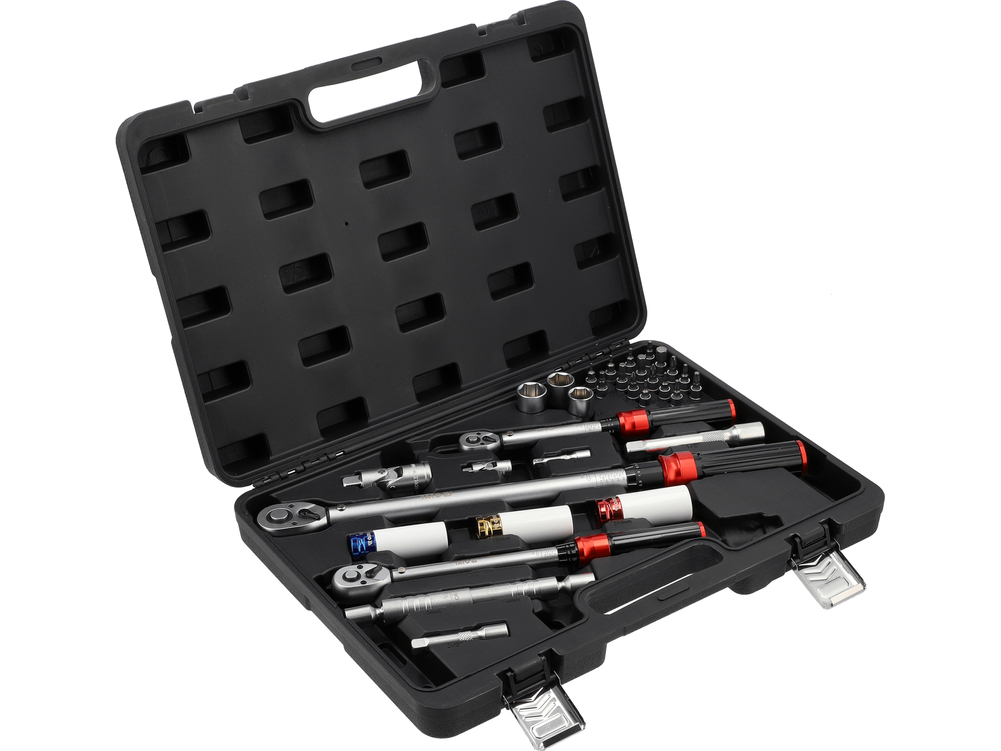

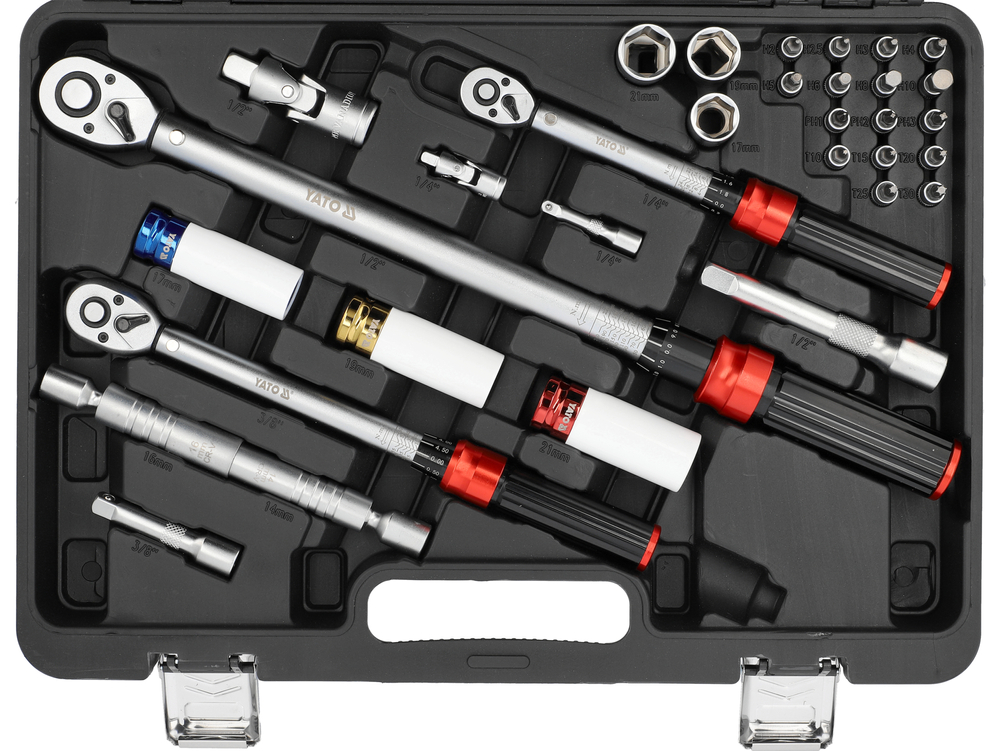

Set contents:
1/4" torque wrench – 2–24 Nm
3/8" torque wrench – 10–60 Nm
1/2" torque wrench – 40–220 Nm
1/4" universal joint
1/2" universal joint
1/4" extension – 75 mm
3/8" extension – 75 mm
1/2" extension – 125 mm
1/2" sockets: 17, 19, 21 mm
1/2" impact sockets: 17, 19, 21 mm
3/8" spark plug sockets: 14 and 16 mm
1/4" bit sockets: H2, H2.5, H3, H4, H5, H6, H8, H10, T10, T15, T20, T25, T30, PH1, PH2, PH3
Its extensive equipment and three torque ranges enable the YT-07717 to handle a wide variety of controlled assembly and maintenance tasks involving connections that require precise tightening.
