Description:
Brand:
Index
YT-07714
Barcode
5906083134579
Unit of measure
PCE
Volume
2.464
Weight
0.95

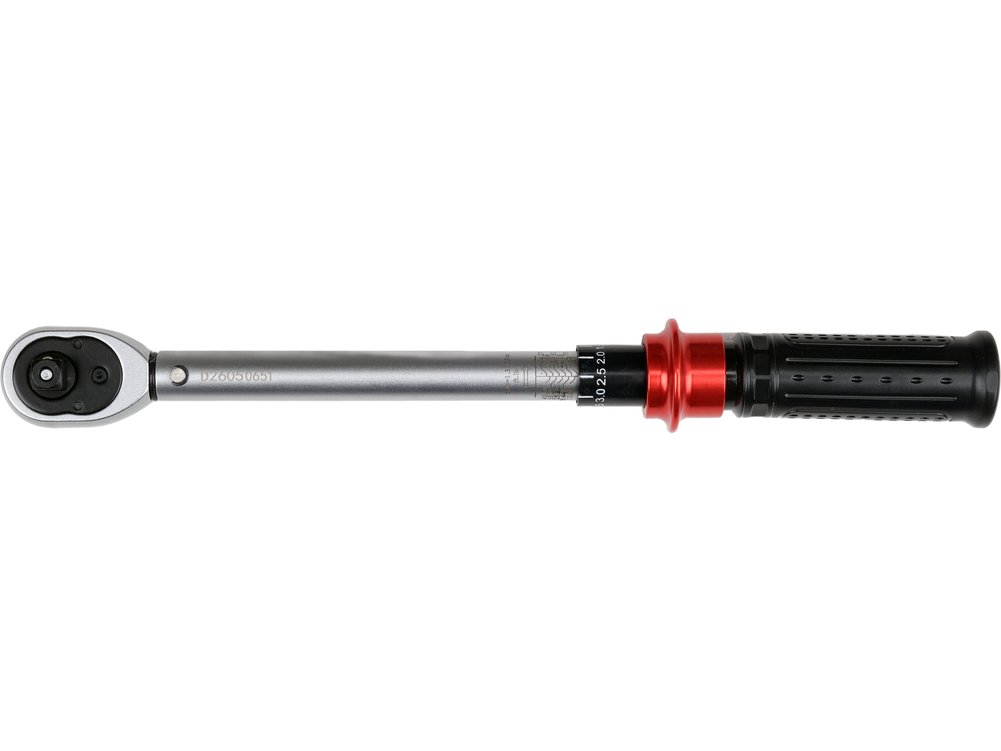

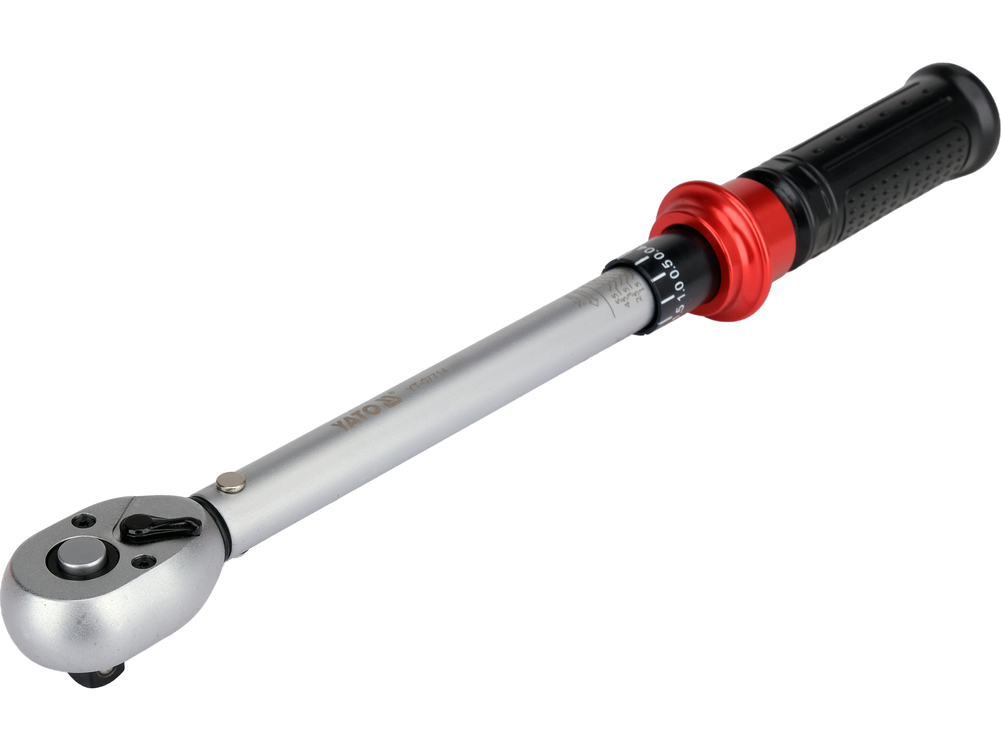

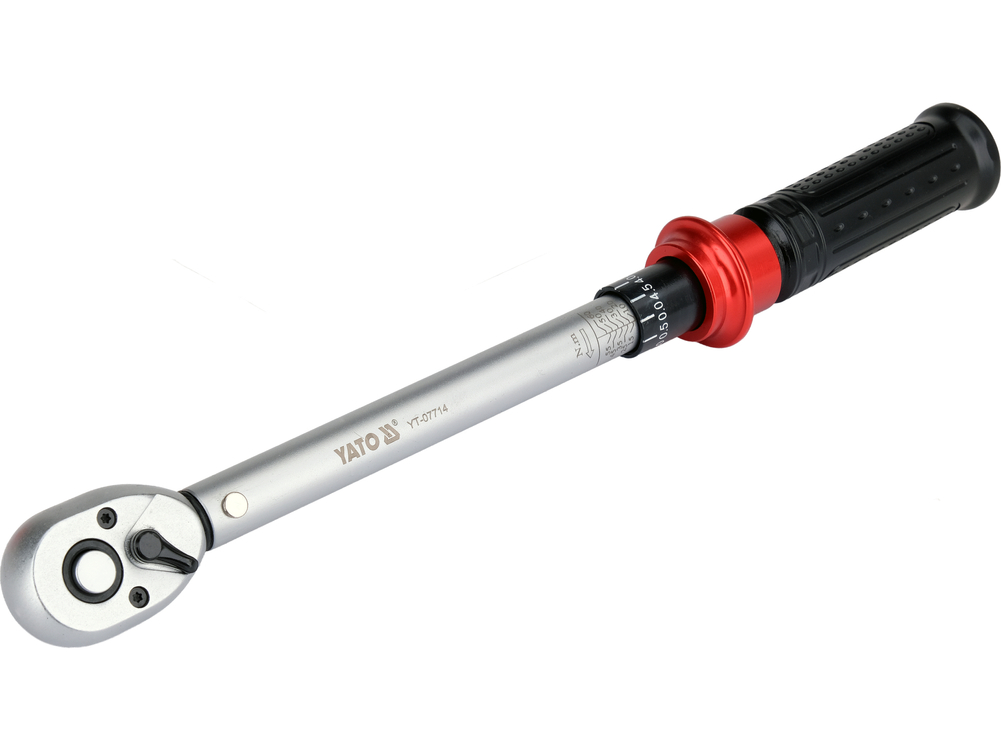

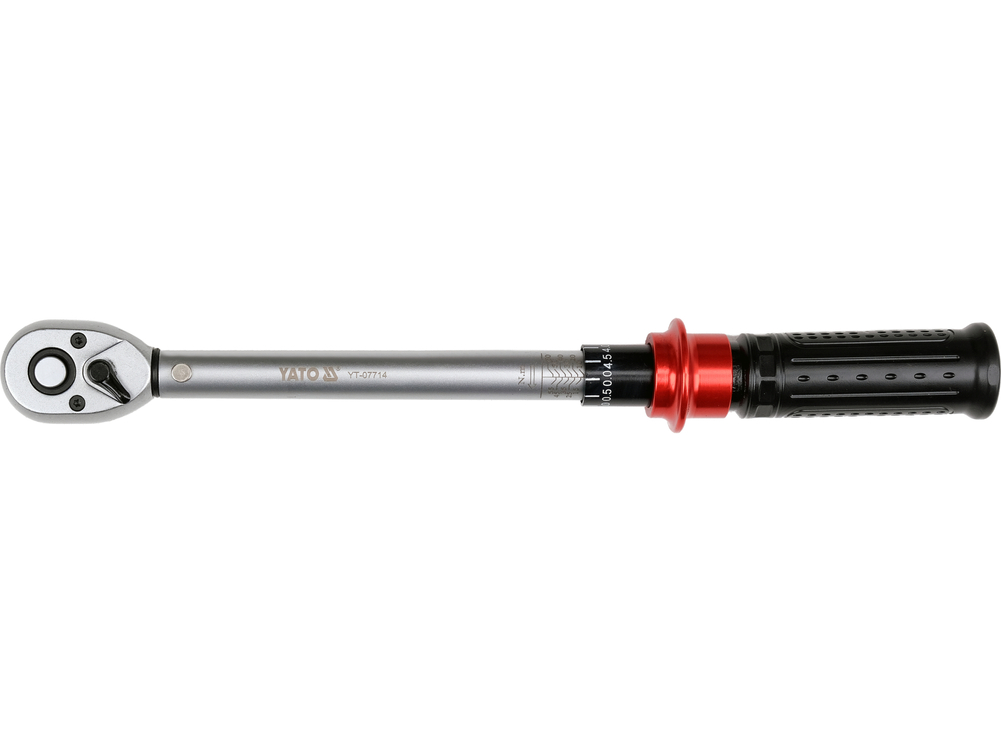

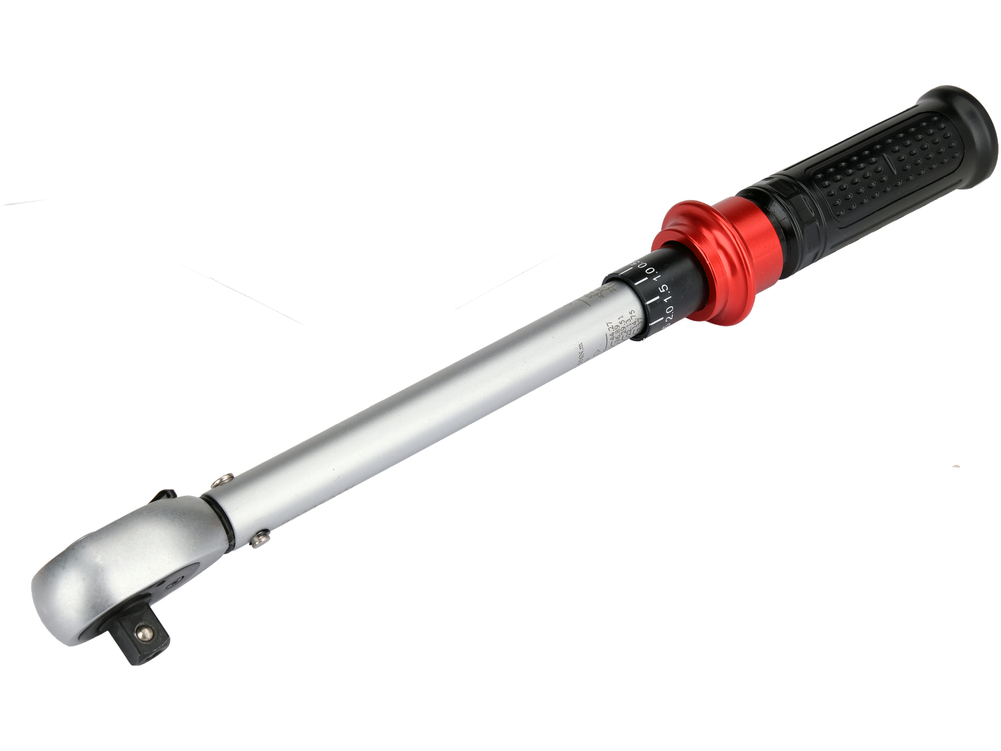

A torque wrench is a precision tool designed for controlled tightening of threaded connections with a precisely specified torque. It is used during the assembly of mechanical components, vehicle servicing, workshop tasks, and anywhere that maintaining the correct tightening force affects the durability and safety of the connection.

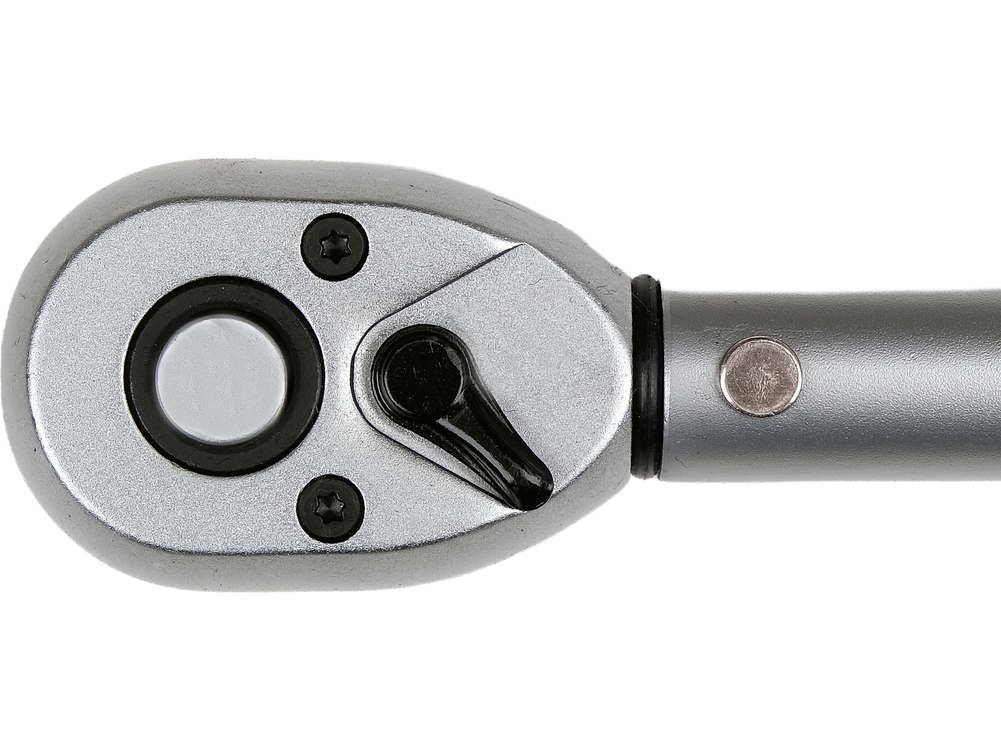

The 72-tooth ratchet mechanism allows for operation at a small working angle, making it easier to tighten screws and nuts in confined spaces. The head is made of 42CrMo steel, combined with a shaft made of 45# steel, ensuring high load resistance and durability under intensive use.

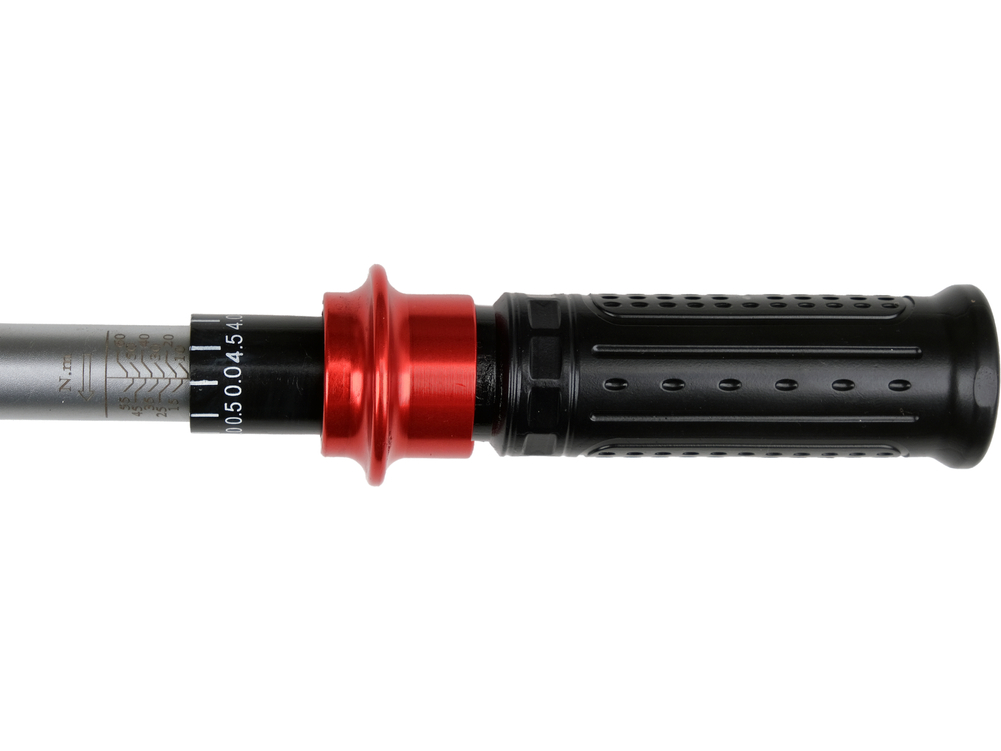

The wrench is equipped with a clear setting scale and a convenient micrometric knob with a lock, allowing for quick and precise adjustment of the required torque. The factory calibration guarantees high measurement accuracy of ±3% when tightening in the clockwise direction (CW) and ±5% when working in the counterclockwise direction (CCW).
The ergonomic handle made of durable ABS plastic provides a secure grip and comfort during use, while the solid construction makes the wrench ideal for both professional workshops and advanced servicing tasks.
Key features:
precise torque mechanism for controlled tightening of threaded connections
72T ratchet mechanism allowing operation at a small working angle
factory calibration with an accuracy of ±3% (CW) / ±5% (CCW)
head made of durable 42CrMo steel
shaft made of 45# steel resistant to high loads
ergonomic handle made of ABS plastic providing a secure grip
clear setting scale with a lock for the micrometric knob
clear indication of the achieved set torque
Available versions:
YT-07713
drive: 1/4" (6.3 mm)
torque range: 5-25 Nm
length: 257-265 mm
YT-07714
drive: 3/8" (9.5 mm)
torque range: 10-60 Nm
length: 310-320 mm
YT-07715
drive: 1/2" (12.7 mm)
torque range: 40-220 Nm
length: 468-490 mm
