Description
suitable for tightening to set torque for screwed connections with right-hand thread

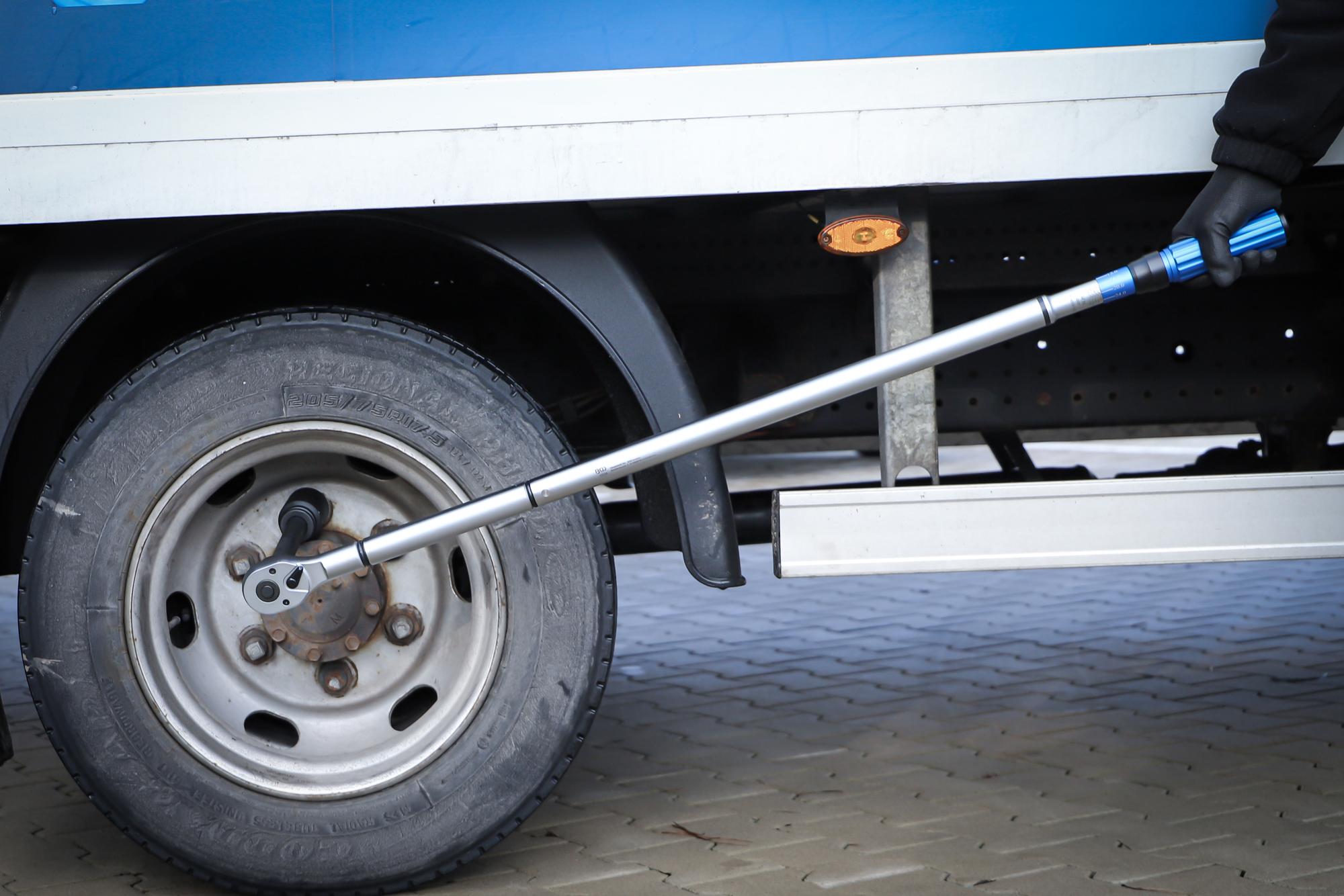

especially for industrial applications and in the automotive industry (commercial vehicles)
robust design
long version, two-part, can be plugged together
ratchet mechanism, reversible
fine tooth, 72 teeth
easy locking and unlocking at the handle
lasered line scale with fine adjustment for the respective setting value
optimally designed, serrated steel handle for easy setting of the desired torque value, as well as a secure grip of the tool handle
clearly audible release signal

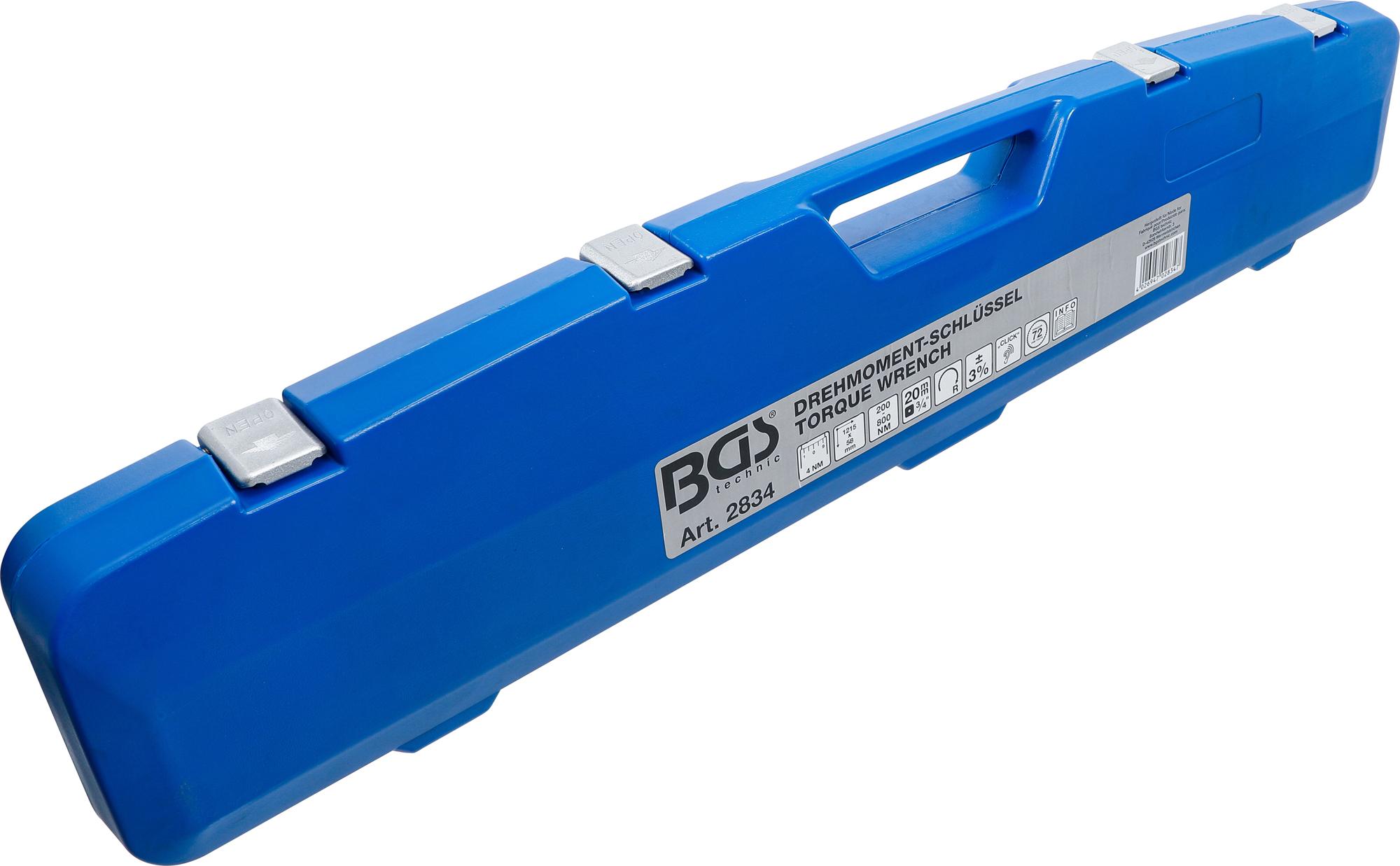

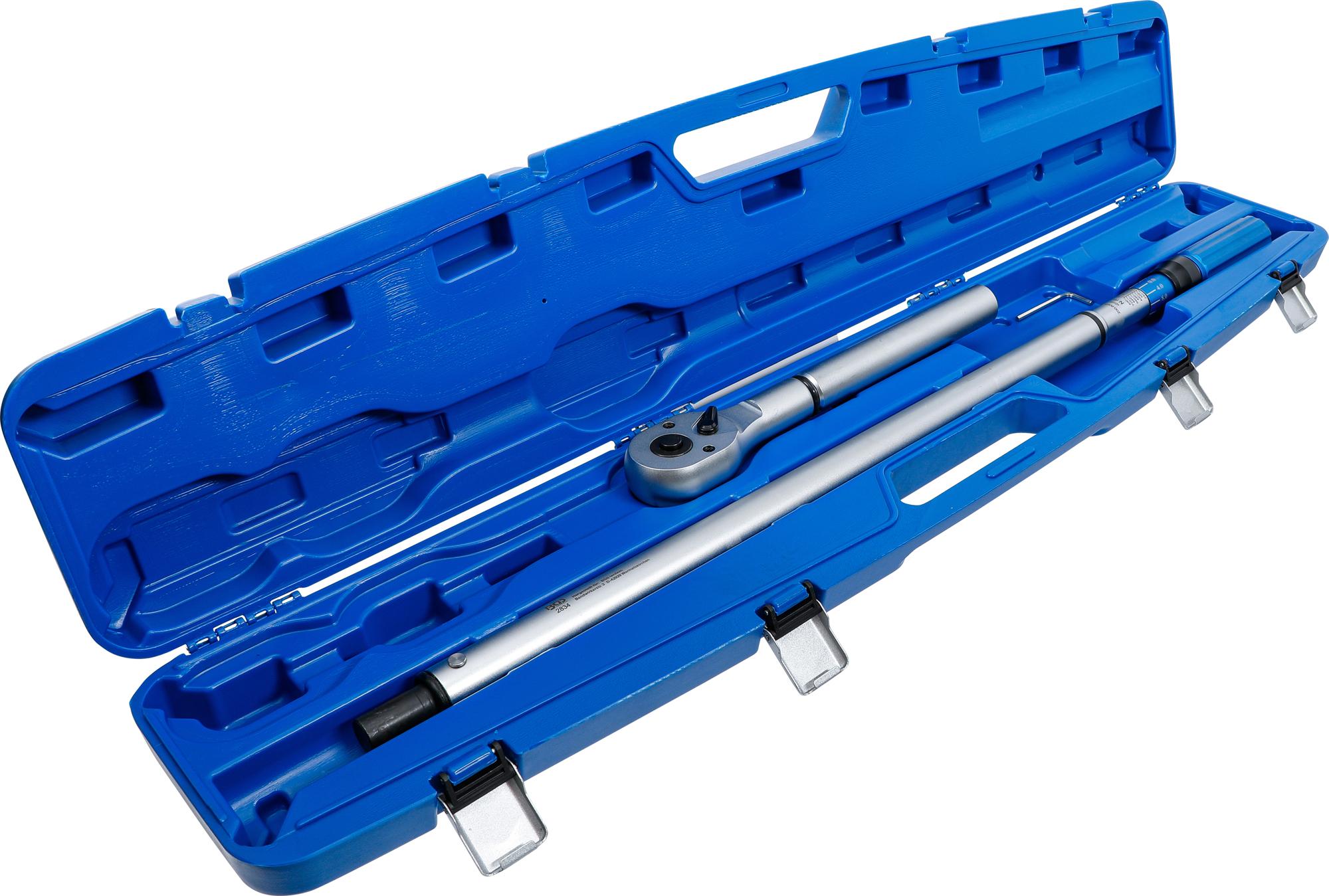

comes in a plastic box with closure
fine scale: 4 Nm
trigger clockwise: yes
trigger counter clockwise: no
Technical data
Drive profile size, metric 20 mm
Drive profile size, inch 3/4 "
Output profile External square
Length 1235 mm
Width 58 mm
Gross weight 18700 g
Max. torque 800 Nm
No. of teeth in ratchet head 72
Release accuracy +/- 3 %
Min. torque 200 Nm
