Description:
Brand:
Index
YT-07716
Barcode
5906083134593
Unit of measure
KPL
Volume
7.92
Weight
3.5

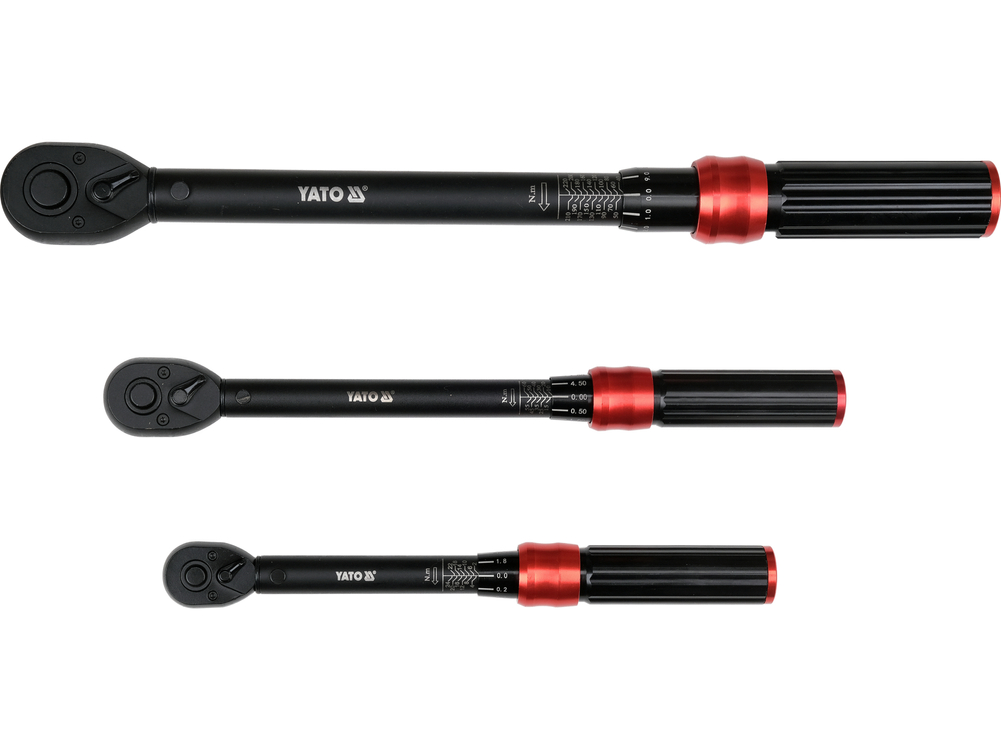

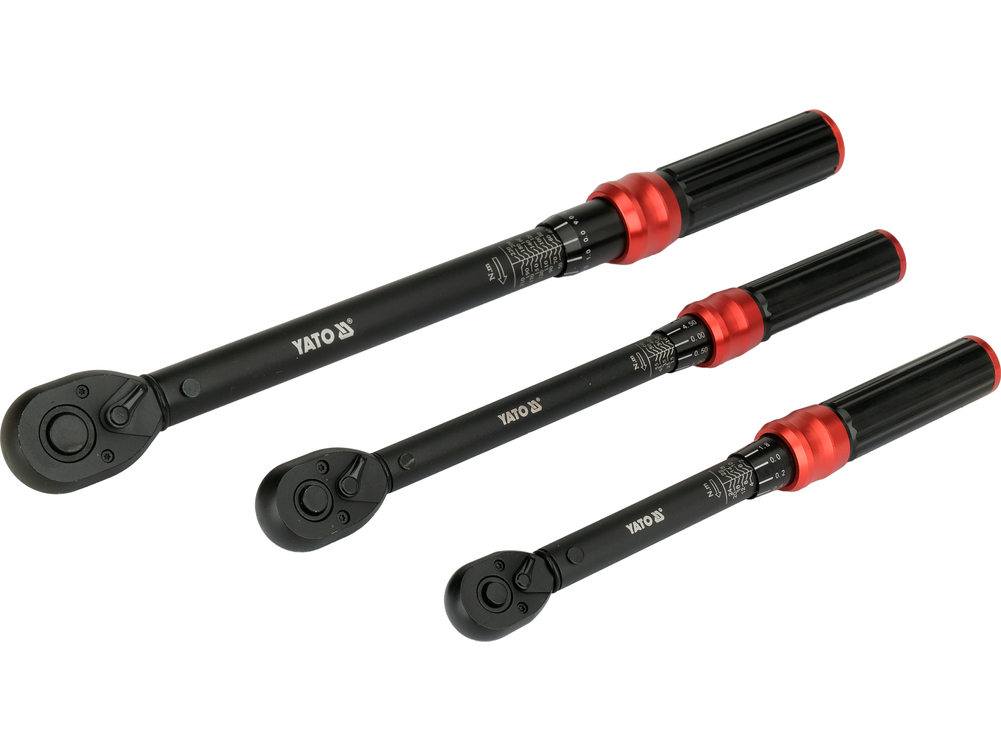

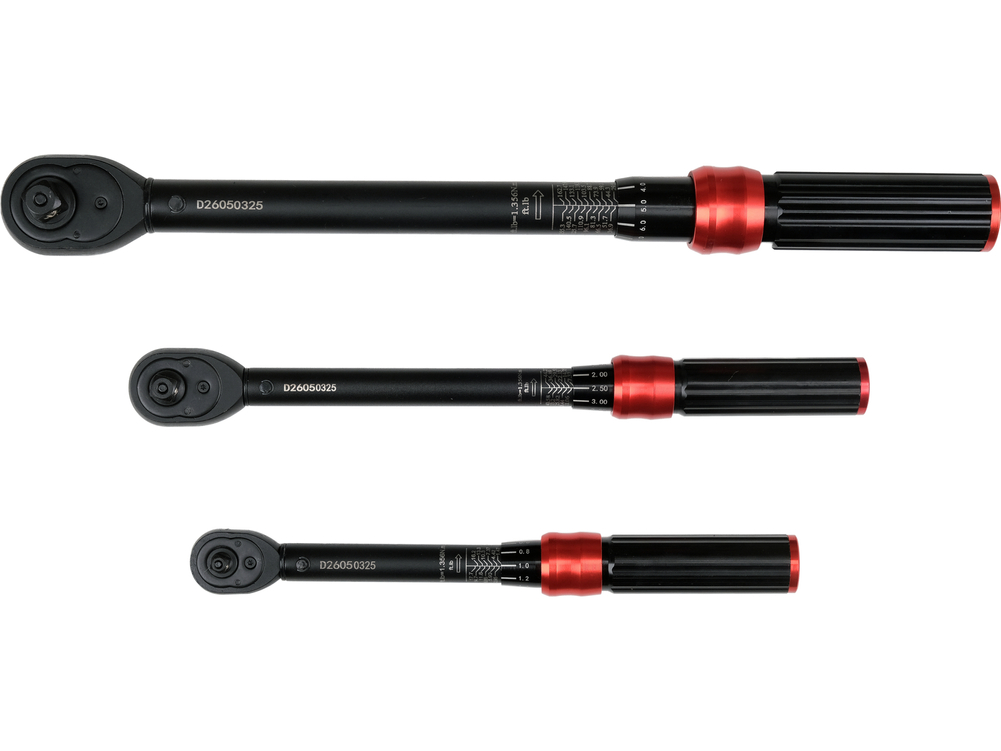

The YT-07716 torque wrench set is a collection of precision tools designed for controlled tightening of threaded connections with a precisely specified torque. Three wrenches with different drive sizes and working ranges allow for precise servicing tasks on cars, motorcycles, bicycles, machines, and industrial equipment.

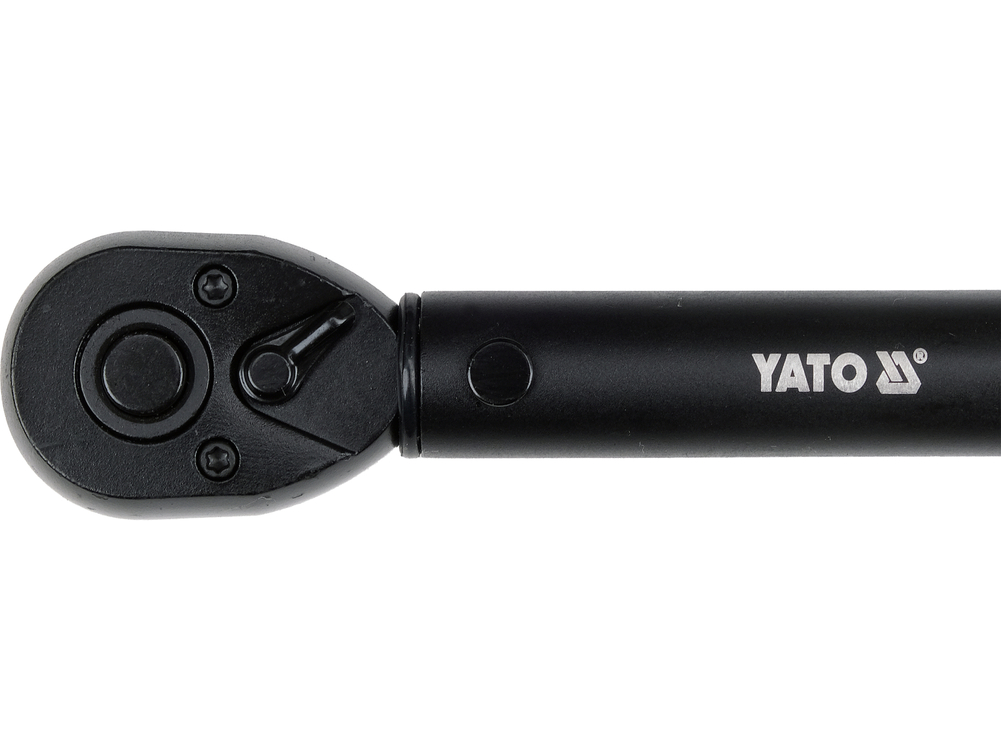

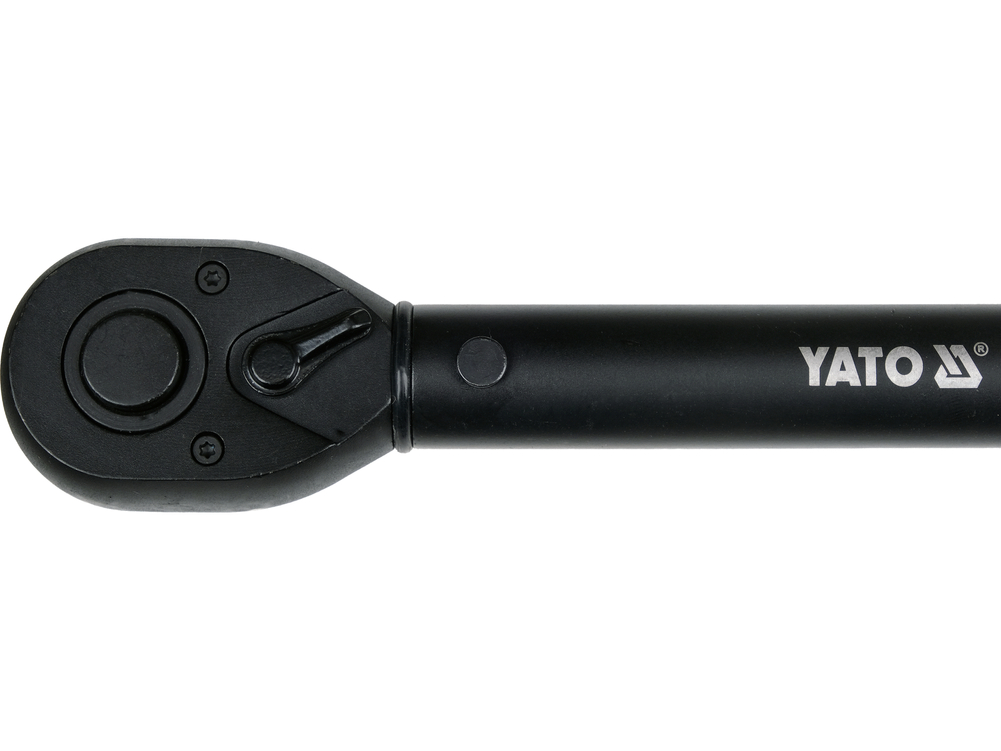

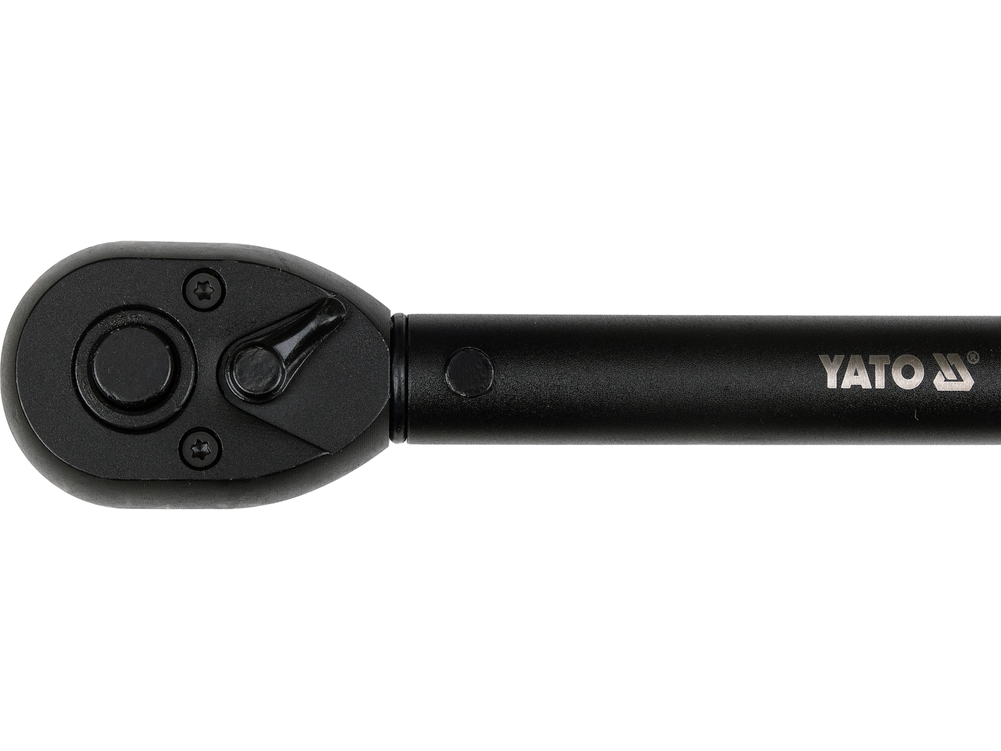

Each wrench is equipped with a ratchet mechanism featuring 72 teeth, enabling operation at a small working angle, making it easier to tighten components even in areas with limited access. The heads are made of 42CrMo steel, and the shafts are made of 45# steel, ensuring high mechanical strength and resistance to intensive use.

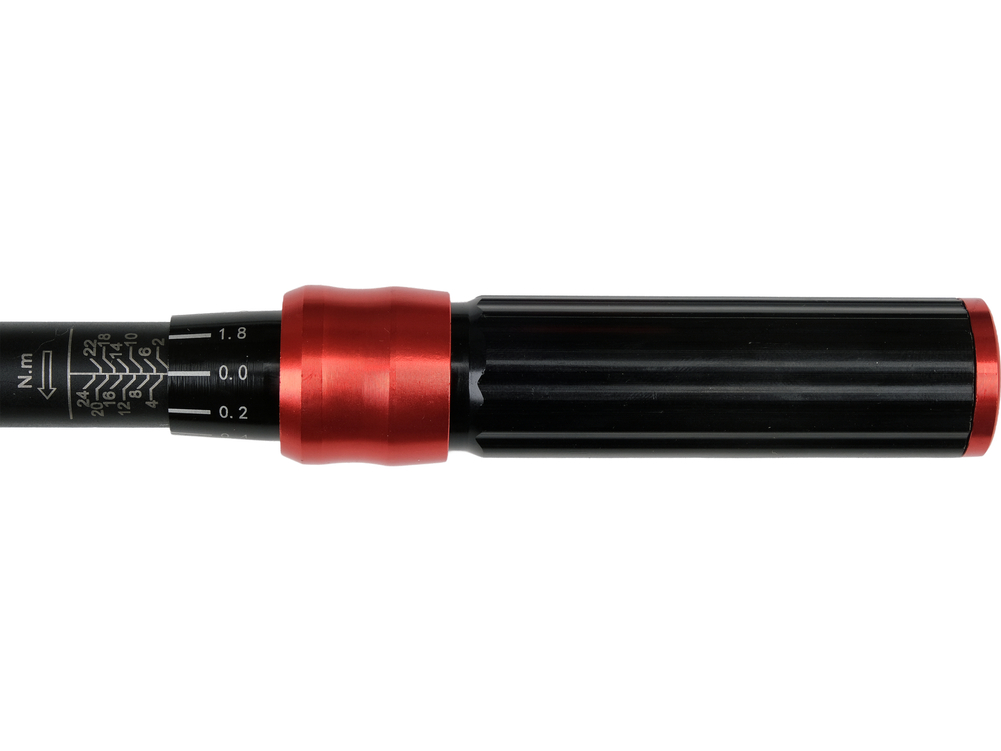

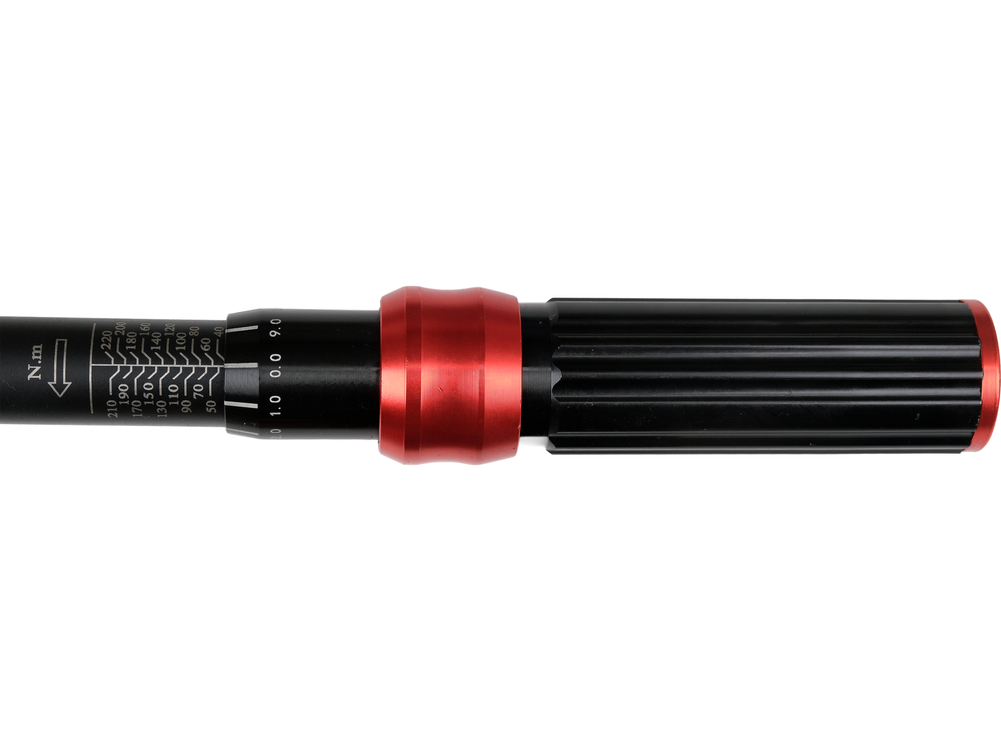

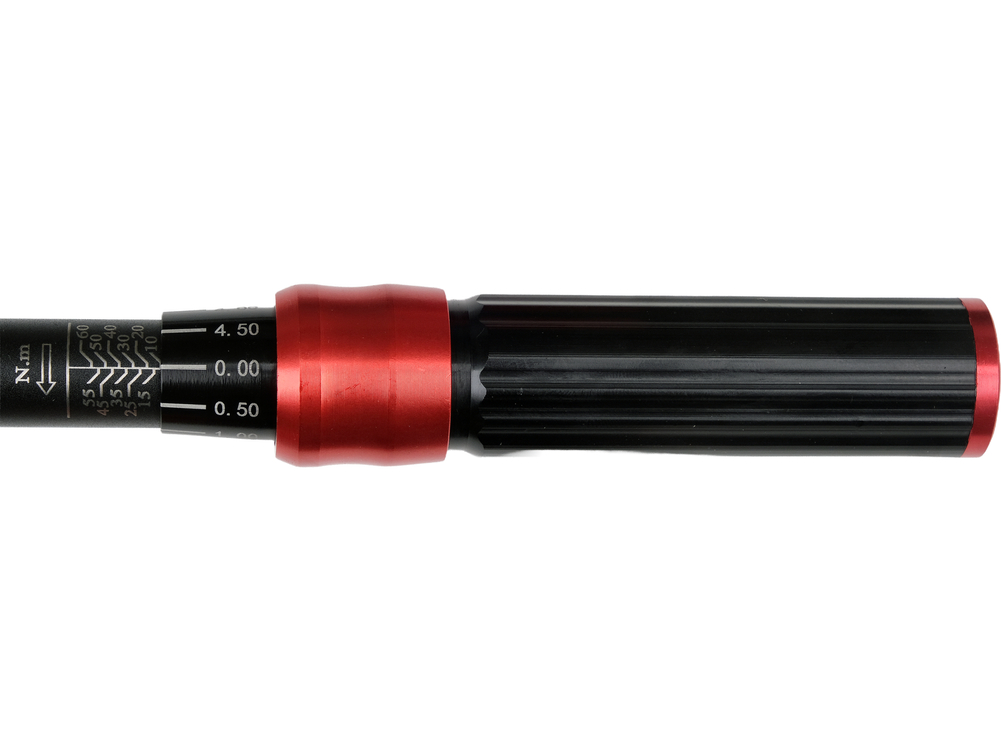

Factory calibration guarantees high measurement accuracy of ±3% when tightening clockwise (CW) and ±5% when working counterclockwise (CCW). The clear scale and locking micrometric knob allow for quick and precise setting of the required torque, while the characteristic mechanism click clearly signals the achievement of the set value.
Aluminum handles provide a secure grip, high rigidity, and resistance to mechanical damage. The set is complemented by a 1/2" extension and five of the most commonly used sockets made from durable alloy steel CrV 50BV30, designed for high-load applications.
Key features:

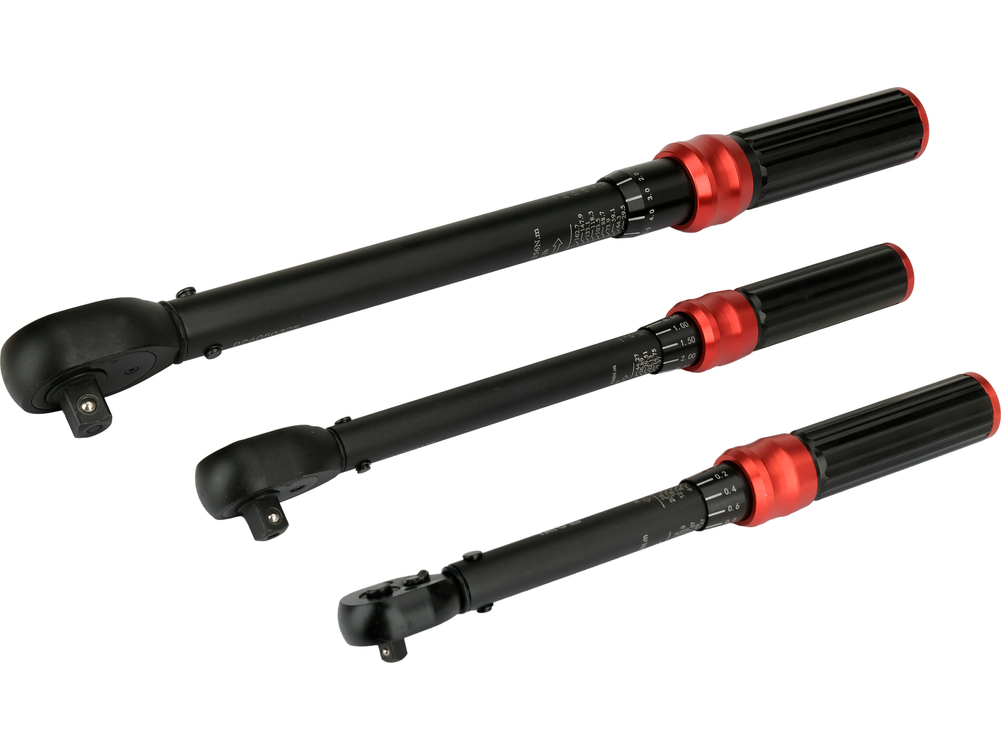

set of 3 torque wrenches with drive sizes 1/4", 3/8" and 1/2"
working ranges:
1/4" – 2-24 Nm, 243-253 mm
3/8" – 10-60 Nm, 295-305 mm
1/2" – 40-220 Nm, 392-412 mm
ratchet mechanism 72T allowing operation at a small working angle
calibration accuracy ±3% (CW) / ±5% (CCW)
heads made of 42CrMo steel
shafts made of 45# steel
aluminum handles providing durability and comfort during use
sockets and extension made from alloy steel CrV 50BV30
AS-Drive profile increasing contact surface with the screw head and reducing the risk of edge damage
clear indication of achieved set torque

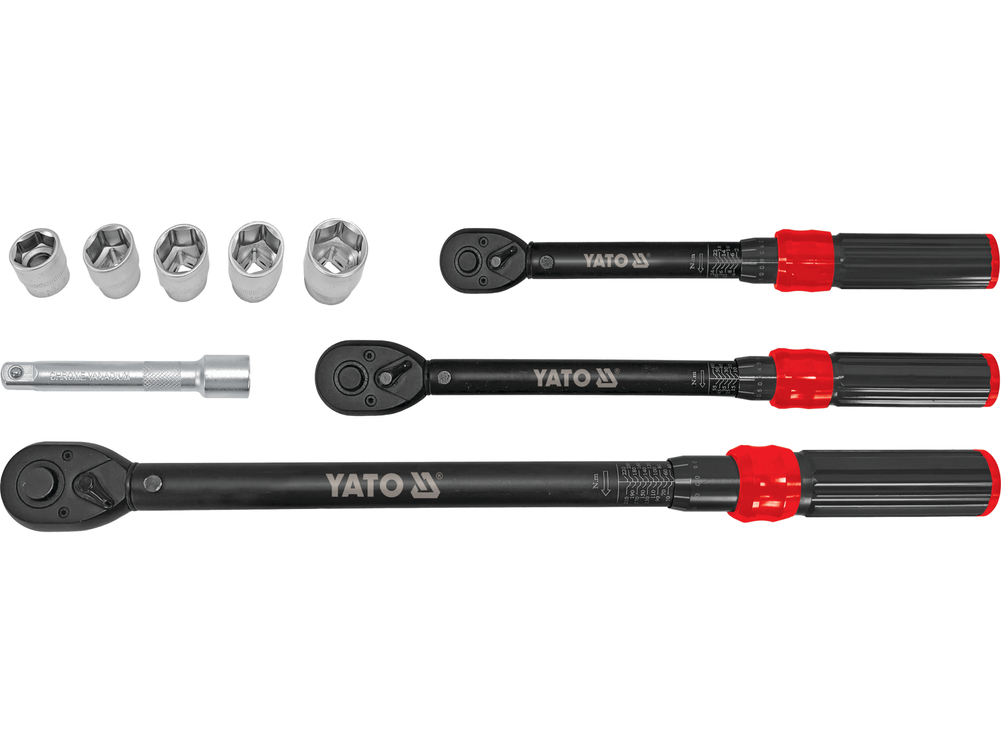

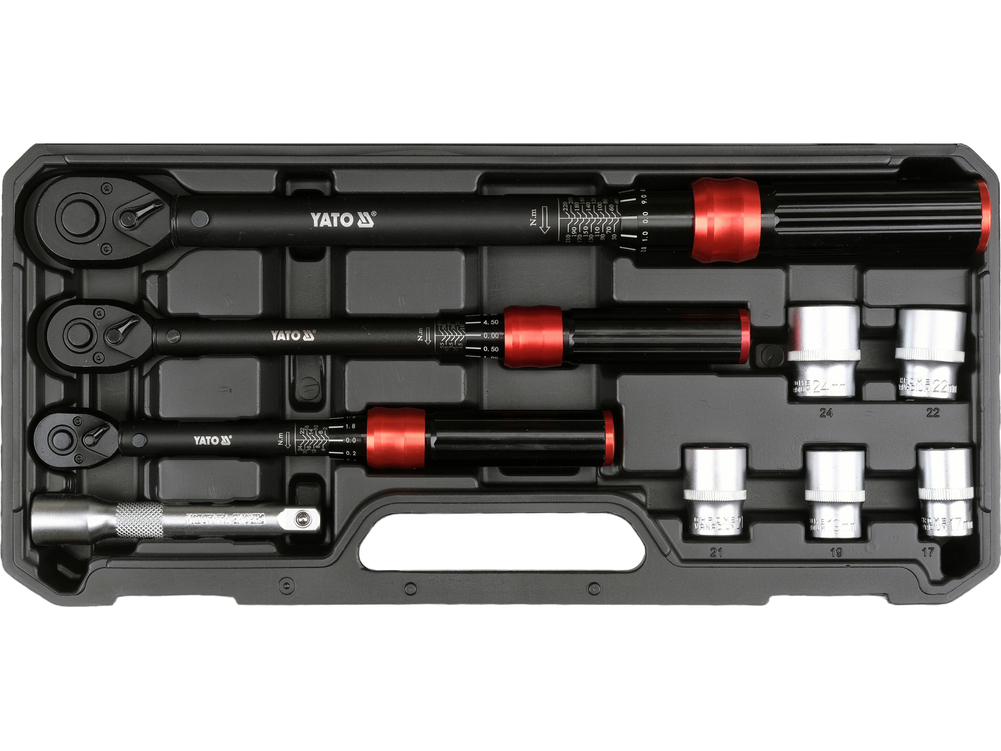

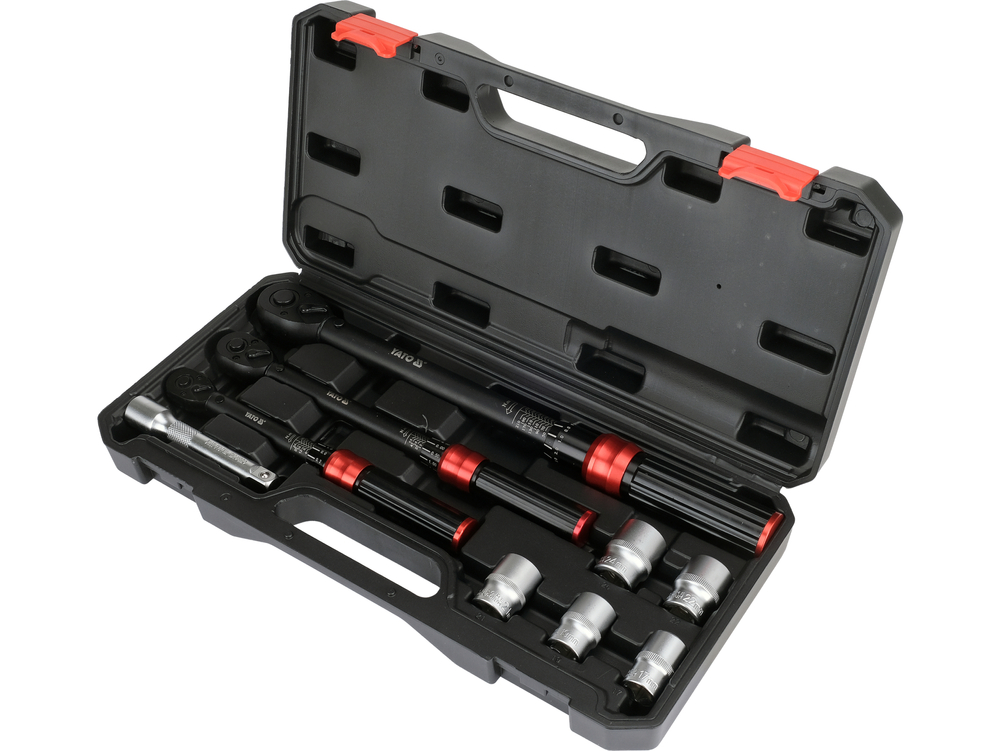

Contents of the set:
torque wrench 1/4" (2-24 Nm)
torque wrench 3/8" (10-60 Nm)
torque wrench 1/2" (40-220 Nm)
extension 1/2" 5" (125 mm)
sockets 1/2": 17, 19, 21, 22, and 24 mm
With three torque ranges, the set allows for both precise assembly tasks requiring minimal tightening force and servicing connections with high torque, eliminating the need for several separate tool sets.
