Product description

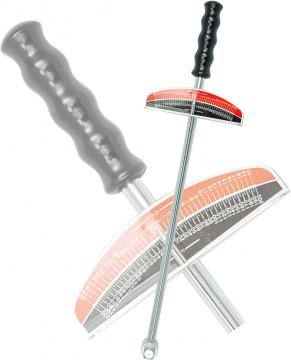

Vorel torque wrench. Used to tighten threaded joints with force at a precise point in time. Made on the technology of the pendulum.
The scale of this key is scaled in two units (Nm, mkp).
Comparative comparison of moments in different units of length and strength:
1 kG * cm = 13,887 OZ * IN (ounce x inch)
1 kG * cm = 0.867 LB * IN (lb. in)
1 kG * m = 9,80665 N * m (Newton x meter)
1 kG * m = 7,233 LB * FT (lb.ft)
1 FT * LB = 12 LB * IN (lb. in)
1 dm * N = 14.16 OZ * IN (ounce x inch)
Destination / Application
It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque of the joint.
How to use
When tightening the screw or nut, when the resistance appears, the pointer mounted on the tip of the key begins to tilt, indicating the force at which the screw or nut is tightened at the moment.
Technical data
Index Number 57450
EAN 5906083574504
Marka Vorel
PCS unit
Gross Weight (kg) 0.7080
Master Carton MC 24
Inner Box IB 6
Pal 288
Length [mm] 460
packaging BMC
Drive size [inch] 1/2 "
Torque value [Nm] 0-200
