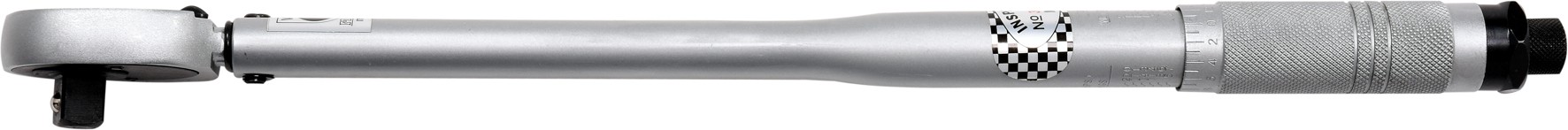

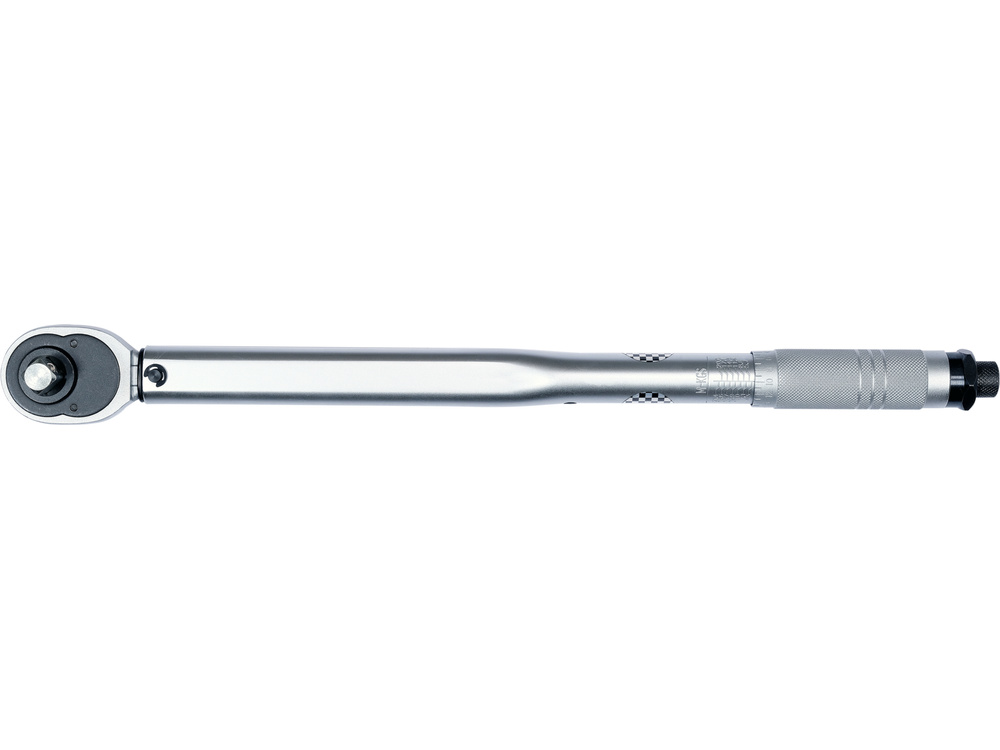

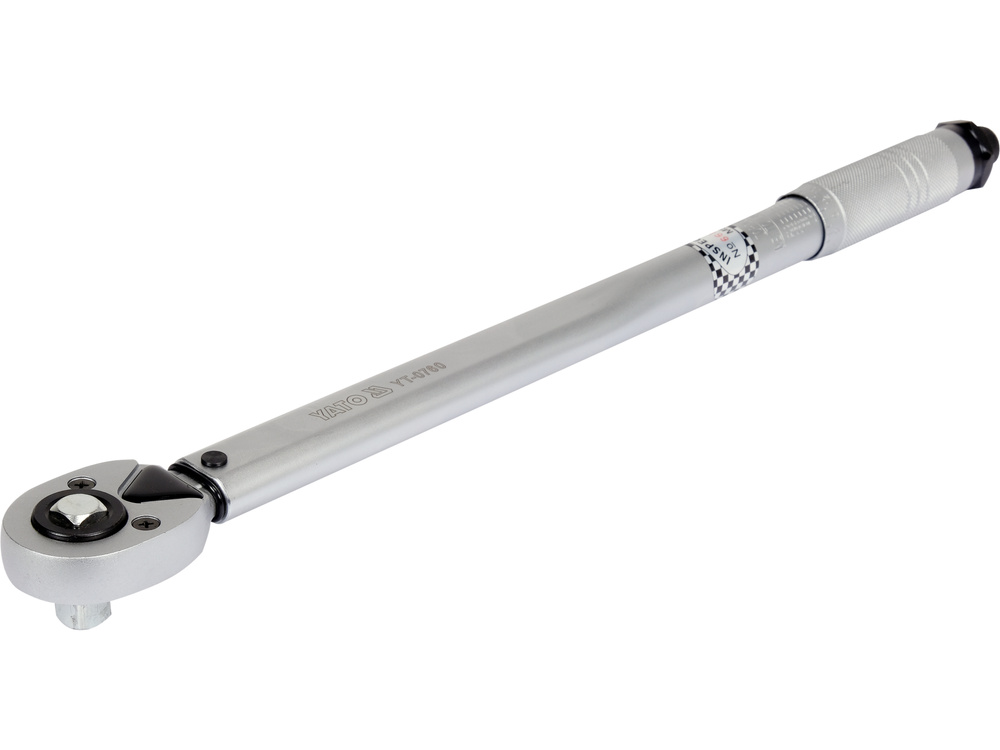

Torque wrench, 1/2" 42-210 Nm "YATO" (YT-0760)

(1)

Description:

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Tool holder size
1/2" (12.7 mm)
Torque
42-210 Nm
Tolerance
±4 %
Calibration certificate
yes
Length
445-465 mm
Head material
CrV 6140
Hardness
48-52 HRC
Rotation direction switch
yes
Application
precise tightening of threaded connections
Symbol
YT-0760

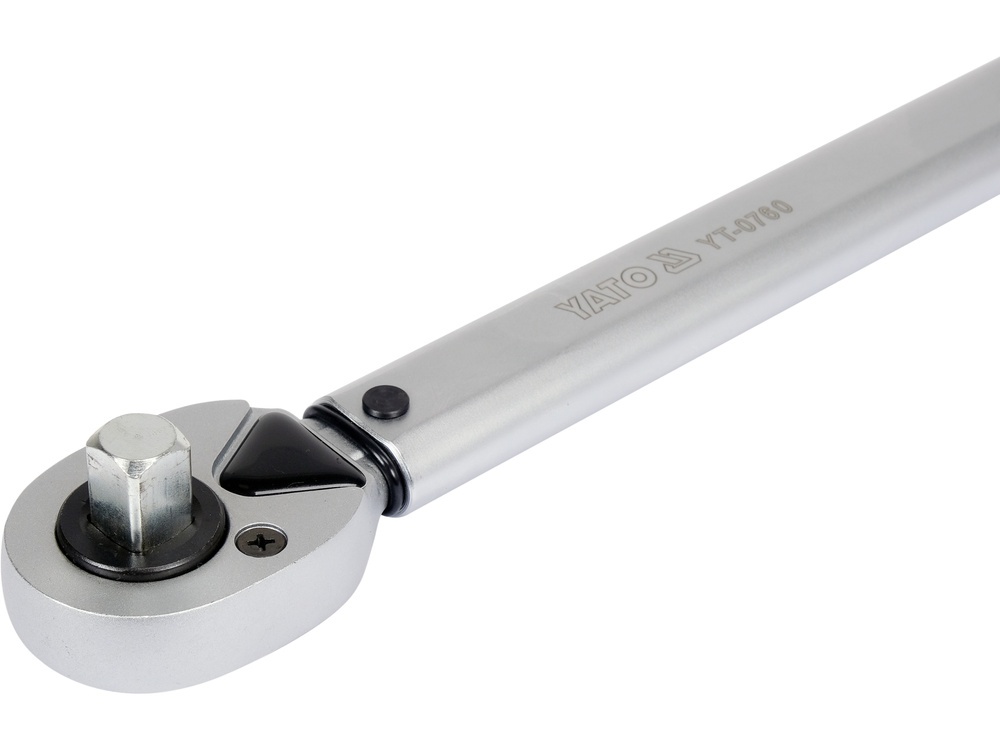

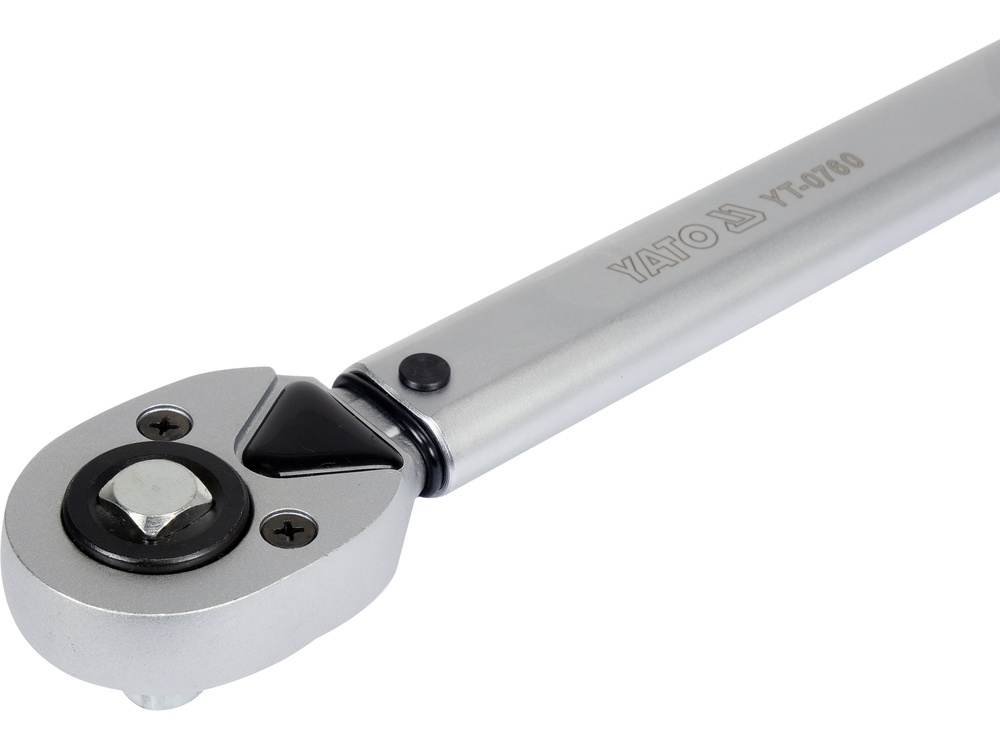

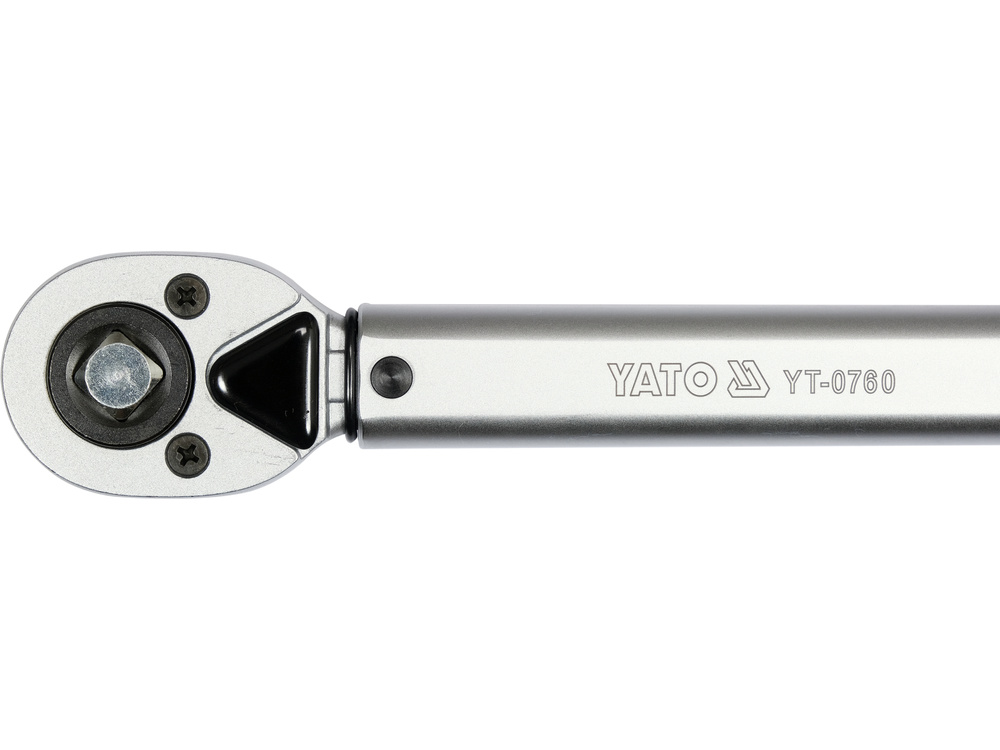

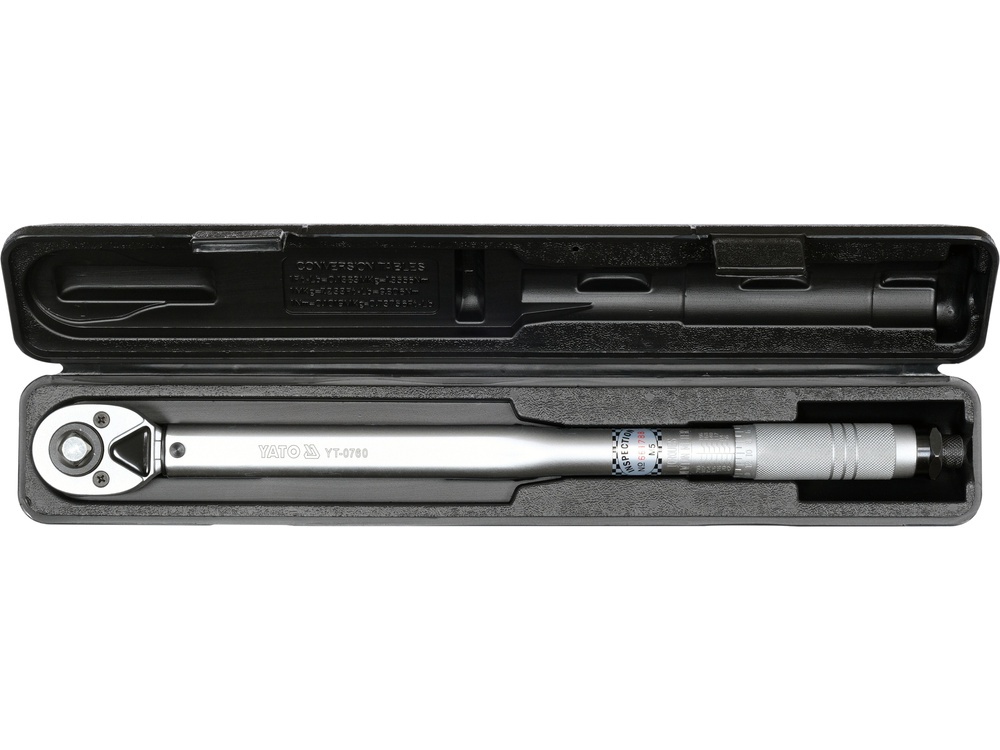

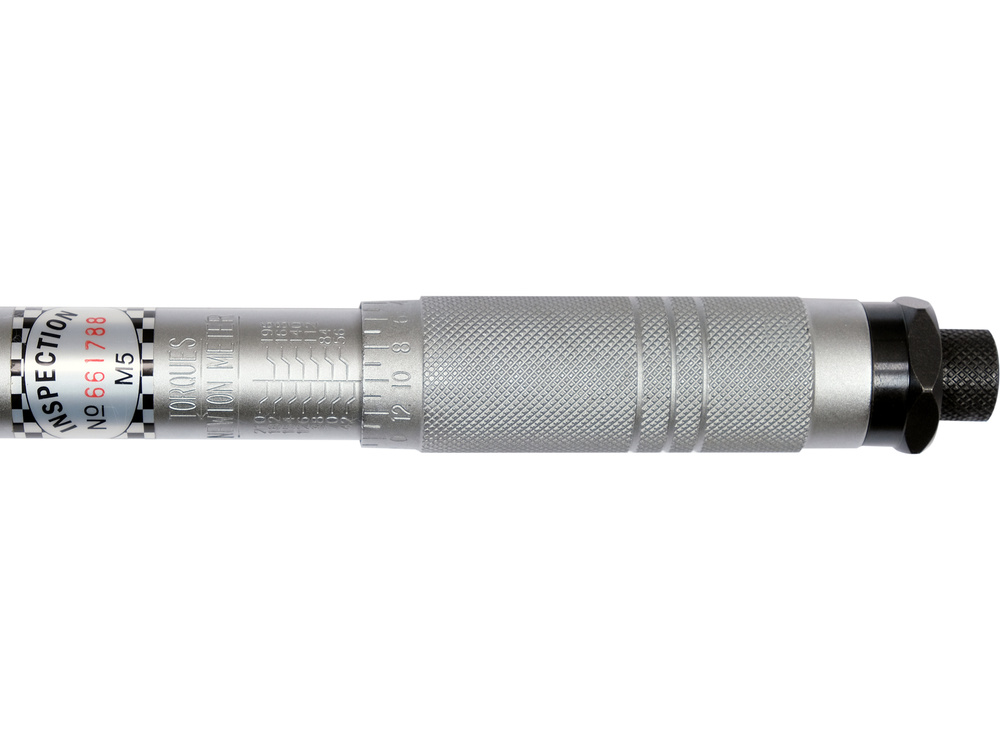

The wrench is made of chrome-vanadium steel, which ensures its durability and strength. It has a mechanical tension of the dynamometric ratchet, which after reaching the desired tightening force jumps by one tooth, making a characteristic sound. The torque scale is placed in the handle of the wrench, its adjustment is done by turning it. After setting the desired torque, lock the wrench with the safety lock at the end of the handle. The wrench is GS certified. Comparison of moments in different units of length and force: 1 kgf*cm = 13.887 OZ*IN (ounce x inch) 1 kgf*cm = 0.867 LB*IN (pound x inch) 1 kgf*m = 9.80665 N*m (Newton x meter) 1 kgf*m = 7.233 LB*FT (pound x foot) 1 FT*LB = 12 LB*IN (pound x inch) 1 dm*N = 14.16 OZ*IN (ounce x inch)
