Description
compact set assembly with holders for dies and taps
ideal for repair and assembly work in mobile use
slim design, ideally suited for areas difficult to access
die holder and holder for taps with inner square drive
direct application and drive by enclosed T-handle ratchet

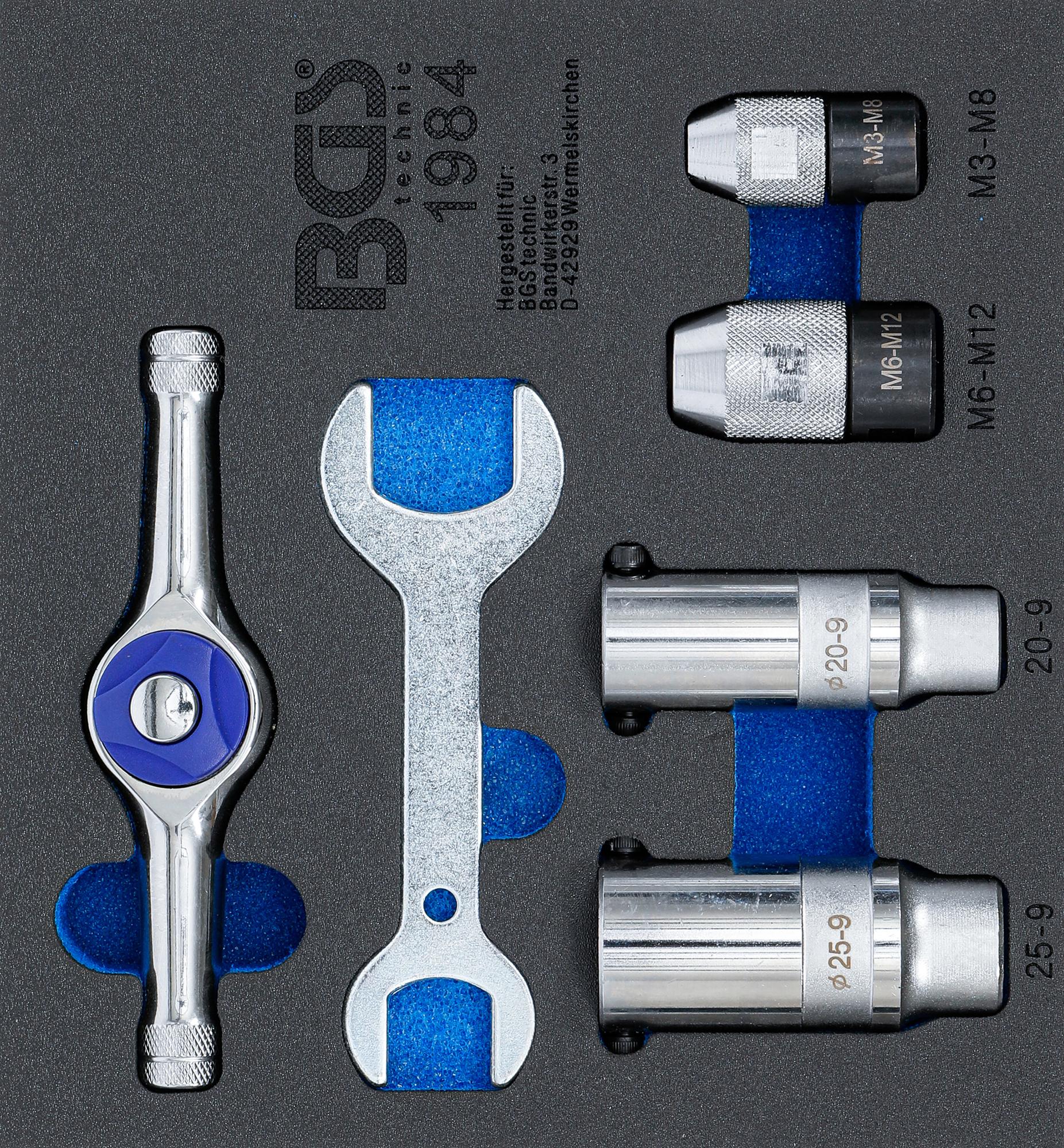

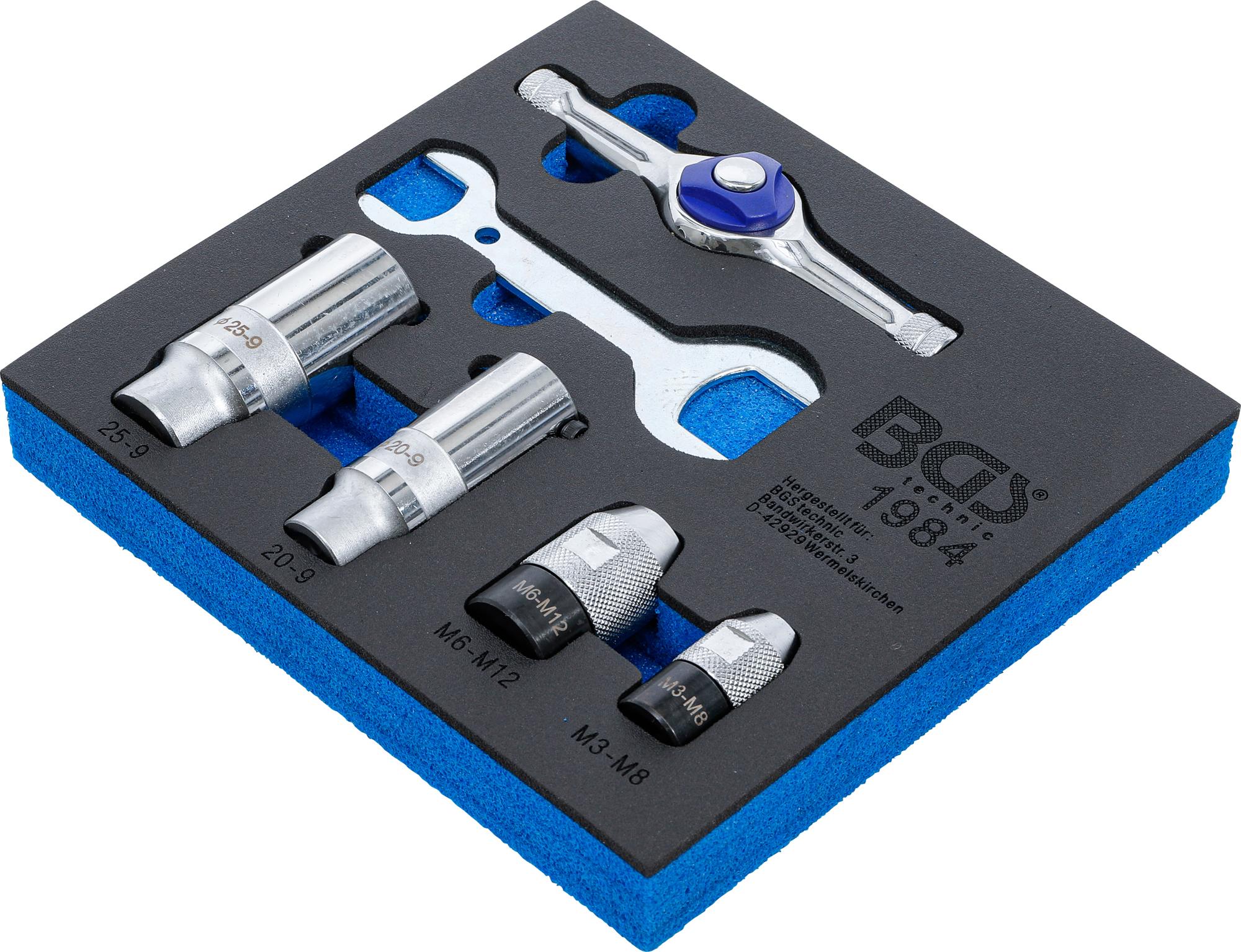

scope of delivery:
1 T-handle ratchet, 10 mm 3/8"
1 die holder, 10 mm 3/8", suitable for dies Ø 25.9 mm
1 die holder, 10 mm 3/8", suitable for dies Ø 20.9 mm
1 tap holder, 10 mm 3/8", suitable for taps M3 - M8
1 tap holder, 10 mm 3/8", suitable for taps M6 - M12
1 double open end spanner, 18 x 24 mm
Technical data
Drive profile Internal square
Drive profile size, metric 10 mm
Drive profile size, inch 3/8 "
Material Chrome Vanadium Steel
Length 223 mm
Width 220 mm
Height 50 mm
Gross weight 1050 g
No. of teeth in ratchet head 72
