Description:
Brand:
Description
for disassembly of injectors on trucks
suitable for pump-nozzle systems (e. g. Delphi) and conventional injectors
material: carbon steel
surface finish 1: zinc plated
surface finish 2: phosphated
builed in vehicle models from:
Volvo, Scania, Mercedes-Benz, MAN, Renault and Iveco

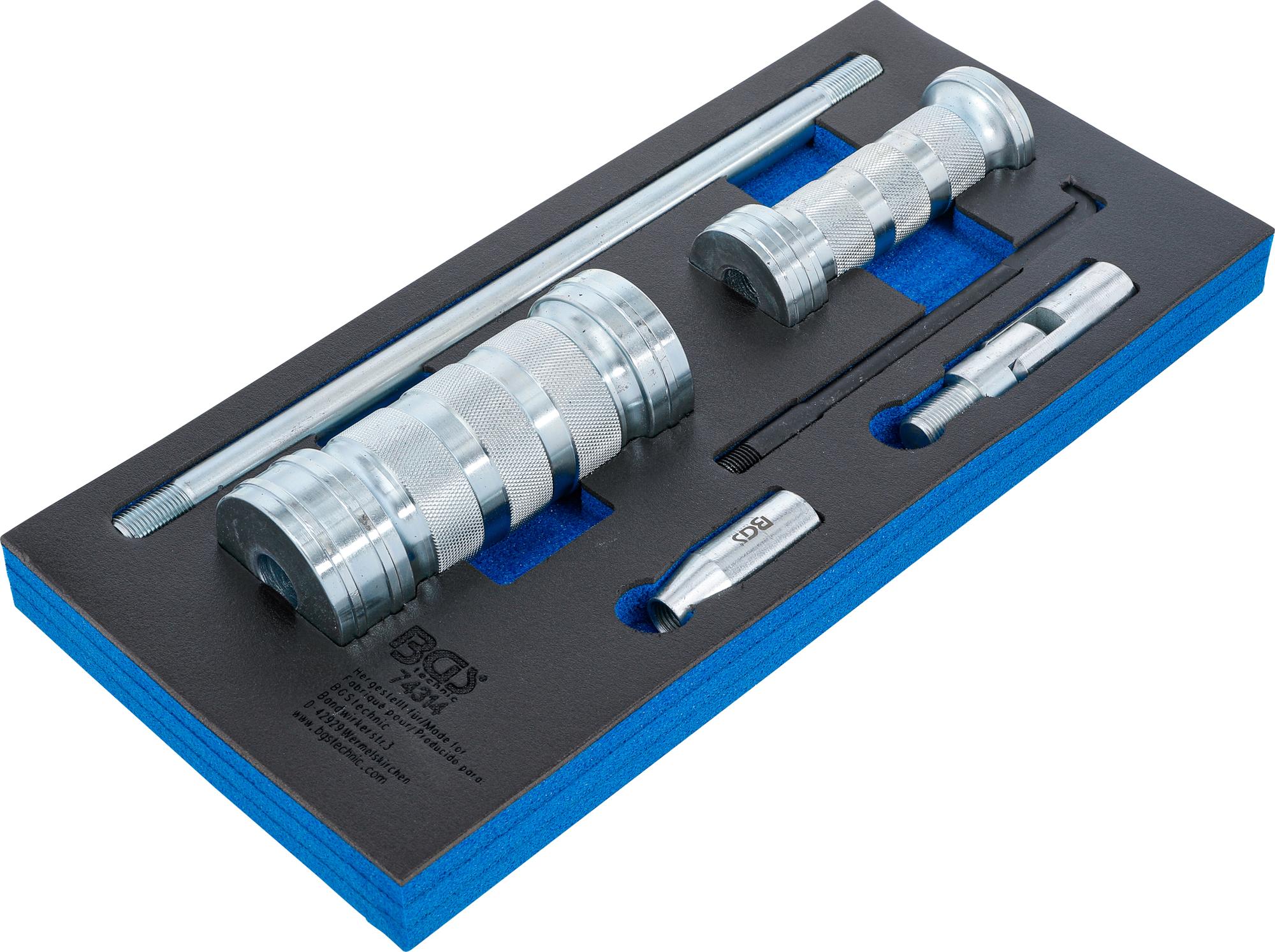

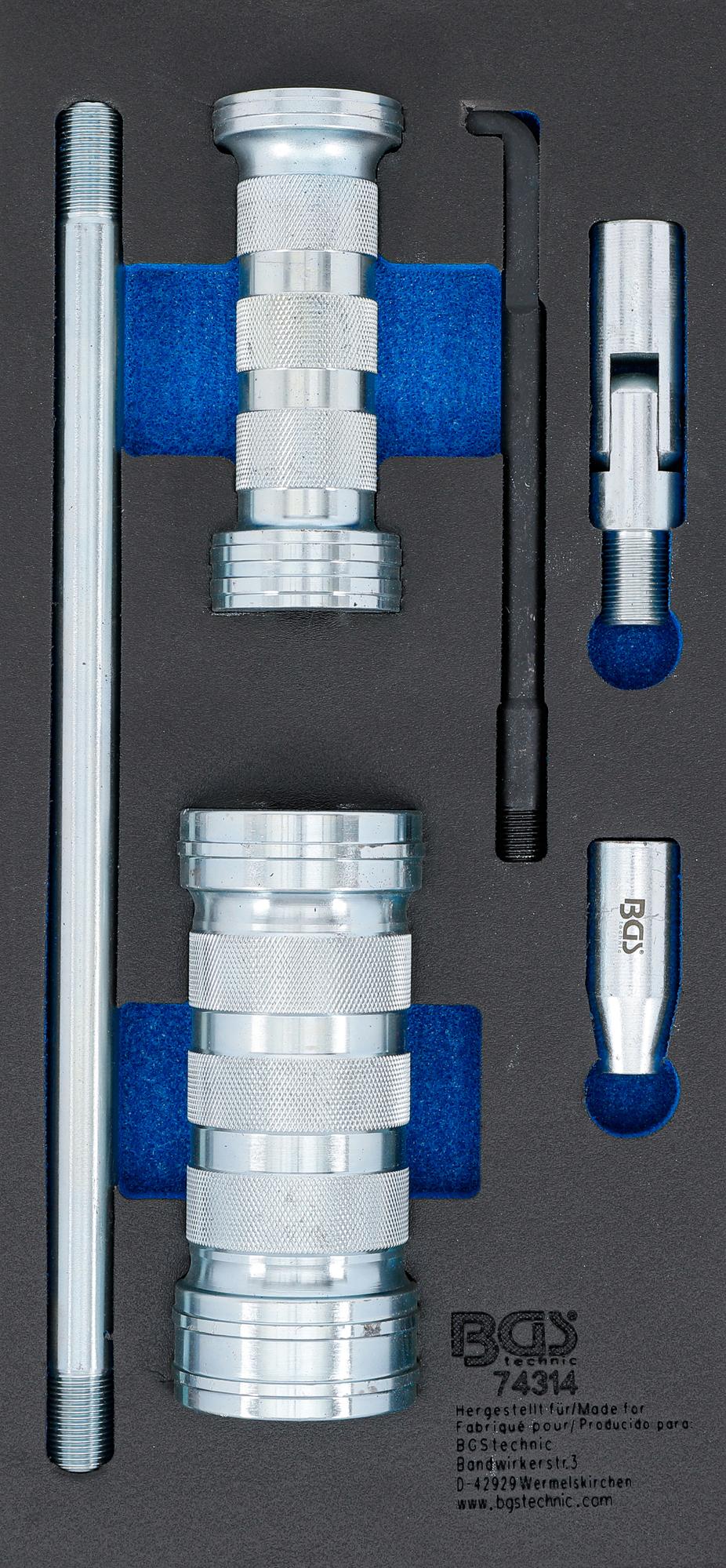

scope of delivery:
1 pulling hook, external thread M14 x 1.5
1 joint, external thread M18 x 1.5
1 adapter M18 x 1.5
1 sliding hammer handle, internal thread M18 x 1.5
1 sliding hammer weight, 2.73 kg
1 sliding hammer shaft, external thread M18 x 1.5
Technical data
Length 436 mm
Width 209 mm
Height 90 mm
Gross weight 5408 g
