for checking and adjusting the engine timing
suitable for following vehicle models:
Audi A8 (2002-2011), S8 (2001-2015), Q7 (2003-2010), A3/A3 Sportback (2005-2015), TT (2011-2012)
Porsche Cayenne (2001-2004)
Å koda Superb II (2010-2016)
Volkswagen Phaeton (2007-2015), Touareg (2008-2012), Passat (2005-2014), Eos (2010-2014), Passat CC (2010-2014), Phaeton (2007-2010), Touareg (2003-2011), Golf V (2006-2009), Golf IV (2001-2004), Bora (2001-2004), Sharan (2000-2010)
engine types:
FSI, W8, R36, BlueMotion, R32, VR6, 24V
with following engine codes:
2.8L (BDE, AYL, AMV)
3.2L (CBRA, AXZ, BDB, BMJ, BUB)
3.6L (M55/02, M55/01, CDVA, BWS, CHNA, BHK, BHL, CGRA CMTA)
4.0L (BDN, BDP)
6.0L (BAN, BAP, BRN, BRP, BTT, BJN)
6.3L (CEJA, CTNA)

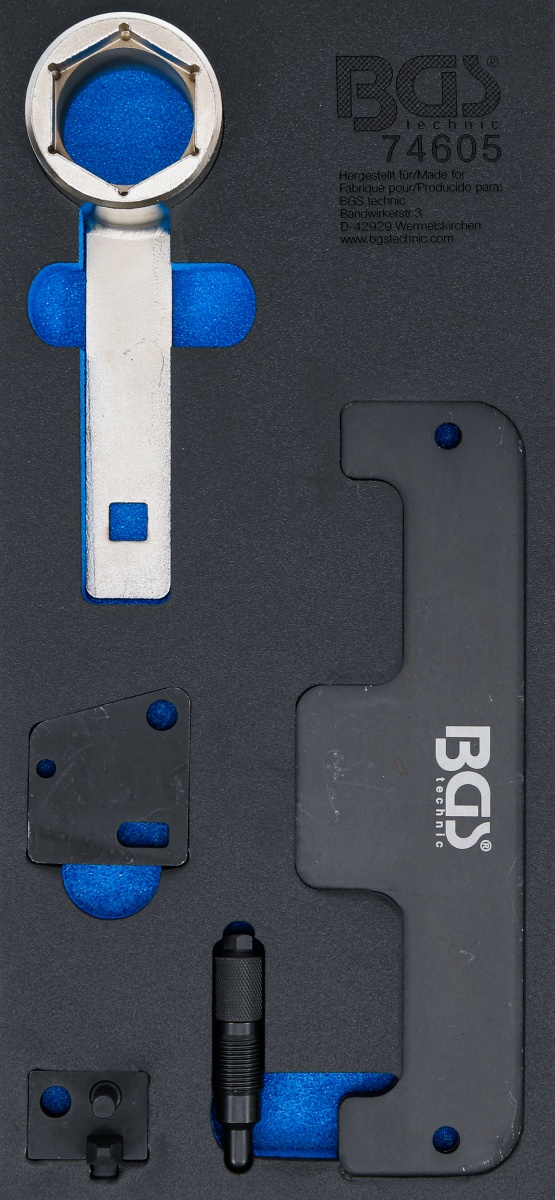

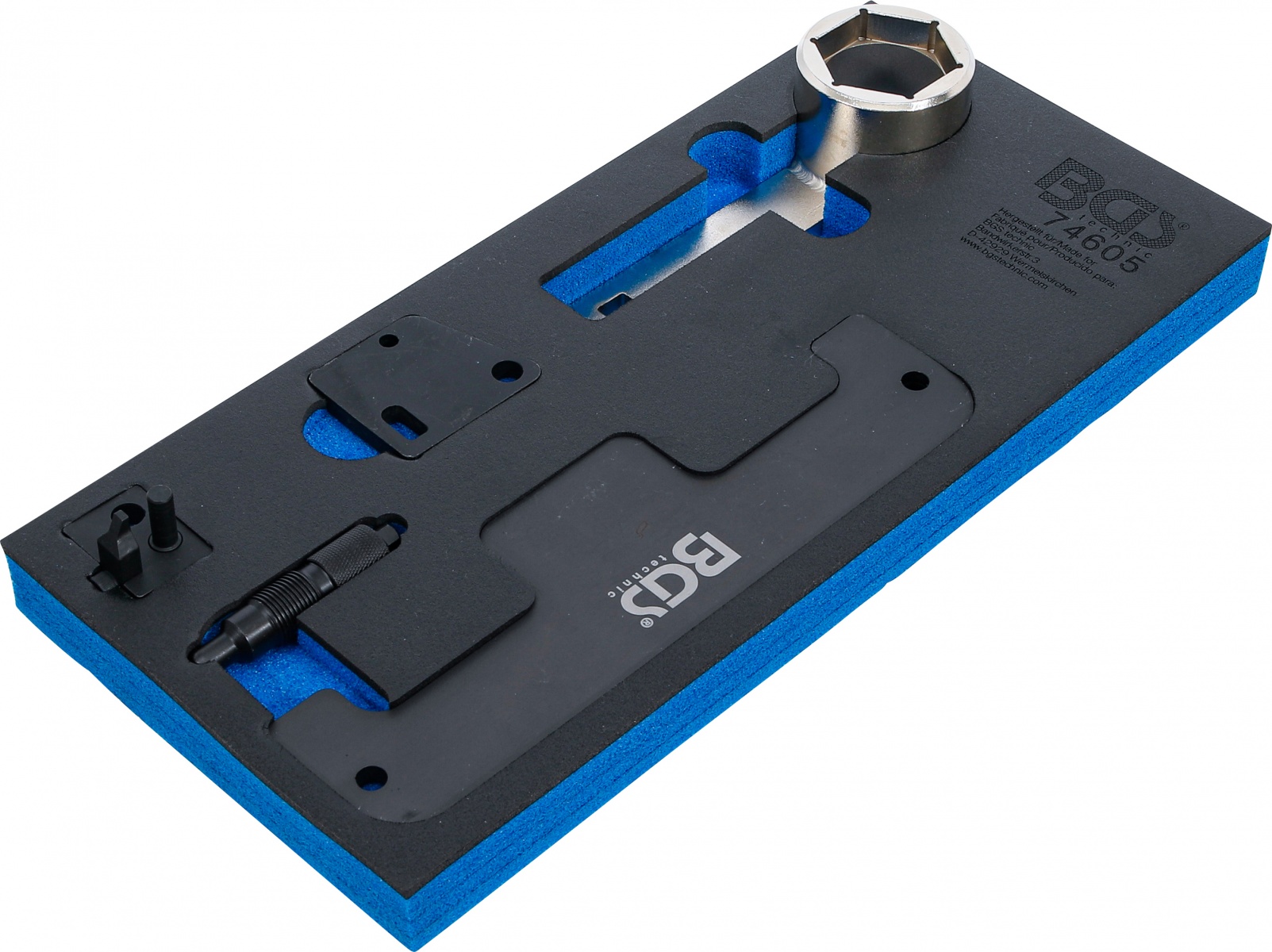

scope of delivery:
2 camshaft locking tools, to be used as OEM T10068A
1 crankshaft locking bolt, to be used as OEM 3242
1 crankshaft holding tool, to be used as OEM T10069
1 high pressure pump locking tool (mechanical vacuum pump), to be used as OEM T10363
1 high pressure pump locking tool (electric vacuum pump), to be used as OEM T10332
