Description

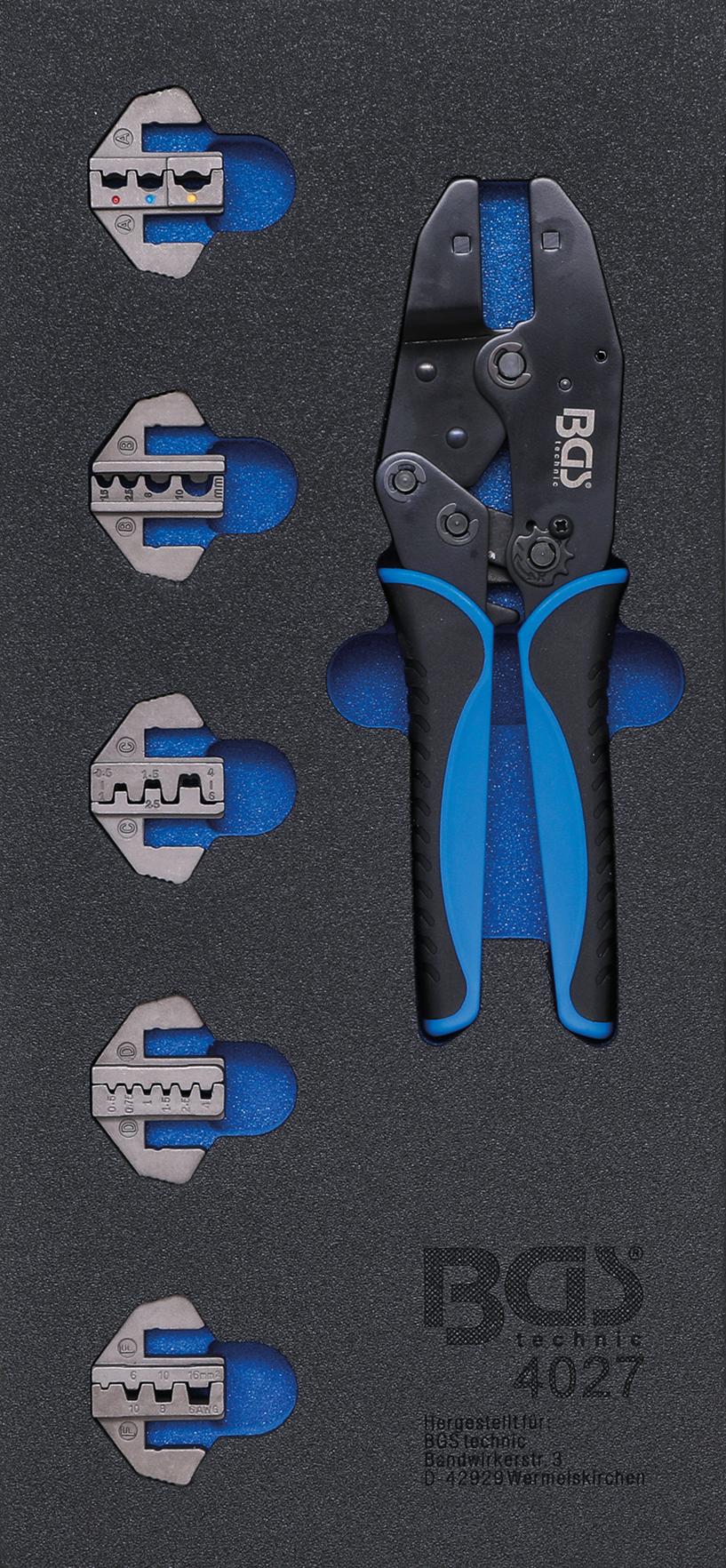

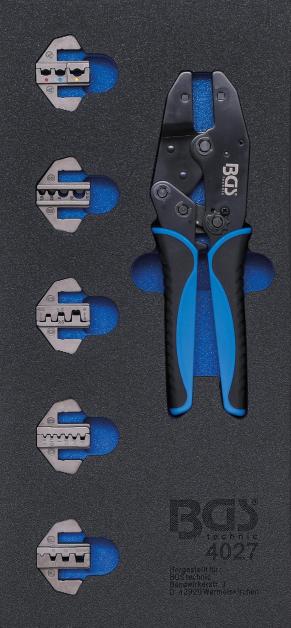

includes the following tools:
1 crimping tool set with ratcheting function, adjustable jaws and pressure point unlocking
1 crimping jaws set for closed non-insulated terminal ends, AWG (20-18) - (16-14) - (12-10) - 8 or DIN 1.5 - 2.5 - 6 - 10 mm² or JIS 1.25 - 2 - 5.5 - 8 mm²
1 crimping jaws set for insulated terminal ends, AWG (22-18) - (16-14) - (12-10) or DIN (0.5-1.0) - (1.5-2.5) - (4-6) mm²
1 crimping jaws set for open, non-insulated terminal ends, AWG (20-18) - (16-14) - (12-10) or DIN (0.5-1.0) - (1.5-2.5) - (4-6) mm²
1 crimping jaws set for small insulated terminal ends, AWG (22-18) - (16-14) - (12-10) or DIN (0.5-1.0) - (1.5-2.5) - (4-6) mm²
1 crimping jaws set for big insulated terminal ends, AWG 22 - 20 - 18 - 16 - 14 - 12 or DIN 0.5 - 0.75 - 1.0 - 1.5 - 2.5 - 4.0 mm²
Technical data
Gross weight 830 g
Depth 408 mm
Width 189 mm
Height 32 mm
