Description:
Brand:
Index
YT-08043
Barcode
5906083128769
Unit of measure
PCE
Volume
1323.92
Weight
290

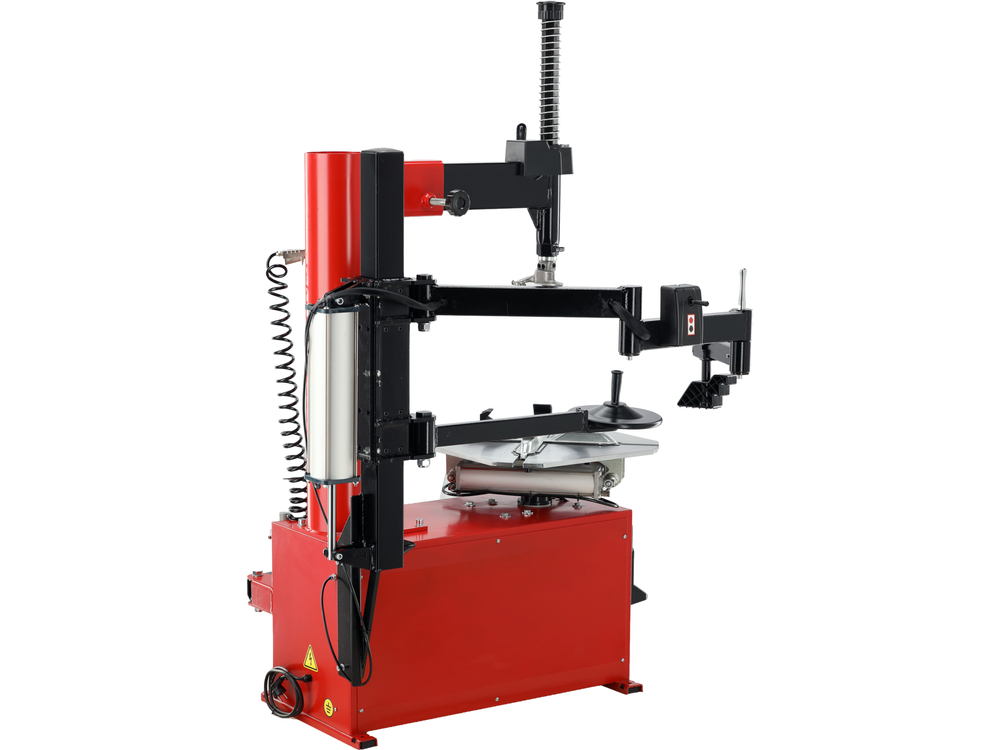

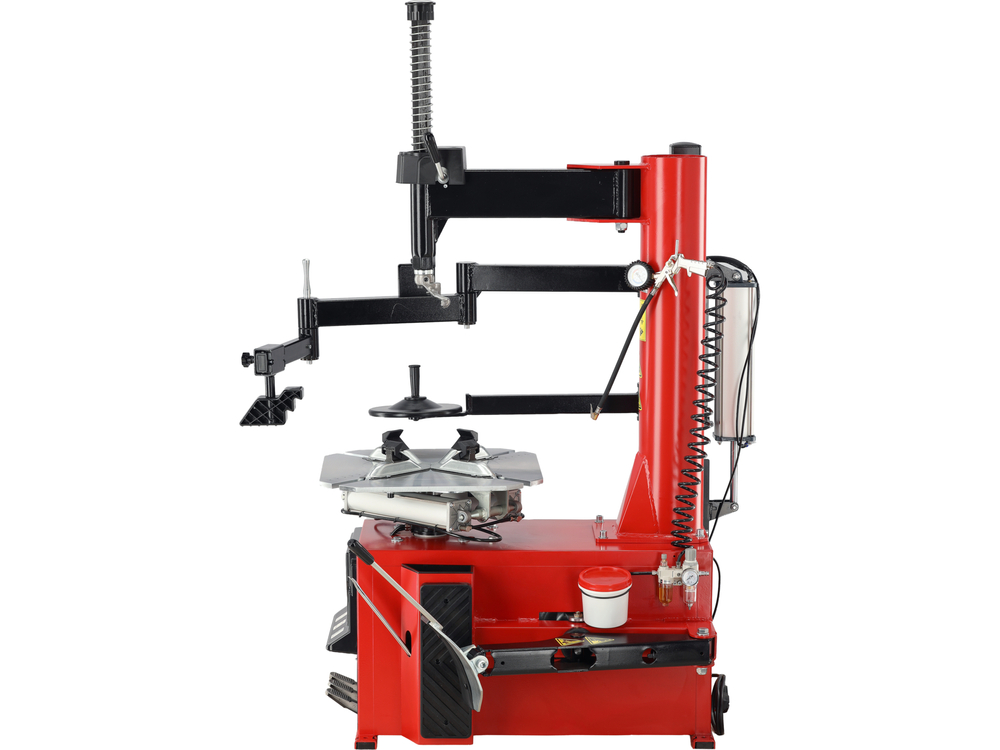

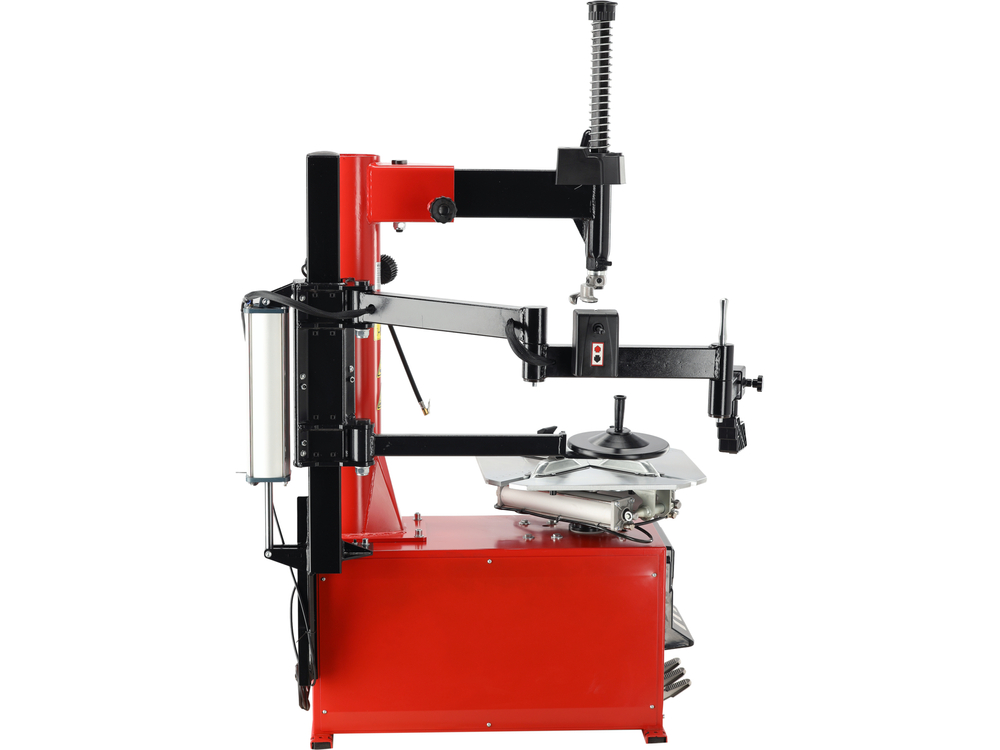

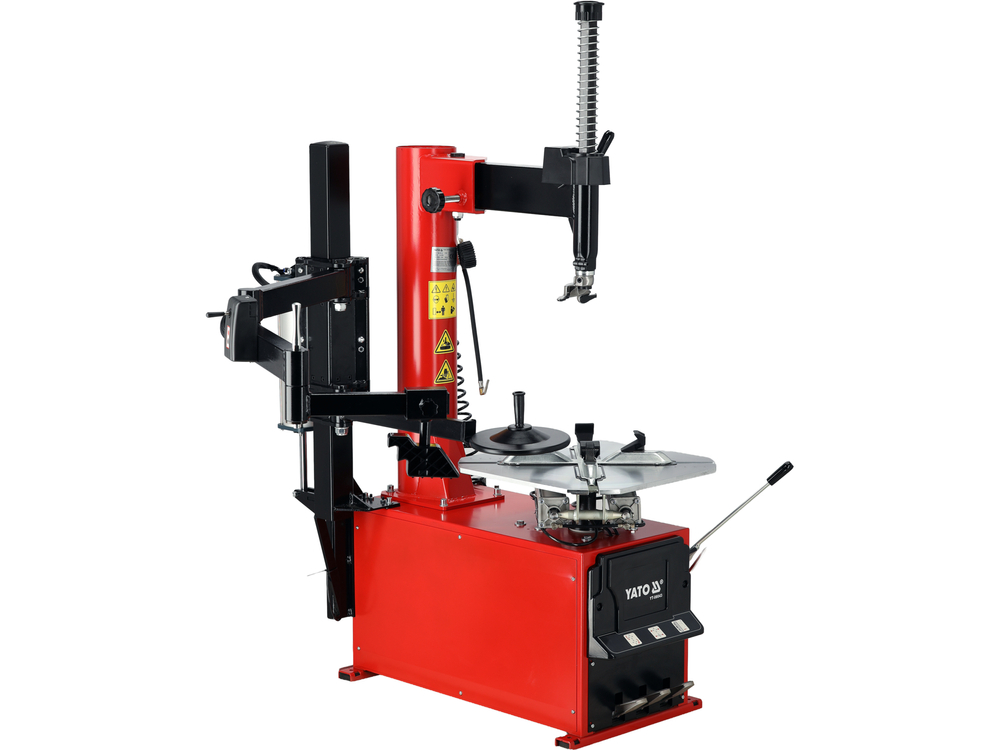

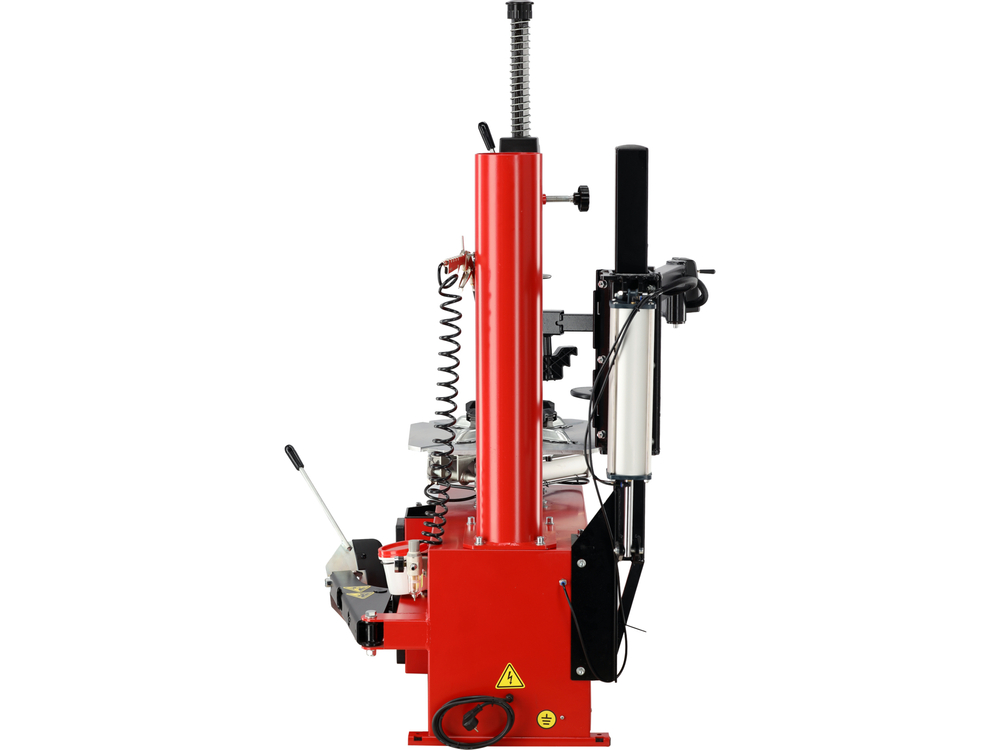

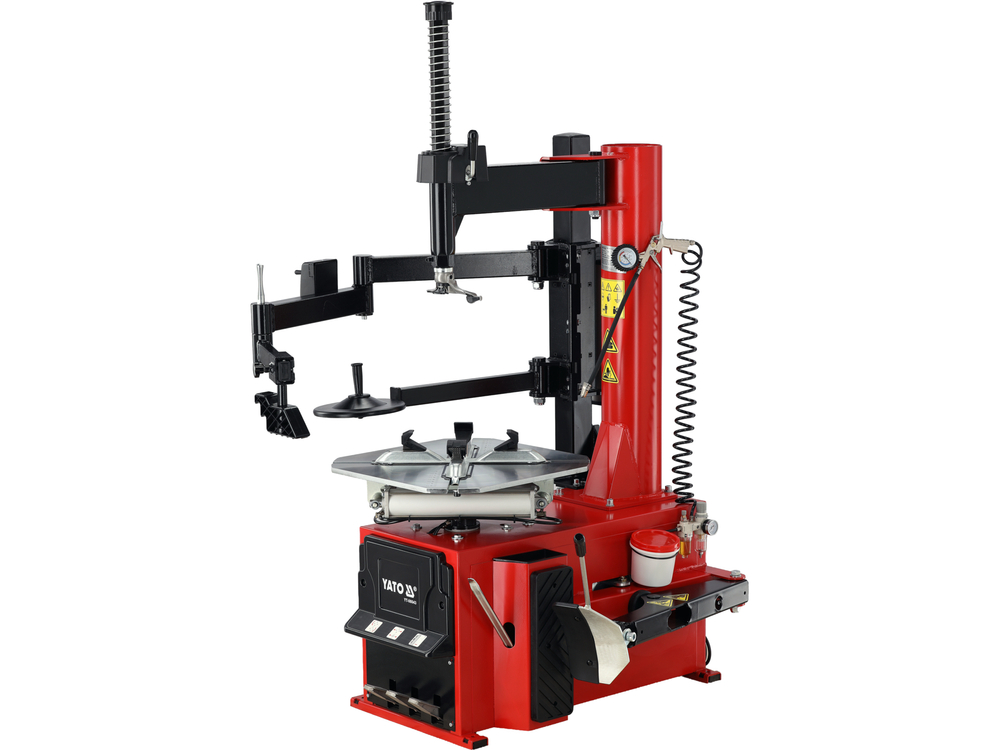

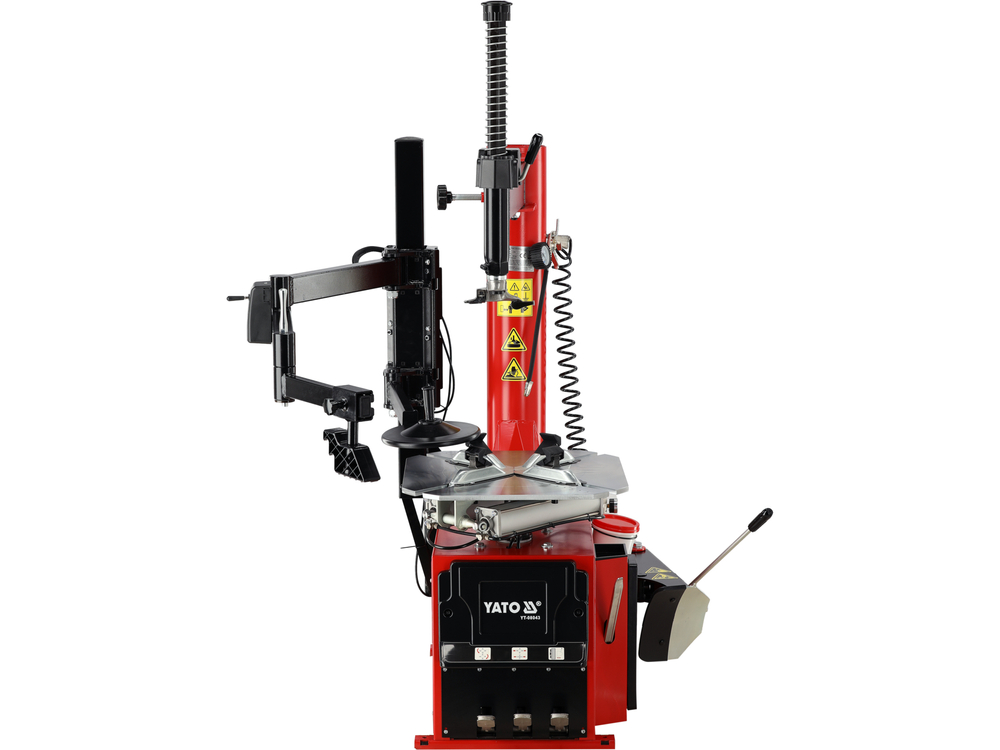

The tire changer with an auxiliary arm YT-08043 is designed for professional handling of automotive wheels during tire mounting and dismounting. The device is equipped with a pneumatic rim clamping system, an efficient tire bead breaker, and an additional auxiliary arm that assists in working with tires of rigid construction and low profile. The advanced workstation configuration increases operational comfort and facilitates service tasks that require greater precision and clamping force.
The stable construction, rotating work table, and pedal control allow for efficient execution of the various stages of tire replacement. The auxiliary arm supports the operator during the mounting and dismounting of demanding tires, helping to keep the tire bead in the correct position relative to the rim and mounting head.
Key features:
designed for mounting and dismounting car tires
pneumatic rim clamping system

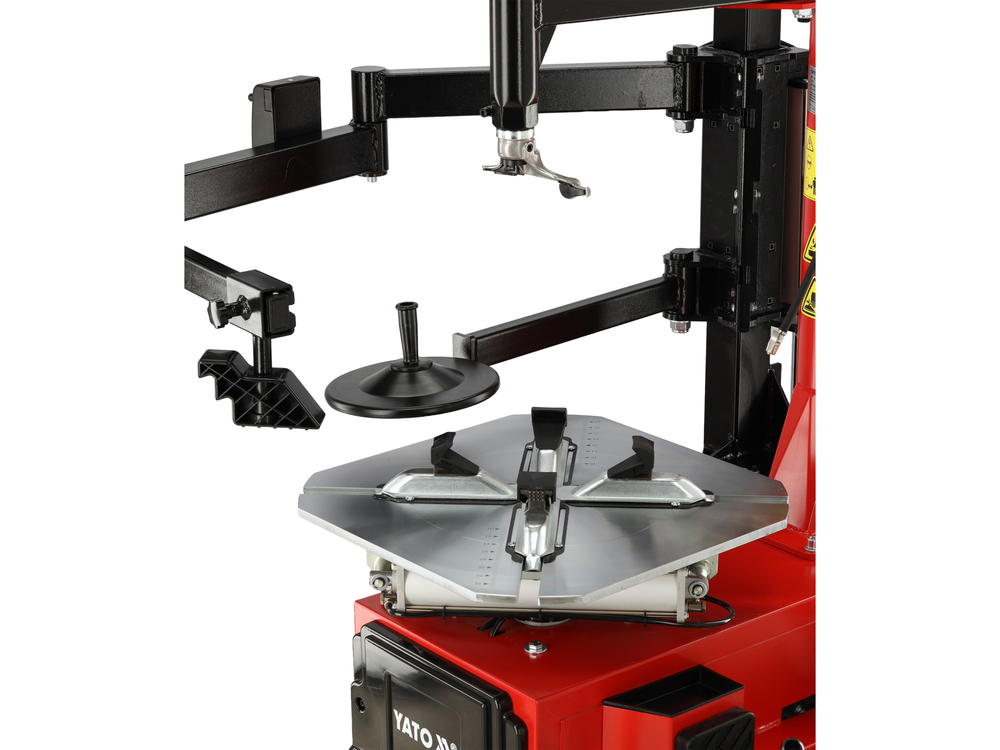

rotating work table with internal and external clamps

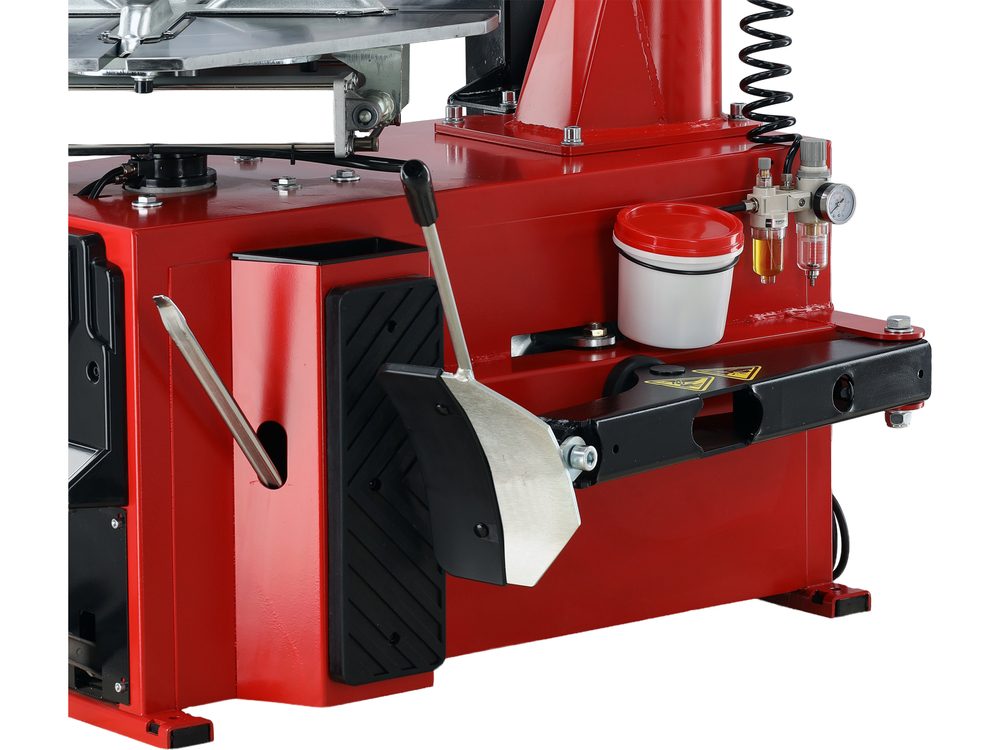

efficient tire bead breaker with a force of 2500 kg
additional auxiliary arm for handling low-profile and rigid tires

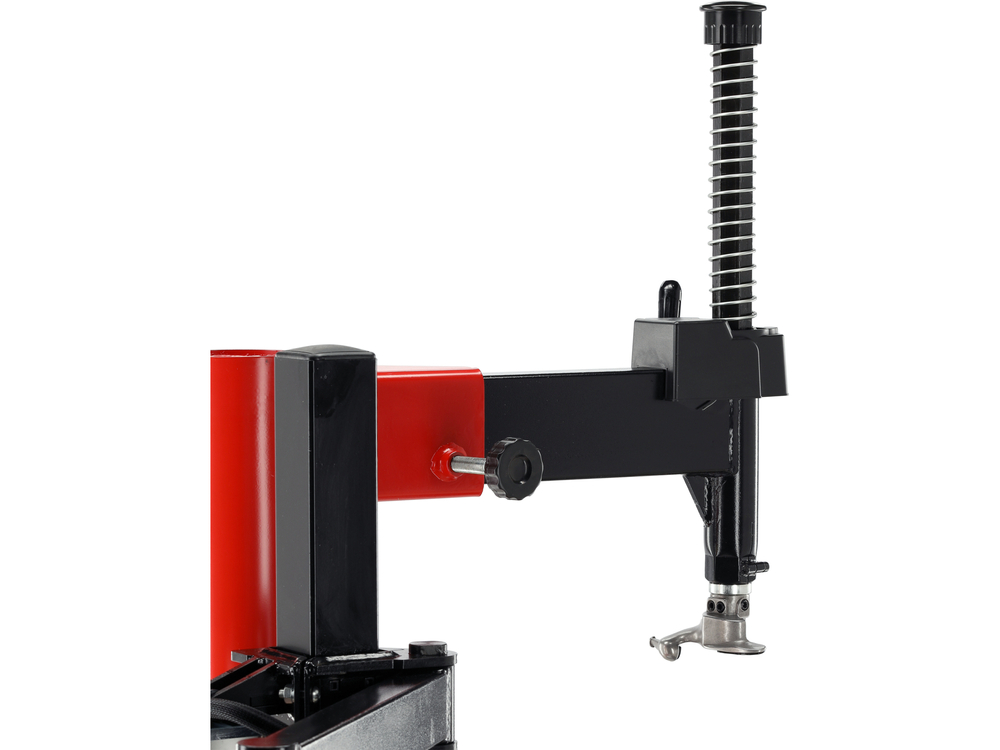

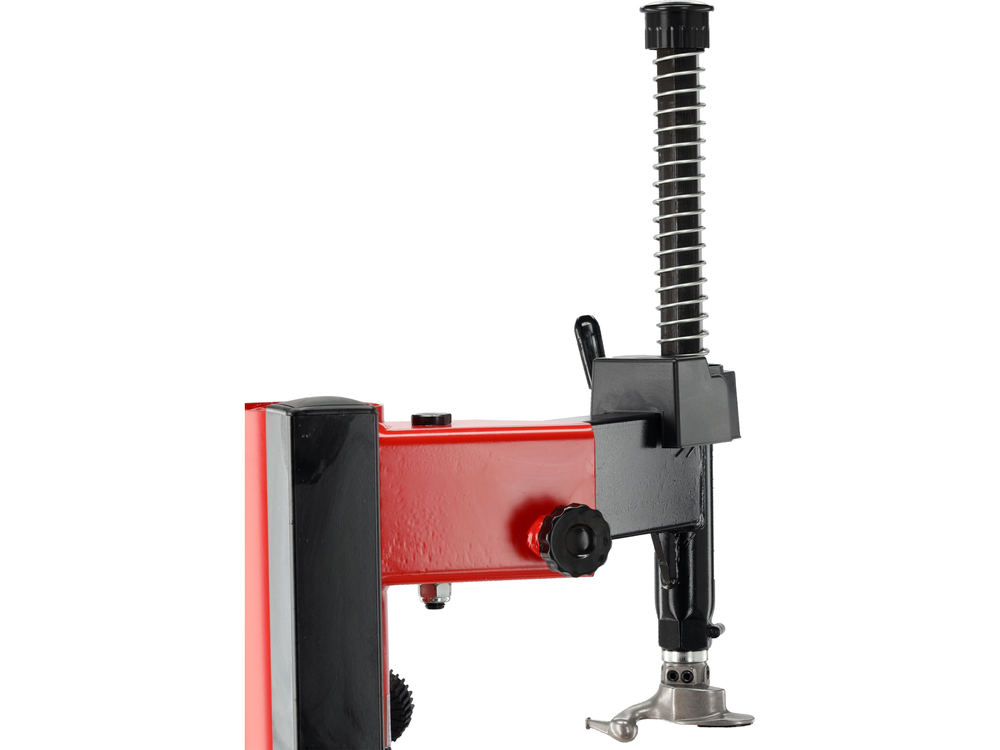

mounting head compatible with an adjustable hexagonal shaft

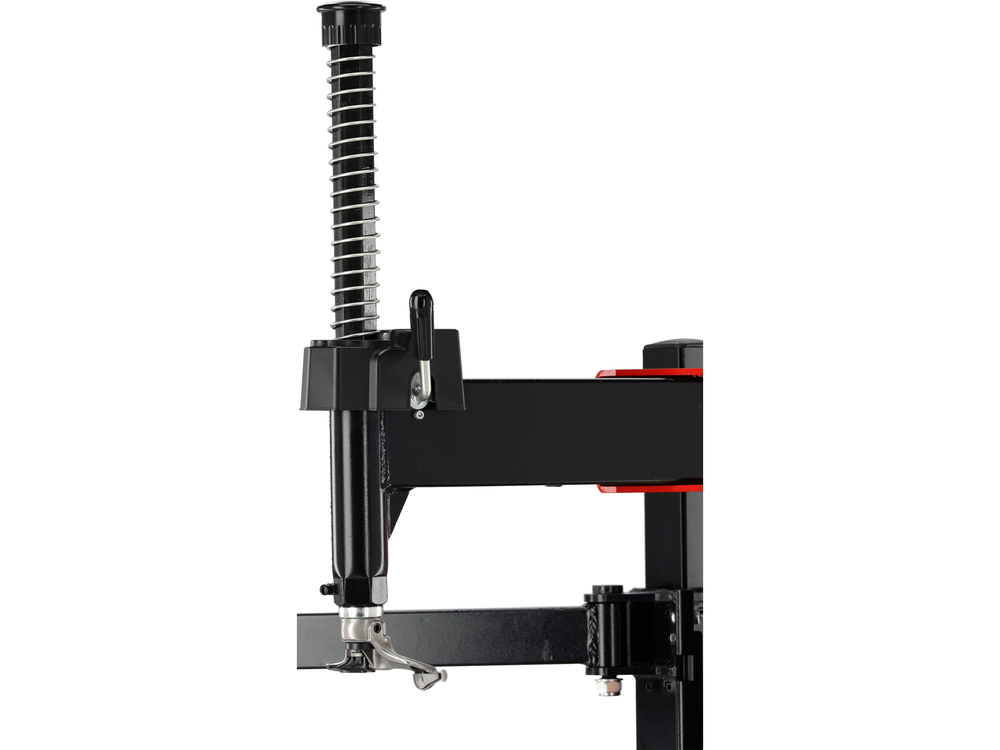

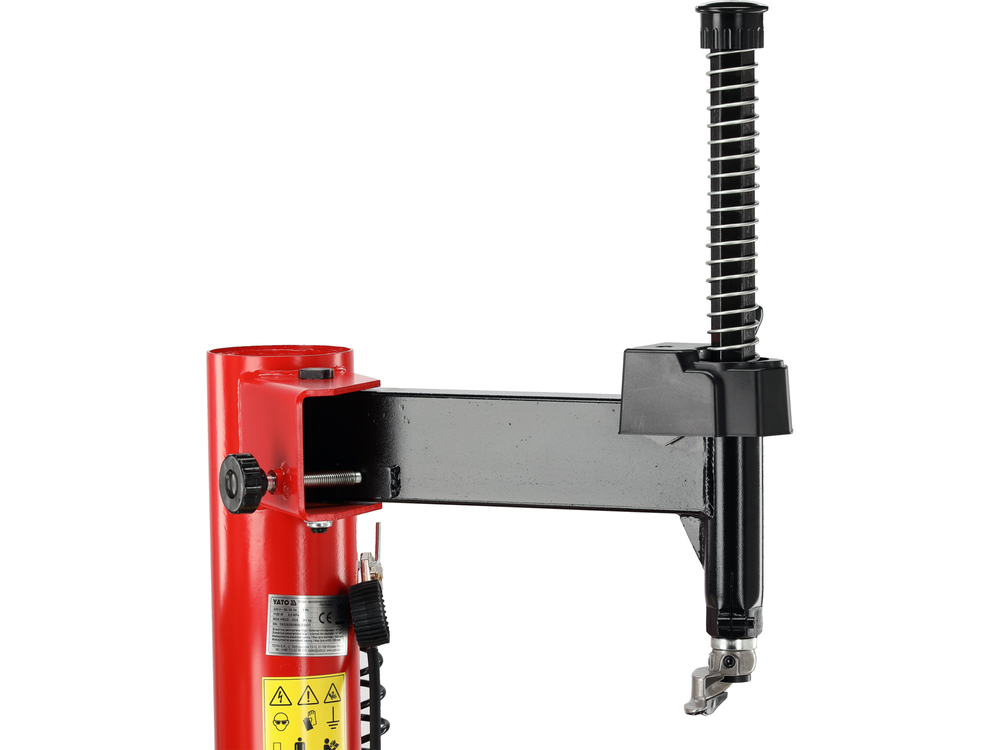

adjustable horizontal arm with position lock

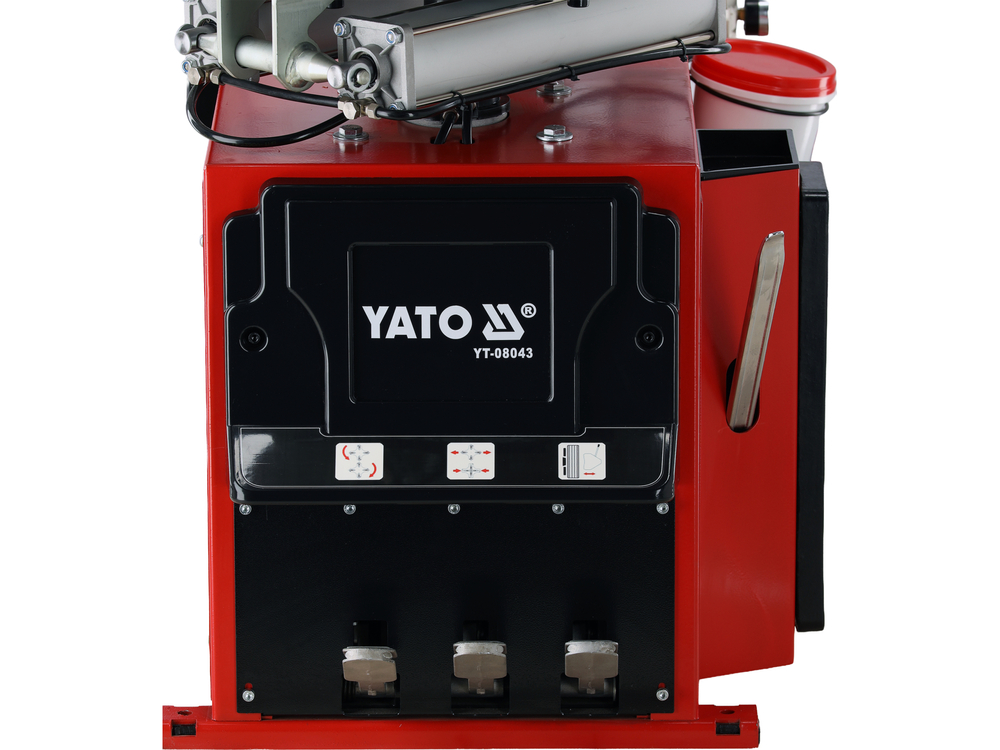

control of operational functions via foot pedals

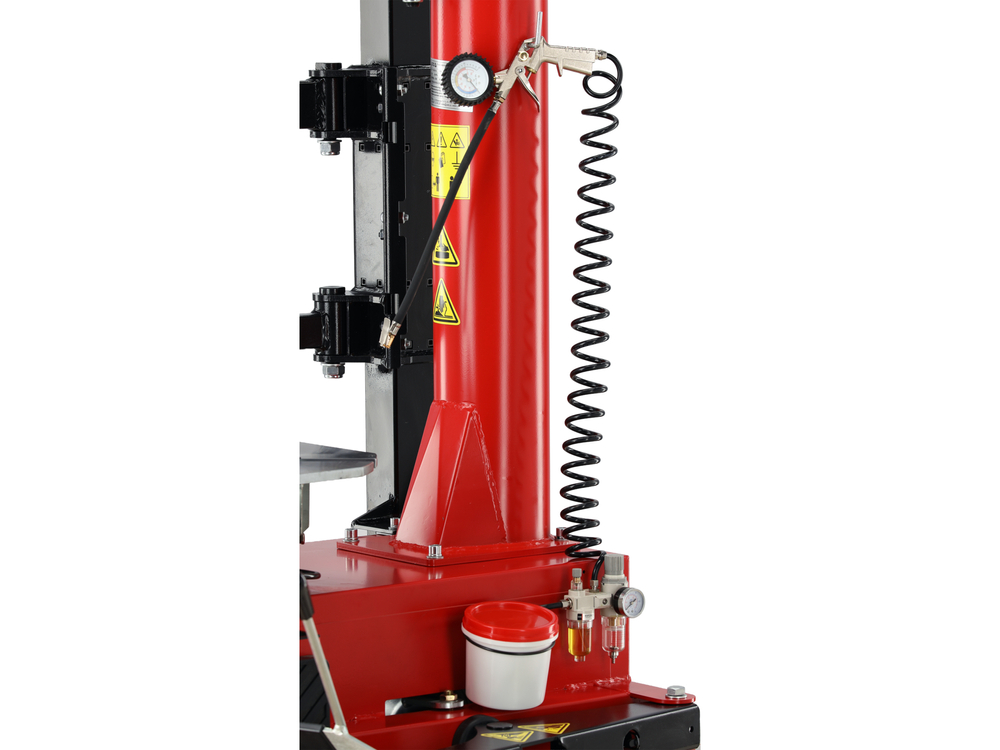

integrated tire inflating gun
stable construction adapted for intensive workshop use
capable of handling a wide range of rim and tire sizes
Technical specifications:
motor power: 1.1 kW (1100 W)
number of phases: 1
table rotation speed: 6.5 rpm
required working pressure: 8-10 bar
air pressure at inlet: 0.8-1.0 MPa
tire bead breaker force: 2500 kg
noise level: < 70 dB
device weight: 243 kg
Working range:
external rim clamping: 10"-20"
internal rim clamping: 12"-24"
rim/wheel width: 3"-13"
maximum tire diameter: 1050 mm
maximum tire width: 330 mm

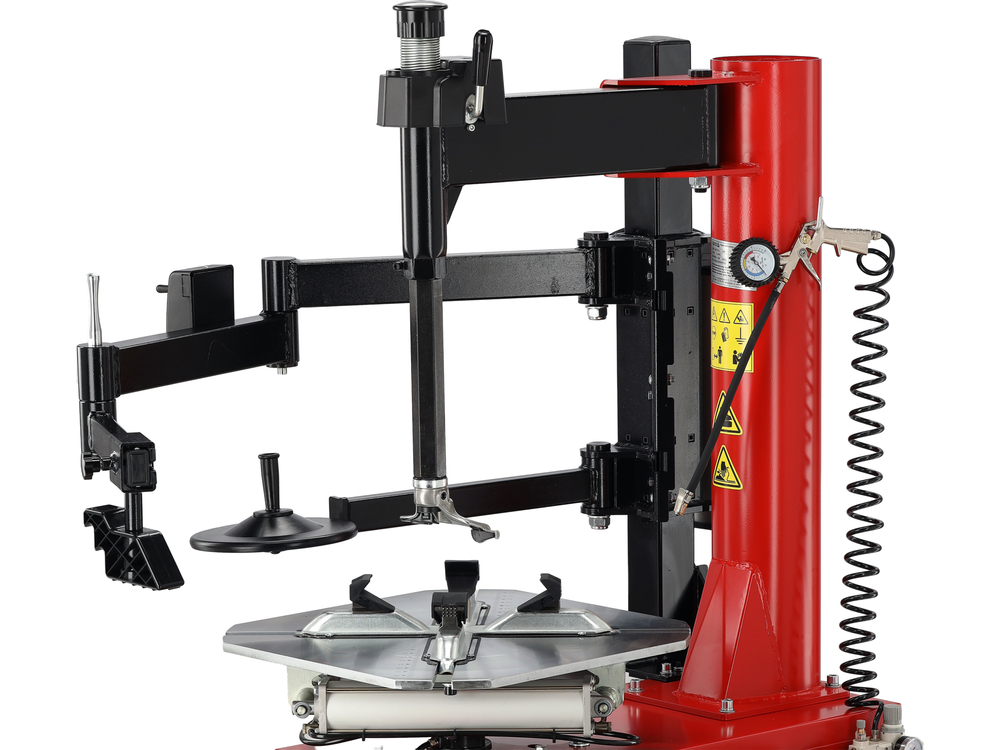

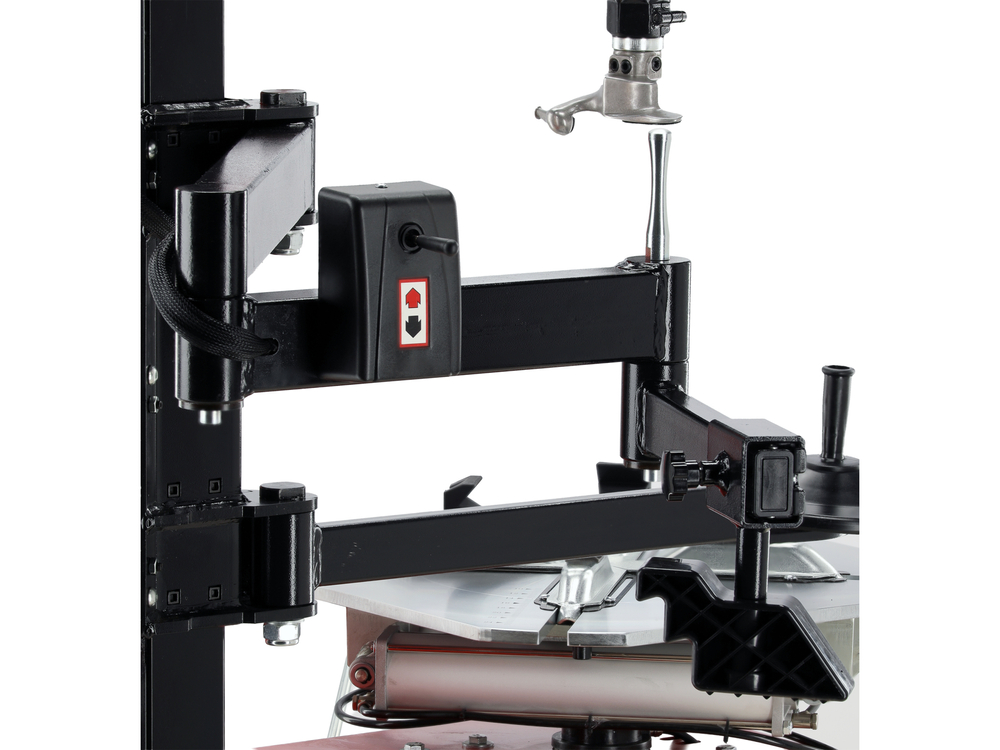

Auxiliary arm:

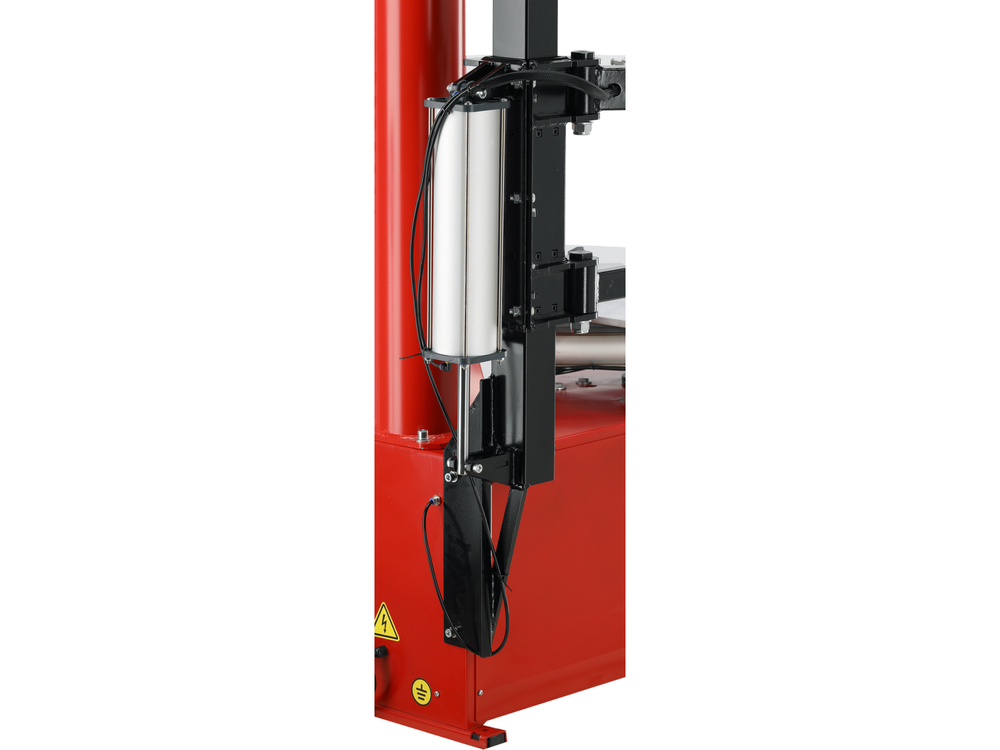

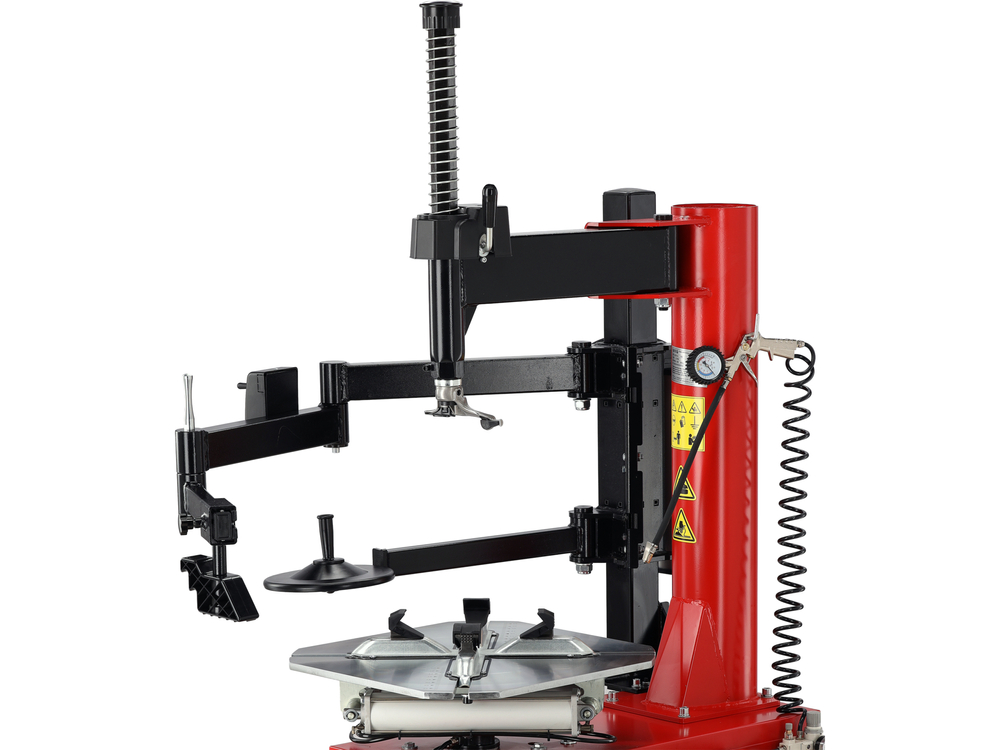

The additional auxiliary arm enhances the capabilities of the tire changer when servicing modern tires with rigid sidewalls and run-flat designs. It facilitates the control of the tire bead's position relative to the rim, reduces the risk of tire damage, and decreases the operator's effort during mounting tasks.
Equipment and working elements:
rotating table with clamping fixtures
mounting head
hexagonal shaft with a horizontal arm
tire bead breaker with pneumatic actuator
auxiliary arm
tire inflating gun
pedal control system

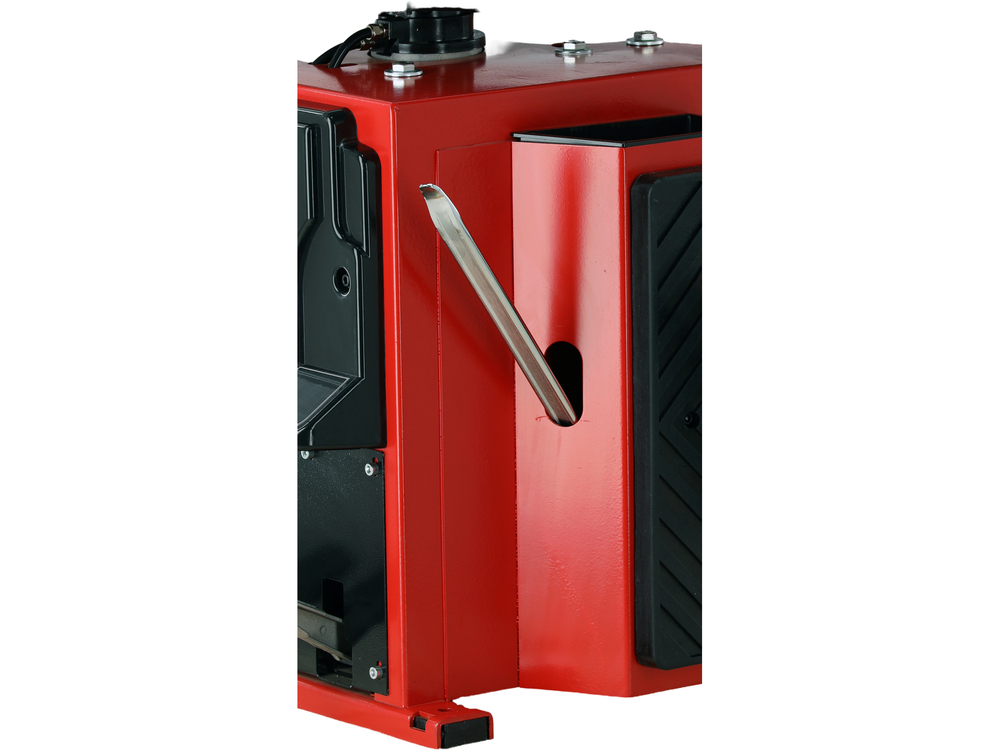

mounting lever (mounting spoon)
Application:
The device is intended for automotive workshops, tire service shops, and tire maintenance points. It enables efficient mounting and dismounting of tires, handling rims of various sizes, and performing basic wheel service tasks.
