Description:
Brand:
universal set composition
metric and inch sizes
for thread repair of damaged or worn-out threads
for new high stbale and long-lasting internal threads
perfect for maintenance and installation
the repair is carried out in just a few steps
drill out the damaged thread with the twist drill
use the special tap to cut the internal thread into the drilled hole
to install, place the thread insert on the installation tool and screw it in the thread insert with light pressure
the use of cutting oil is recommended
simple and safe handling
allows a cost- and time-saving repair

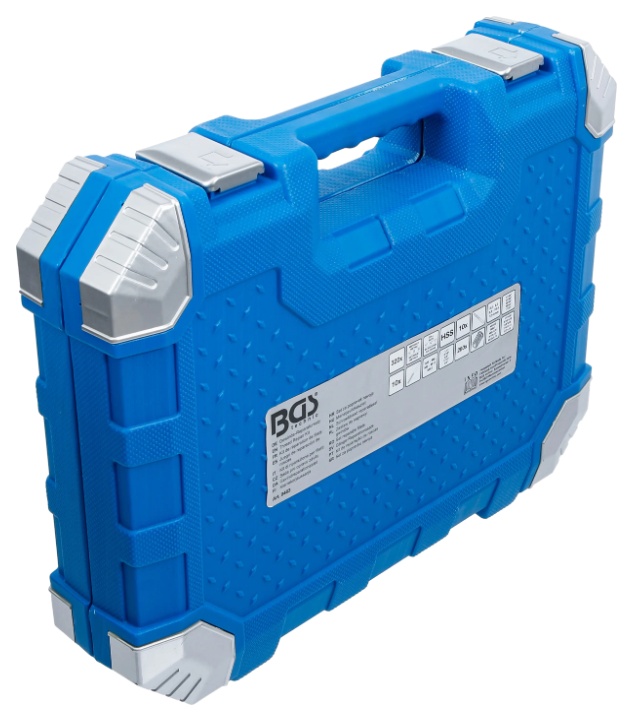

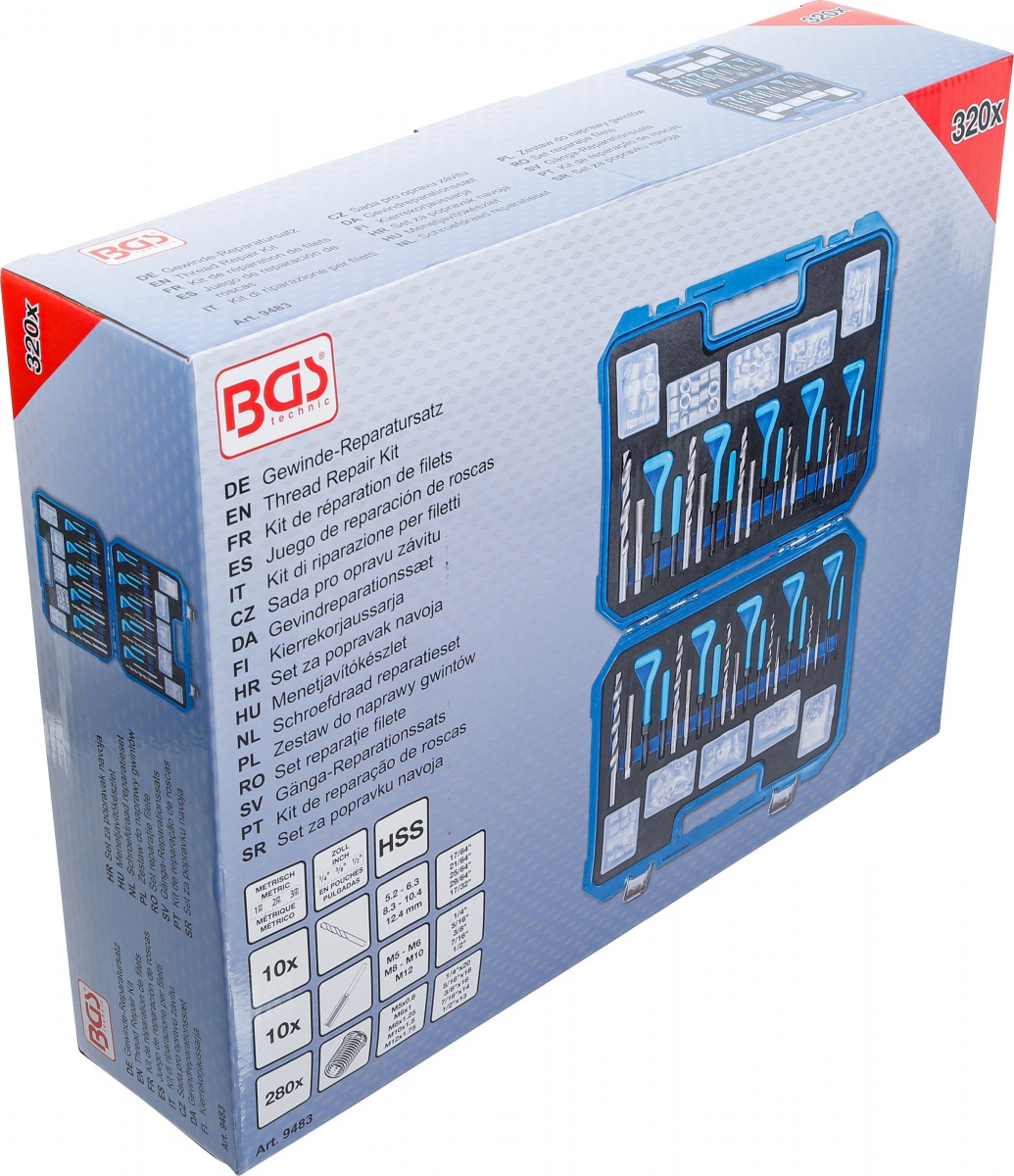

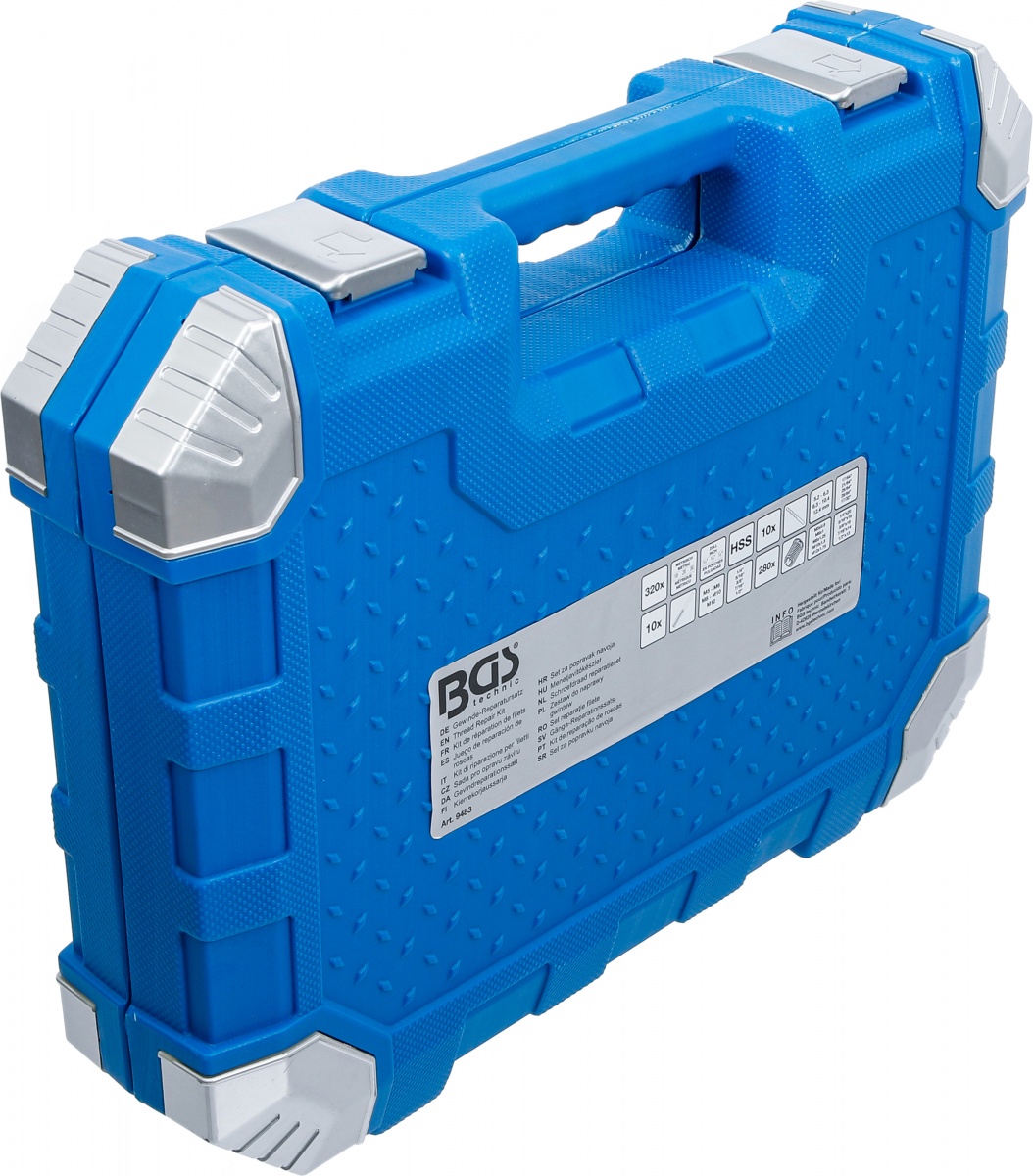

in a sturdy blow mould case with EPE foam tray

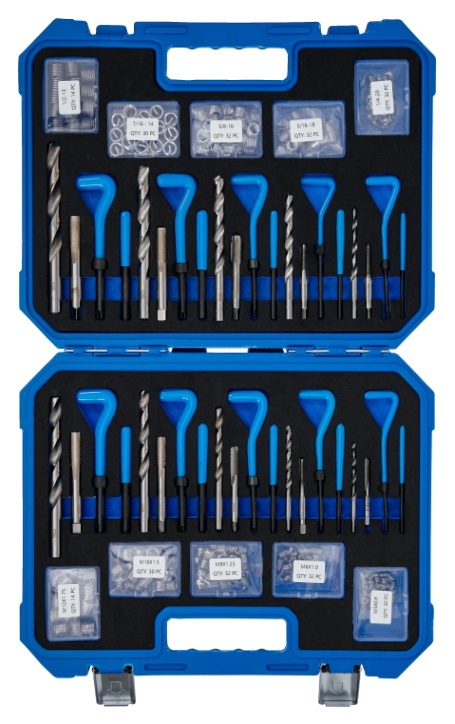

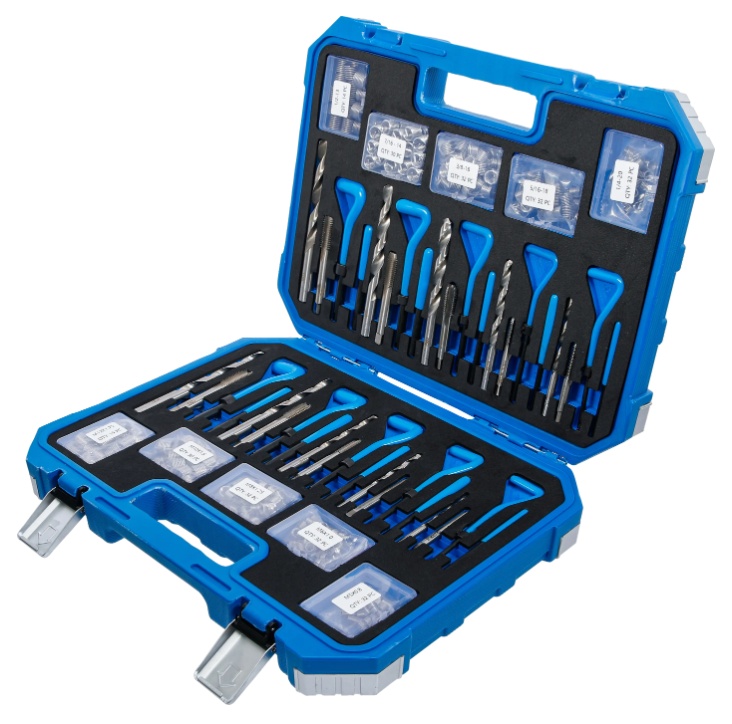

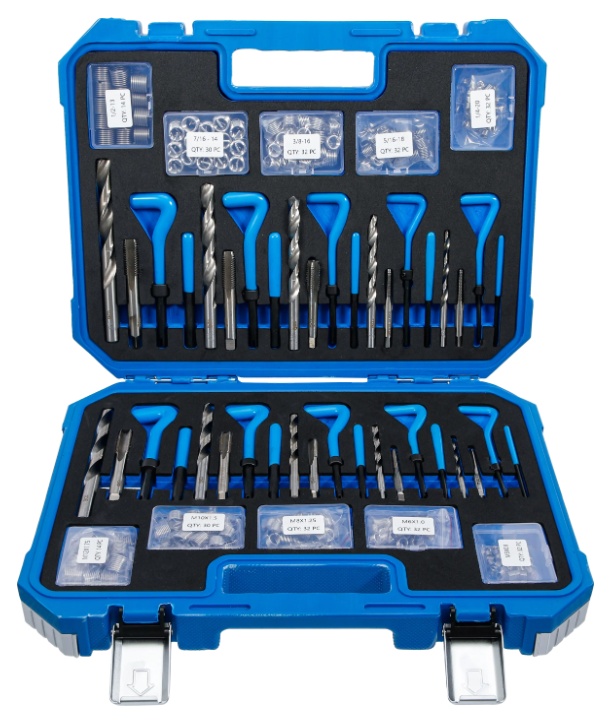

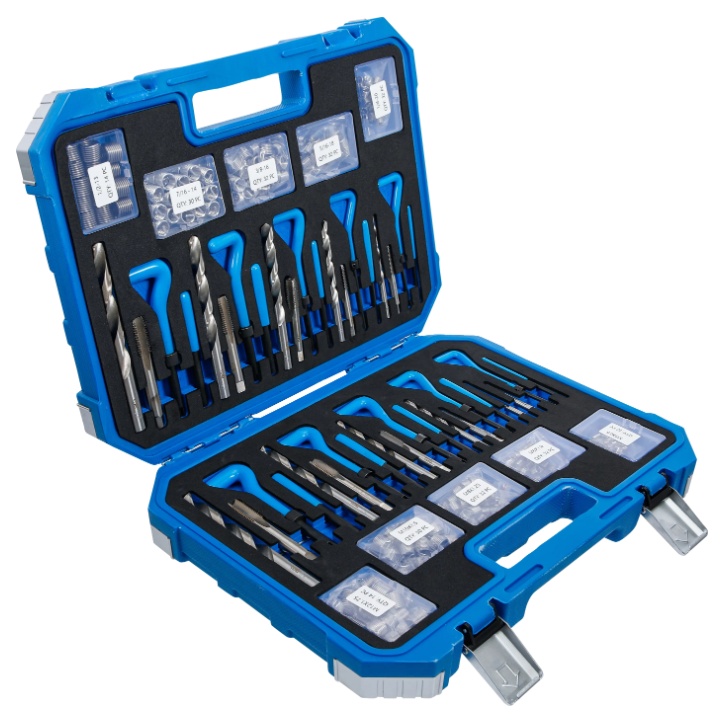

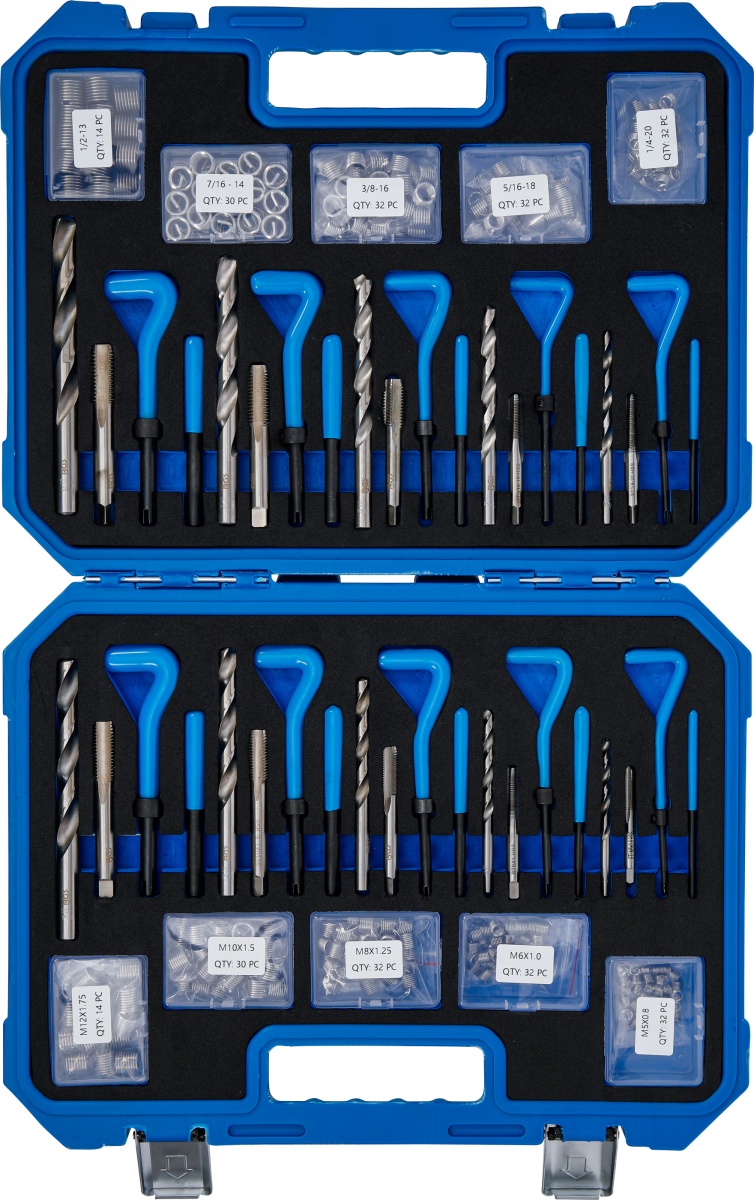

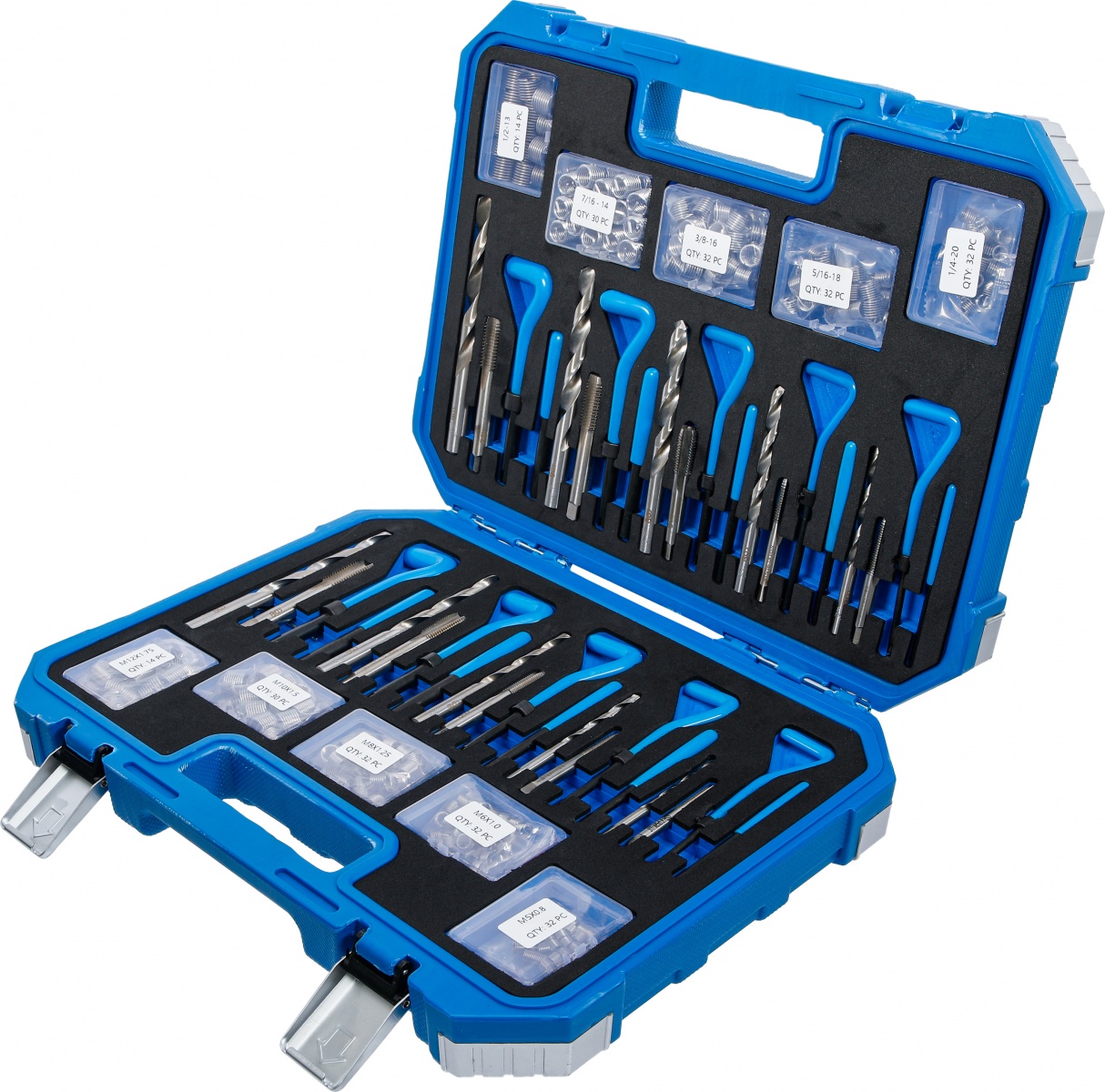

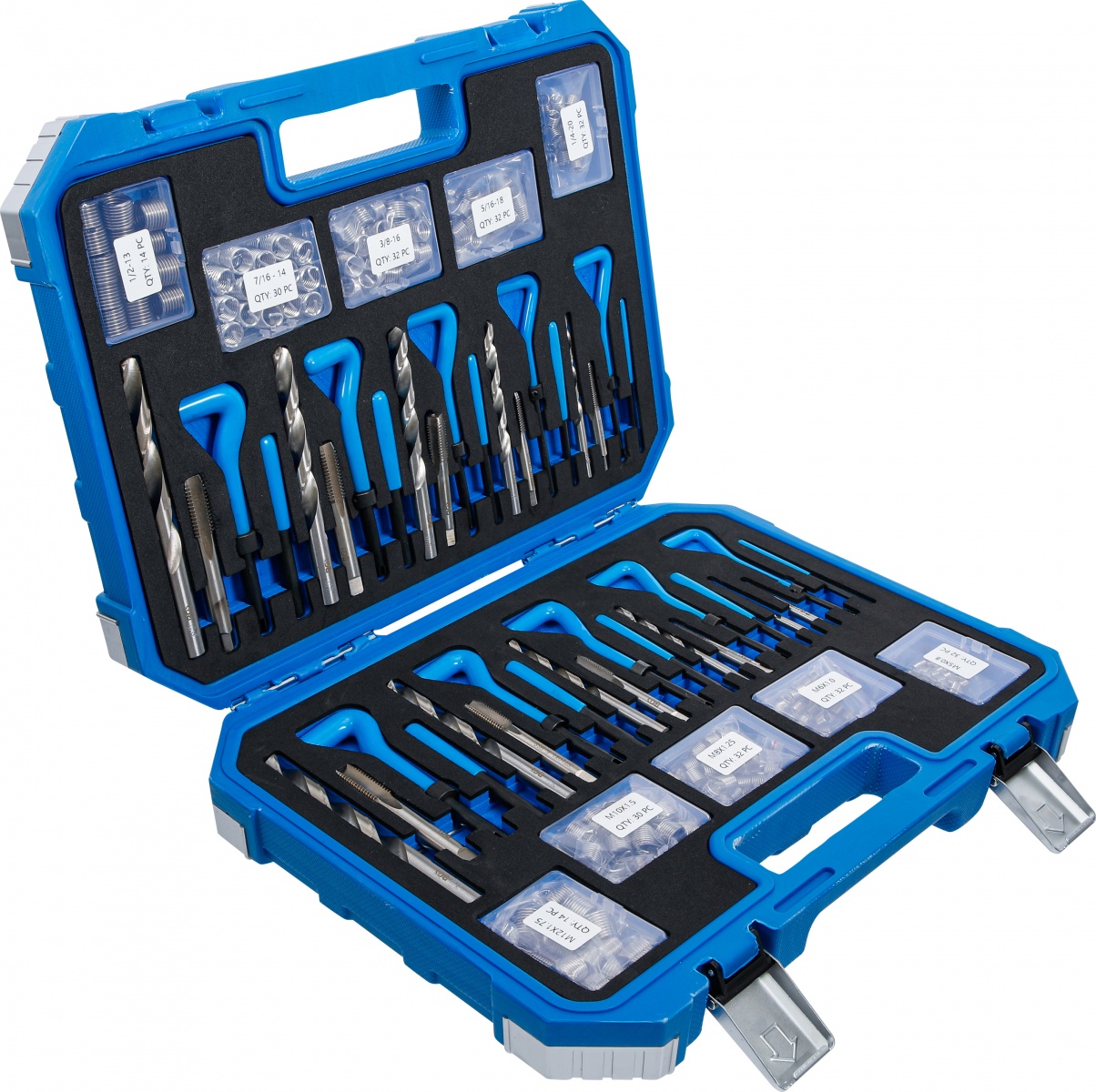

the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner
each individual tool has its appropriate place

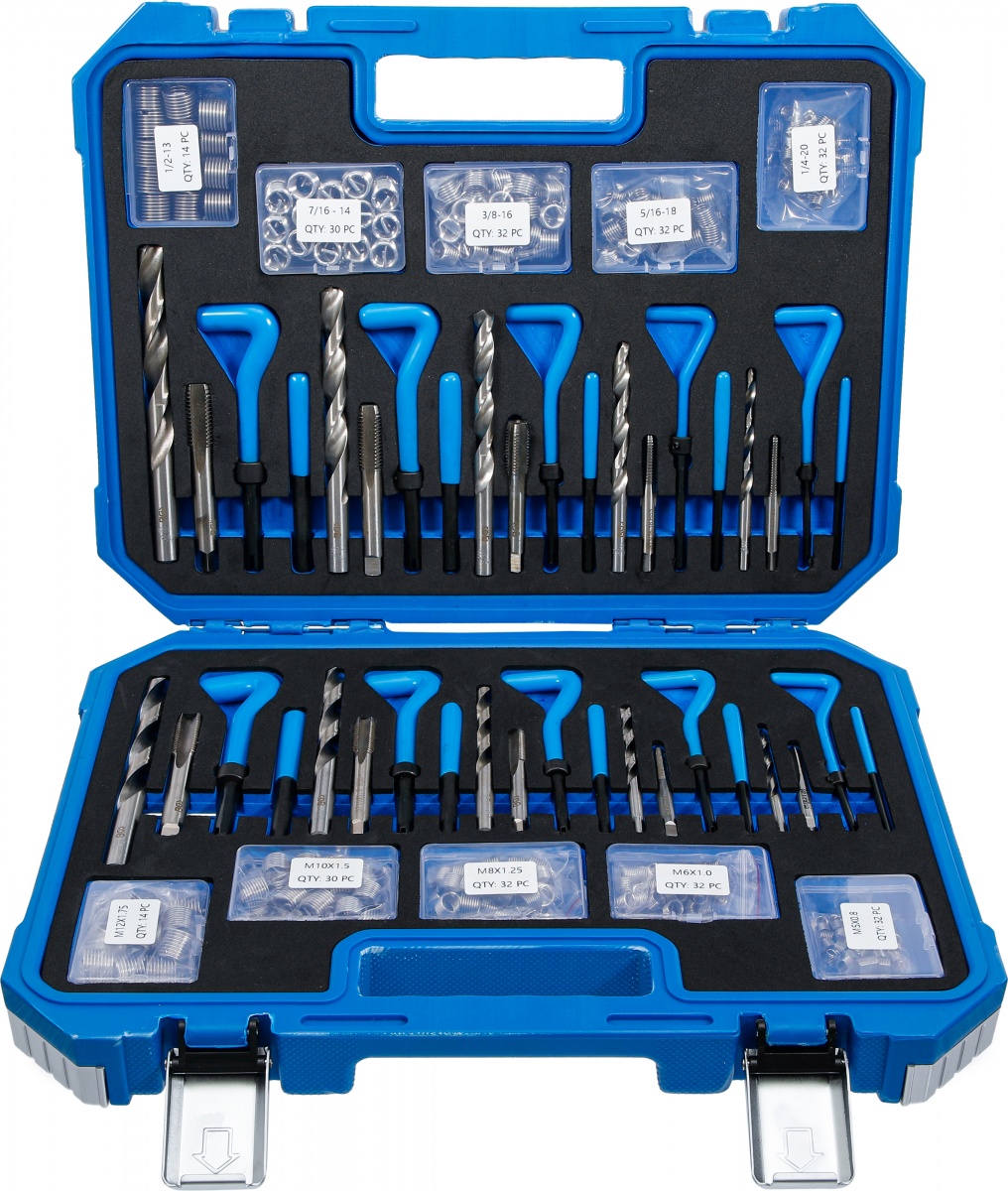

5 Twist Drills (Metric) 5.2 - 6.3 - 8.3 - 10.4 - 12.4 mm
5 STI Short Machine Tap for threaded inserts M5 - M6 - M8 - M10 - M12
32 threaded inserts M5x0.8
32 threaded inserts M6x1
32 threaded inserts M8x1.25
30 threaded inserts M10x1.5
14 threaded inserts M12x1.75
5 Twist Drills (imperial) 17/64" - 21/64" - 25/64" - 29/64" - 17/32"
5 STI Short Machine Tap for threaded inserts 1/4" - 5/16" - 3/8" - 7/16" - 1/2"
32 threaded inserts 1/4 "x20
32 threaded inserts 5/16x18
32 threaded inserts 3/8 "x16
30 Threaded inserts 7/16 "x14
14 Threaded inserts 1/2 "x13
10 assembly tools
10 tenon breakers
Content:
320 Pcs.
Material:
HSS-Stahl (4241)
Protection class:
Schwarz / Blau
Package dimensions (LxwxH) :
406 x 321 x 102 mm
Gross weight: 3.894 kg
