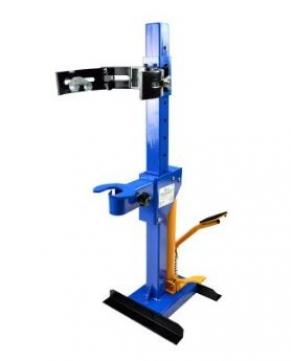

 (2) Price show only for registered users Item code: GT1701
Description:
2200Lbs, 1000kg
210-570mm
eiga 325mm
Spyruoklės Ø101.6 - 254mm
Technical data
Emphasis
1 ton
The scope of work of the jaws
100 - 250 mm
Working range
210 - 570 mm
The maximum diameter of the compressed spring
400 mm
Overall height
1050 mm
Actuator
foot pedal
Pull out the piston
330 mm
Number of working levels
7
The dimensions of the base
350 mm x 340 mm
27 kg
|
