Description:
Brand:
Index
YT-72967
Barcode
5906083137570
Unit of measure
PCE
Volume
13.395
Weight
3.375

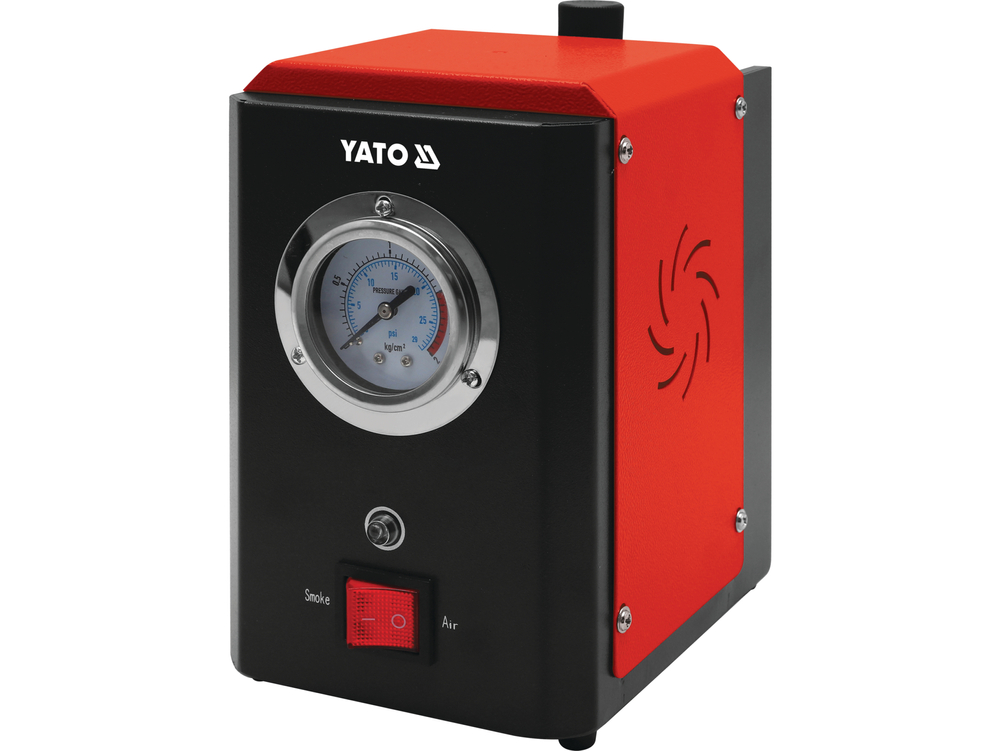

The YT-72967 leak detection smoke generator is a diagnostic tool designed to locate leaks in closed vehicle systems. The generated smoke is introduced into the system under pressure, and its escape indicates the location of the leak. This allows the tester to quickly identify issues that might be difficult to detect via visual inspection.
The device can be used to check intake, fuel, exhaust, EVAP, and cooling systems (excluding air conditioning systems), as well as engine seals and specific internal engine spaces and components. It operates on a 12 V power supply and features a built-in air pump, enabling use without the need for an external compressed air source. Applications:
locating leaks in the intake system
inspecting fuel system lines and components
diagnosing EVAP (fuel vapor) systems
checking exhaust system integrity
inspecting cooling systems (excluding air conditioning systems)
detecting engine seal leaks
diagnosing specific internal mechanical engine components
suitable for use on passenger cars, motorcycles, snowmobiles, ATVs, light trucks, and boats
Smoke generator:
smoke output: 15 l/min
built-in air pump to feed smoke into the system under test
smoke produced using special test oil
built-in heating element
precision 2.5" pressure gauge for real-time pressure monitoring
system pressure is monitored but not adjustable
overload protection – automatic shut-off after 20 minutes of continuous operation
Power supply and design:
supply voltage: 12 V
powered by the vehicle battery
compact, rectangular housing designed for workshop use
weight: 3.7 kg
built-in pressure gauge, air pump, and heating element
device operation indicator light
power switch
smoke delivery hose

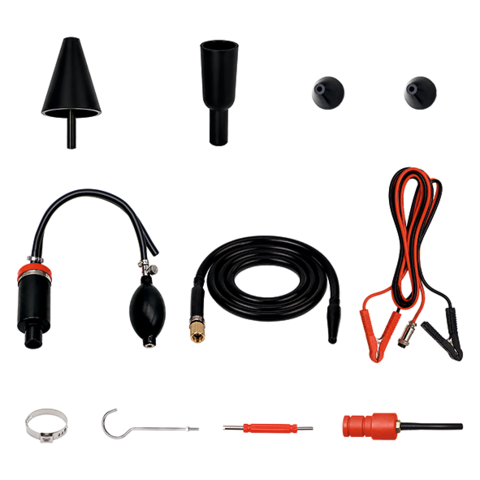

Kit contents:
smoke generator with built-in pump
smoke outlet hose
universal adapter
conical adapter
pump-style adapter
connector
3-piece set conical plug
crankcase adapter fitting
hose clamp
nozzle/adapter removal tool
valve core tool
hook
dedicated power cable
Operating principle: pour the appropriate amount of smoke fluid into the device, connect the generator to a 12V battery, and attach it to the sealed system being tested using the appropriate adapter. Once activated, the device heats the fluid to produce smoke, which is then pumped into the system under inspection. Smoke escaping from a specific point indicates the location of the leak, facilitating quick diagnosis and repair.
