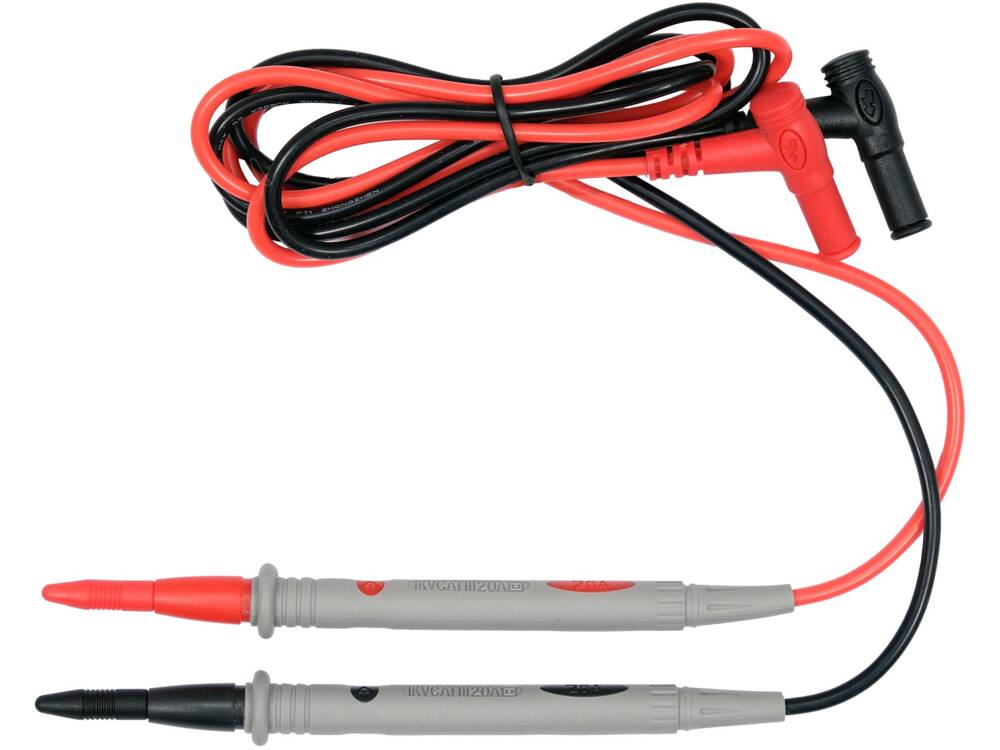

SILICONE TEST LEADS WITH SHARP TIPS (YT-73077)

(1)

Description:

MEASURING PROBES FOR DIGITAL METERS SILICONE INSULATION SHARP NEEDLE TIPS
YT-73077
Mark
Yato
Symbol
YT-73077
Series
GRD
Material
galvanized copper wire x80
Application
electric
Operating temperature range
0~150 ˚C
Length
1200 mm
Handle material
PVC
Electrical insulation class
II
Operating relative humidity Rh
<75%
Max current
20 A
Type of cable insulation
silicone
Max voltage
1000V
Handle length
150mm
Category of measuring equipment
CAT III
Tip diameter
0.3mm
Tip length
20mm

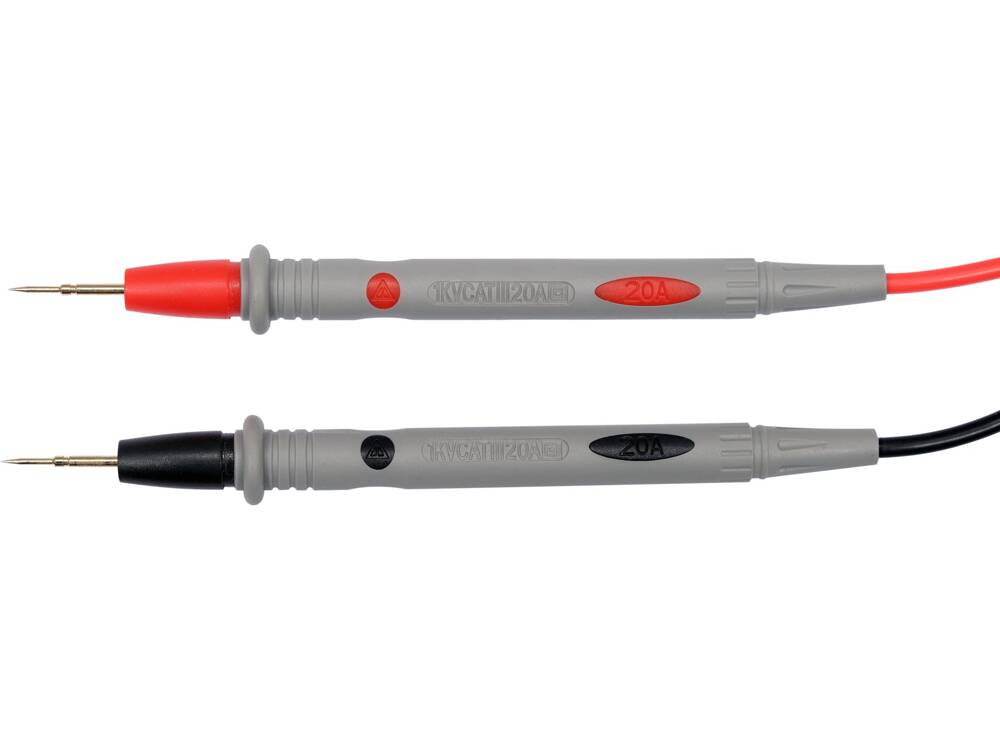

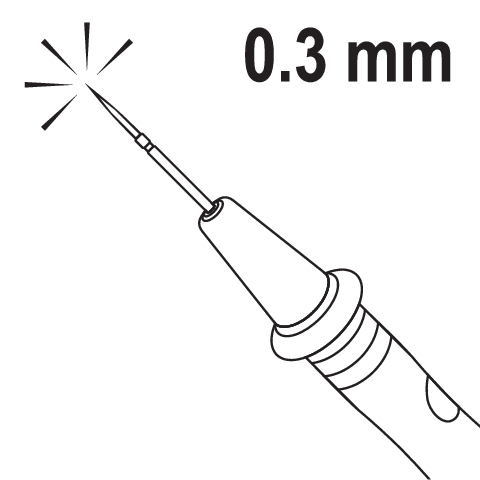

Measuring probes with sharp brass tips with silver plating. The diameter at the end of the probes is only 0.3 mm. The cables are made of 80 tinned copper wires. The cables are covered with silicone, flexible insulation resistant to high temperatures. The probes are perfect for measuring small elements, e.g. on smartphone PCBs. They will easily break through the cable insulation.

total length: 120 cm
handle length: 150 mm
tip length: 20 mm
max voltage: 1000 V
max current: 20 A
