Description:
Brand:
Index
YT-20052
Barcode
5906083137679
Unit of measure
PCE
Volume
0.848
Weight
0.361

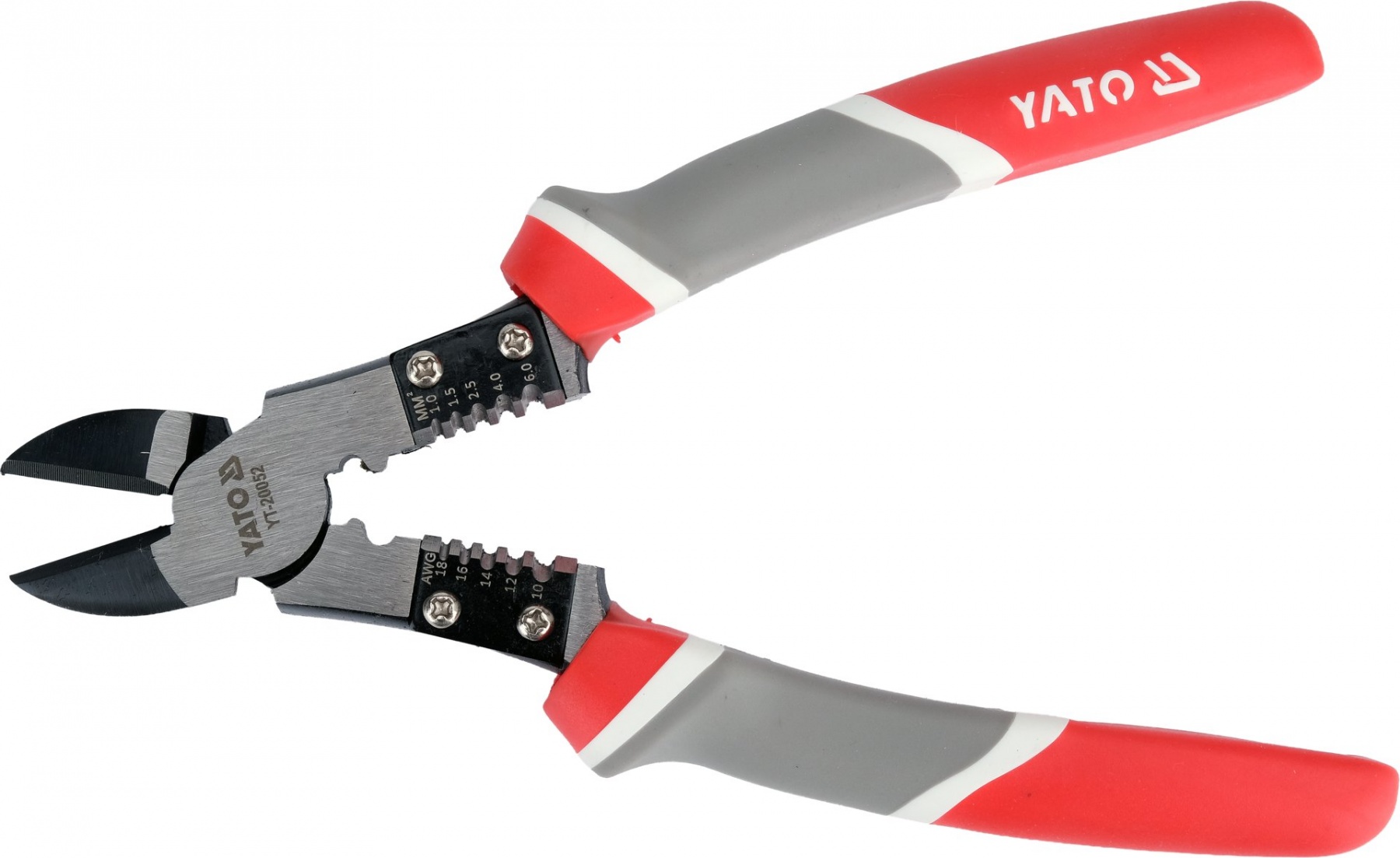

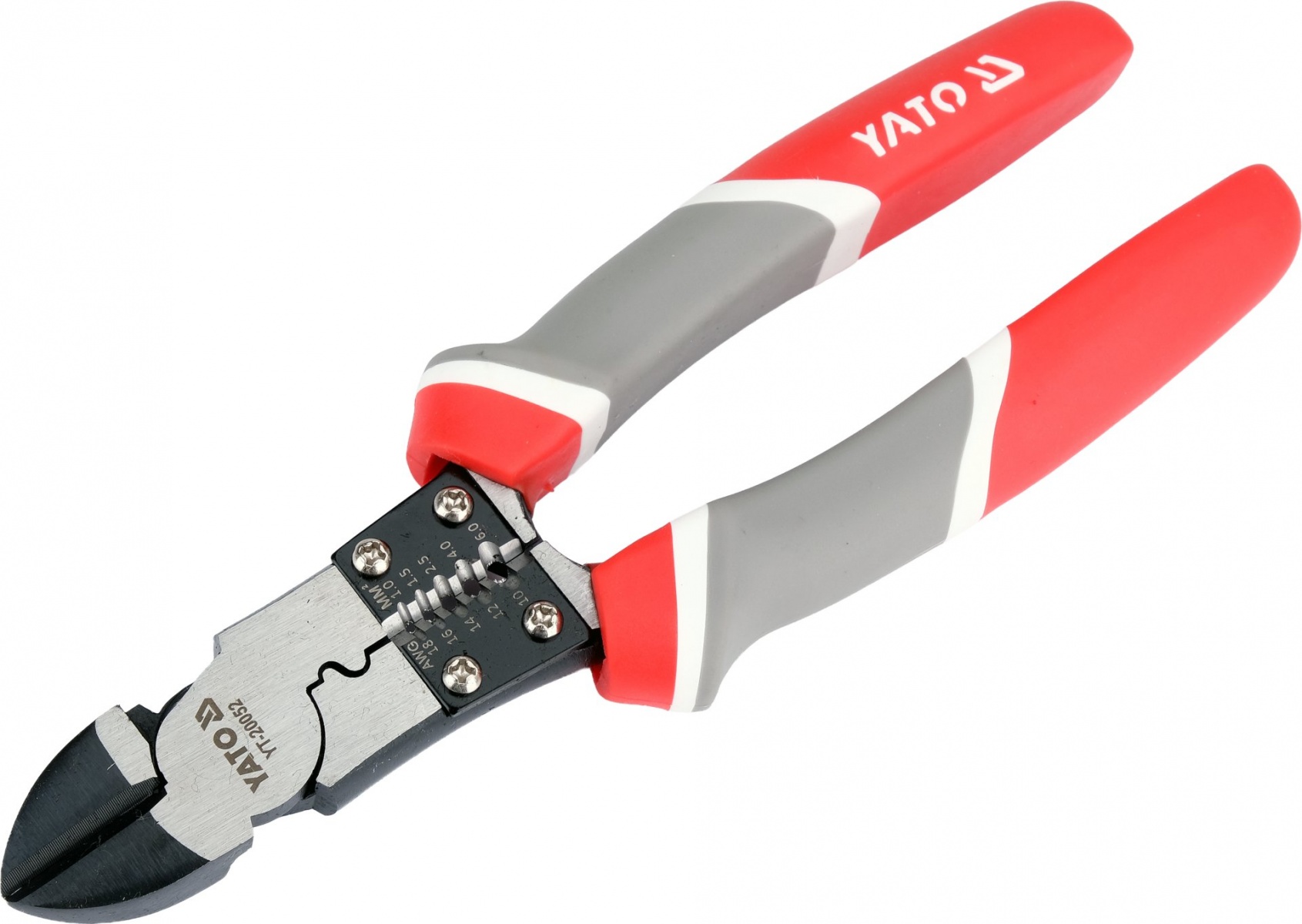

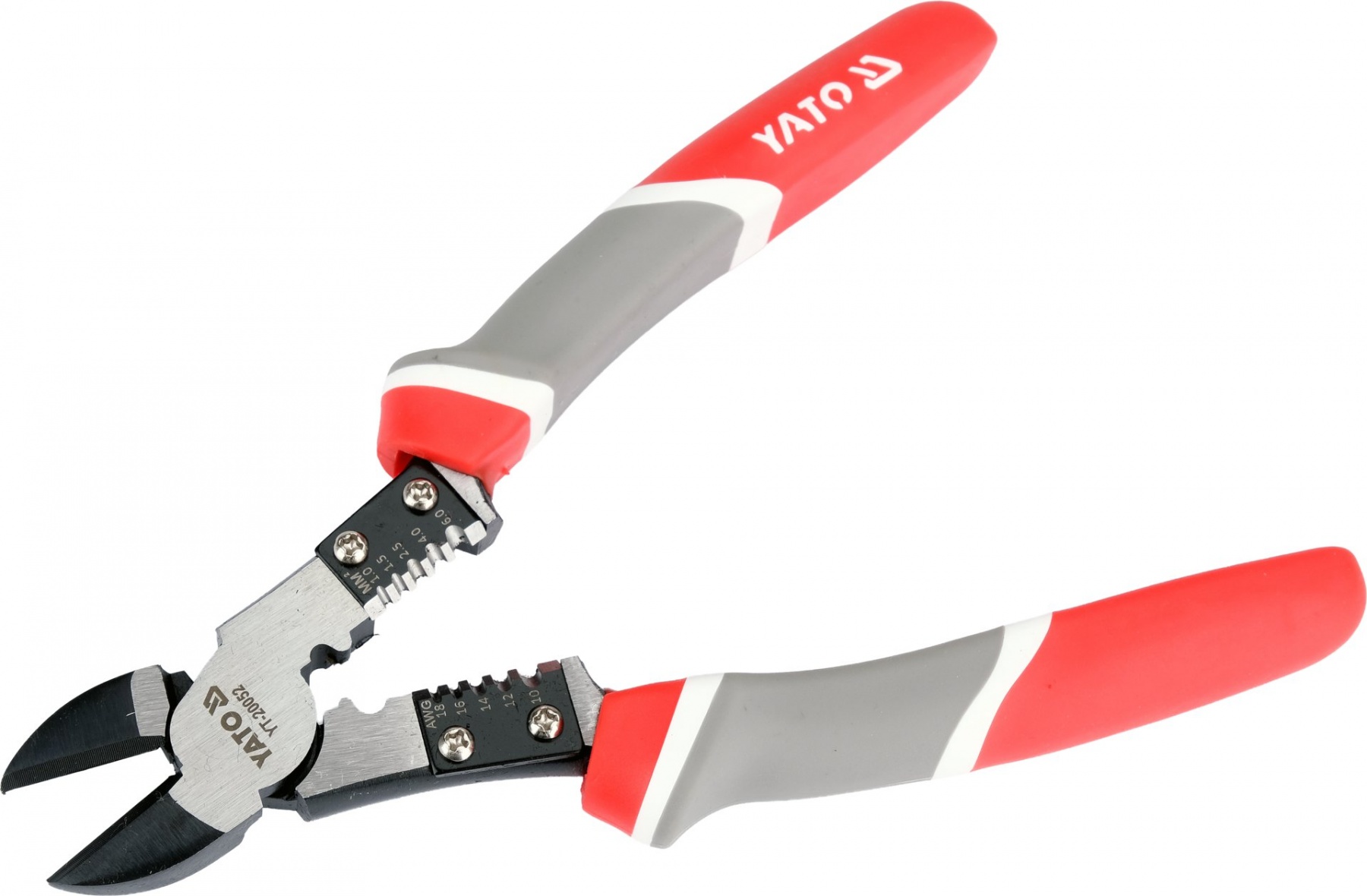

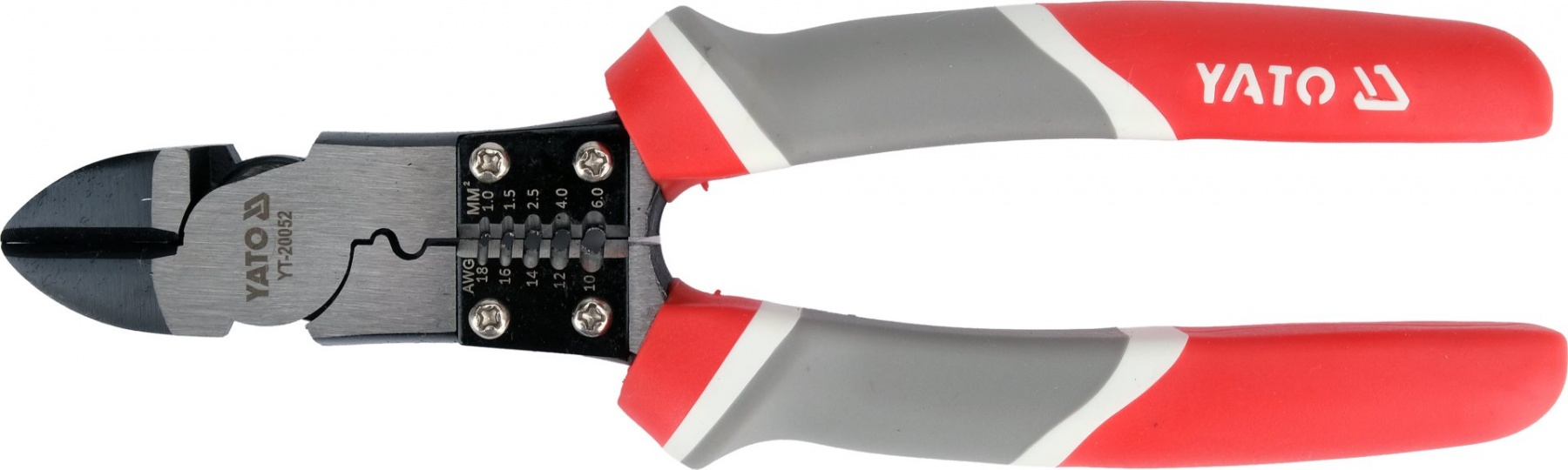

Multifunctional pliers YT-20052 intended for installation, electrical and assembly work related to cable processing. The tool combines the functions of gripping, cutting and stripping, allowing you to perform many operations with one tool. Solid carbon steel construction, hardened blades and precisely made work sockets ensure comfortable and effective work and high durability when cutting wires.
Technical parameters:
total length: 200 mm (8")
material: carbon steel
body hardness: 40-45 HRC
blade hardness: 55-58 HRC
working range: AWG 8-18 / 1.0-6.0 mm²
ergonomic handles made of PP and TPR
polished surface finish
Features:
grabbing and holding elements
cutting wires
stripping insulation from electrical cables
assembly and service works
Insulation stripping range:
AWG 8-10
AWG 10-12
AWG 12-14
AWG 14-16
AWG 16-18
1.0 mm²
1.5 mm²
2.5 mm²
4.0mm²
6.0mm²
