Sealing plug blue | 10 pcs. (54902)

(1)

Description:

Mark
Vorel
Symbol
54902
Series
GRE
Material
PP
Application
temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations,
Operating temperature range
-45 ~ +120 ËšC
Length
88mm
Thread size
G1/2
Color
blue (for cold water)
Mass
20 ± 5% g
working pressure
12 bar
diameter
35 ± 5% mm
Thread type
cylindrical, inch
Number of pieces in the set
10
Application continued
used, for example, when carrying out a leak test, necessary before commissioning the above installations
min diameter
30±5% mm

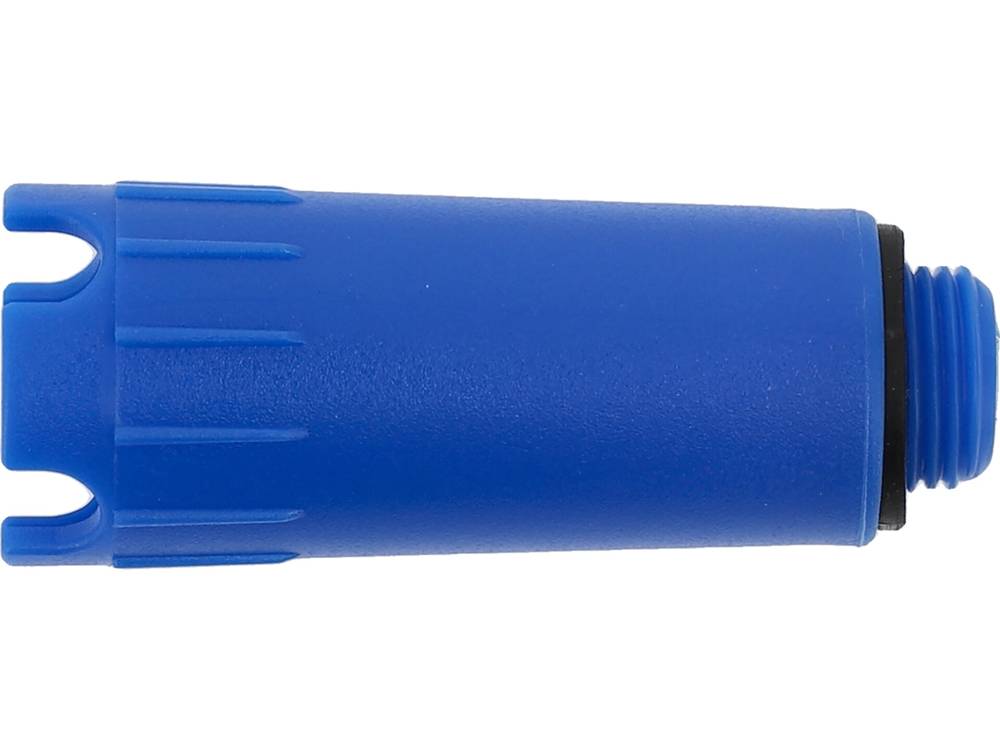

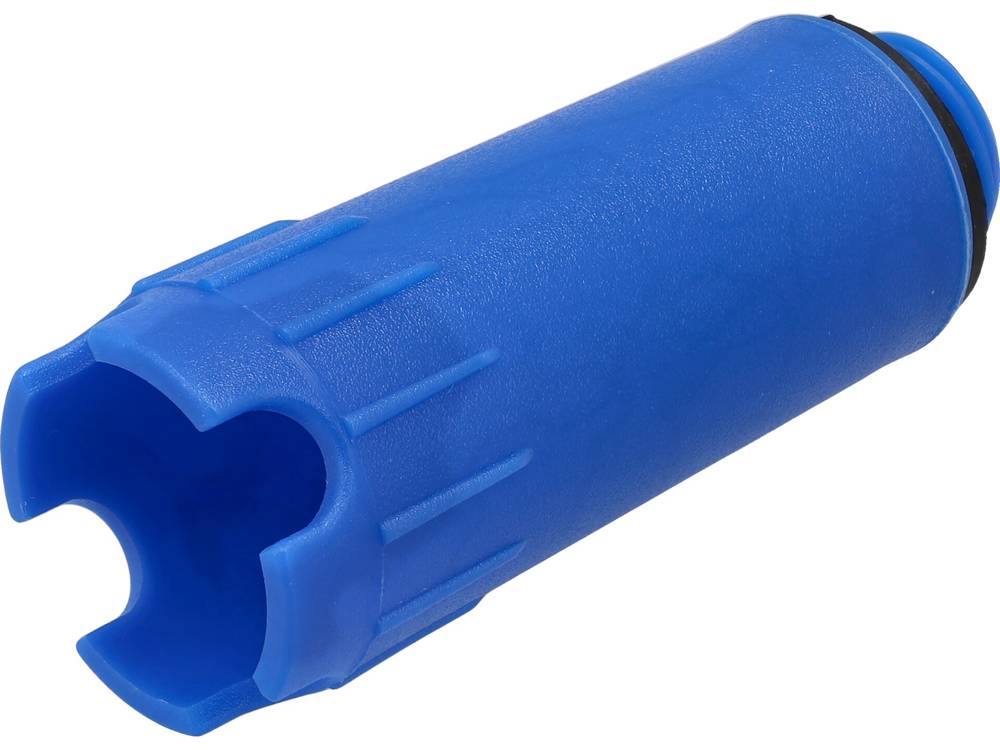

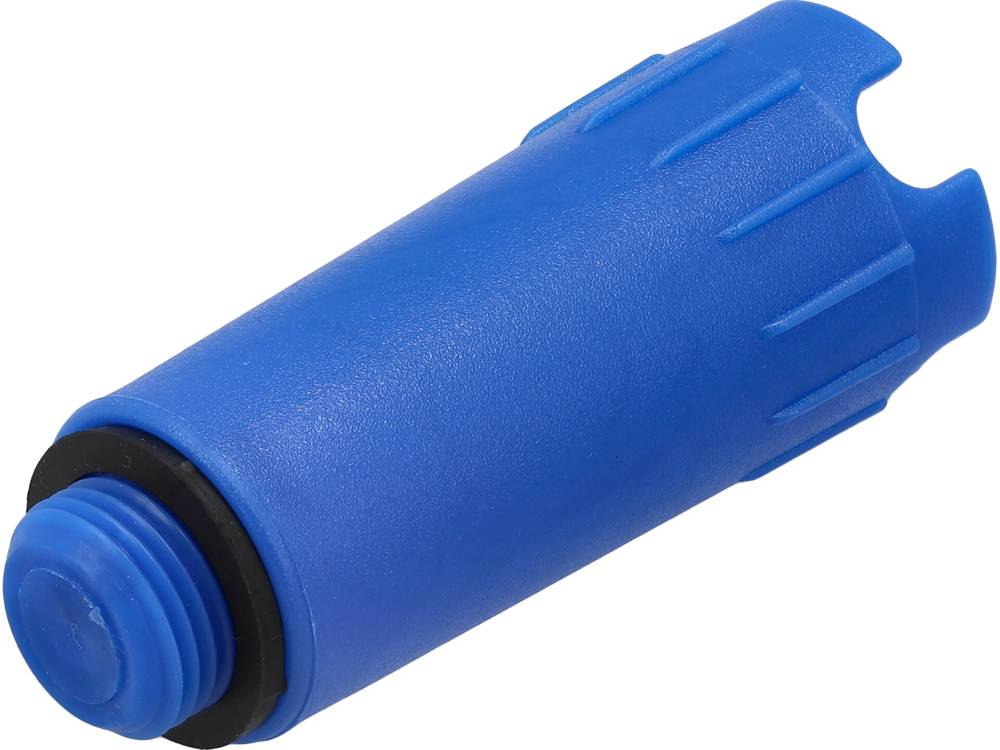

The plug is used for temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations. Used, for example, when carrying out a leak test, necessary before starting the installation. The appropriate length and corrugations limiting the slip of the hand enable convenient plugging of pipes and fittings as well as easy assembly and disassembly without the use of any tools. Equipped with a rubber gasket.

thread diameter: 1/2"
thread type: cylindrical, inch
material: PP (polypropylene)
length: 88mm
maximum diameter: 35 mm +/-5%
minimum diameter: 30mm +/-5%
color: blue (for cold water)
maximum working pressure: 12 bar
temperature range from -45 to 120oC

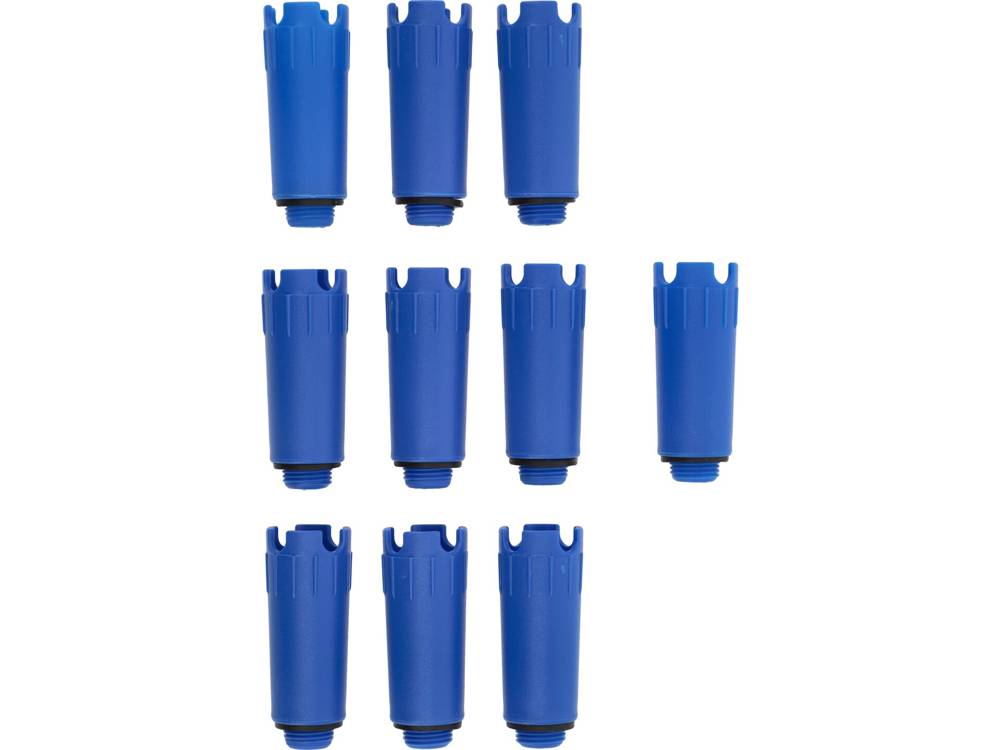

quantity in a unit package: 10 pcs
