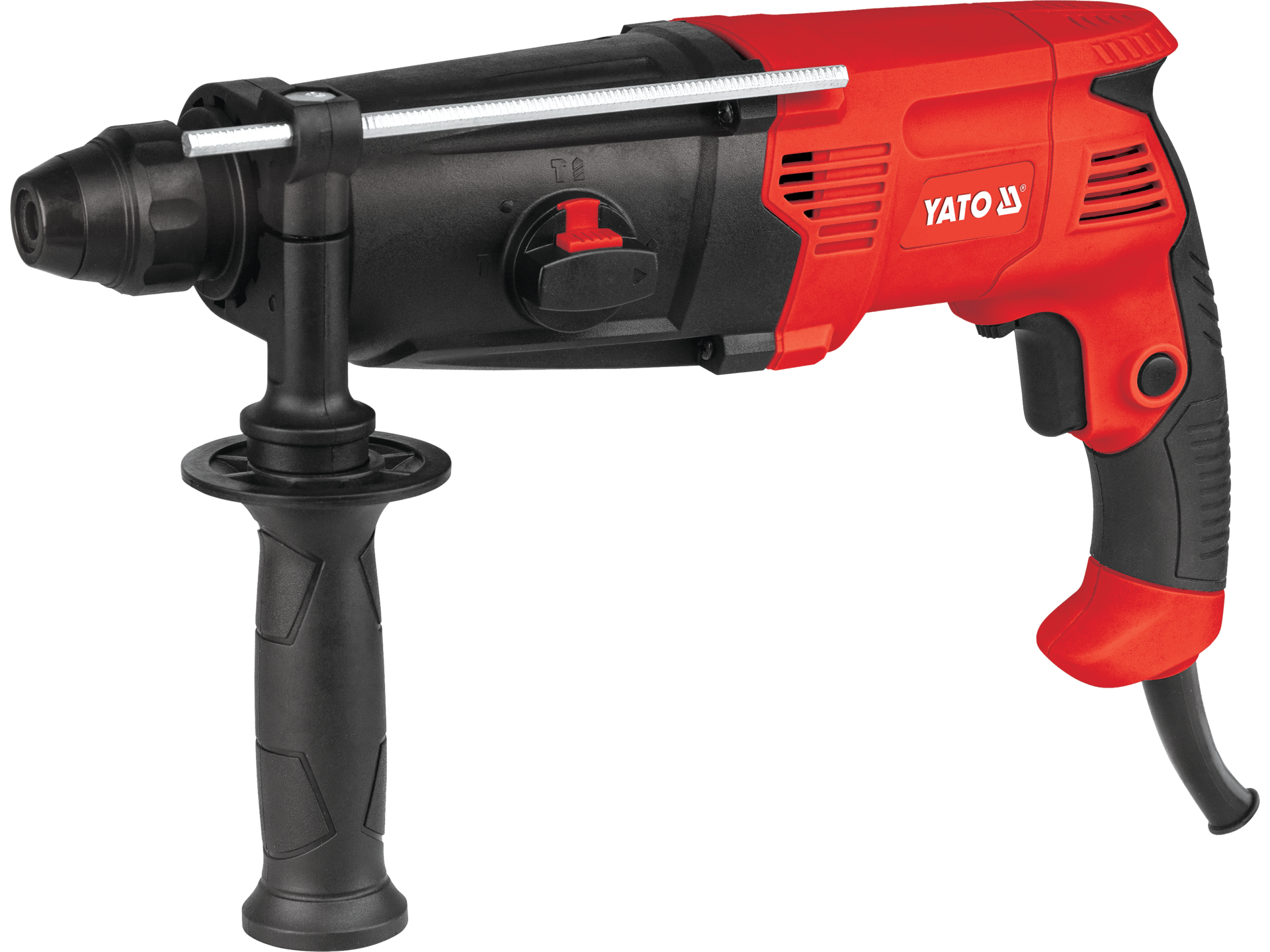

ROTARY HAMMER SDS PLUS | 800W | 3.2J (YT-82128)

(1)

Description:

The YATO YT-82128 rotary hammer is a versatile power tool designed for drilling, hammer drilling, chiseling, and demolition. The 800 W motor combined with an impact energy of 3.2 J ensures effective operation when creating holes in concrete, masonry, and other hard construction materials. The SDS-plus chuck allows for quick mounting and changing of drill bits and chisels without the need for additional tools.

The ability to choose from several operating modes, smooth speed regulation, and the option to change the rotation direction allow the tool to be adapted to various tasks. The rotary hammer is suitable for renovation and construction work, as well as for assembly, installations, and thermal modernization.

4 Working Functions

The rotary hammer offers four operating modes, expanding its range of applications:

• drilling without impact – intended for making holes in wood and metal


• hammer drilling – for effective drilling in concrete and masonry


• chiseling – creating grooves for cables or removing tiles


• chisel positioning – locking the chisel at a selected angle

Efficient Impact Mechanism

With an impact energy of 3.2 J and a frequency of up to 5200 blows/min, this tool provides high efficiency during hammer drilling and chiseling tasks. These parameters allow for drilling holes in concrete with a diameter of up to 26 mm or using core bits up to 82 mm.

The rated power of 800 W ensures adequate performance across a wide range of tasks. The speed is adjustable through gradual pressing of the switch, within the range of 0-1180 rpm, allowing for better control at the start of drilling and adapting the work pace to the material being processed.

SDS-plus Tool Holder

The durable and smoothly operating SDS-plus chuck allows for quick insertion of tools equipped with this mounting system. This solution facilitates the exchange of drill bits and chisels while ensuring proper energy transfer during impact.

Wide Range of Drilling Diameters

The device's parameters allow for making holes with a maximum diameter of:

• in concrete – 26 mm (core bits – 82 mm)


• in wood – 30 mm


• in steel – 13 mm

Speed Regulation via Switch

Smooth speed regulation through the switch allows for adjusting the spindle speed to the type of material and the nature of the work being performed. It also facilitates precise starting of drilling.

Technical Specifications:

• rated power: 800 W


• rated voltage: 220-240 V


• frequency: 50 Hz


• tool holder: SDS-plus


• impact energy: 3.2 J


• rotation speed: 0-1180 rpm


• impact frequency: 0-5200 blows/min


• max. drilling diameter in concrete: 26 mm/82 mm with core bits


• max. drilling diameter in wood: 30 mm


• max. drilling diameter in steel: 13 mm


• number of functions: 4 – drilling, hammer drilling, chiseling, chisel positioning


• rotation direction: right/left


• smoother speed regulation via switch


• switch lock increases comfort during continuous operation


• power cord length: 3 m

Included Accessories:

• additional handle


• depth stop

Application: metal, concrete, wood, hard building materials
Set includes: hammer drill, additional handle, drilling depth limiter
Toolholder type: SDS-Plus
Rotations: 0-1180 min⁻¹
Weight: 3.5 kg
Voltage: 220-240 V a.c.
Power: 800 W
Wire length: 3 m
Frequency: 50 Hz
Electric insulation class: II
Acoustic pressure : 86.7 ± 3.0 dB(A)
Acoustic power : 94.7 ± 3.0 dB(A)
Functions: shoeing, drilling, drilling with impact, chisel positioning
Rotation switch: yes
Work mode switch: yes
Vibrations : 11.368 ± 1.5 / 12.483 ± 1.5 m/s²
Max. hole diameter in steel: 13 mm
Stroke: yes
Hammering energy: 3.2 J
Impact frequency: 0-5200 min⁻¹
Max. hole diameter in wood: 30 mm
Max. hole diameter in concrete: 26 mm
Max. hole diameter in concrete with core bit: 82 mm
