Description:
Brand:
Brand
Yato
Symbol
YT-0196
Size
15 mm
Type of ring spanner
dodecagonal
Total length
200 mm
Ring spanner width
30.8 mm
Ring spanner thickness
10.1 mm
Flat spanner width
32.9 mm
Flat spanner thickness
7.7 mm
Material
CrV 6140
Surface finish
chrome plated, polished
Head finish
polished
Hardness
42-49 HRC
Ratchet
yes
Number of teeth
72
Direction of rotation switch
no
AS-DRIVE
yes
Min. working angle
5 Ëš
Application
service

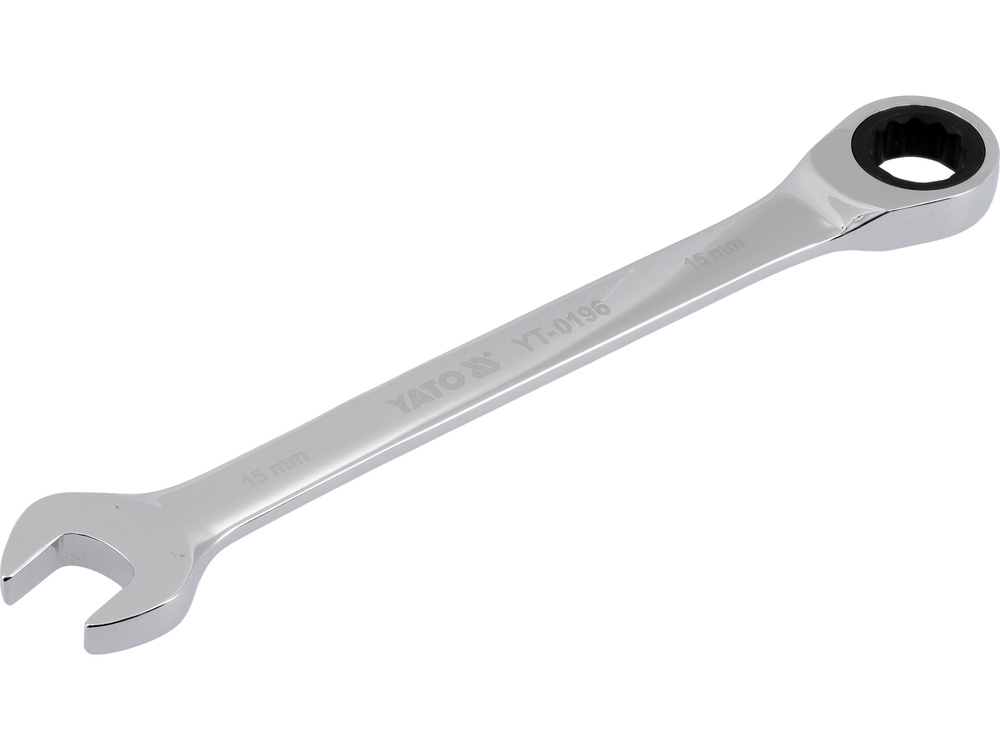

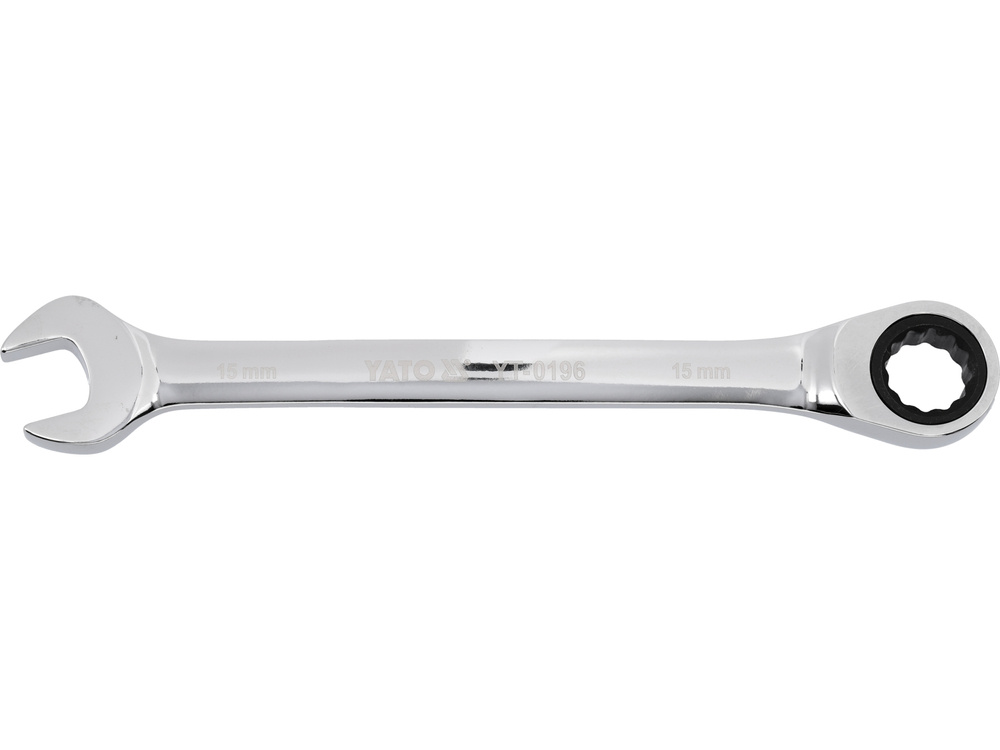

Designed for car workshops and services. The range of right and left rotations and the minimum working angle of 5° allow for unscrewing screws in hard-to-reach places. The wrench reduces working time by eliminating 2 movements in the wrench's work cycle.
made of high-quality CrV 6140 tool steel
chrome-plated and polished surface
ratchet with 72 teeth and a specially profiled 12-corner eye
Total length (L): 200 mm
Width of the flat wrench (B): 32.9 mm
Width of the ring wrench (D): 30.8 mm
Thickness of the flat wrench (S1): 7.7 mm
Thickness of the ring wrench (S2): 10.1 mm
