Description:
Brand:
YT-81480

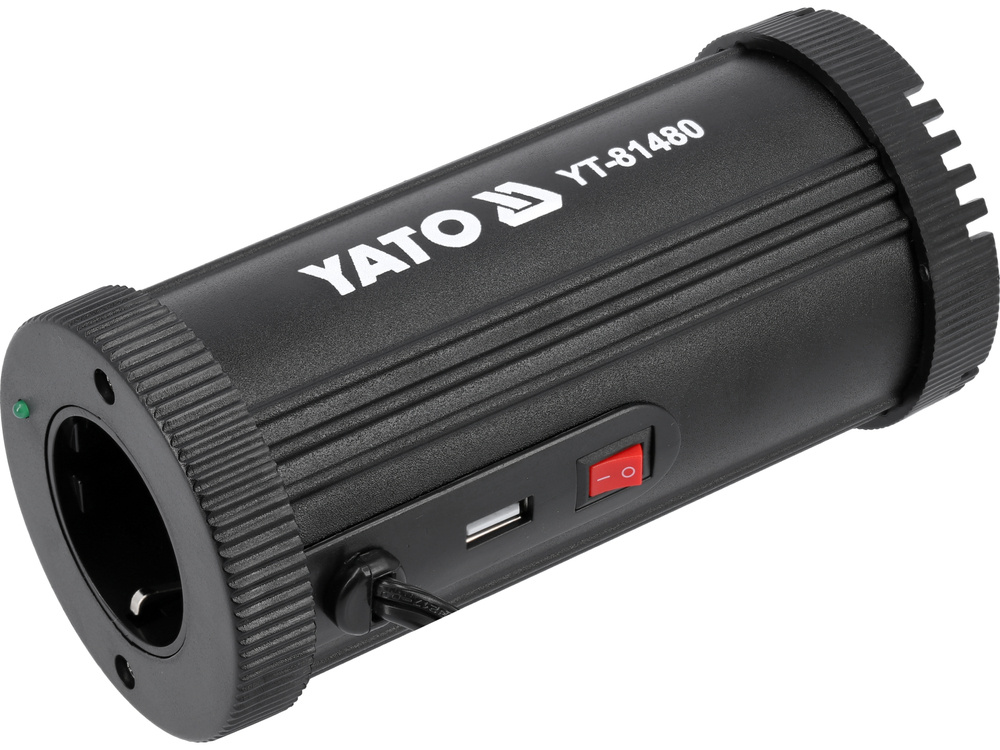

12V/230V CAR VOLTAGE CONVERTER 150W
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
150 W
Peak power
300 W
Input voltage
12 V d.c.
Operating input voltage
11-15 V d.c.
Output voltage
230 V a.c.
Operating output voltage
230 ± 10% V a.c.
Output frequency
50 Hz
USB socket output voltage
5 (type A) V d.c.
USB socket max. output current
2.1 (type A) A
No-load current consumption
<0.45 A
Inverter shutdown input voltage
10.2 - 10.8 V d.c.
Input voltage overload
15-16 V d.c.
Power overload
180-240 W
Output signal characteristics
modified sine wave
Efficiency
≥85 %
Fuse
25A x1
Operating temperature
5~35 ˚C
Electrical insulation class
I
Protection degree
IPX0
Weight
0.44 kg
Application
for powering electrical devices requiring 230V AC voltage from batteries and car installations with 12V DC voltage
Symbol
YT-81480
The converter allows powering electrical equipment requiring mains current using a 12V car battery.
Thanks to its small dimensions and weight as well as high power, it is able to power various electrical devices in places without access to the power grid.
power: 150 W
peak power: 300 W
input voltage: 12 V
input operating voltage: 11-15 V
output voltage: 230 V
efficiency: ≥85%
operating temperature: 5-35°C
protection class: IPX0
multifunctional protections: short circuit, overheating, overload, overvoltage, too low voltage
low voltage alarm
USB type A
weight: 0.44 kg
