Description:
Brand:
YT-81491
VOLTAGE CONVERTER 12/230V 800W
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Power
800 W
Peak power
1600 W
Input voltage
12 V d.c.
Operating input voltage
10.5-15 V d.c.
Output voltage
230 V a.c.
Operating output voltage
220-240 V a.c.
Output frequency
50 ± 10% Hz
Current consumption without load
< 0.7 A
Inverter shutdown input voltage
9.5 ± 0.5 V d.c.
Input voltage overload
15-16 V d.c.
Power overload
> 760 W
Temperature overload
> 60 ˚C
Low battery alarm voltage
10 ± 0.5 V d.c.

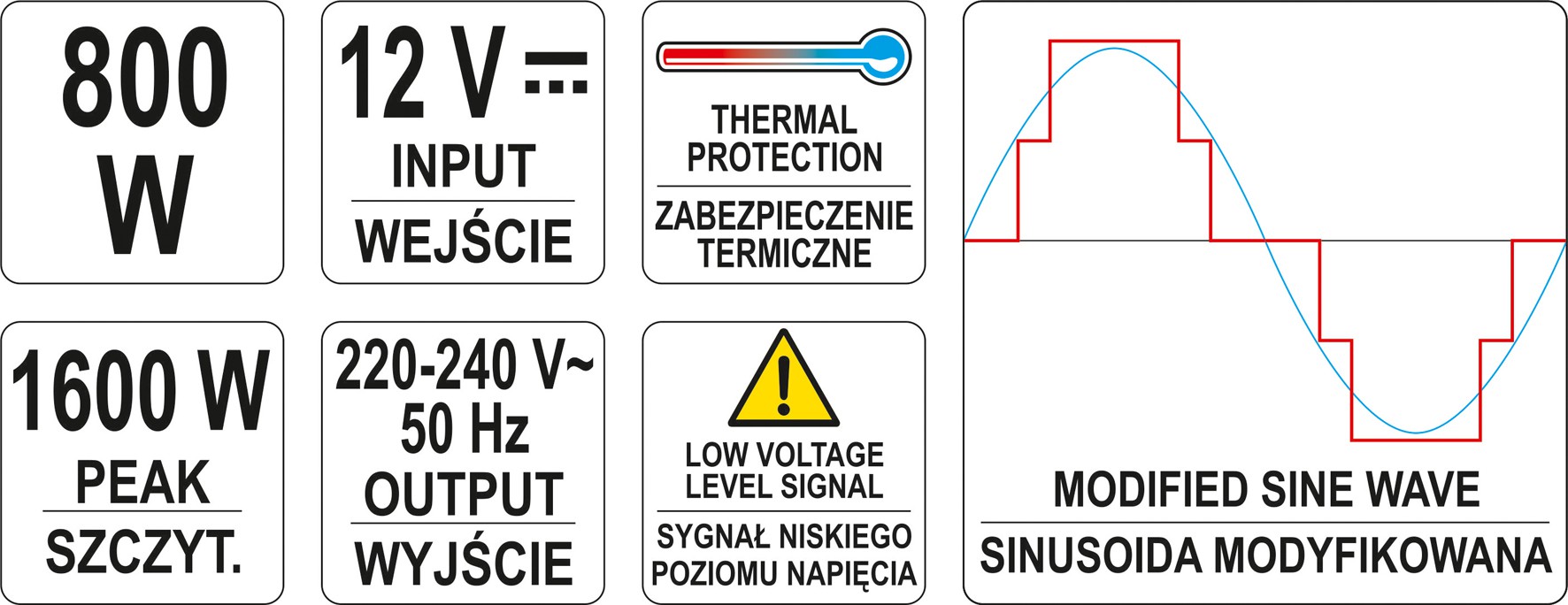

Output signal characteristics
modified sine wave
Efficiency
80 %
Fuse
50A x2
Electrical insulation class
I
Protection degree
IP20
Weight
0.83 kg
Application
for powering electrical devices requiring 230V AC voltage from batteries and car installations with 12V DC voltage
Symbol
YT-81491

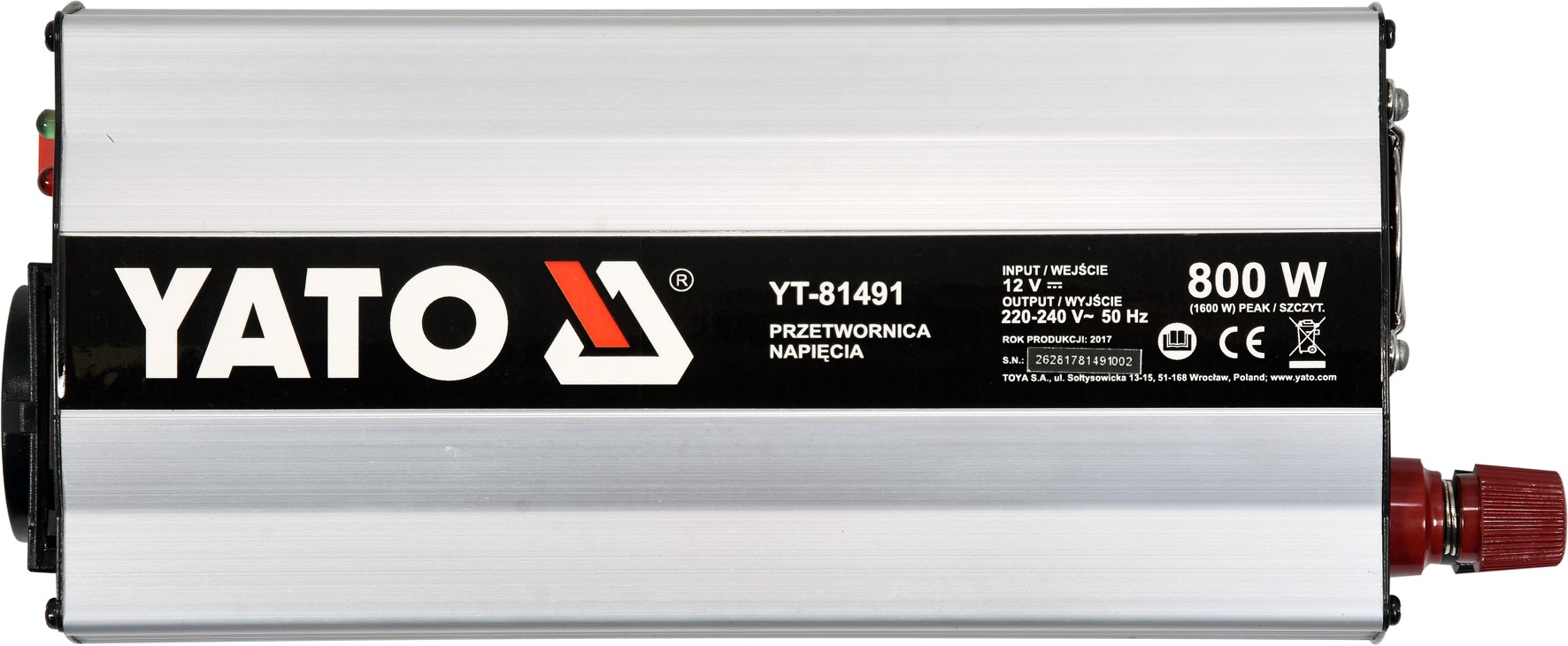

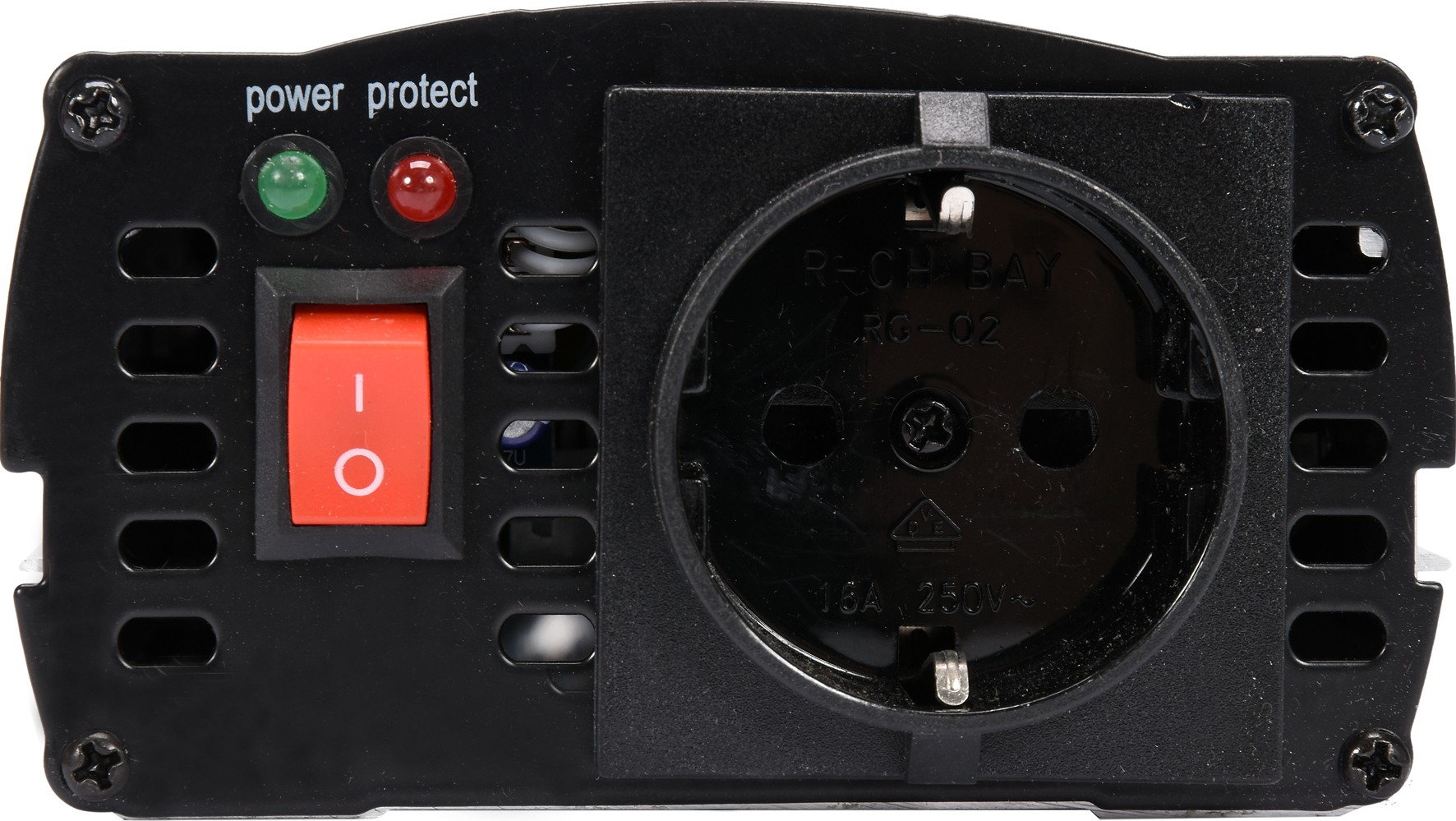

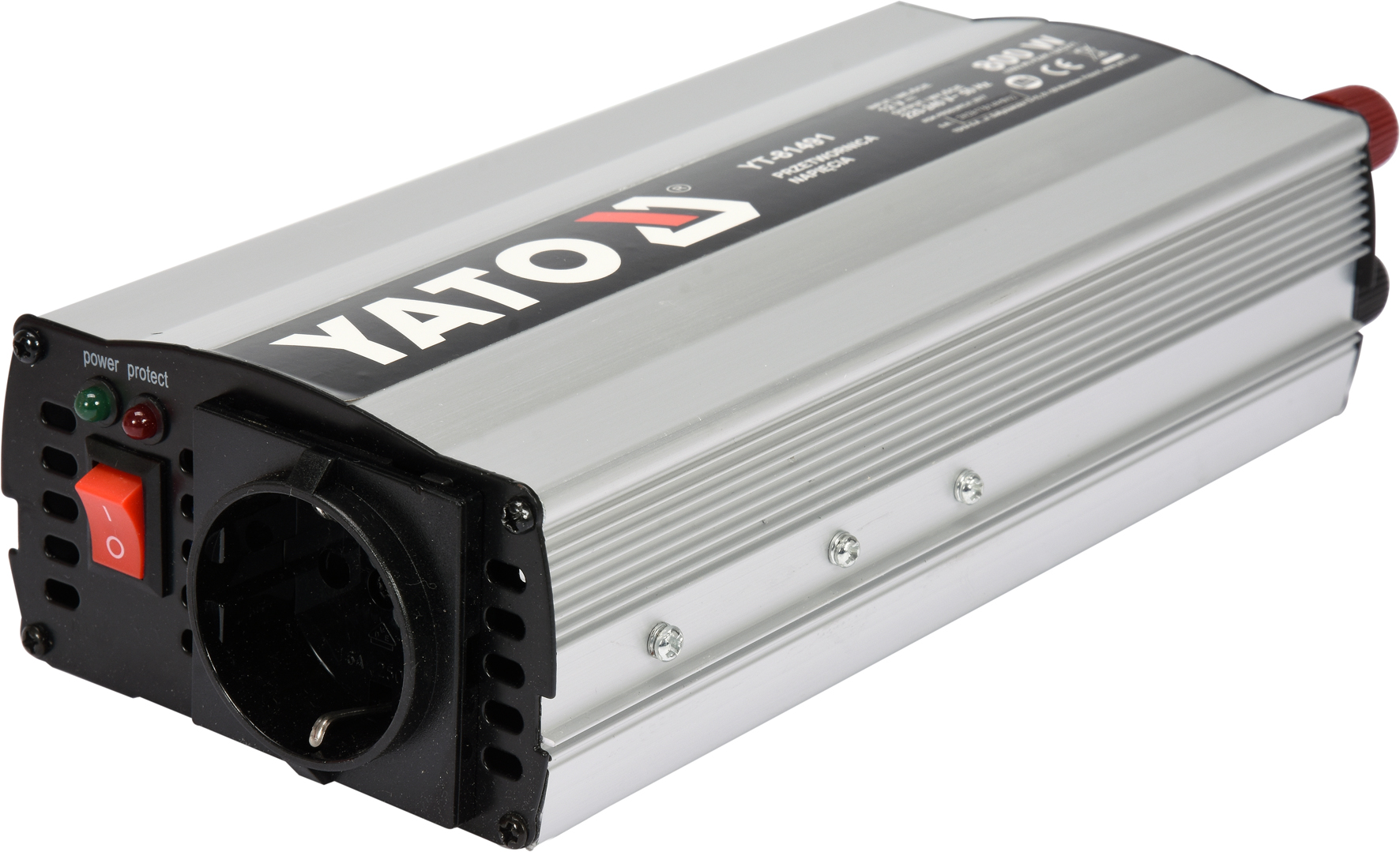

A voltage converter is a device that allows powering electrical equipment requiring mains power, using a 12V car battery.
Thanks to its small dimensions, low weight and high power, it is able to power many electrical devices in places without access to the power grid.
Additional information:
low battery voltage indication
the converter is equipped with a fan that will start automatically during converter operation and help cool the converter's electrical systems
