Description:
Brand:
YT-3618
PNEUMATIC RIVETER 2.4-6.4 MM, 1894 KG
Mark
Yato
Symbol
YT-3618
Max. working pressure
0.7 MPa
Recommended working pressure
0.62 MPa
Required air flow
148 l/min
Crush force
1894 kg
18561 N
Air connection diameter (PT)
standard
Inner diameter of the air supply hose
3/8" (9.5 mm)
Rivet diameter
2.4, 3.2, 4, 4.8, 6.4 mm
Number of jaws
2
Max. actuator piston stroke
19mm
Sound pressure
81.2 ± 3.0 dB(A)
Acoustic power
92.1 ± 3.0 dB(A)
Vibrations
0.6 ± 0.56 m/s²
Mass
2kg

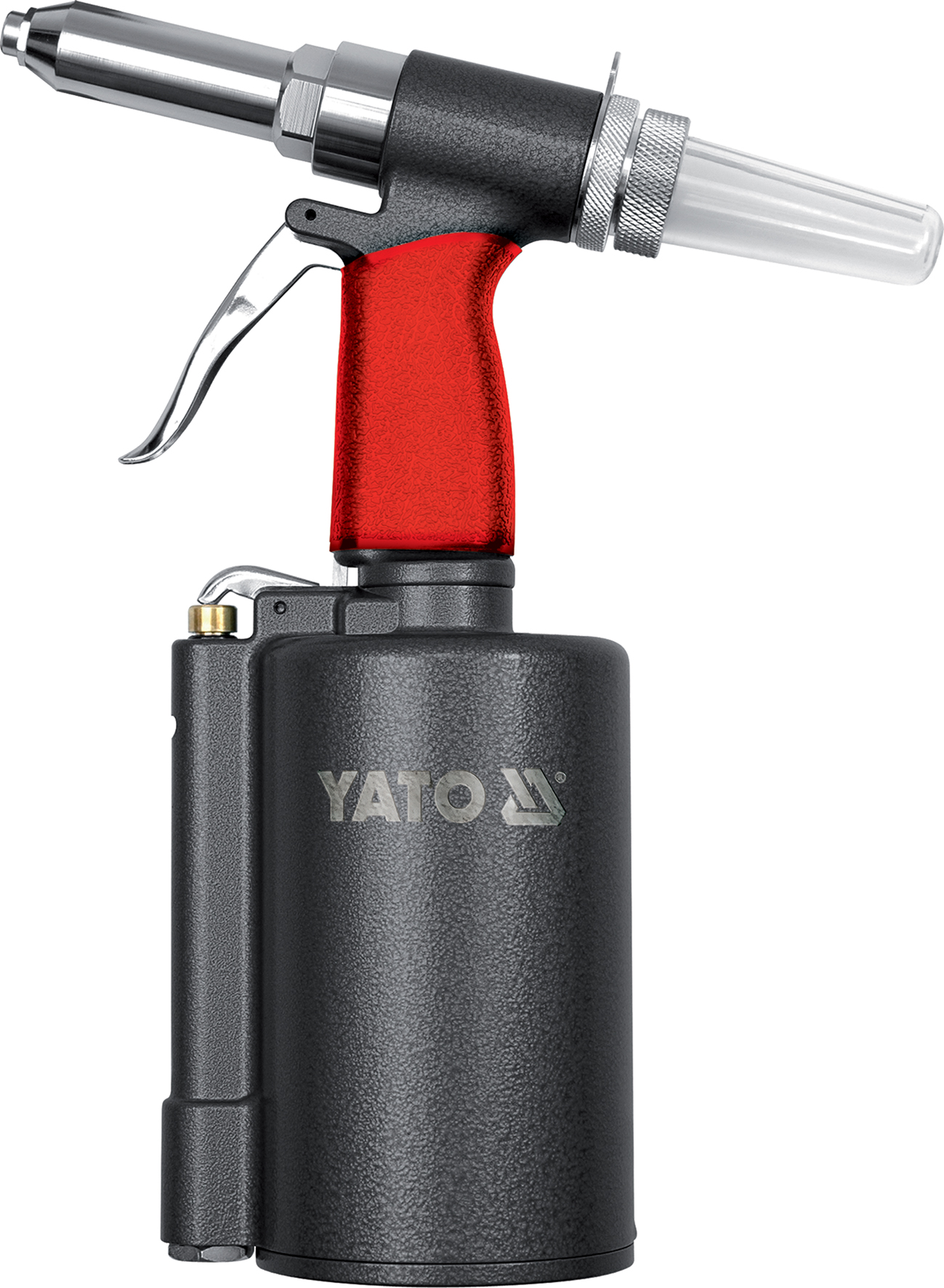

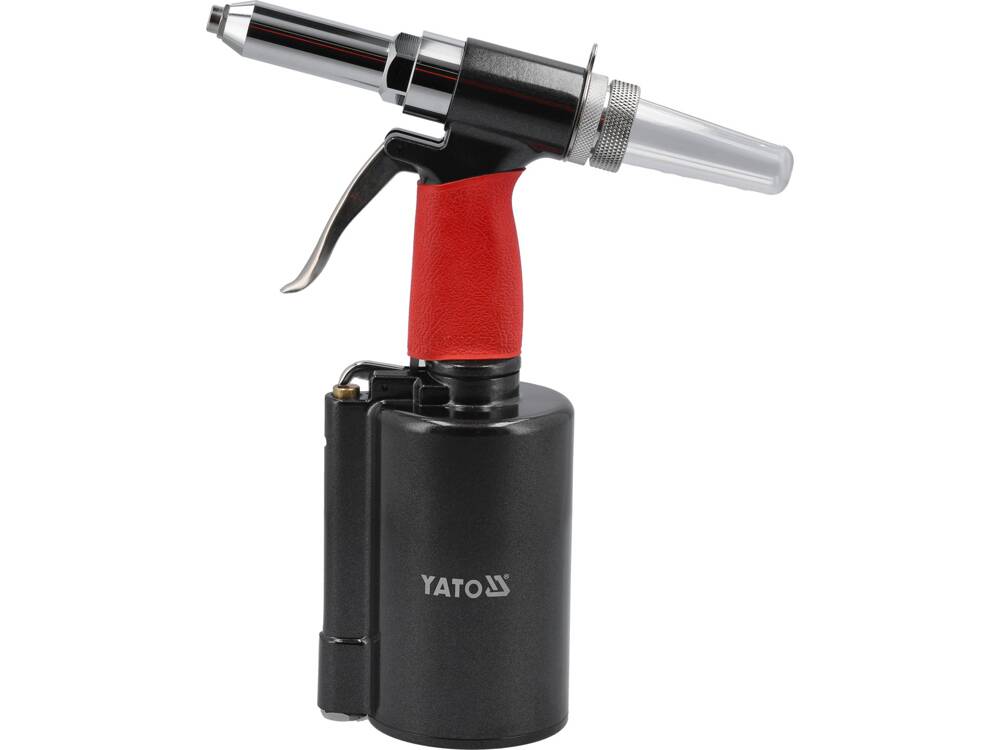

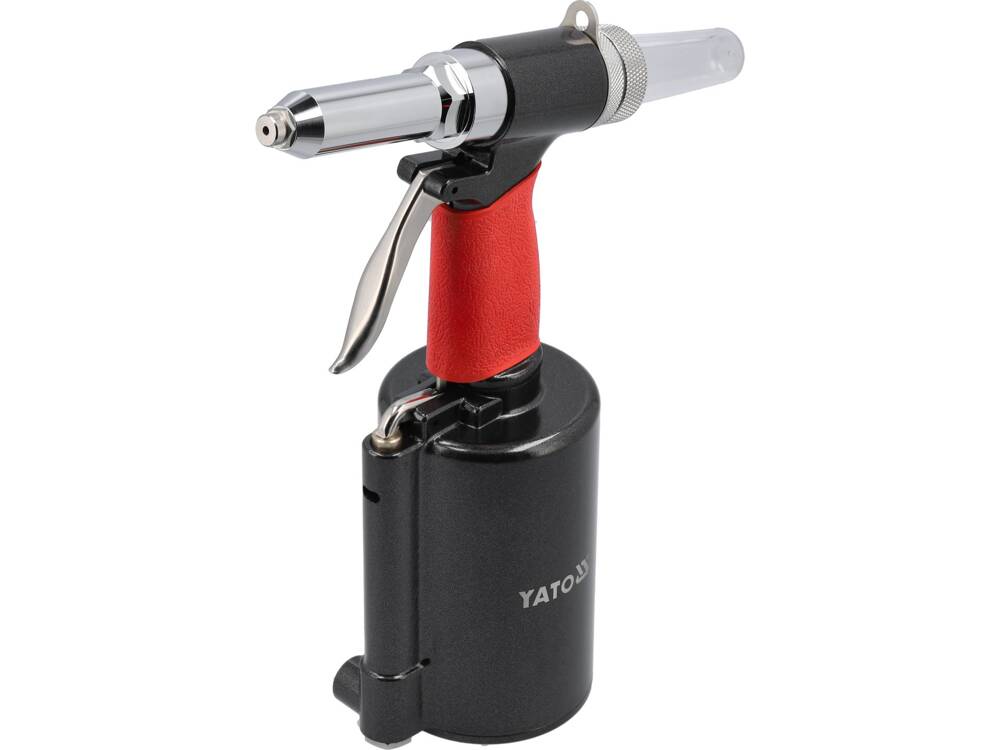

A pneumatic riveter is a tool powered by a stream of compressed air at appropriate pressure.
Using blind rivets, steel, including stainless steel or aluminum, it is possible to connect elements together. It ensures more efficient and comfortable work than a manual riveter.
The riveter is equipped with a connector that allows it to be connected to the pneumatic system.
The equipment includes:
additional heads for rivets of other diameters
keys allowing their exchange
Parameters:
Weight [kg] - 2.0
Air connection diameter (PT) [”] - 1/4
Air supply hose diameter (internal) [”] - 3/8
Diameter of supported rivets [mm] - 2.4; 3.2; 4.0; 4.8; 6.4
Crushing force [kg] / [N] 1894 / - 18561
Maximum piston stroke [mm] - 19
Maximum working pressure [MPa] - 0.70
Recommended working pressure [MPa] - 0.62
Required air flow (at 6.2 bar) [l/min] - 148
Sound pressure (EN ISO 15744) [dB(A)] - 81.2 ± 3.0
Sound power (EN ISO 15744) [dB(A)] - 92.2 ± 3.0
Vibrations (EN 28662-1) [m/s2] - 0.4 ± 1.5
