Description:
Brand:
YT-05335
PNEUMATIC INJECTOR DISMANTLING KIT 21 PIECES
Brand
Yato
Symbol
YT-05335
Max. working pressure
0.8 MPa
Recommended working pressure
0.5 MPa
Max. torque
30 Nm
Quick connector size
standard
Air connection diameter (PT)
standard
Internal diameter of air supply hose
3/8" (9.5 mm)
Sound pressure
102.0 ± 3.0 dB(A)
Sound power
113.0 ± 3.0 dB(A)
Vibrations
23.8 ± 1.5 m/s²
Weight
3.8 kg
Number of pieces in the set
21
Application
for dismantling Bosch, Delphi, Denso injectors, Siemens

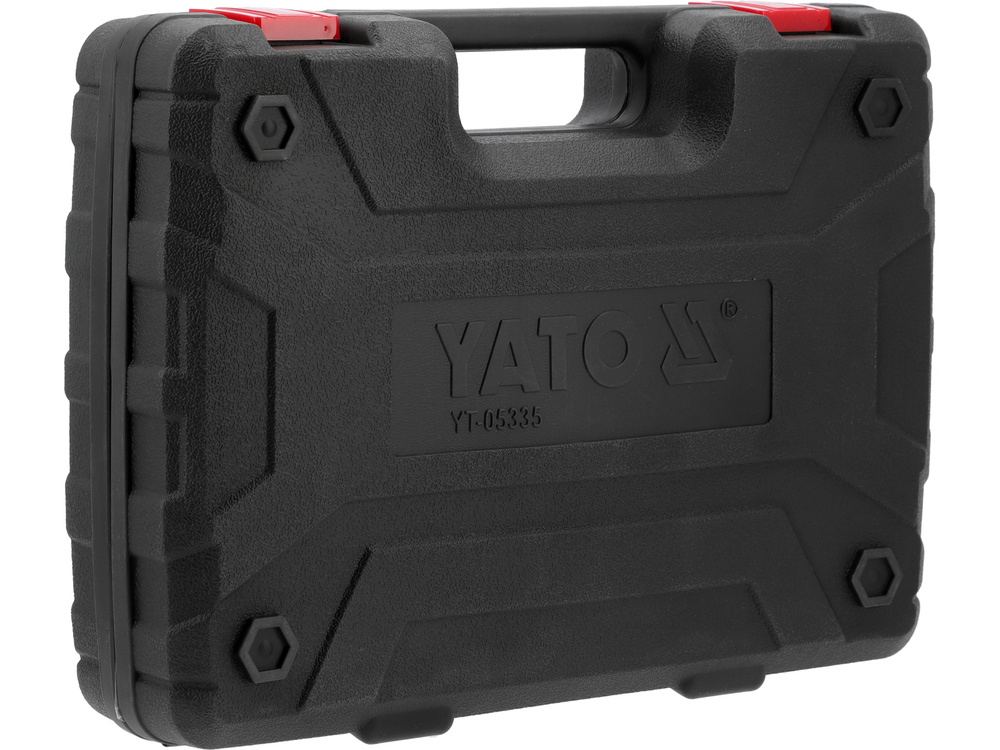

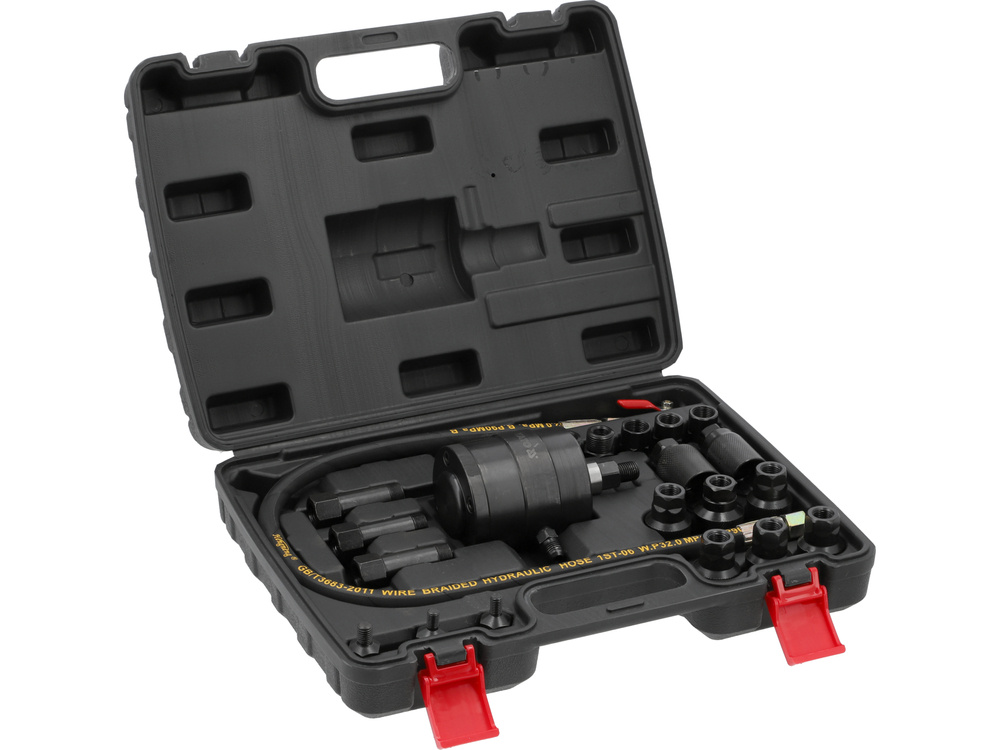

A set designed for dismantling Bosch, Delphi, Denso and Siemens injectors in petrol and diesel engines. Contains 21 elements in a BMC plastic case.
recommended working pressure: 0.5 MPa
max. working pressure: 0.8 MPa
max. torque: 30 Nm
quick connector size: standard
air connection diameter: standard
air supply hose diameter: 3/8" (9.5 mm)
weight: 3.8 kg

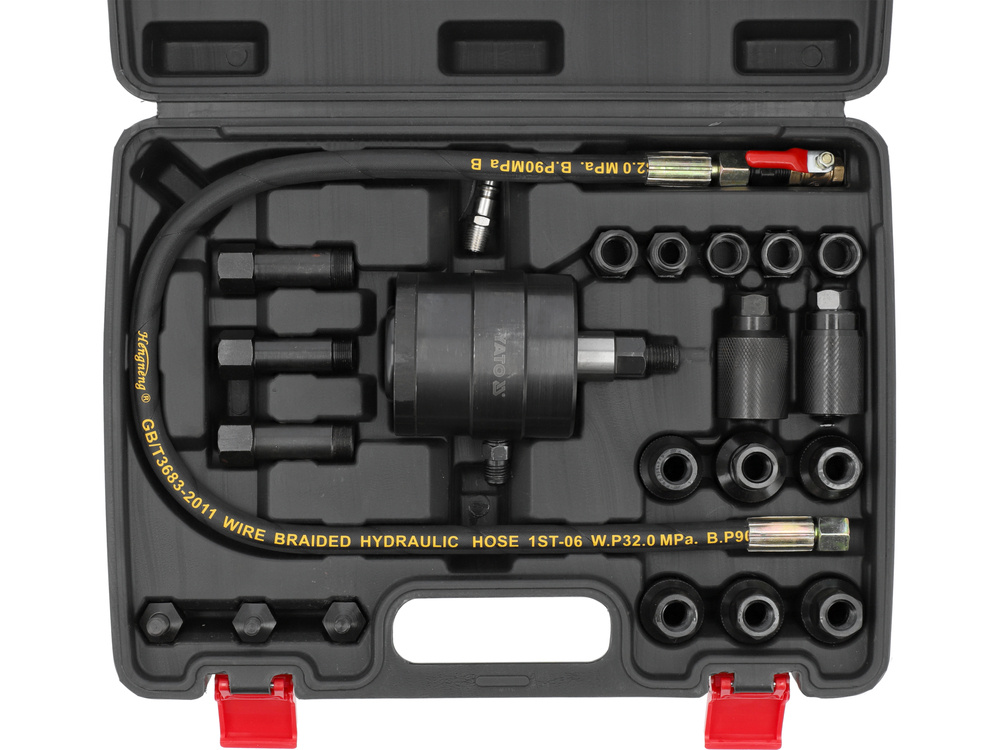

contents:
pneumatic actuator with main thread M14 x 1.5
flexible pneumatic hose 730 mm long with ball valve and male connector (standard)
19 connectors in sizes: M20 x 1.0, M18 x 0.75, M17 x 1.0, M8 x 1.25, M8 x 1.0, M10 x 1.5, M22 x 1.5, M20 x 1.5, M16 x 1.5, M18 x 1.5, M12 x 1.5, M31 x 0.75, M26 x 0.75, M25 x 0.5, M29 x 1.0, M27 x 0.75, M27 x 1.0, M27 x 1.0, M25 x 1.0
