Description:
Brand:
YT-09617
PNEUMATIC IMPACT WRENCH 1" 4000NM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Holder size
1" (25.0 mm)
Toolholder type
Operator

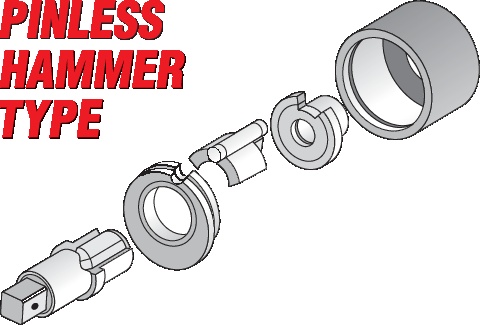

Stroke mechanism type
PINLESS HAMMER
Max. working pressure
0.63 MPa
Required air flow
450 l/min
Rotations
4000 min⁻¹
Max. torque
4000Nm
Quick coupler size
1/2" (12.7 mm)
Air connection diameter (PT)
1/2" (12.7 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
Five-ten mm
Rotation switch
yes
Acoustic pressure
97.3 ± 3.0 dB(A)
Acoustic power
108.3 ± 3.0 dB(A)
Vibrations
11.64 ± 1.01 m/s²
Weight
11.7 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mobile and stationary car services, tire and truck services
Symbol
YT-09617

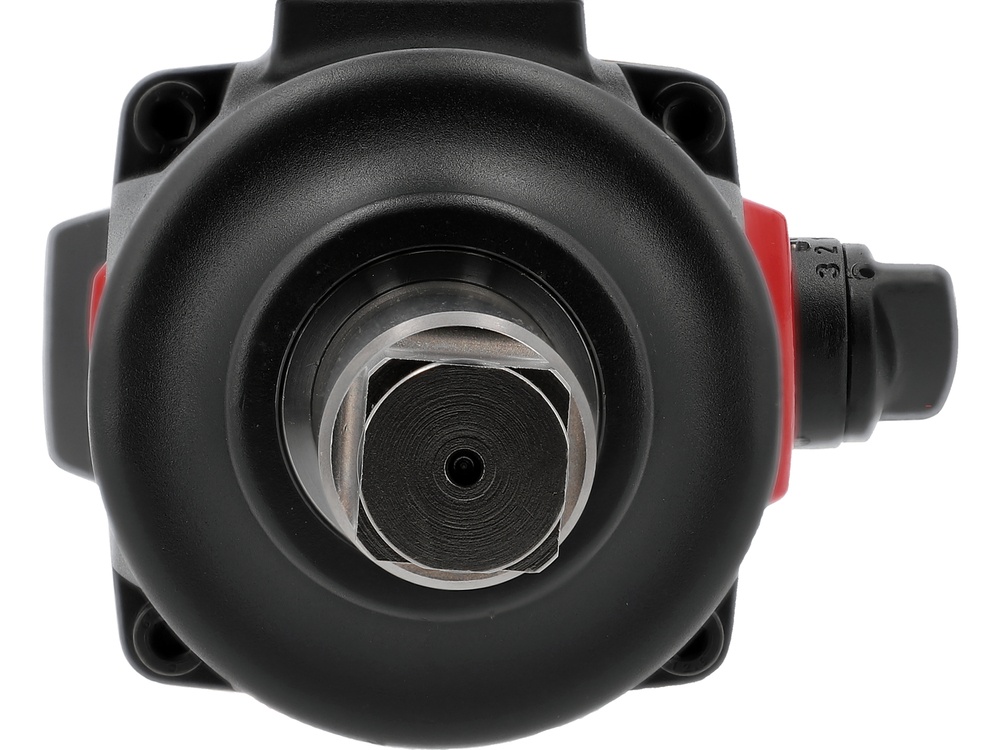

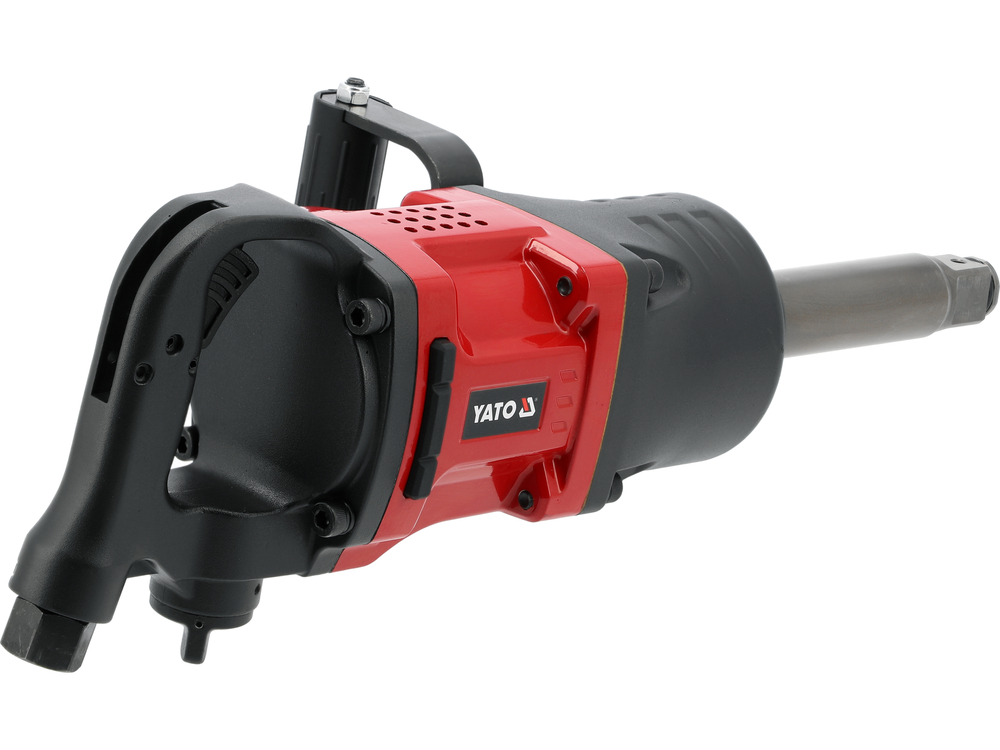

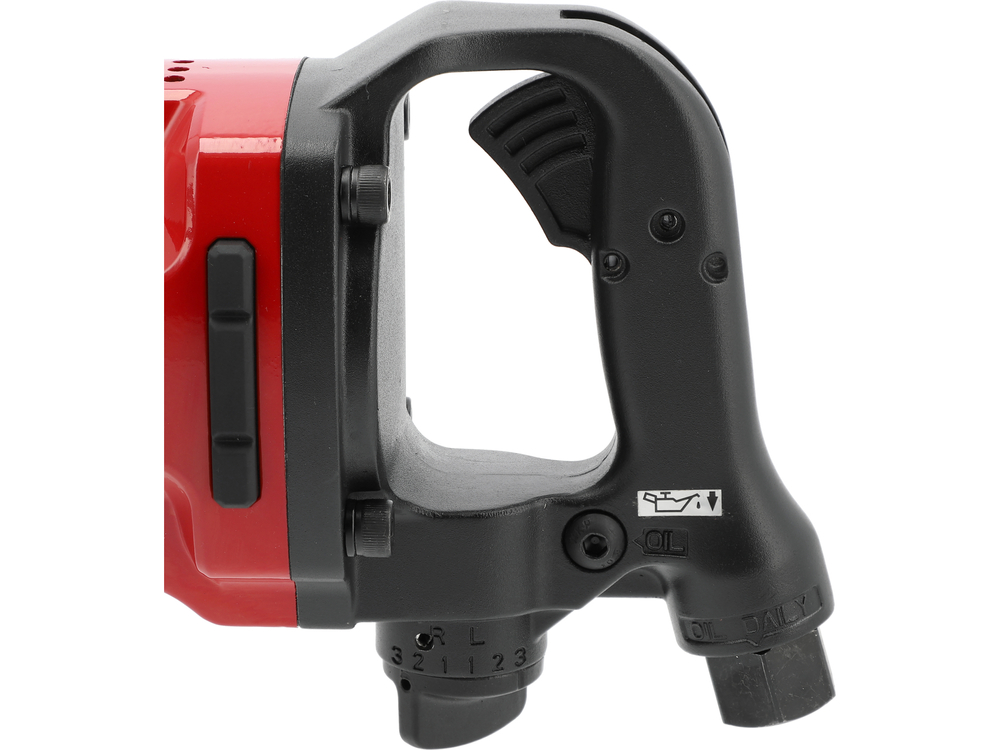

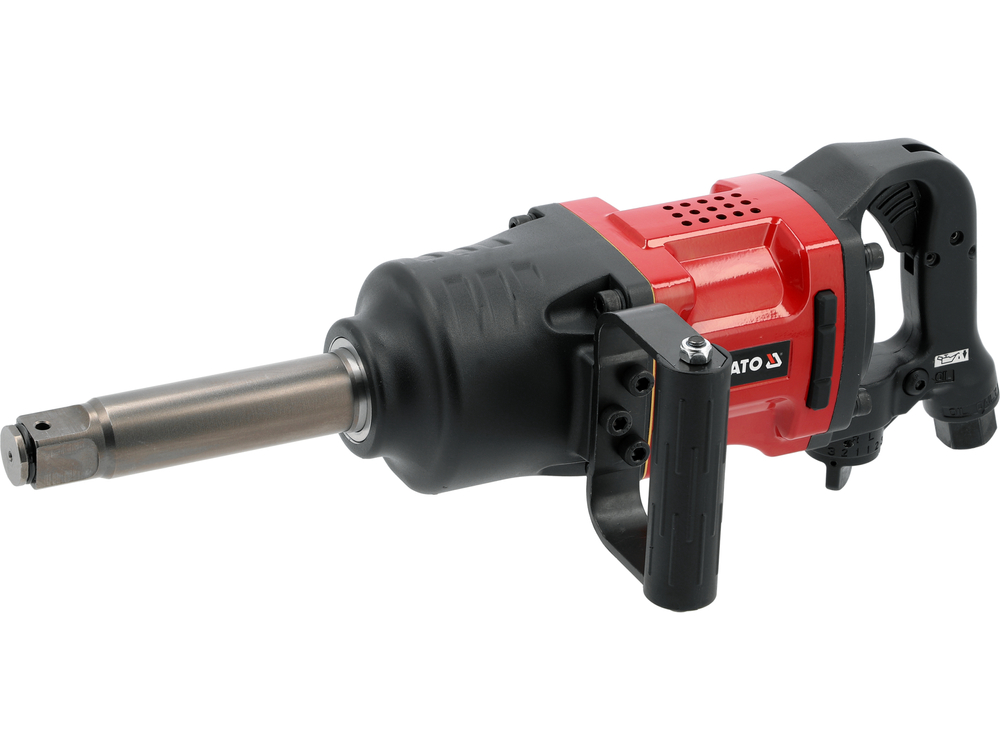

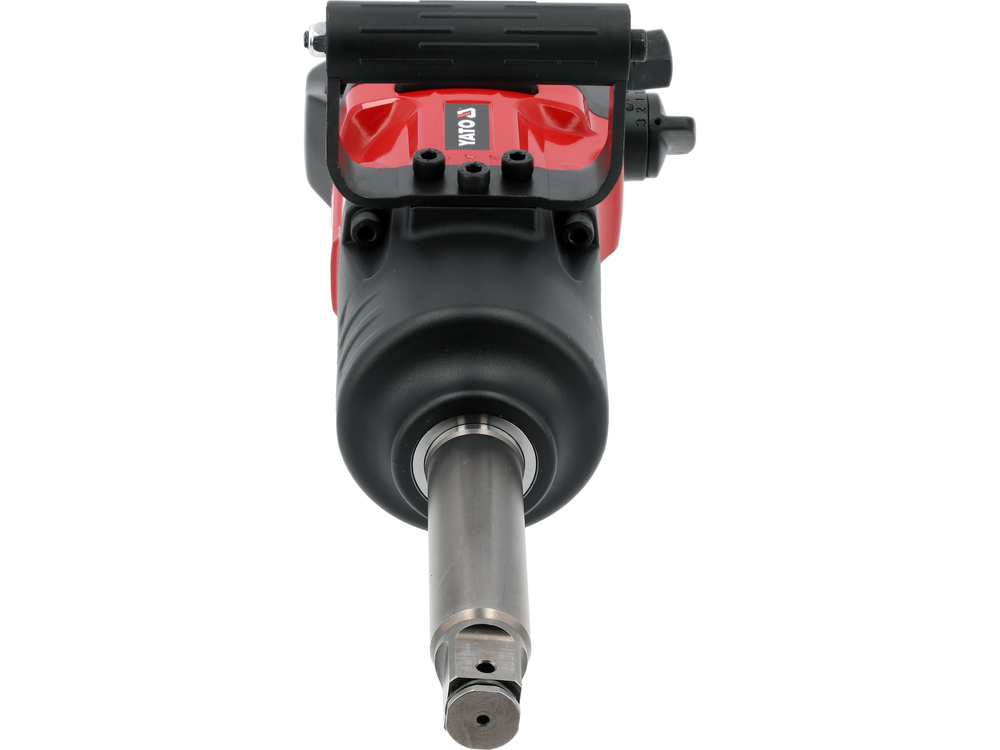

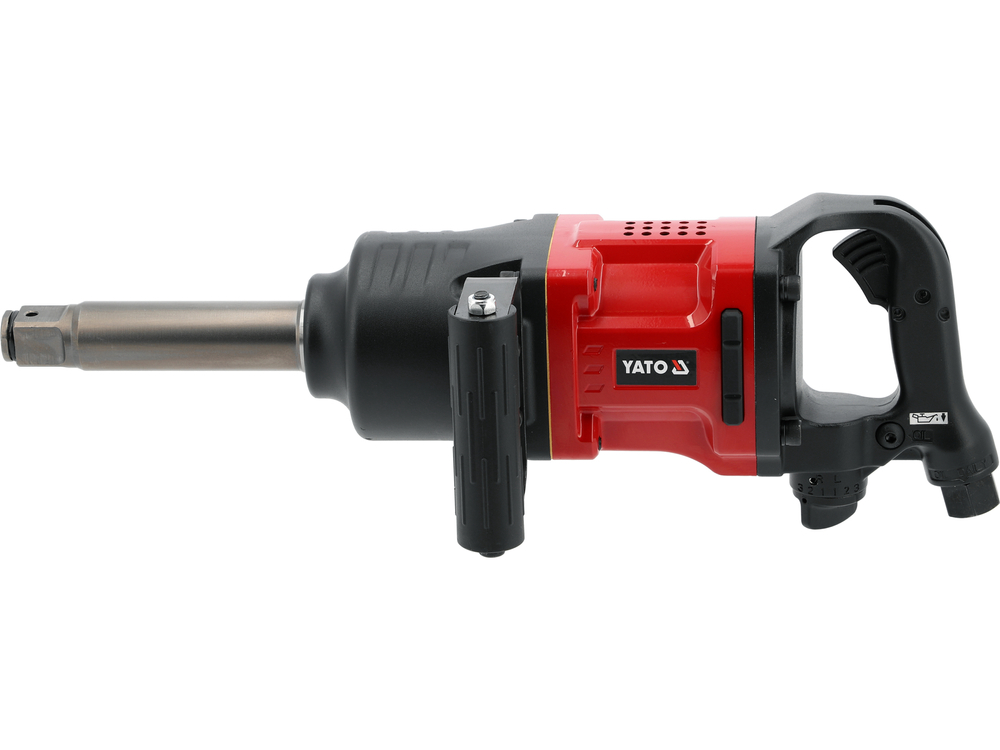

A professional pneumatic wrench with a 1" drive designed for intensive workshop and industrial work. Equipped with an extended spindle measuring 6 inches, which facilitates access to deeply embedded screws and nuts - especially when handling the wheels of heavy-duty vehicles or agricultural machinery.
The device reaches a speed of 4000 rpm and a maximum loosening torque of up to 4000 Nm, making it an effective tool for working with seized, large threaded connections (e.g. 45 mm bolts). The solid construction and torque make the wrench capable of handling the most demanding conditions.
The model is equipped with a standard 1/2" connection with a rat-tail quick coupling. It is recommended to use a compressor with a minimum power of 5 HP, with a constant pressure of 90 psi and an airflow of at least 500 l/min for operation.
drive size: 1"
spindle length: 6"
rotational speed (idle): 4000 rpm
max. loosening torque: 4000 Nm
screw tightening capacity: up to 45 mm
operating pressure: 90 psi
average air consumption: 450 l/min
recommended compressor: minimum 5 HP
total length: 510 mm
reversible switch
air inlet: 1/2” (rat-tail quick coupling included)
recommended air hose diameter: 1/2”
weight: 11.7 kg
