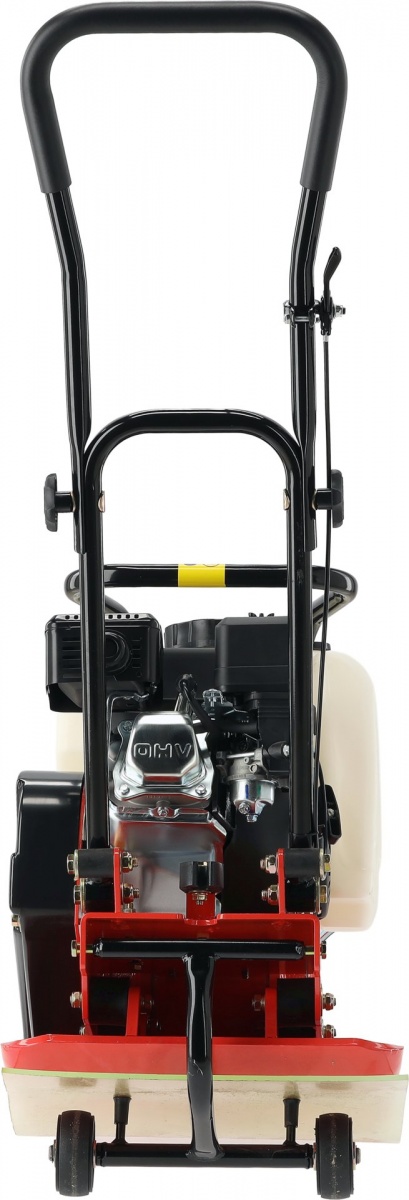

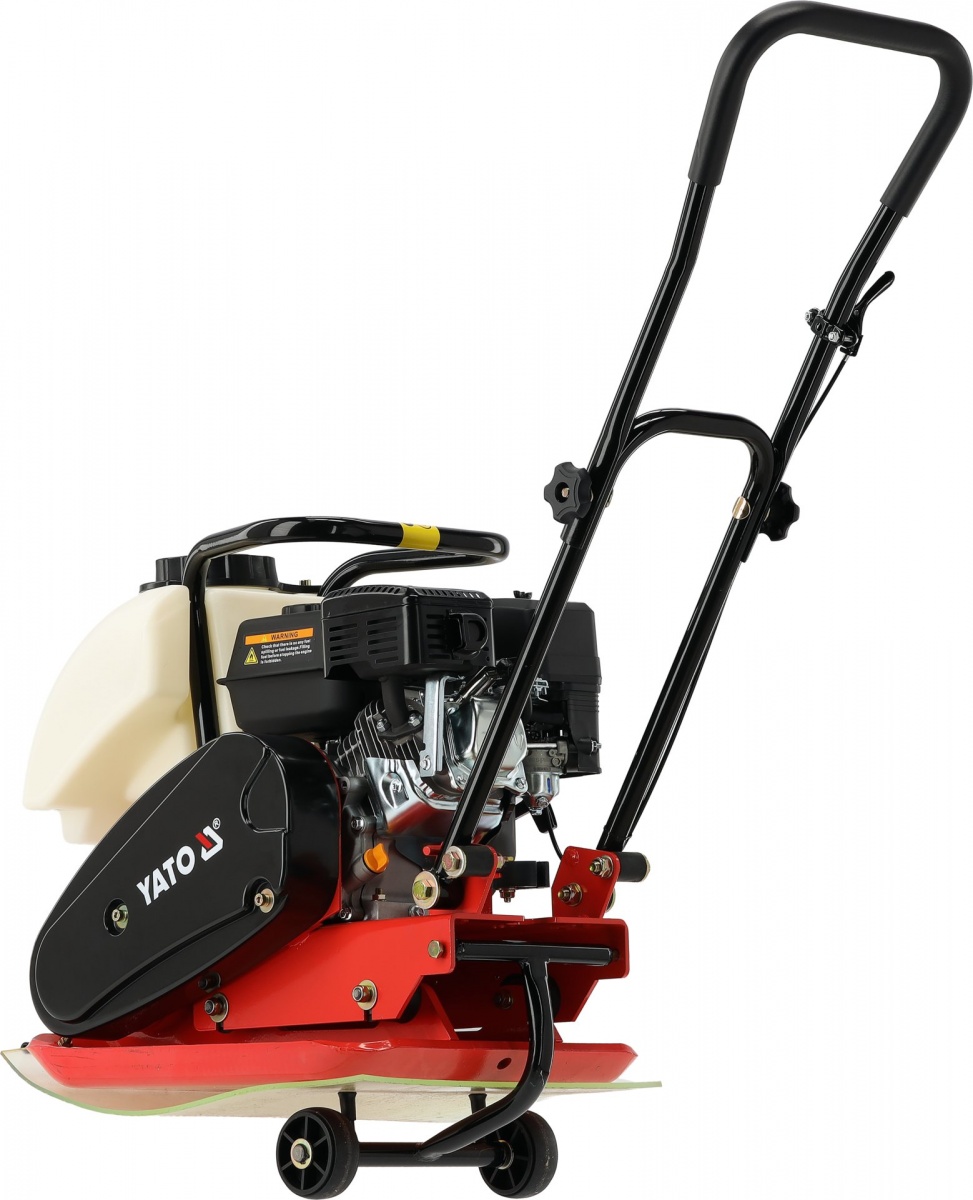

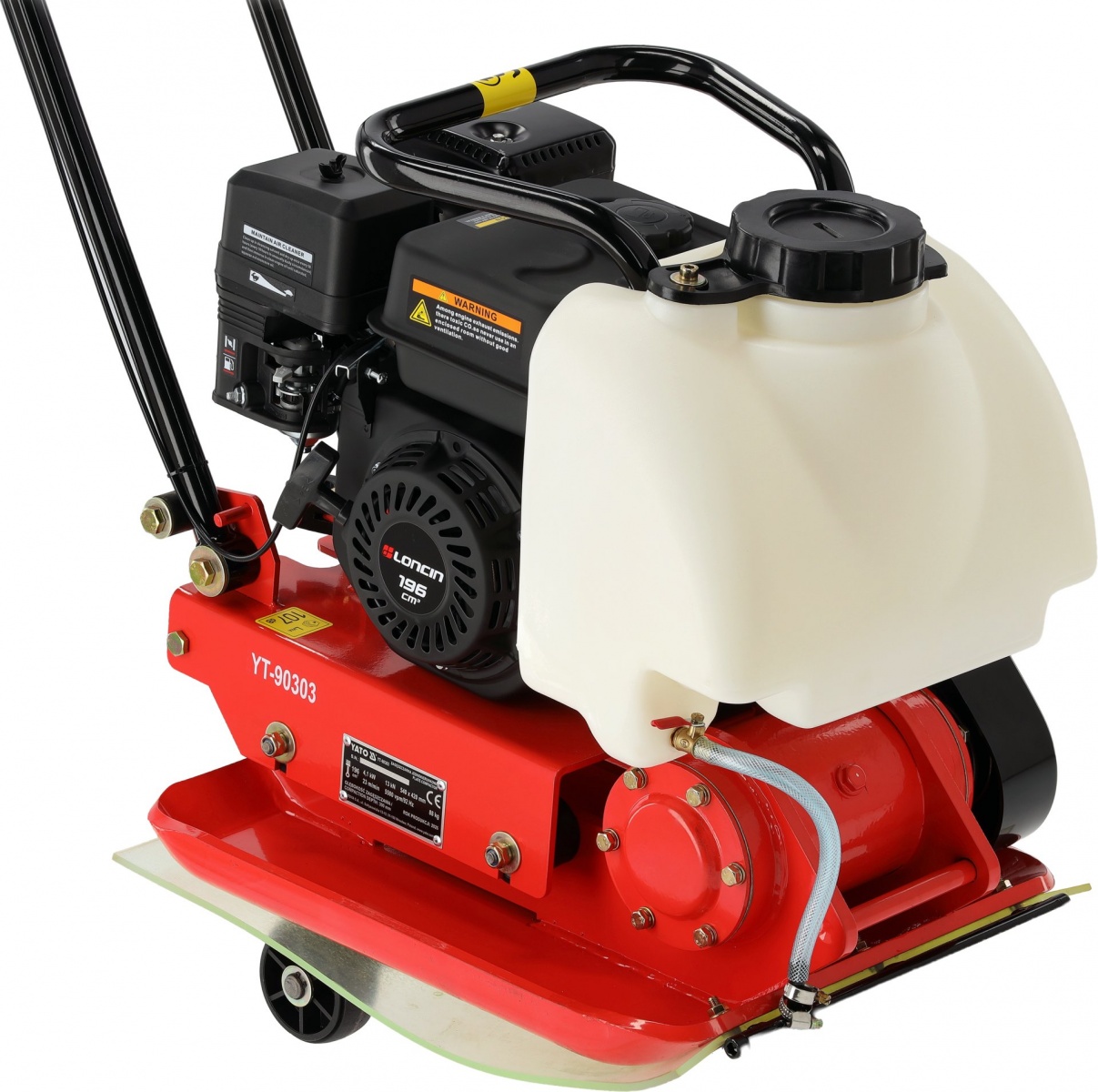

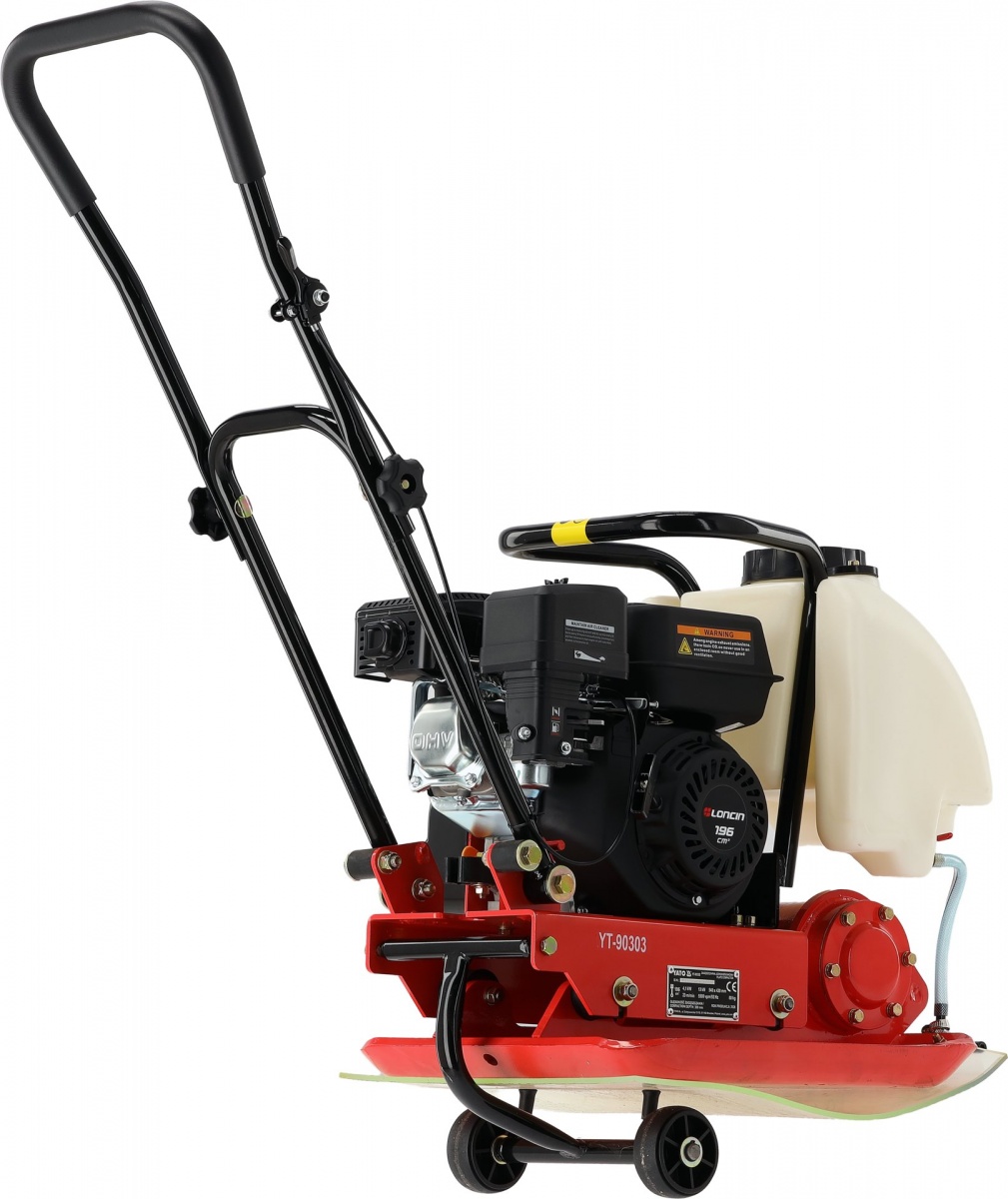

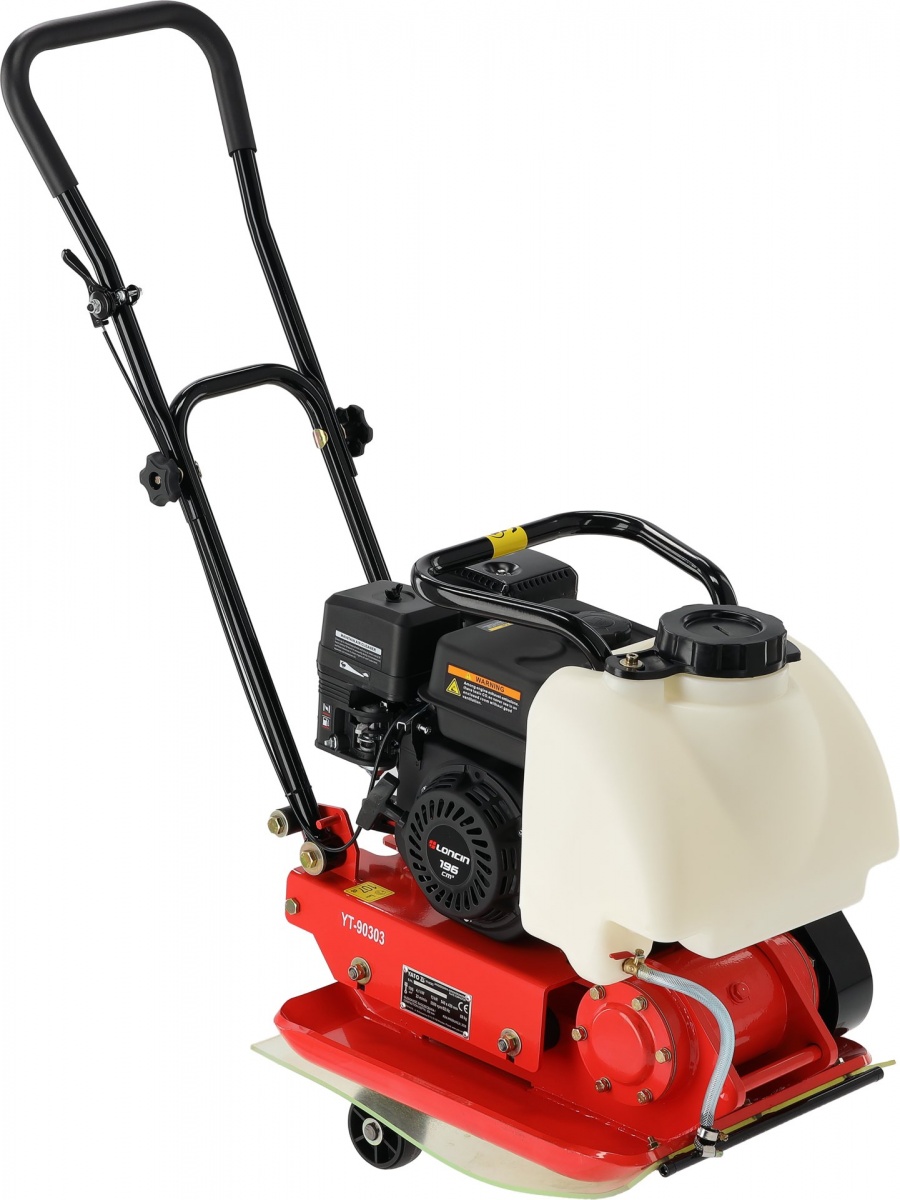

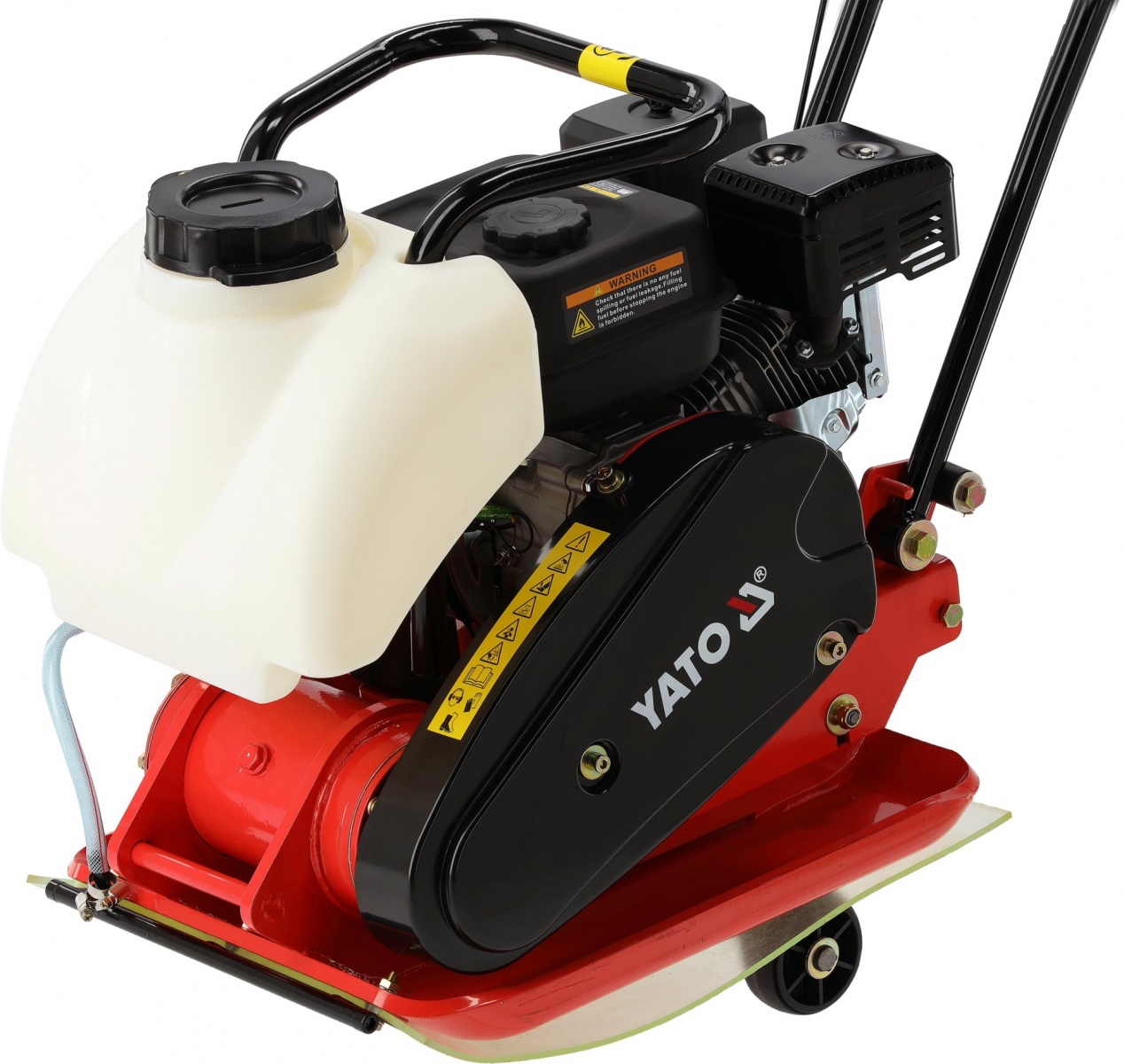

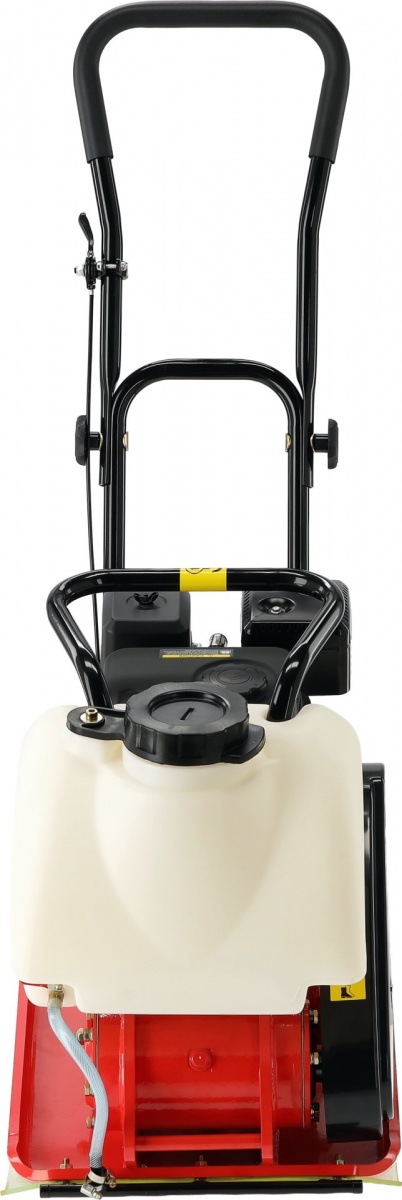

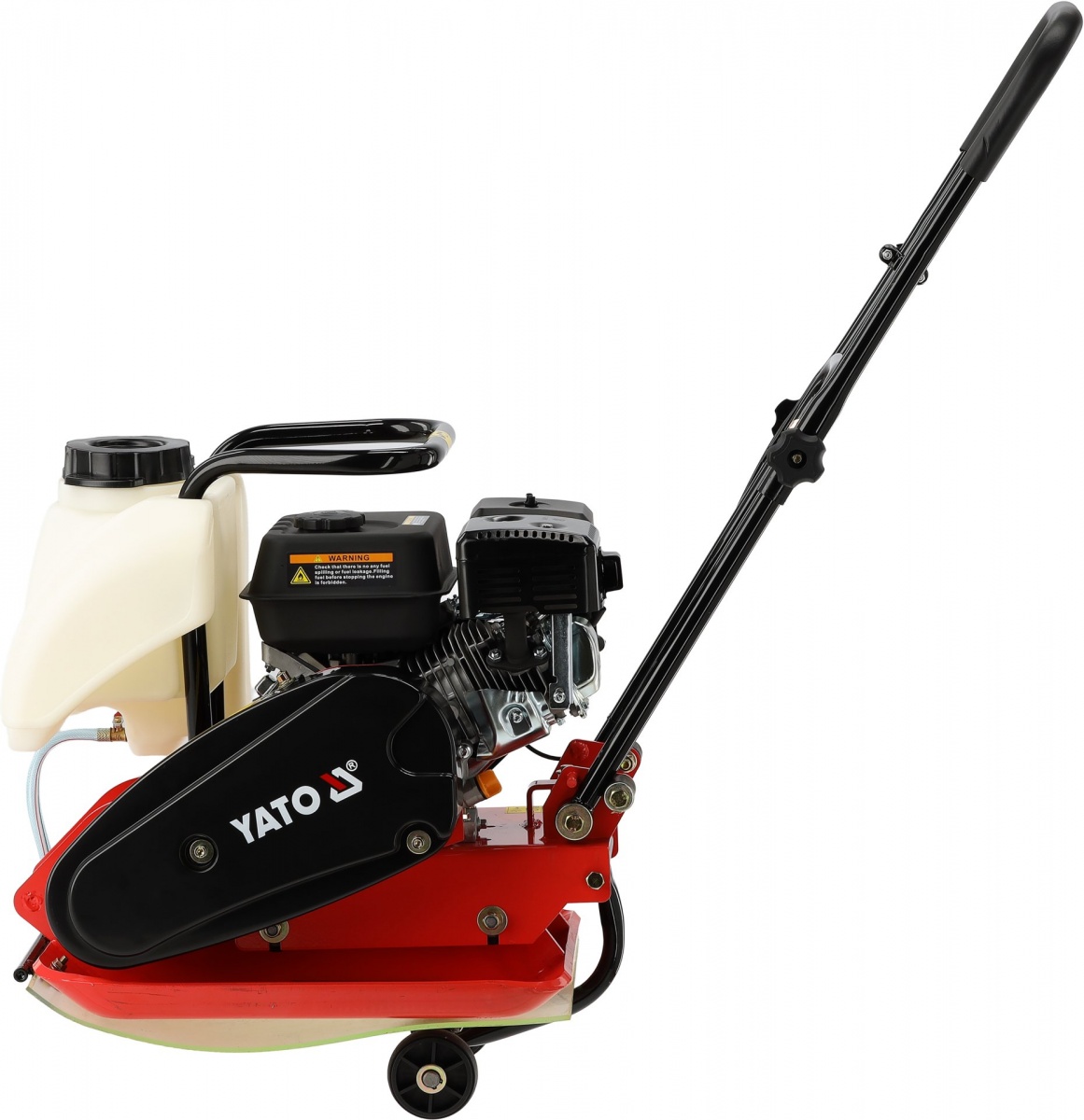

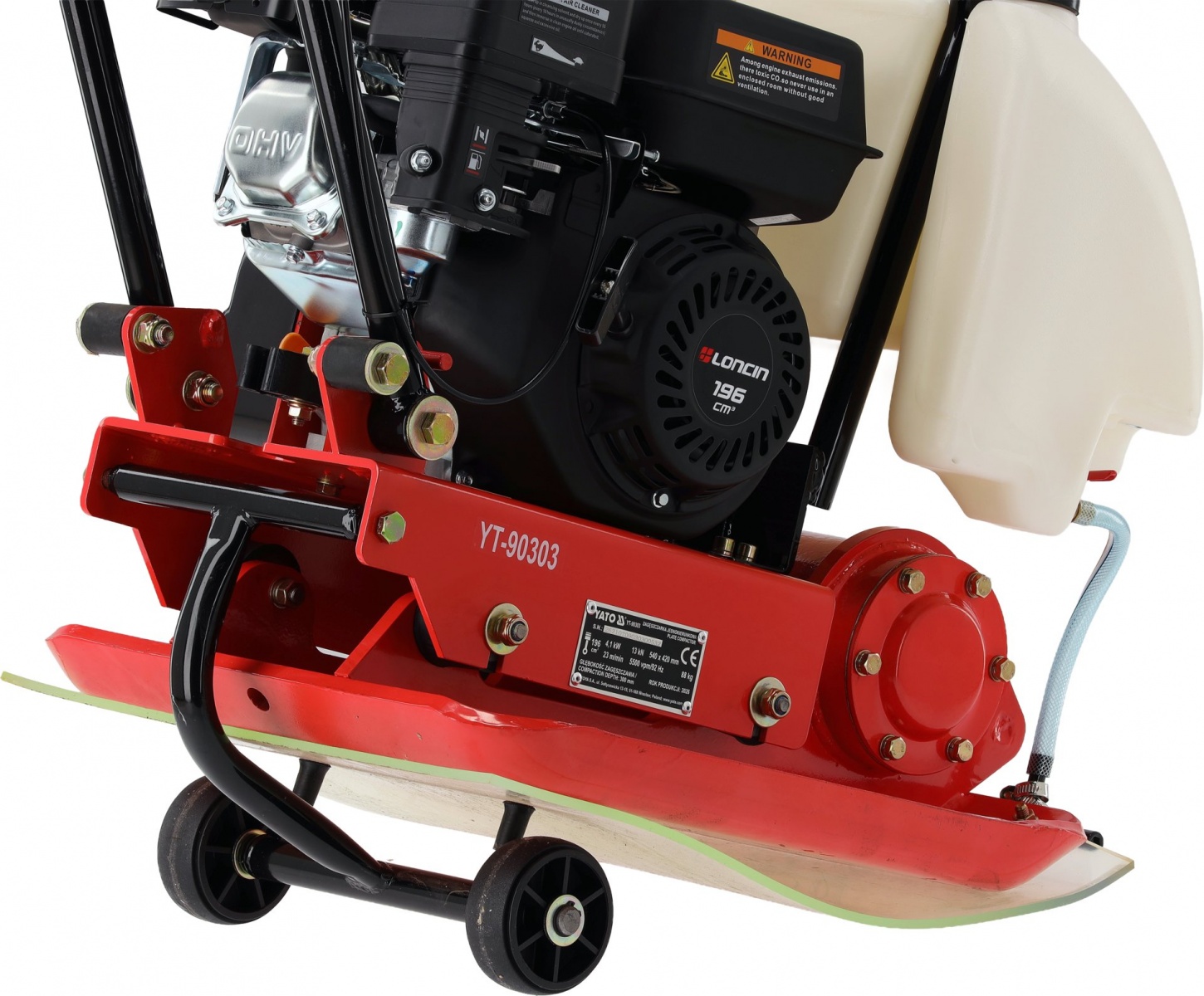

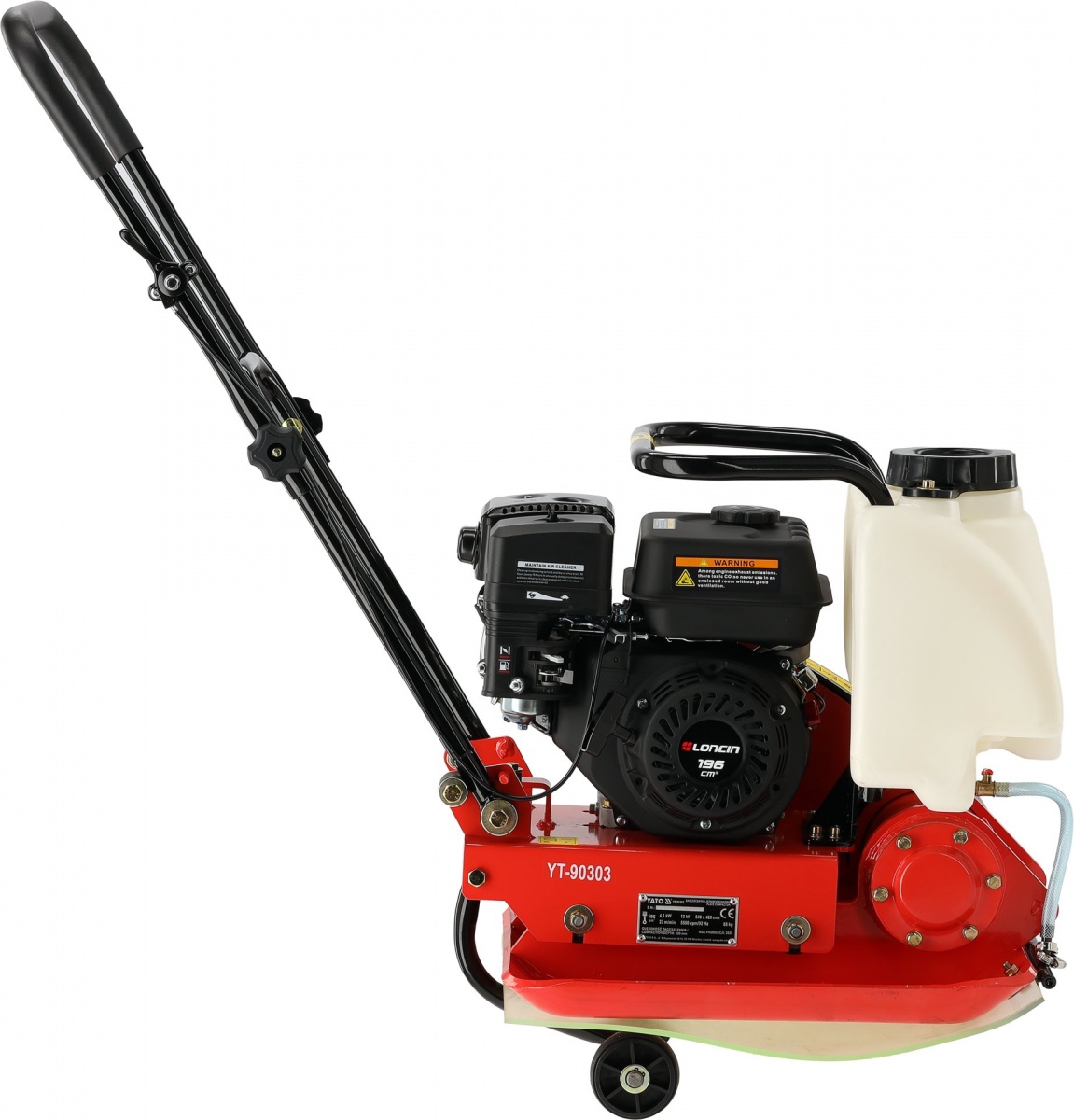

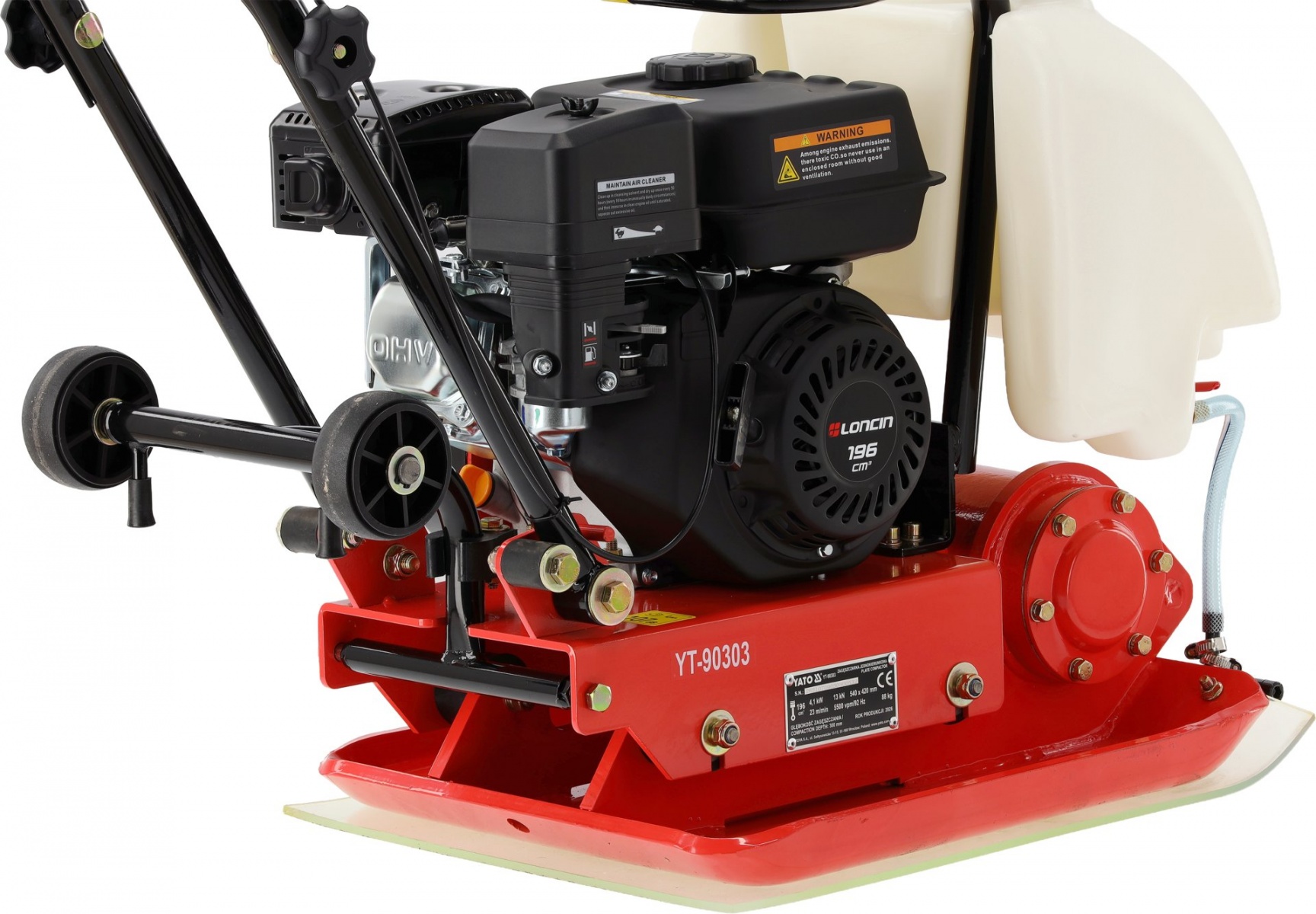

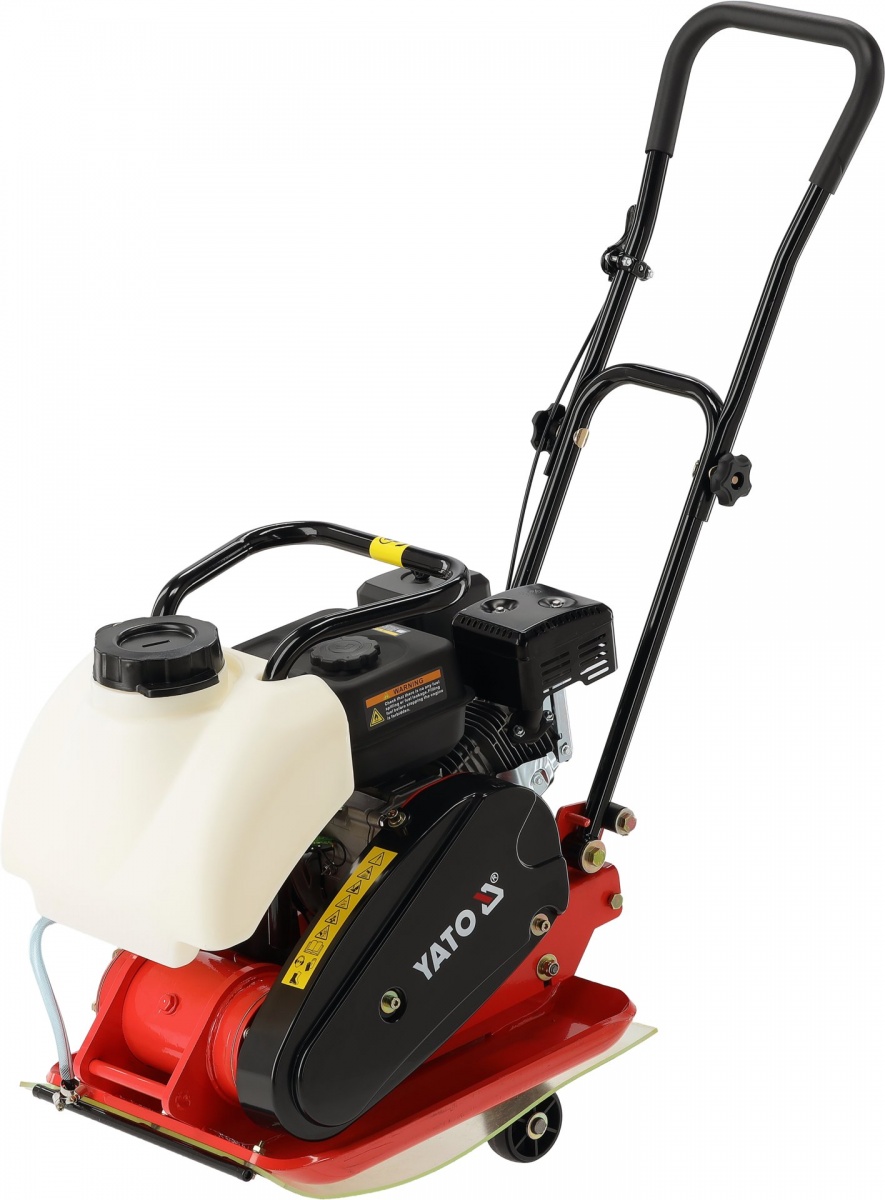

The YATO YT-90303 single-direction plate compactor is a professional machine designed for compacting sand, gravel, crushed stone, aggregates, and other materials used in paving, road, and earthworks. When used with the included rubber mat, it also allows for safe compaction of paving stones and slabs without the risk of damaging their surfaces. The Loncin G200F engine with a power output of 6.5 HP and a centrifugal force of 13 kN ensures effective soil compaction to a depth of up to 30 cm, while the large working plate and efficiency of up to 580 m²/h enable efficient work on medium to large surfaces.
The machine is equipped with a low oil level sensor that protects the engine from damage in case of insufficient lubricant levels, as well as a water tank that reduces the sticking of hot bituminous material to the working plate during asphalt work. Standard equipment also includes a transport set with wheels for easy movement of the device and a rubber mat designed to protect the surface during the compaction of paving stones.

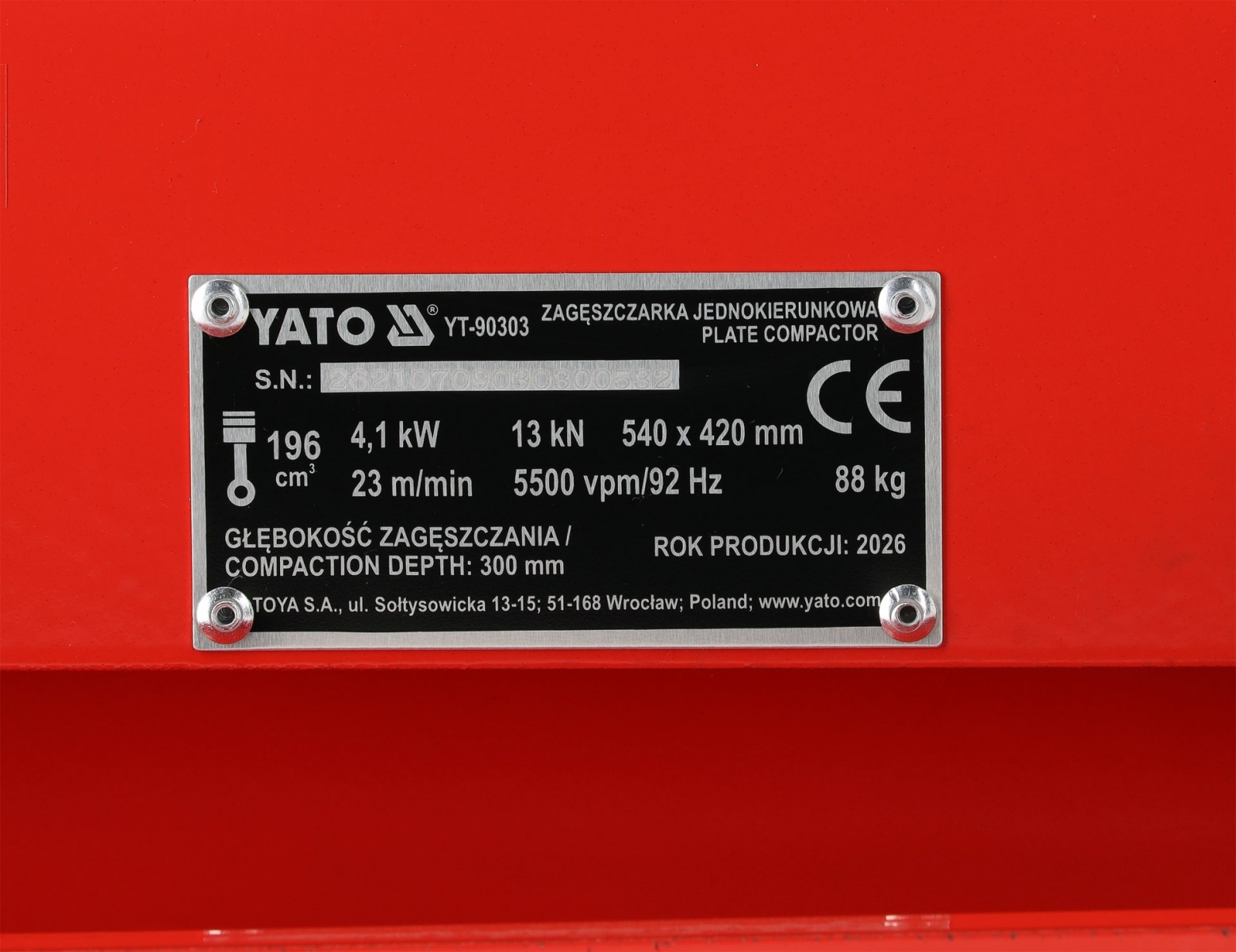

Technical specifications:
type: single-direction plate compactor
engine: Loncin G200F, four-stroke, single-cylinder, OHV
engine power: 4.1 kW (6.5 HP)
engine displacement: 196 cm3
spark plug type: F7RTC
start: manual
built-in oil level sensor
centrifugal force: 13 kN
vibration frequency: 5500 vibrations/min
compaction depth: up to 30 cm
forward speed: 23 m/min
efficiency: 580 m²/h
fuel tank capacity: 3.6 l (unleaded gasoline E10)
engine oil tank capacity: 0.6 l (SAE 15W-40)
working plate dimensions: 540 x 420 mm
noise level: 107 dB
working weight: 88 kg
Material and construction:
working plate made of high-strength steel resistant to wear and deformation
durable protective frame securing the engine during operation and transport
Loncin G200F engine equipped with an oil level sensor for increased operational safety
shock-absorbing handle reducing vibrations transmitted to the operator

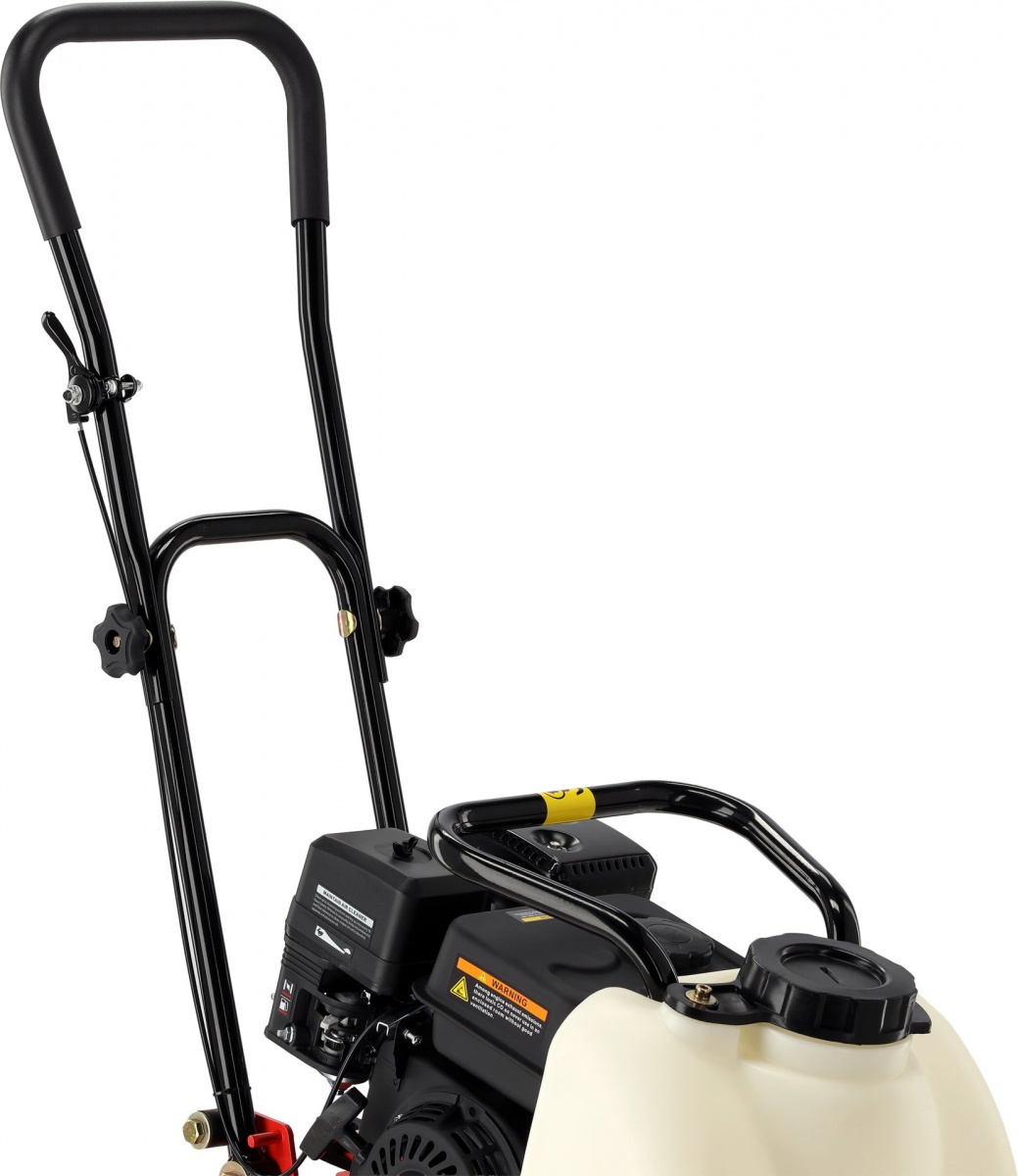

water tank designed for work on bituminous surfaces
transport wheels facilitating the movement of the machine
rubber mat for compacting paving stones without the risk of damaging their surfaces
Applications:
paving, road, and earthworks carried out by construction companies and contractors
preparation of the substrate for sidewalks, driveways, paths, squares, and parking lots
compaction of sand, gravel, crushed stone, aggregates, mineral and bituminous mixtures, and bedding under paving stones
compaction of paving stones and slabs using the rubber mat
repair work on asphalt surfaces using the water tank
operations requiring effective soil and sub-base compaction for surfaces
