Description:
Brand:
Index
YT-82252
Barcode
5906083134630
Unit of measure
PCE
Volume
11.661
Weight
5.125

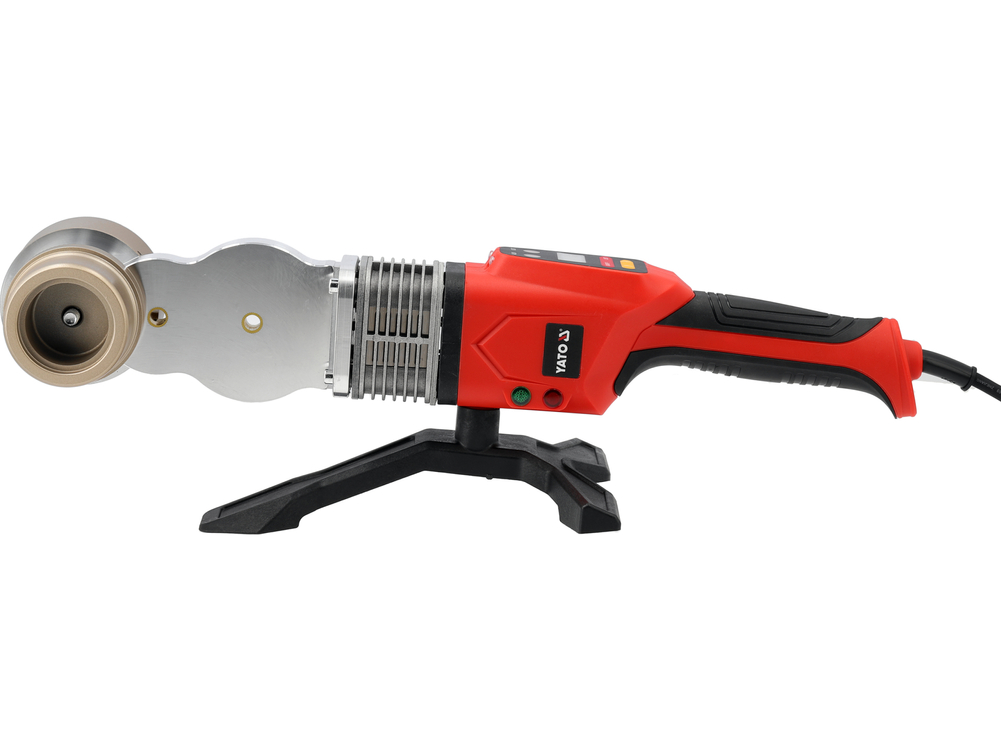

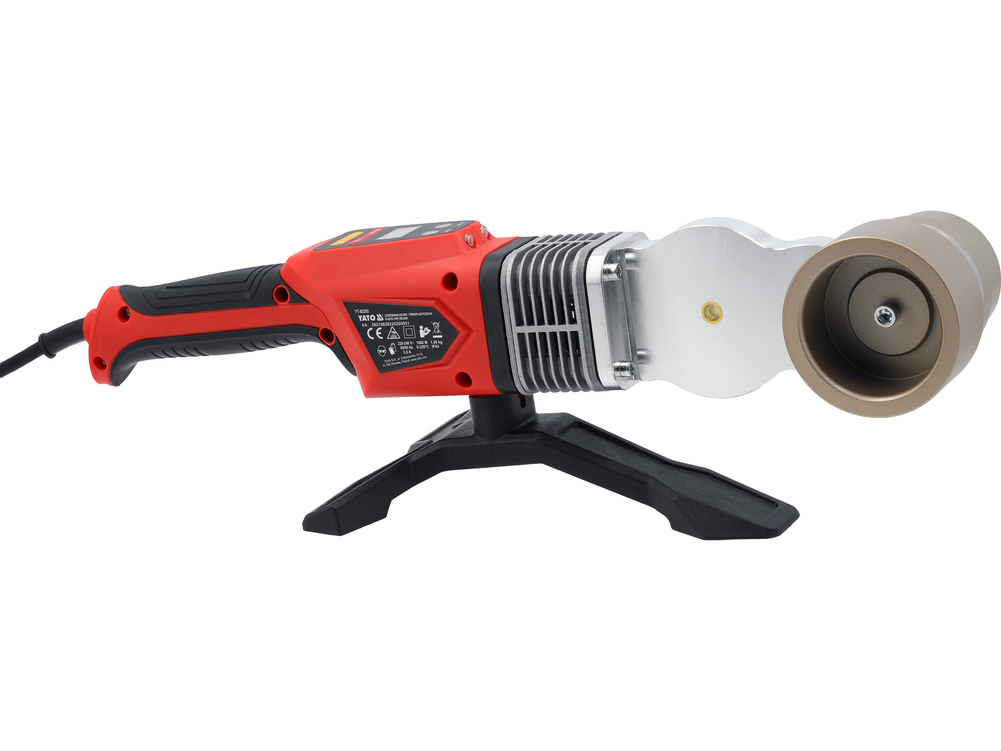

The YT-82252 thermoplastic pipe welder is a professional tool designed for creating permanent joints between pipes and fittings using the polyfusion welding method. It is compatible with components made of PP-R, PB, PE, and PE-X materials, making it ideal for the installation and repair of water systems and other thermoplastic piping networks.
This 1000 W device features an aluminum heating plate that ensures efficient heat transfer and stable heating conditions. A digital control panel with a display allows for convenient setting and monitoring of operating parameters. The kit includes heating heads with diameters of 20, 25, 32, 40, 50, and 63 mm, enabling the tool to be adapted to the most commonly used installation pipe sizes.

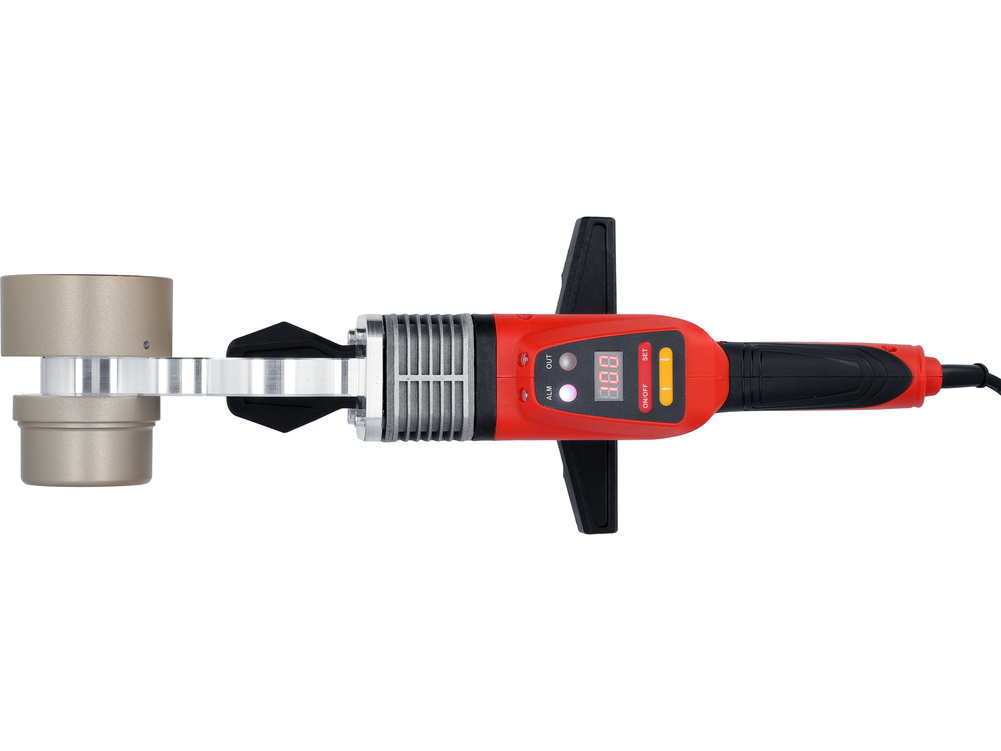

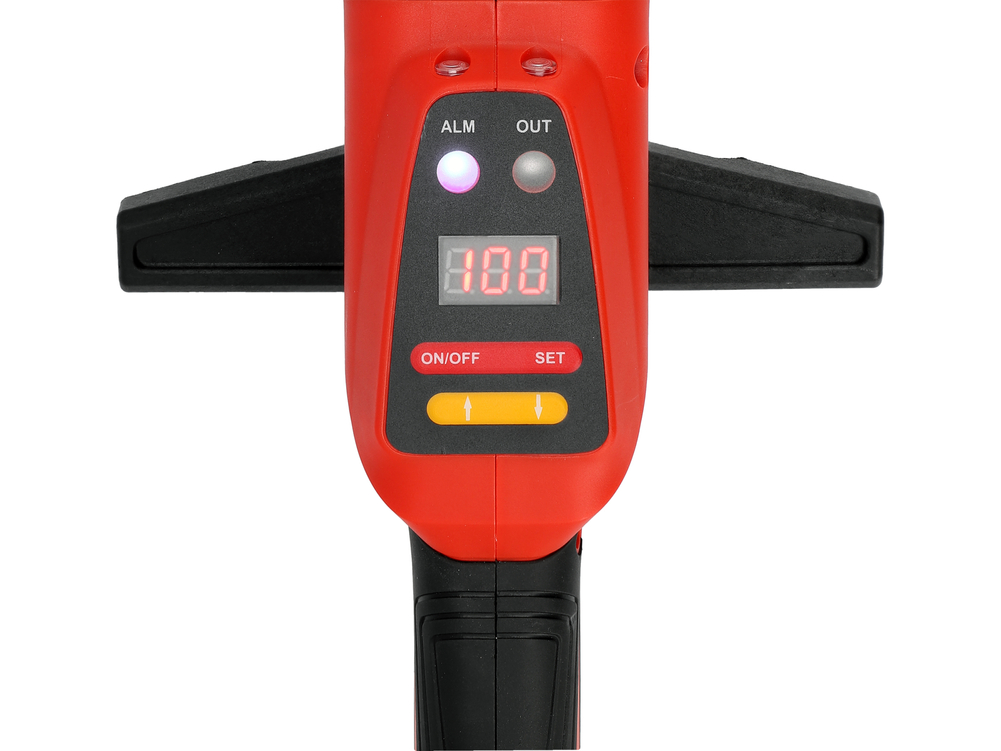

Digital temperature control
An electronic control panel allows for precise adjustment of the heating plate temperature up to 320°C. The display and indicator lights facilitate monitoring the device's operation and preparing it for the welding process. A thermostatic switch manages temperature control, enhancing the safety and operational stability of the heating system.

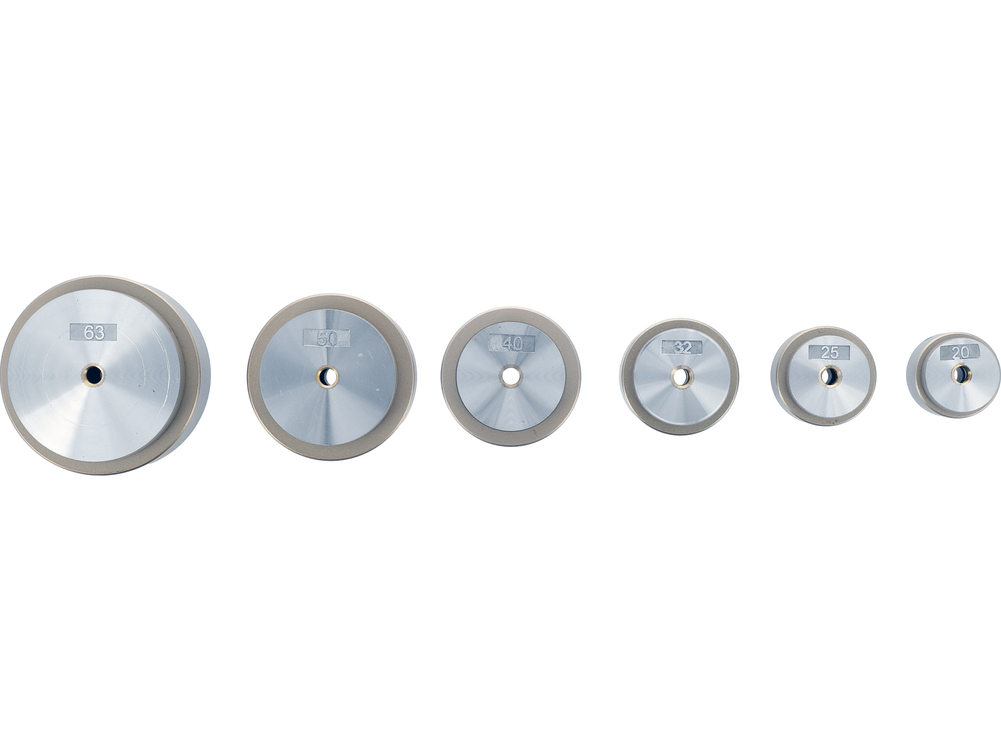

Six heating heads

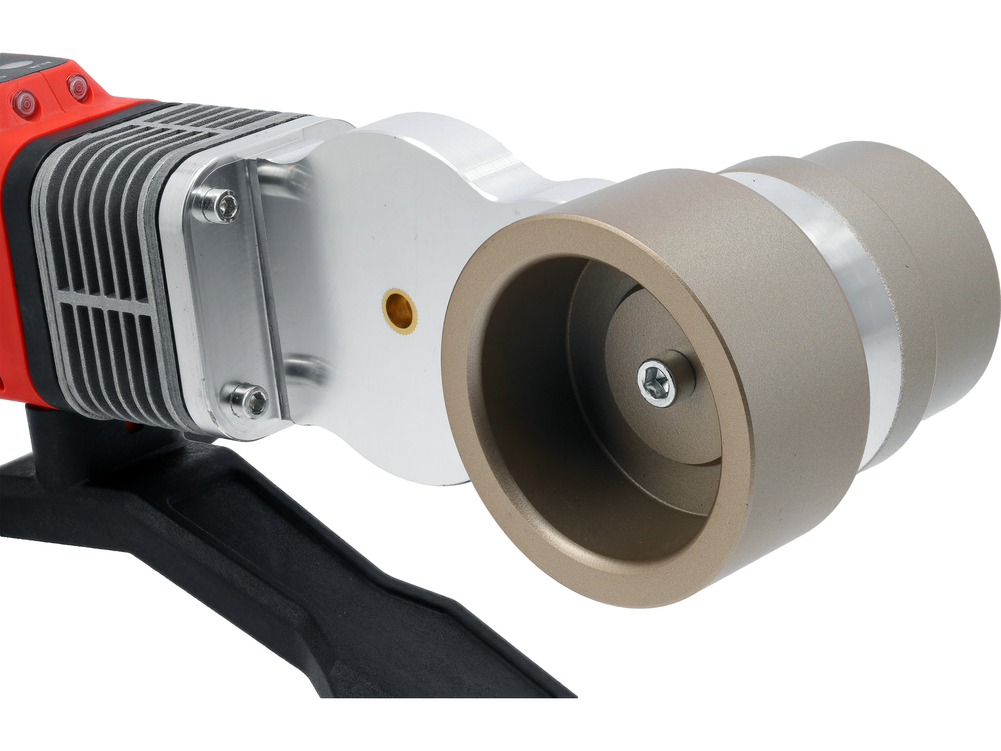

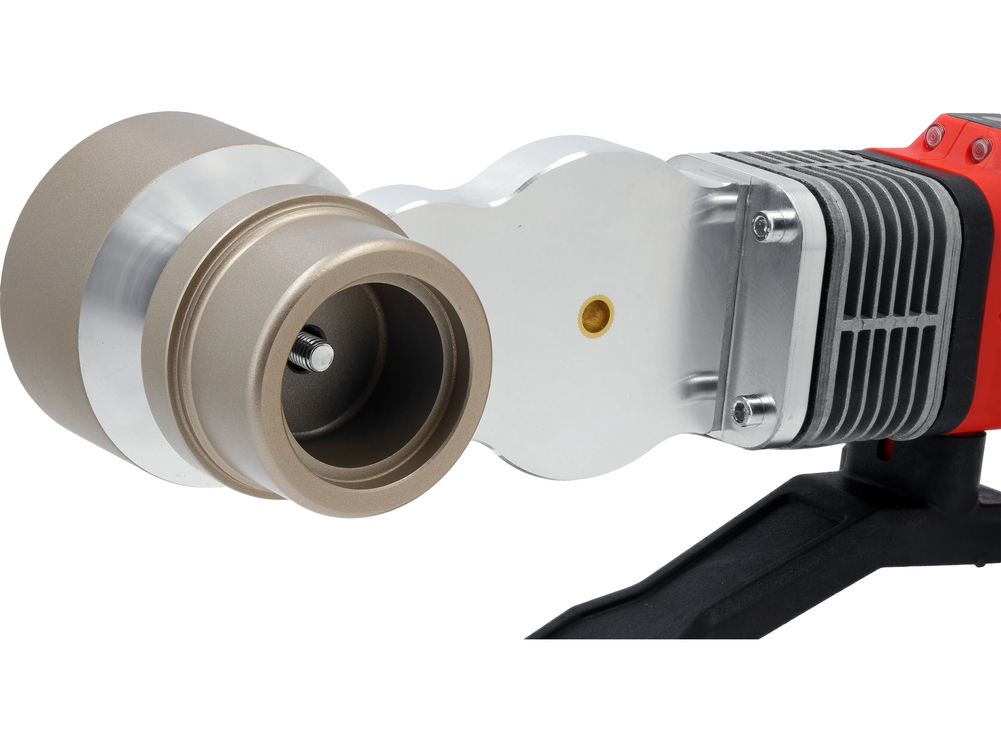

The welder comes with a set of aluminum heating heads featuring a Teflon coating, which minimizes the adhesion of the heated material to the working surfaces. A wide range of diameters—20, 25, 32, 40, 50, and 63 mm—allows for the joining of pipes and fittings used in various types of installations.

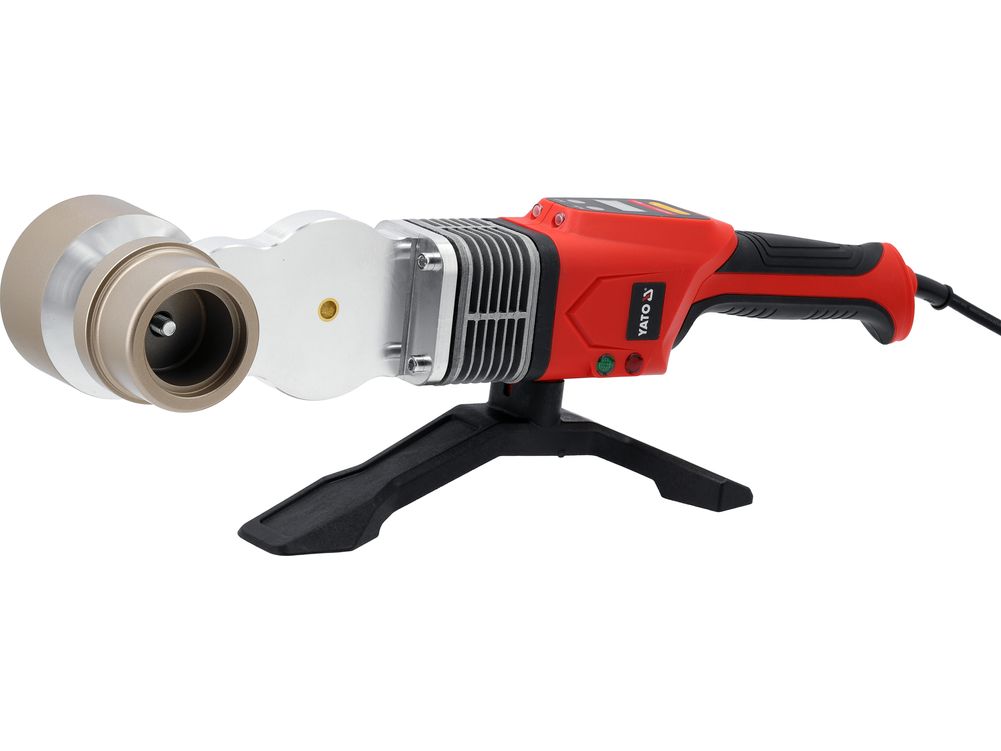

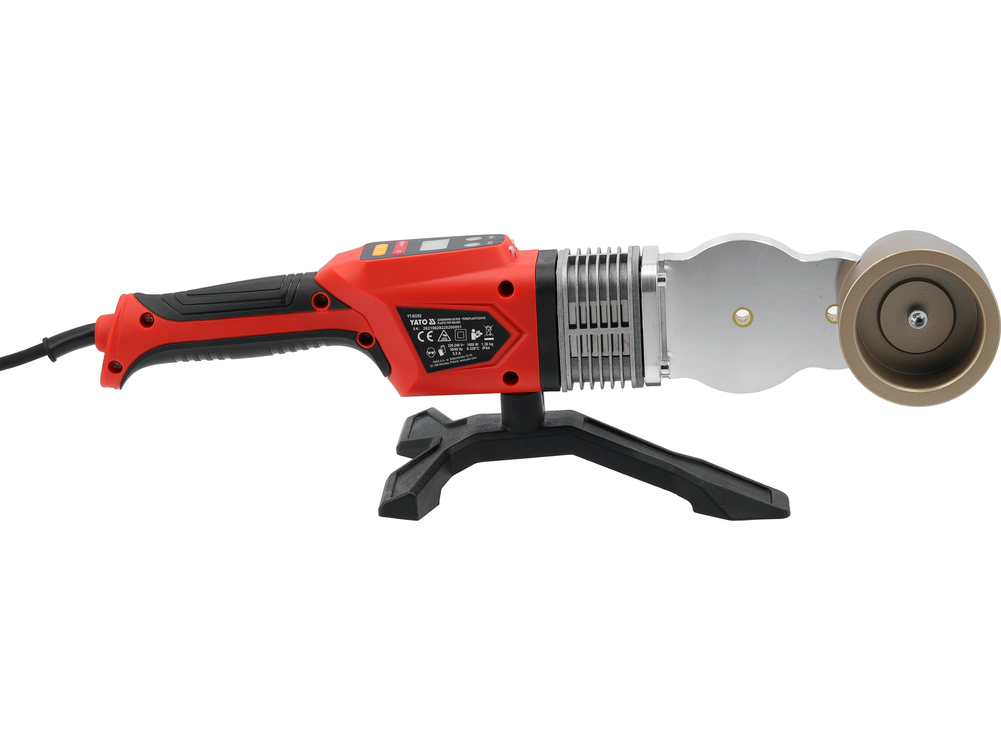

Stable workstation
The included stand allows the heated welding tool to be placed securely while preparing subsequent joints. The design features a nylon handle that ensures a firm and comfortable grip. This setup makes it easier to maintain the correct posture when fitting the pipe and fitting onto the heated heads.
Intended use:
The welding tool is designed for joining pipes and fittings made of:
PP-R
PB
PE
PE-X
The welding process involves evenly heating the components to be joined and then connecting them. Once the material cools, a permanent bond is formed, becoming an integral part of the installation.
Device protection
It is equipped with a 1.8 m long, 3 x 0.75 mm² rubber power cord, ensuring freedom of movement at the workstation. The device features Class II electrical insulation and an IPX4 protection rating. Its low weight of 1.36 kg makes the tool easy to carry and handle during installation work. Key features:
designed for welding thermoplastic pipes and fittings
suitable for materials: PP-R, PB, PE, PE-X
rated power: 1000 W
rated voltage: 220–240 V
mains frequency: 50/60 Hz
rated current: 3.5 A
digital temperature control
temperature range: up to 320°C
aluminum heating plate
thermostatic cut-off switch
6 Teflon-coated heating heads
head diameters: 20, 25, 32, 40, 50, and 63 mm
stable stand
ergonomic nylon handle
digital display
indicator lights
rubber power cord (3 x 0.75 mm²)
cord length: 1.8 m
electrical insulation class: II
protection rating: IPX4
weight: 1.36 kg

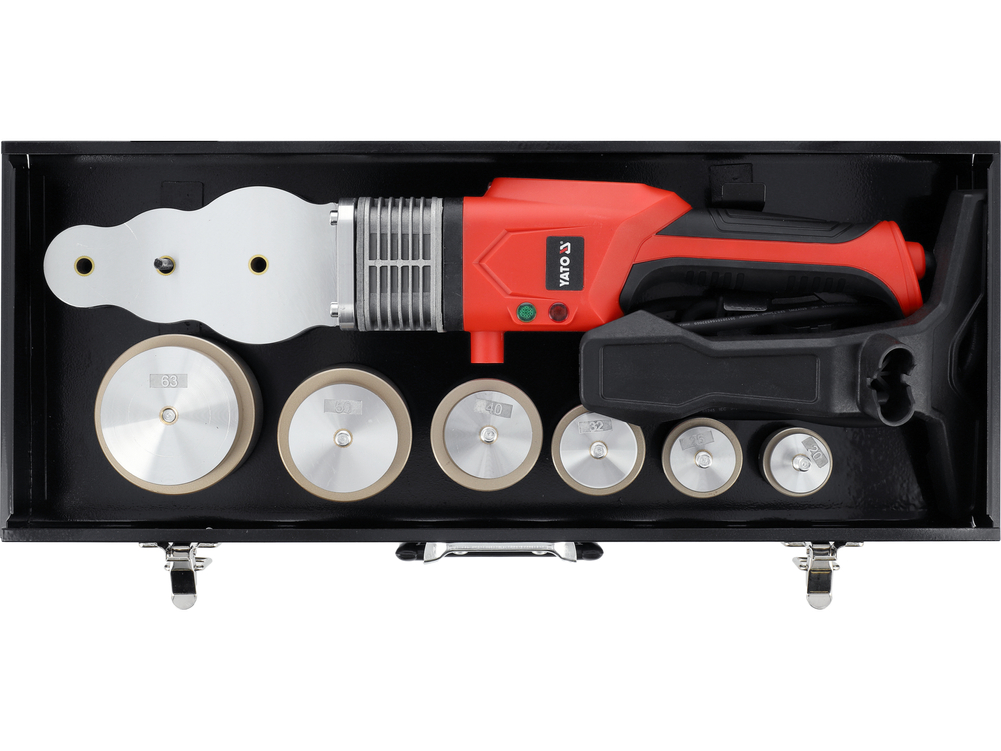

Set contents:
welding tool
stand
adapters / heating heads: 20, 25, 32, 40, 50, and 63 mm
