Description:
Brand:
Index
YT-90313
Barcode
5906083135187
Unit of measure
PCE
Volume
364.21
Weight
173
Attributes
Power
6 kW
Rotations
3600 min⁻¹
Power
8.16 KM
Engine (motor) capacity
270 cm³
Capacity
605 m²/h
Worktop size
710x480 mm
Fuel type
unleaded petrol E10
Fuel tank capacity
6 l
Oil type
SAE 15W-40
Oil tank capacity
0.95 l
Starting type
manual
Engine (motor) type
Loncin G270F
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Ignition plug type
F7RTC
Cooling
air
Centrifugal force
30.5 kN
Feed speed
21 m/min
Compaction depth
500 mm
Vibration frequency
4500/75 vpm/Hz
Acoustic pressure
84.5 ± 3.0 dB(A)
Acoustic power
104.4 ± 1.69 dB(A)
Vibrations
18.4 ± 3.0 m/s²
Weight
165 kg
Set includes
plate compactor, expansion plates, rubber mat for paving stones, transport set with wheels
Application
compaction of sand, gravel, crushed stone, aggregates and mineral mixtures, subbase for paving stones, substrates for roads, sidewalks, parking lots, and squares, excavations and installation backfills
Application cont’d
paved surface (using rubber mat)

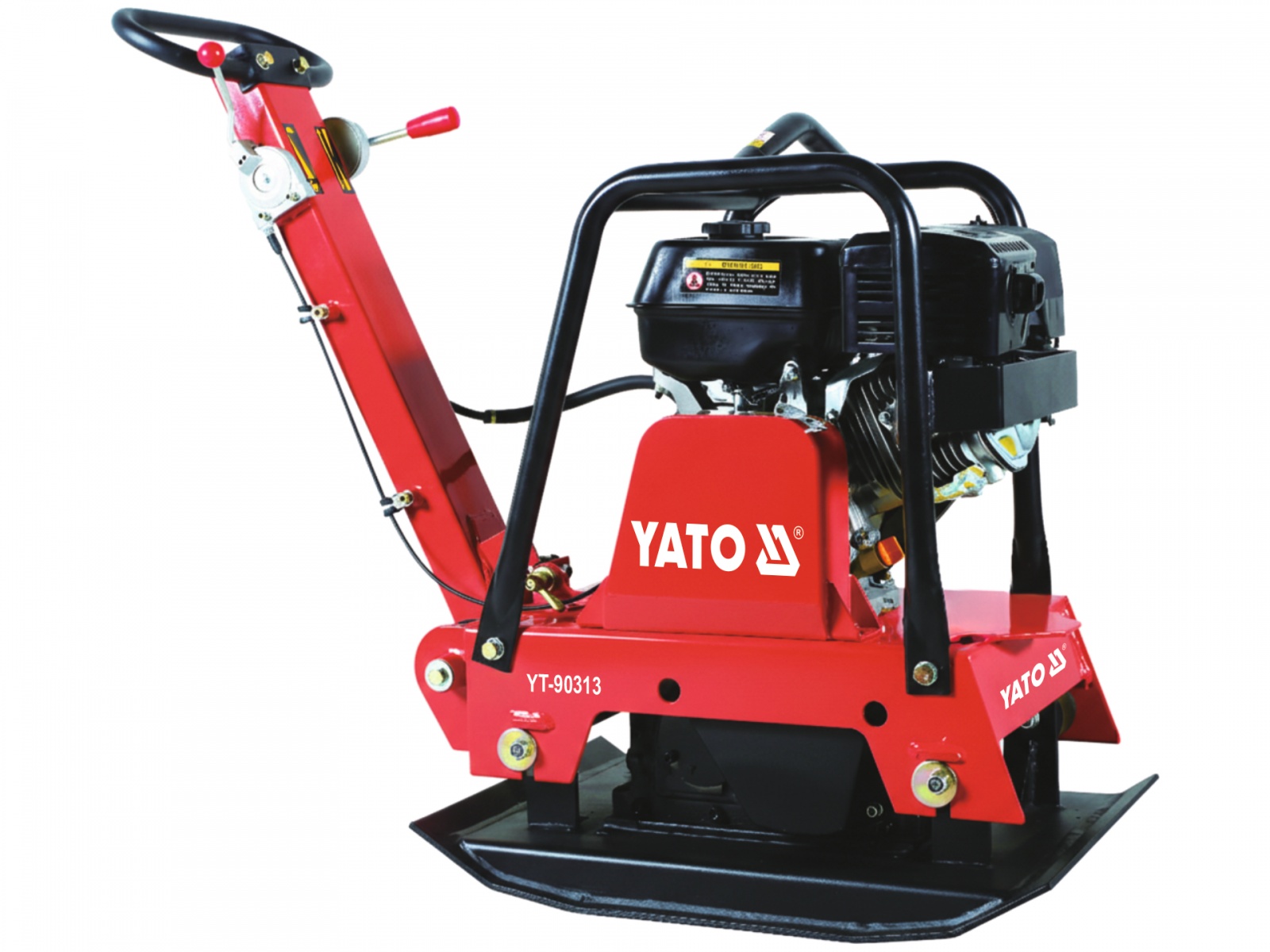

The YATO YT-90313 reversible plate compactor is a professional construction machine designed for the intensive compaction of soil, aggregates, and sub-bases for road and paving surfaces. Its reversible drive system allows for smooth directional changes—moving both forward and backward—without the need to turn the machine around; this facilitates operation in confined spaces and boosts efficiency when compacting larger areas.
It is powered by a 9 HP Loncin G270F engine, which, in conjunction with the vibration system, generates a centrifugal force of 30.5 kN. A vibration frequency of 4,500 vibrations per minute and a compaction depth of up to 50 cm ensure effective preparation of soil, sub-bases, and backfill materials. With an operating weight of 165 kg, a travel speed of 21 m/min, and an efficiency of up to 605 m²/h, the machine is ideally suited for demanding paving, roadworks, earthworks, and infrastructure projects.
Standard equipment includes extension plates that increase the working width to 710 × 480 mm, as well as transport wheels and a rubber mat. The mat enables the safe compaction of paving stones, preventing direct contact between the steel plate and the surface, thereby eliminating the risk of damage. A robust protective frame safeguards key components during operation and transport. Technical specifications:
Type: Reversible plate compactor
Engine: Loncin G270F, 4-stroke, single-cylinder, OHV
Emission standard: EU Stage V
Engine power: 6.0 kW (9 HP)
Engine displacement: 270 cc
Spark plug type: F7RTC
Starting system: Manual (recoil)
Centrifugal force: 30.5 kN
Vibration frequency: 4,500 vibrations/min
Compaction depth: Up to 50 cm
Travel speed: 21 m/min
Efficiency: 605 m²/h
Maximum engine speed: 3,600 rpm
Fuel tank capacity: 6 L (E10 unleaded petrol)
Engine oil capacity: 0.95 L (SAE 15W-40)
Base plate dimensions (with extension plates): 710 × 480 mm
Noise level: 107 dB
Operating weight: 165 kg
Material and construction:
Base plate made of high-strength steel, resistant to abrasion and heavy-duty use
9 HP Loncin G270F engine, providing ample power for compacting challenging surfaces
Reversing mechanism allowing for smooth direction changes without turning the machine around
Shock-absorbing guide handle to minimize vibration transfer to the operator
Extension plates to increase working width and work efficiency
transport wheels for easy machine maneuverability
rubber mat designed for compacting paving stones
durable protective frame safeguarding the engine and key components during operation and transport
Applications:
compaction of sand, gravel, and crushed stone
compaction of aggregates and mineral mixtures
sub-base preparation for paving stones, roads, sidewalks, parking lots, and open areas
compaction of trenches and utility backfill
compaction of paved surfaces using the rubber mat
High operating weight, a centrifugal force of 30.5 kN, and a compaction depth of up to 50 cm make this machine suitable for demanding ground preparation and stabilization tasks. The reversible drive facilitates operation in trenches, along edges, and in other areas where turning the machine around is difficult.
Kit contents:
extension plates
rubber mat for compacting paving stones
transport wheel kit
