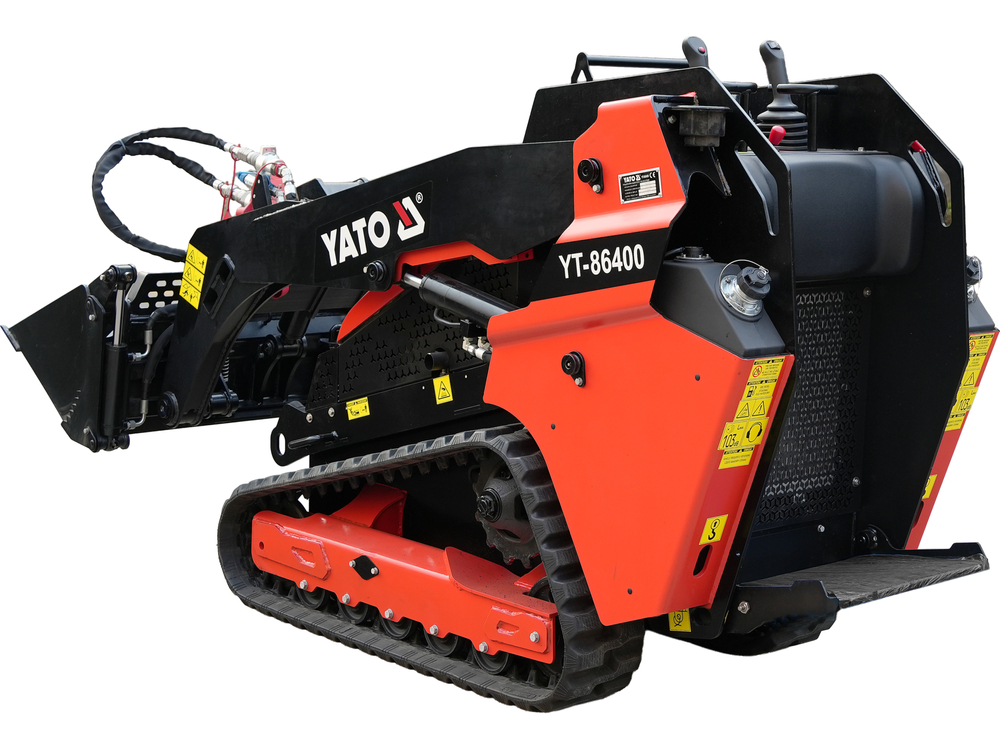

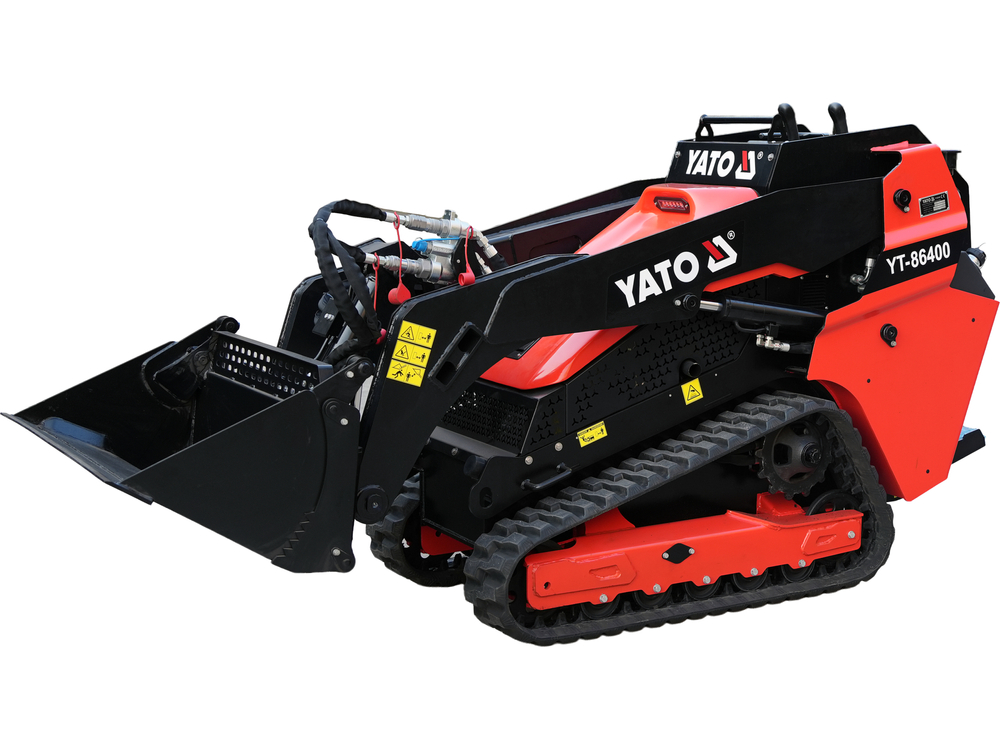

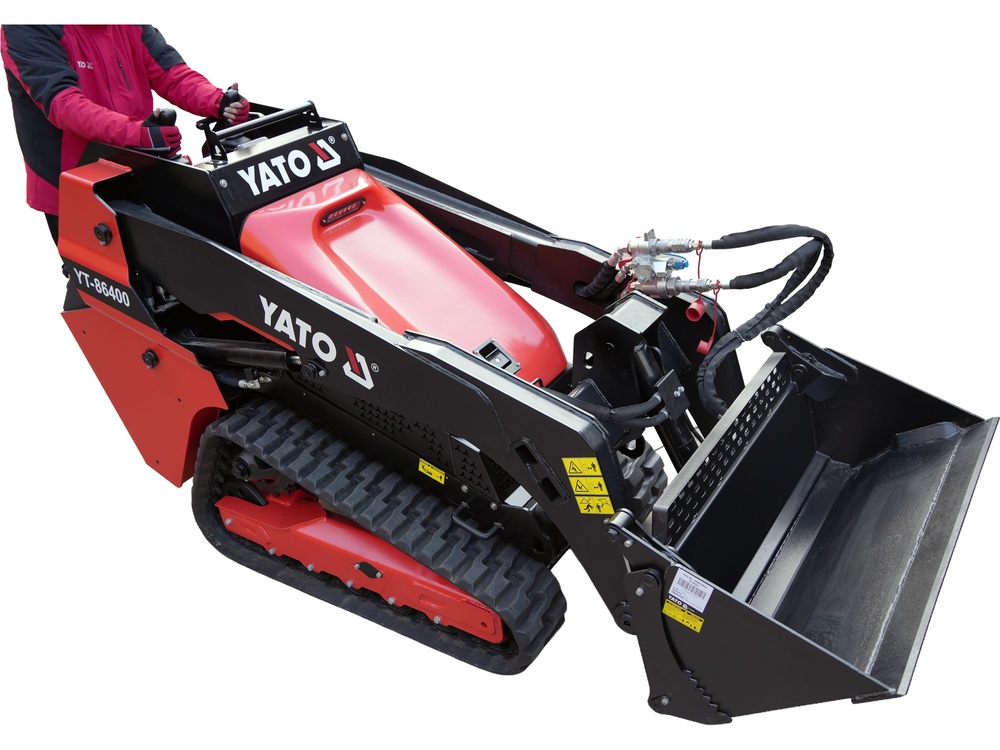

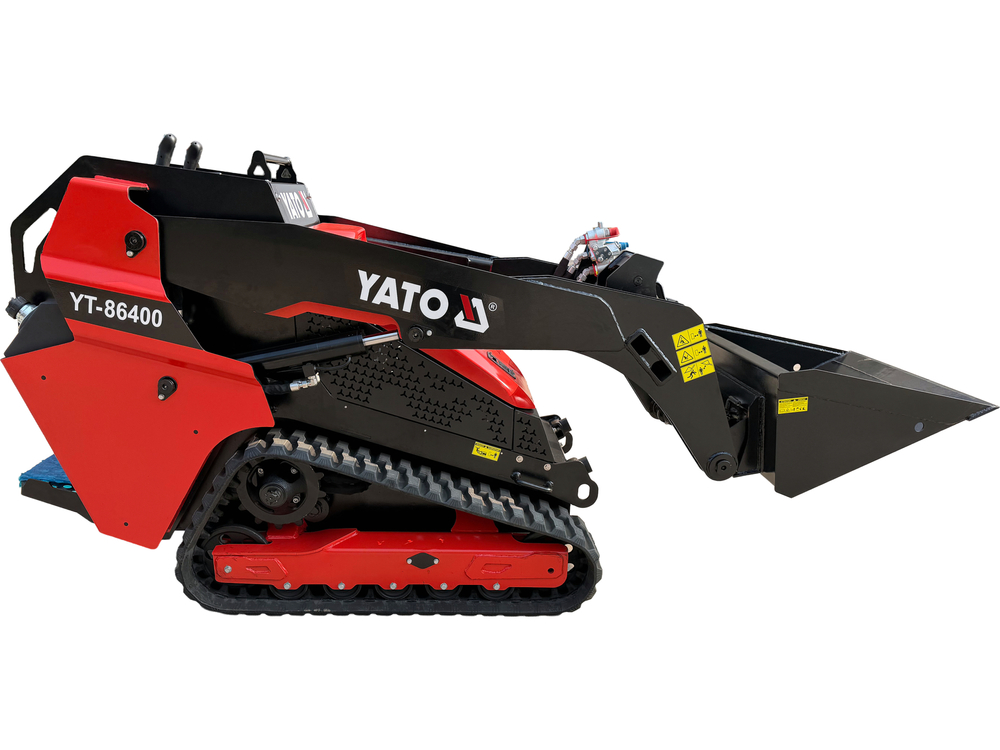

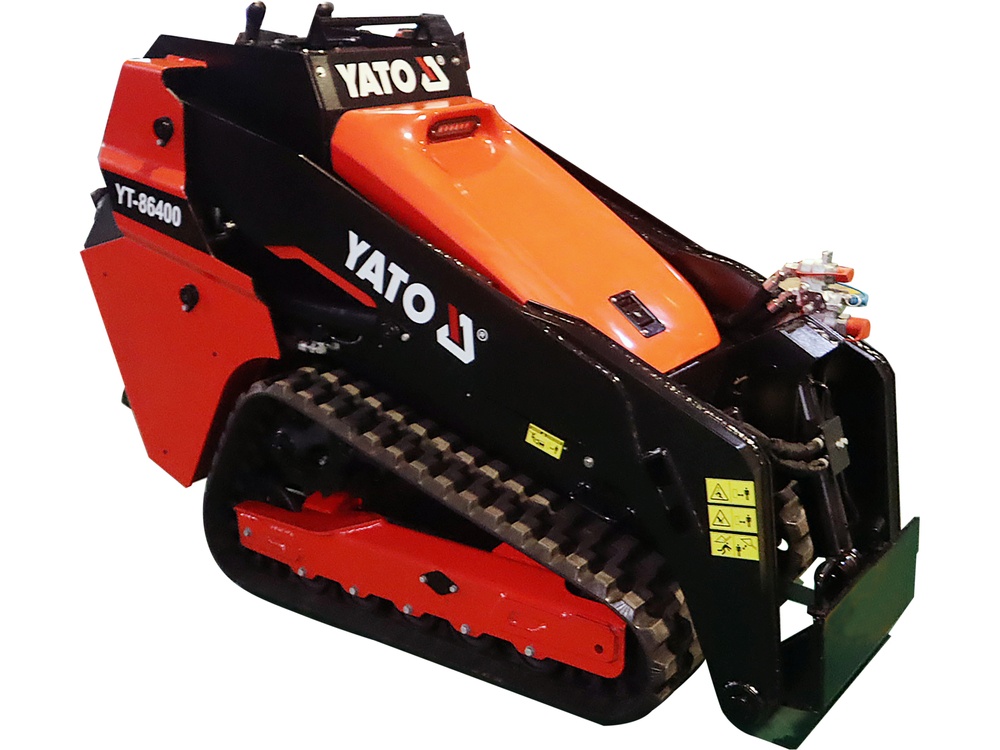

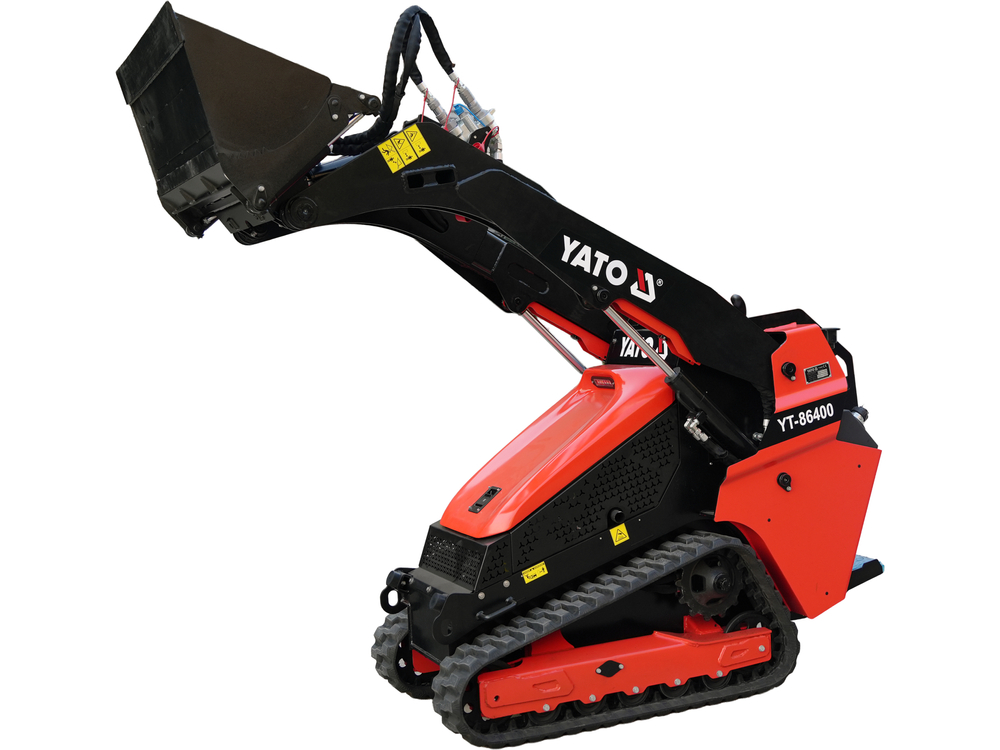

Mini tracked loader YATO YT-86400 is a compact machine of the Skid steer class, designed for intensive, multi-purpose use in construction, earthworks, municipal services, and land management. The design is based on a proven Kubota D1105 engine, which, combined with a hydrostatic tracked drive and an efficient hydraulic system, ensures stable operation, high working efficiency, and significant lifting power while maintaining compact dimensions.
The robust tracked undercarriage guarantees good traction and even weight distribution on the ground, allowing for effective work on soft, uneven, or sensitive terrain, where traditional wheeled loaders have limited mobility. The Skid steer design, equipped with precise hydraulic joystick controls, enables excellent maneuverability and efficient operation in narrow workspaces, while providing fast work cycles and high reliability in demanding operating conditions.
Key construction features:
compact mini tracked loader of the Skid steer type designed for multi-purpose work
high stability and lifting capacity with small machine dimensions
fully hydraulic control via ergonomic joysticks
hydrostatic drive ensuring smooth maneuvering and precise control
rubber tracks with low ground pressure – stability on soft and uneven terrain
very fast work cycles increasing work efficiency
design adapted for year-round operation
ability to work with a wide range of attachments (33 tools)

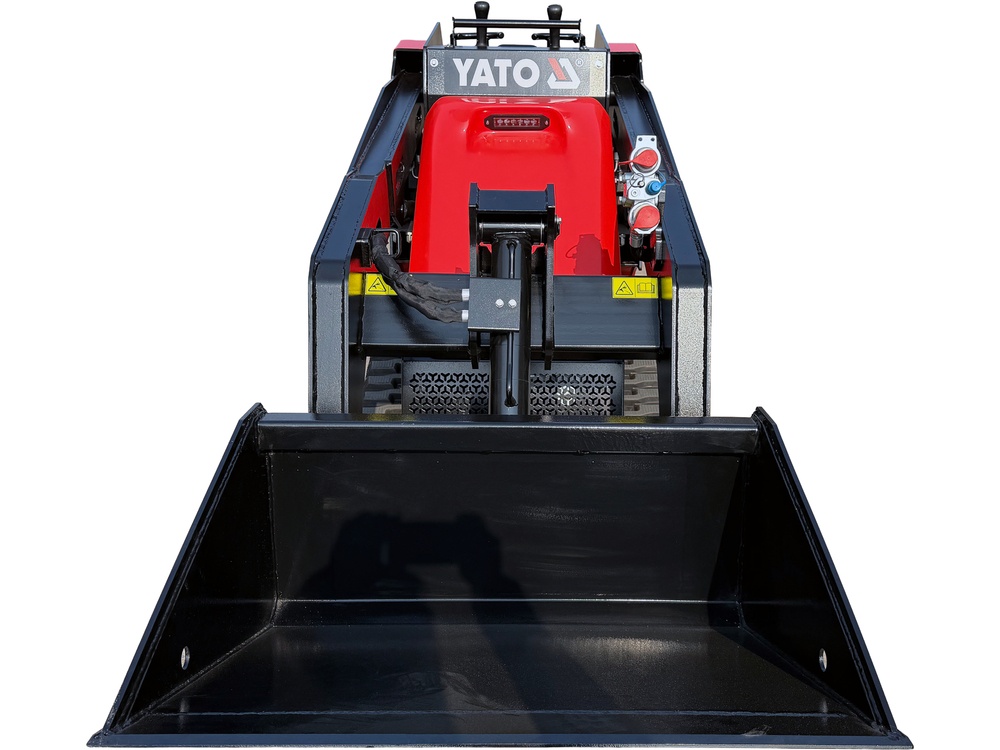

standard equipment: standard bucket with a width of 915 mm
Power unit:
engine manufacturer: Kubota
model: D1105
type: diesel, 3-cylinder, liquid-cooled
maximum power: 18.2 kW (24.7 HP)
displacement: 1123 cm³
starting: electric
fuel consumption: approx. 6.1 l/h
fuel tank capacity: 28 l
engine oil capacity: 4 l

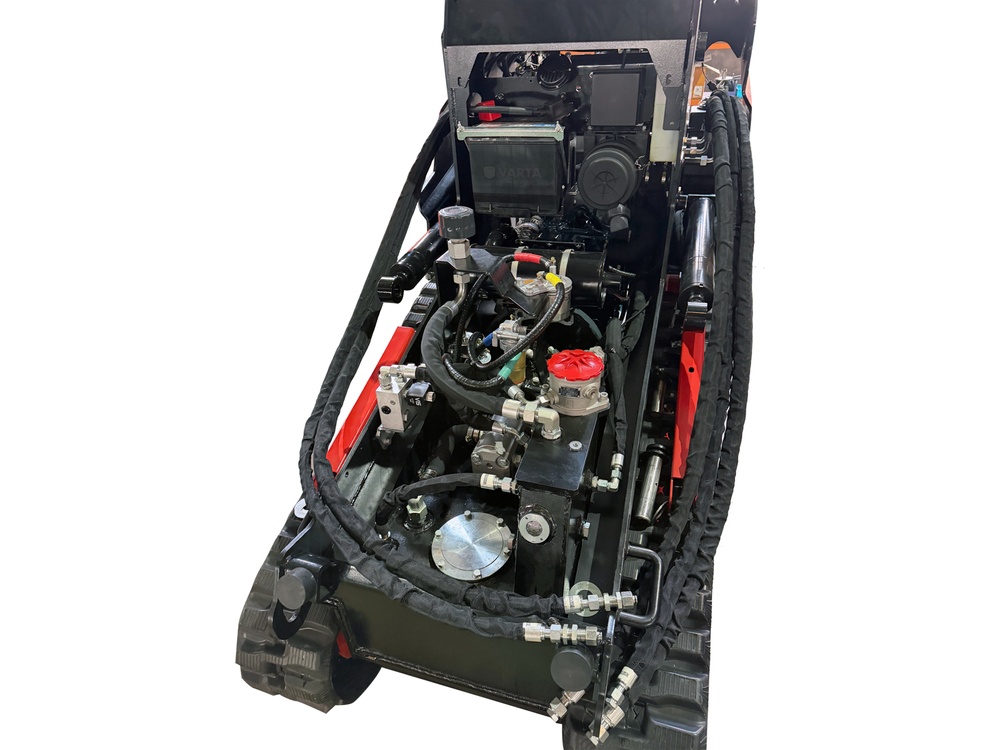

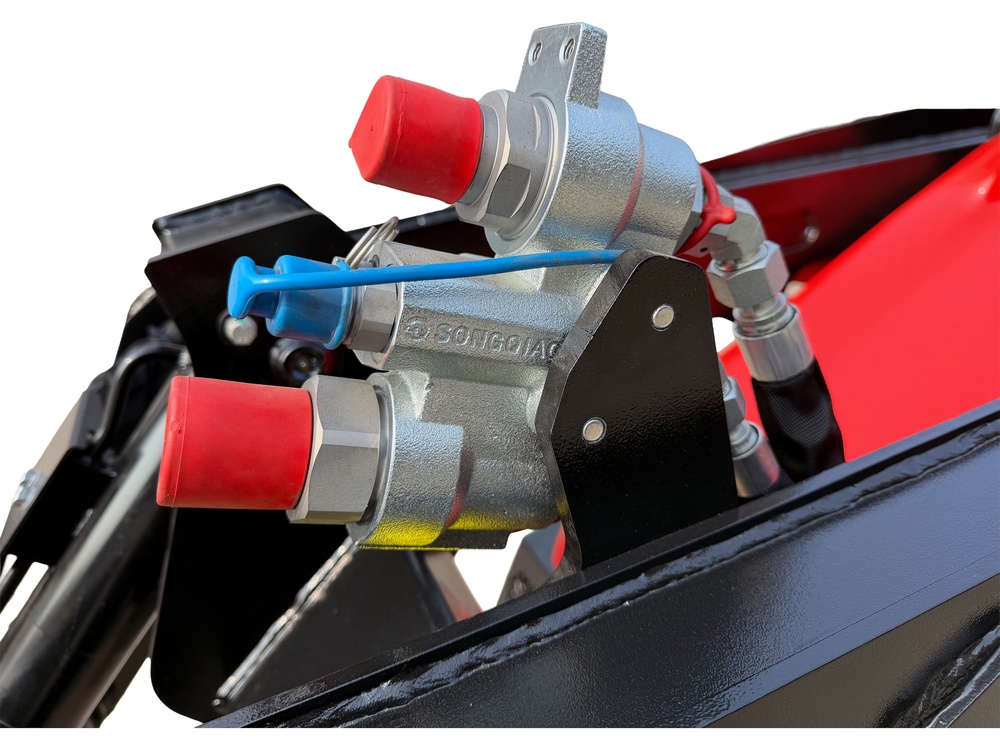

Hydraulic system:
control: fully hydraulic joysticks
hydraulic pumps: Bondioli & Pavesi (Italy)
pump types:
double axial piston pumps in a closed circuit (drive)
double gear pump (attachments)
control valves: Hydro (EBI) Control (Italy)
maximum system pressure: 27.5 MPa
hydraulic tank capacity: 32 l
hydraulic hoses: Letone
hydraulic cylinders: Juxing
Drive system and undercarriage:
main drive: fully hydraulic
drive motors: Impro
transmission: direct drive from hydraulic motor to gear

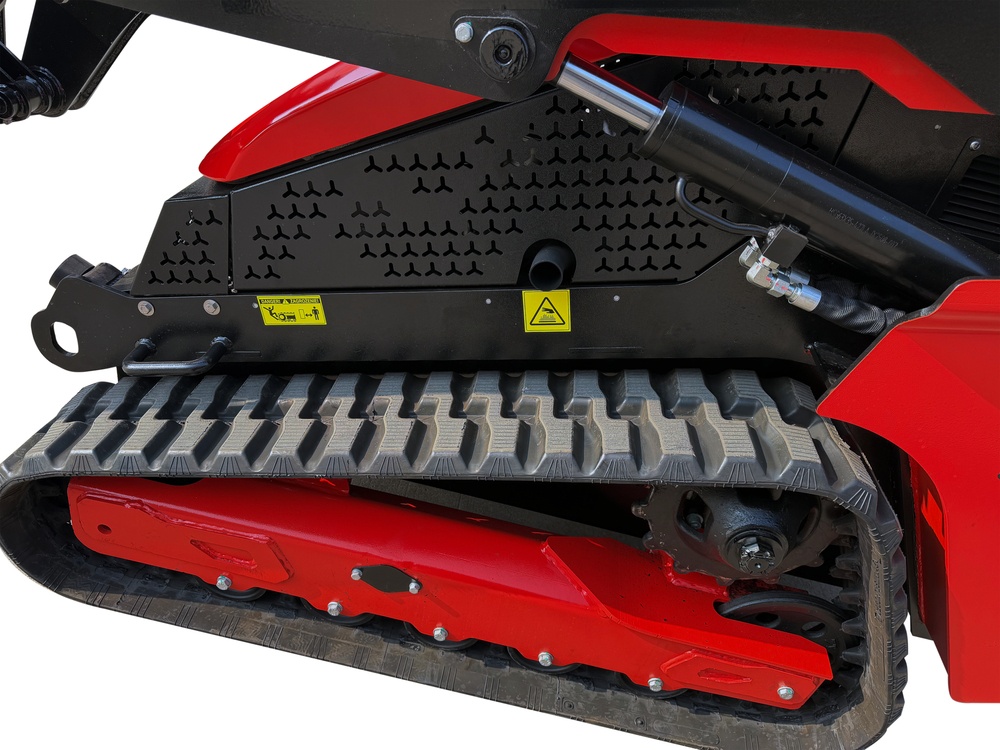

undercarriage: tracked
tracks: rubber
track width: 230 mm
number of rollers: 5 on each side
working pressure of the drive system: 24.9 MPa
Working parameters:
nominal load capacity (35%): 650 kg
maximum lifting capacity (50%): 928 kg
machine weight (without attachments): 1510 kg
bucket volume: 0.14 m³
travel speed: 6 km/h
arm lifting time: 3.69 s
lowering time: 2.79 s
bucket tilt time: 1.62 s
gradeability: 15°
Dimensions and working geometry:
overall dimensions (L x W x H): 2976 x 915 x 1466 mm
length without attachments: 2272 mm
length with bucket: 2976 mm
maximum working height: 3026 mm
bucket pin height (PIN): 2212 mm
dump height: 1522 mm
bucket dump angle: 45°
ground clearance: 213 mm
wheelbase: 1073 mm
front turning radius: 1750 mm

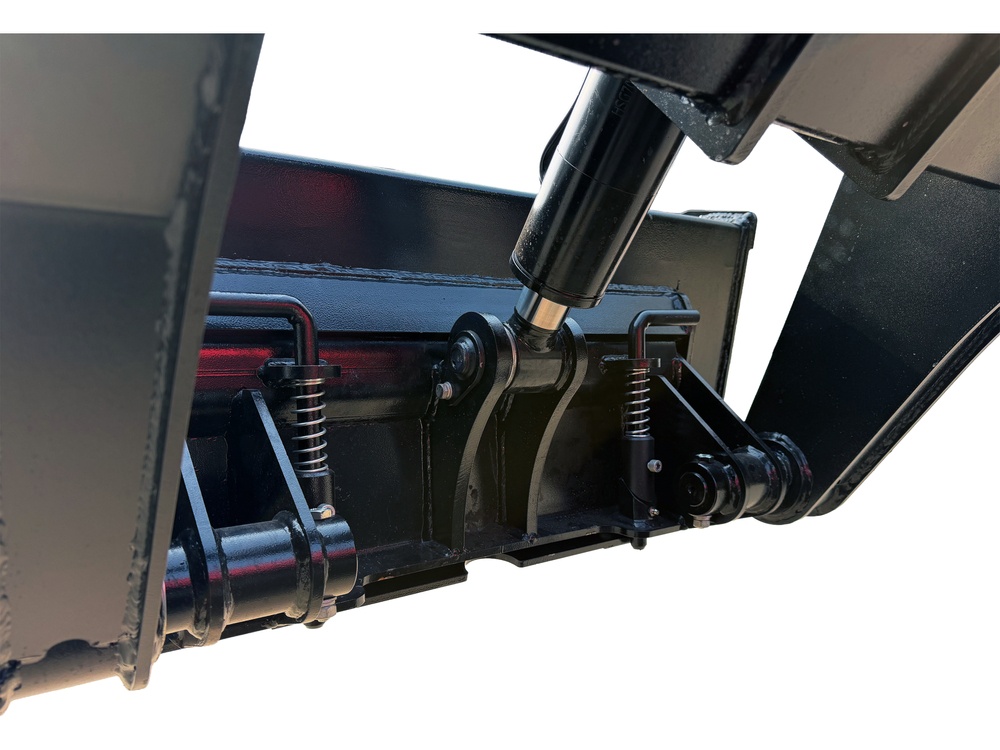

Attachments and configuration options:
The mini loader supports 33 types of working tools, including:
buckets: standard, toothed, light, skeletal, long, 4-in-1
forks: pallet, grass, 3-in-1
grapples for wood and bulk materials
augers and drills
broom and snow plow
subsoilers, scarifiers, and stump grinders
hydraulic hammer
excavators and chain excavators
concrete mixer, mini roller, mower
lifting hook
Purpose and applications:
construction and renovation work
earthworks and loading operations
gardening and landscape architecture
municipal services and land maintenance
farms and breeding operations
work on soft, muddy, and uneven surfaces
work in narrow and hard-to-reach spaces
