Description:
Brand:

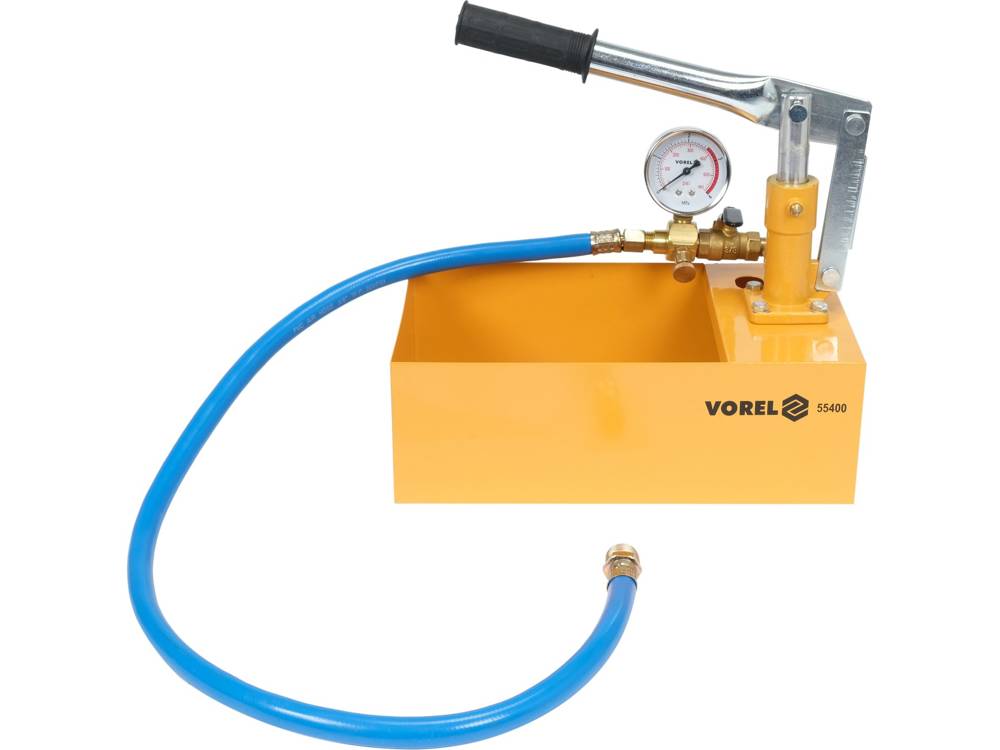

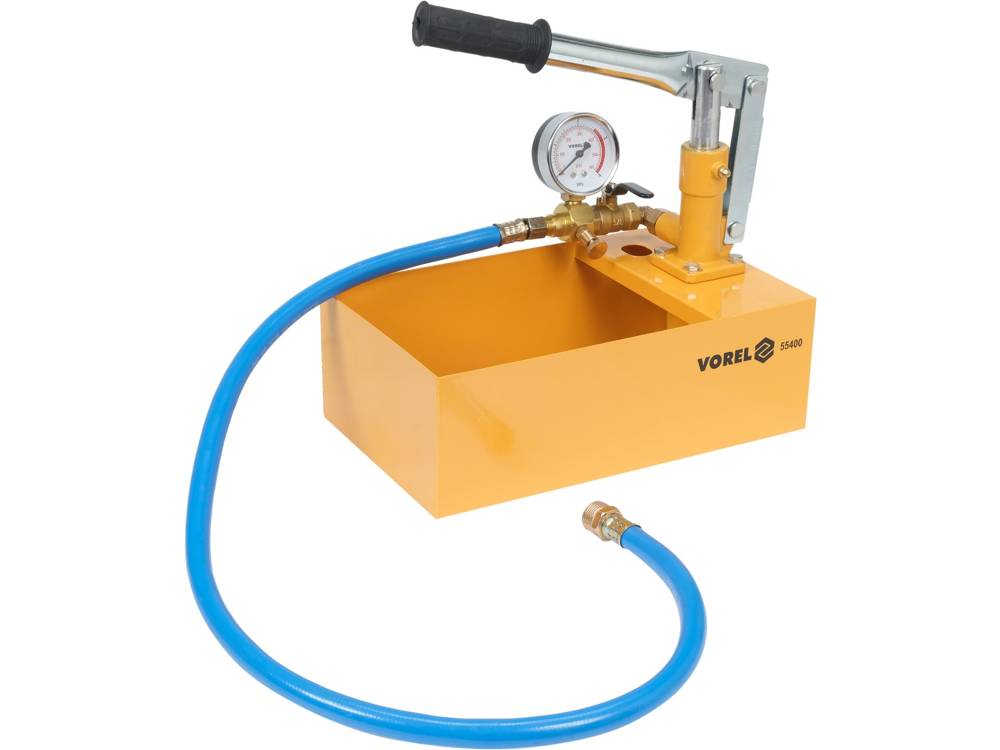

MANUAL PRESSURE TESTING PUMP
Symbol
55400
Application
carrying out pressure tests and testing the tightness of pipe systems (water, central heating, compressed air, oil systems)|filling solar installations
Surface finish
powder coated
Body material
aluminum
Hose length
900mm
pressure
4 MPa
Connection thread size
G1/2
Tank capacity
5 years
Valve
Yes
arm length
260mm
fluid temperature
50ËšC
Pump with valve designed for:
carrying out pressure tests
tightness testing of piping systems (water, central heating, compressed air, oil systems)
filling solar installations
introduction of antifreeze agents to the central heating system
parameters:
pressure: 0-40 bar
tank capacity: 5 l
1 cycle: 13 ml
arm length: 260 mm
hose length: 900 mm
