Description:
Brand:
Index
YT-05651
Barcode
5906083140099
Unit of measure
KPL
Volume
0.791
Weight
0.319

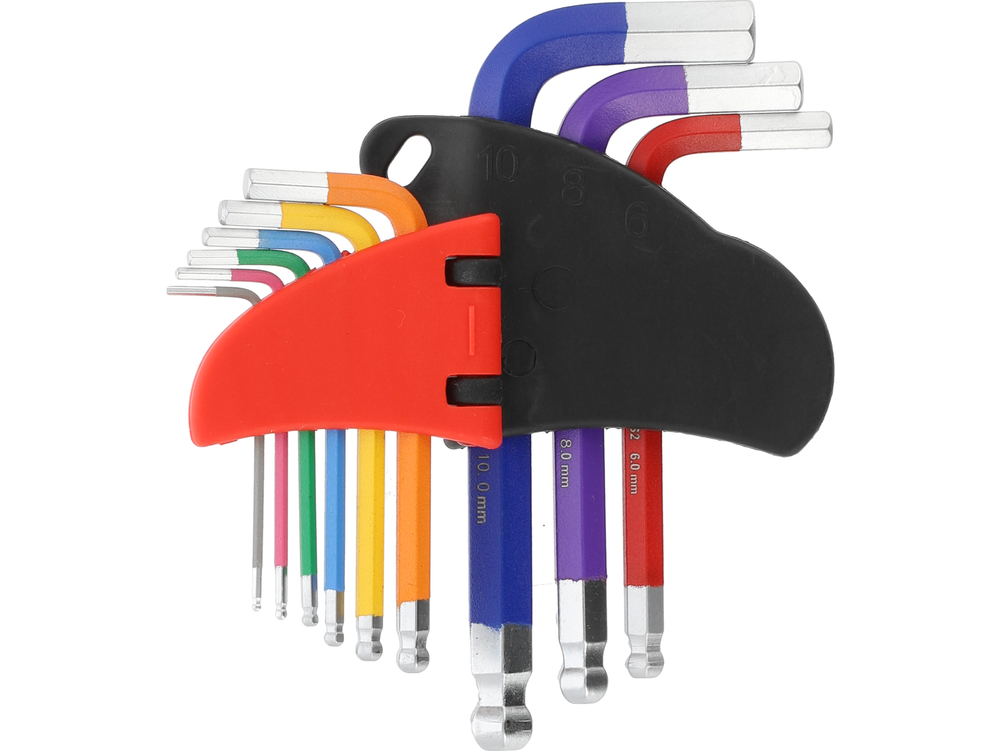

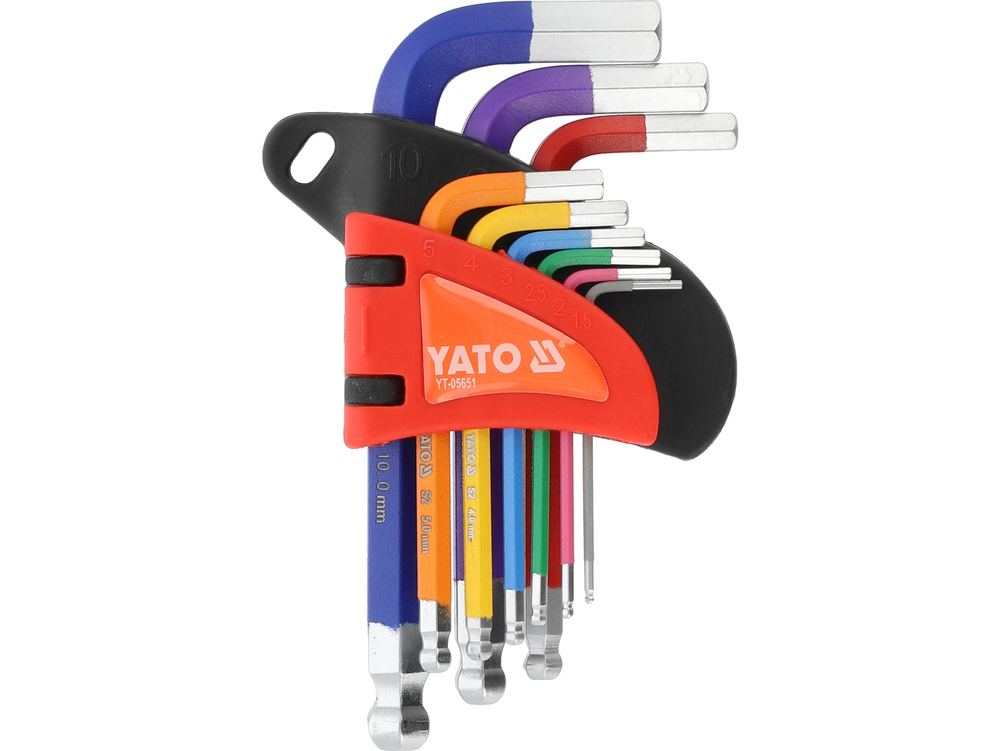

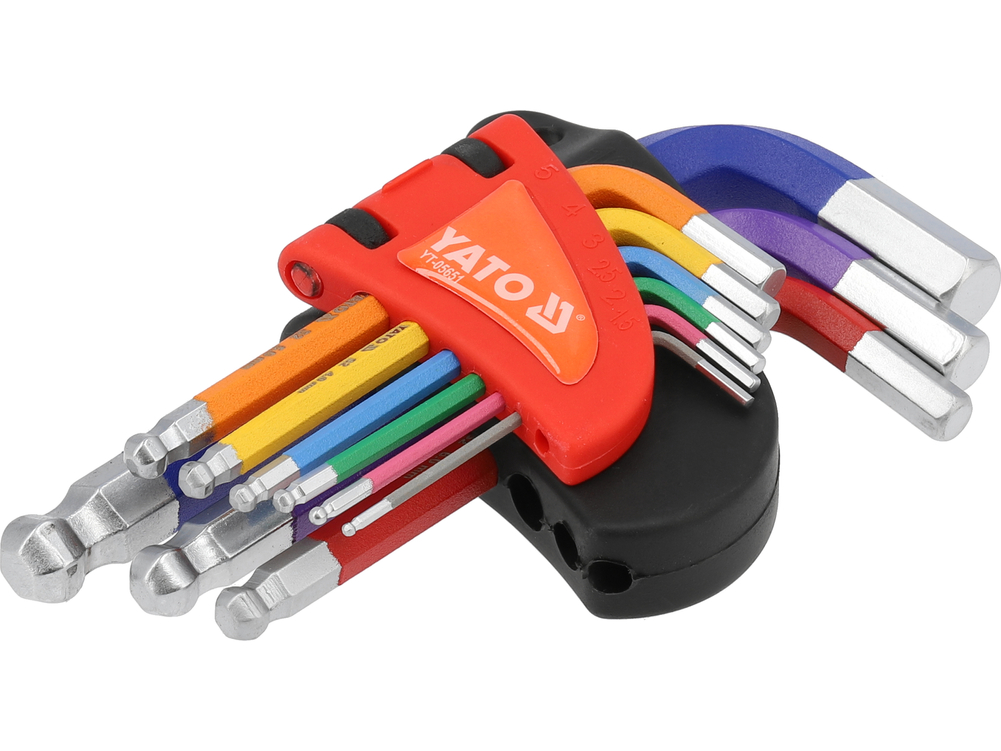

The YT-05651 ball-end hex key set is designed for professional assembly, maintenance, and workshop applications. The keys are made from high-quality S2 tool steel; with a hardness of HRC 58–62, they offer excellent resistance to wear, deformation, and heavy use.
The ball-end design allows for operation at angles of up to 25°, facilitating access to screws in hard-to-reach locations. The short arms ensure convenient handling in confined spaces, while color-coded size markings allow for quick identification. Technical specifications:
number of pieces: 9
type: hex keys with ball end
material: durable S2 steel
hardness: HRC 58-62
short-arm design
maximum working angle of the ball end: 25°
color-coded sizes for quick identification
wide range of commonly used sizes for workshop and service applications
Key sizes:
1.5 mm - A: 16 mm, B: 50 mm
2.0 mm - A: 18 mm, B: 55 mm
2.5 mm - A: 20 mm, B: 59 mm
3.0 mm - A: 23 mm, B: 65 mm
4.0 mm - A: 27 mm, B: 71 mm
5.0 mm - A: 30 mm, B: 81 mm
6.0 mm - A: 34 mm, B: 90 mm
8.0 mm - A: 40 mm, B: 102 mm
10 mm - A: 47 mm, B: 120 mm
