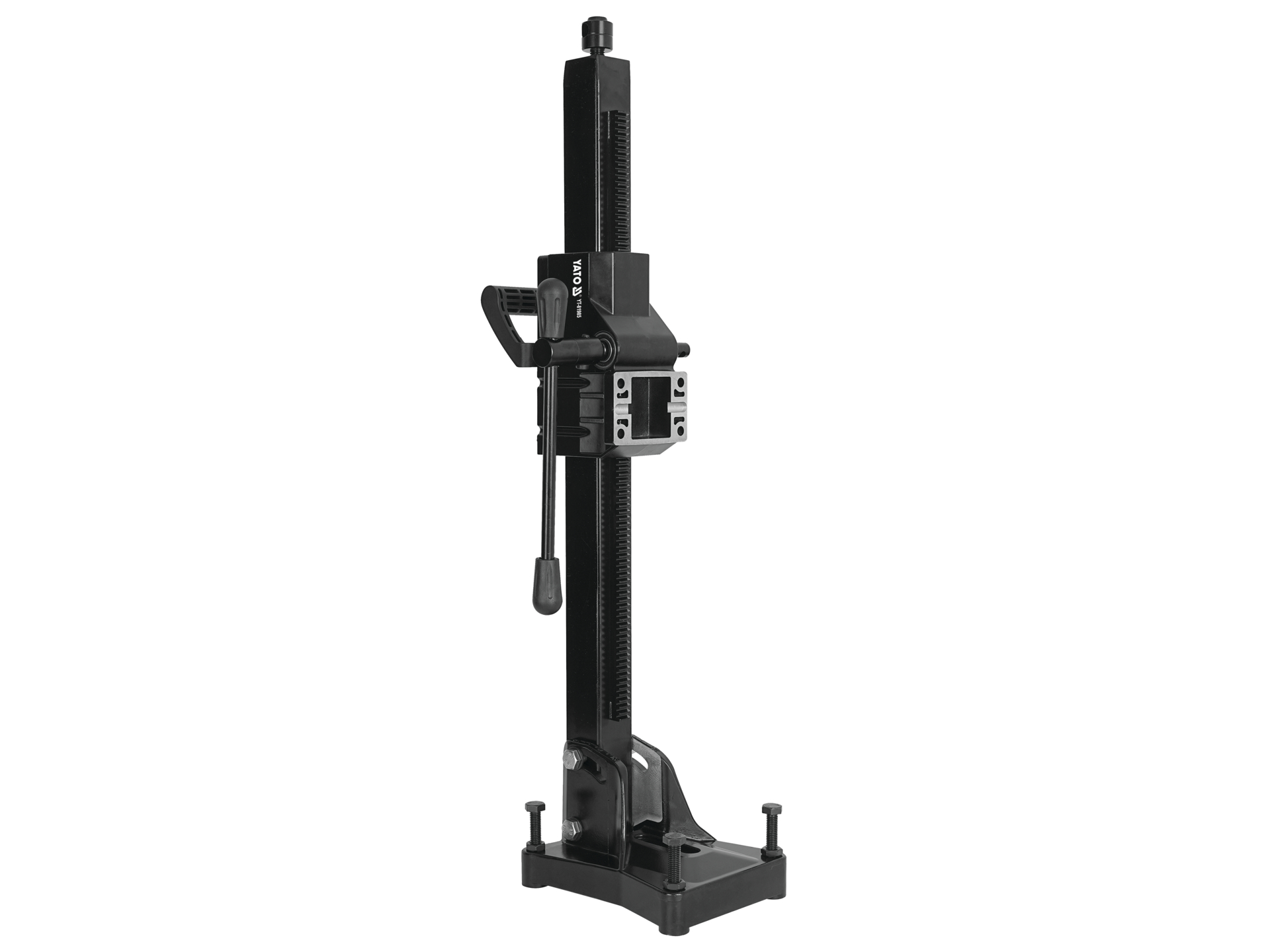

LARGE PLATFORM STAND FOR DIAMOND DRILL YT-81983,YT-81984 (YT-81985)

(1)

Description:

The YT-81985 stand is a stable structure designed for mounting and guiding diamond drills YT-81983 and YT-81984 during hole drilling. The guide with smoothly adjustable sleds allows controlled movement of the tool along the guide and effortless drilling through the gearbox, as well as setting the working range and drilling at an angle of 0-30°, which is essential for drilling with a gravitational slope for drainage pipes. The product facilitates tool guidance and the creation of a hole in the selected location.

Stable drill guidance

The stand takes over the function of guiding the tool during drilling and significantly increases the pressure force of the drill, resulting in fast and effortless work progress.

• strong steel construction designed for use with diamond drills


• guide providing linear movement of the stand's sleds and high pressure due to the gearbox


• working handle for securing the drill


• adjustable guide stroke: 600 mm


• ability to precisely and safely set the tool relative to the hole being drilled, including at an angle

Angle adjustment for drilling

The stand allows for changing the position of the guide relative to the base, making it possible to drill at an angle.

• angle adjustment range: 0-30°


• adjustment screws allowing for setting and locking the required tilt


• solution useful for creating holes that require a specific direction for the drill (drainage, ventilation, cable routes, air conditioning, cable conduits)

Solid base for mounting

The base measuring 210 x 170 mm serves as the support point for the entire stand. Before starting work, it should be permanently secured to the ground with an appropriate fastening element, such as a anchor or screw, chosen according to the type of substrate and drilling conditions.

Tool position adjustment

The sled mechanism and height adjustment lever allow for smooth positioning of the drill along the guide. The locking screw allows you to immobilize the selected construction element, increasing stability during work.

Compatibility

The YATO YT-81985 stand is designed to work with diamond drills YT-81983 and YT-81984.

Technical parameters:

• material: steel


• angle adjustment range: 0-30°


• adjustable stroke: 600 mm


• base dimensions: 210 x 170 mm


• weight: 9.3 kg

Dimensions: 170x215x820 mm
Material: steel
Application: for mounting and guiding diamond drilling machines
For: YT-81983, YT-81984
Weight: 9.3 kg
Operation angle: 0-30 Ëš
Adjustable: yes
Working stroke: 600 mm
Base size: 210x170 mm
