Description:
Brand:
Mark
Yato
Symbol
YT-70890
Series
GRF
Dimensions
1000x390x12 mm
Length
1000 mm
Width
390mm
Thickness
12mm
Material
laminated MDF board
Width of the combined table top
250-700mm
Working angle
30, 45, 67.5 Ëš
Set contents
template, mounting pin x4
Application
for making stable connections on kitchen countertops

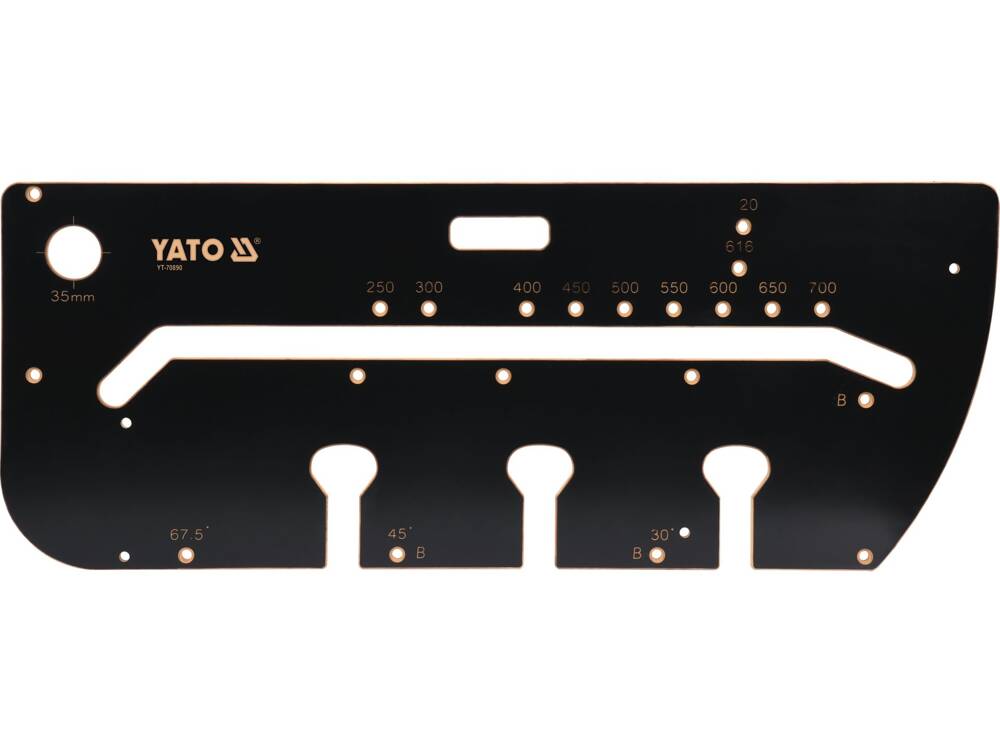

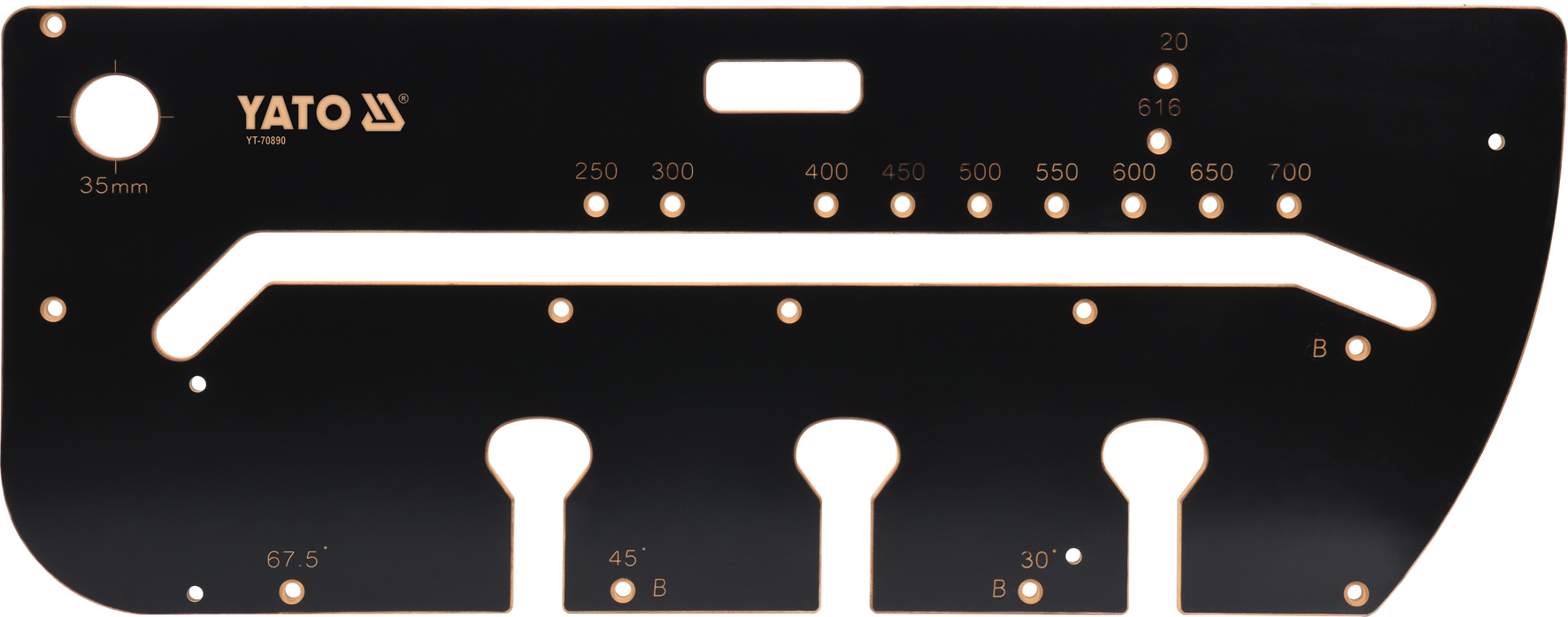

Milling template for milling countertop joints. Made of laminated MDF board. External dimensions approx. 1000 x 390 x 12 mm.
Instructional material on the Tools Portal can be found here.
For making stable connections on kitchen countertops. For use with a router using a copying sleeve with a diameter of 30 mm and an end mill with a working part diameter of 12.7 mm. template, mounting pins (4 pieces)
