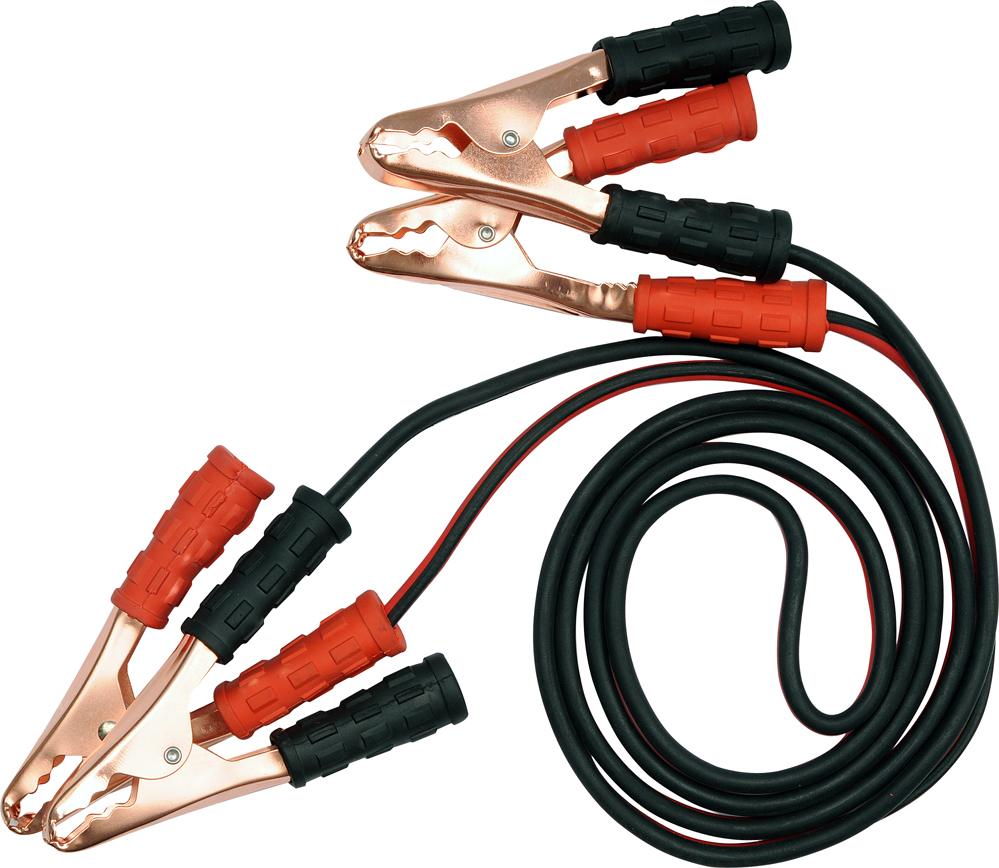

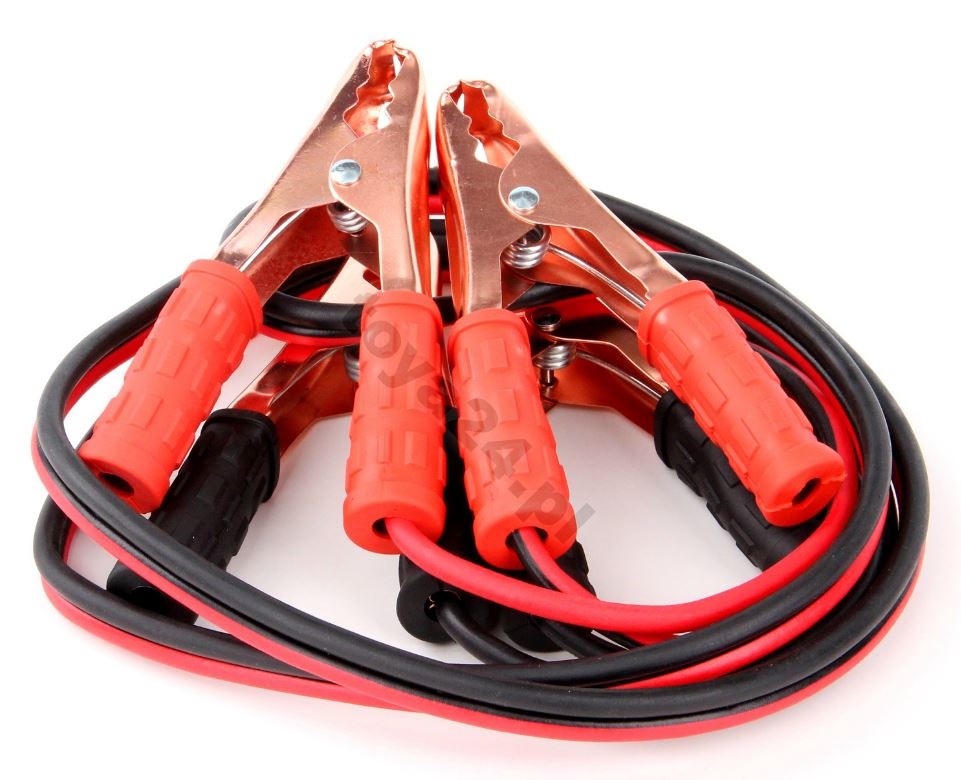

JUMPSTART WIRES 120A, 2,5M (YT-83150)

(2)

Description:

AMPERAGE: 120A; DIAMETER OF EACH WIRE: 0.25; NUMBER OF WIRES: 80; OUTER DIAMETER: OD 7.2; LENGTH: 2.5M; 60A: VOLTAGE DROP 1.5V, 100A: VOLTAGE DROP 2.5V, 120A: VOLTAGE DROP 3.0V; CUT AREA OF EACH WIRE: 4MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC ÷ +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 5MM2
