Description:
Brand:
Product description

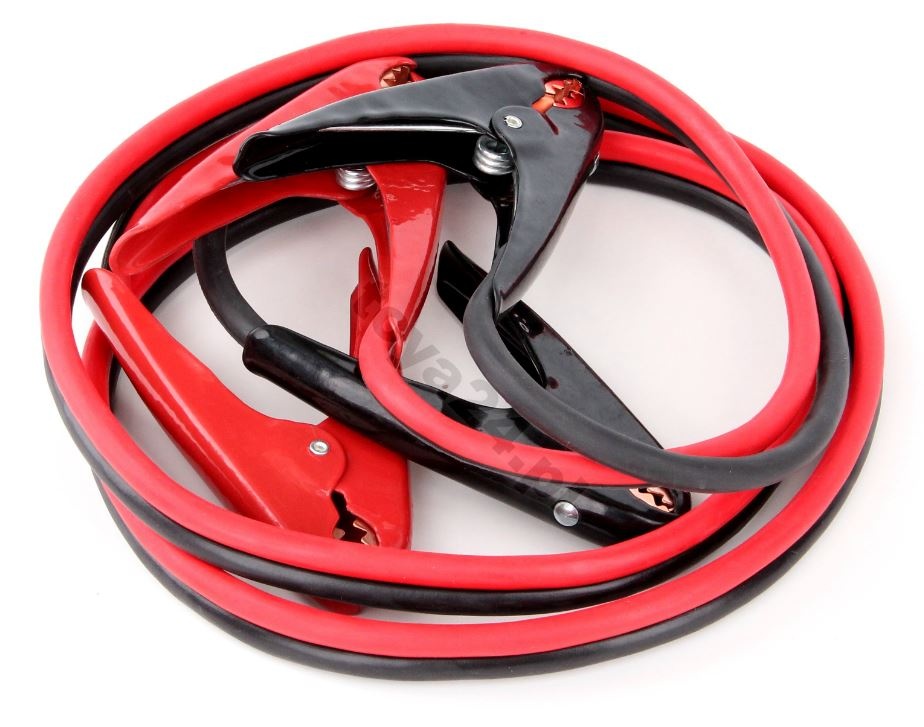

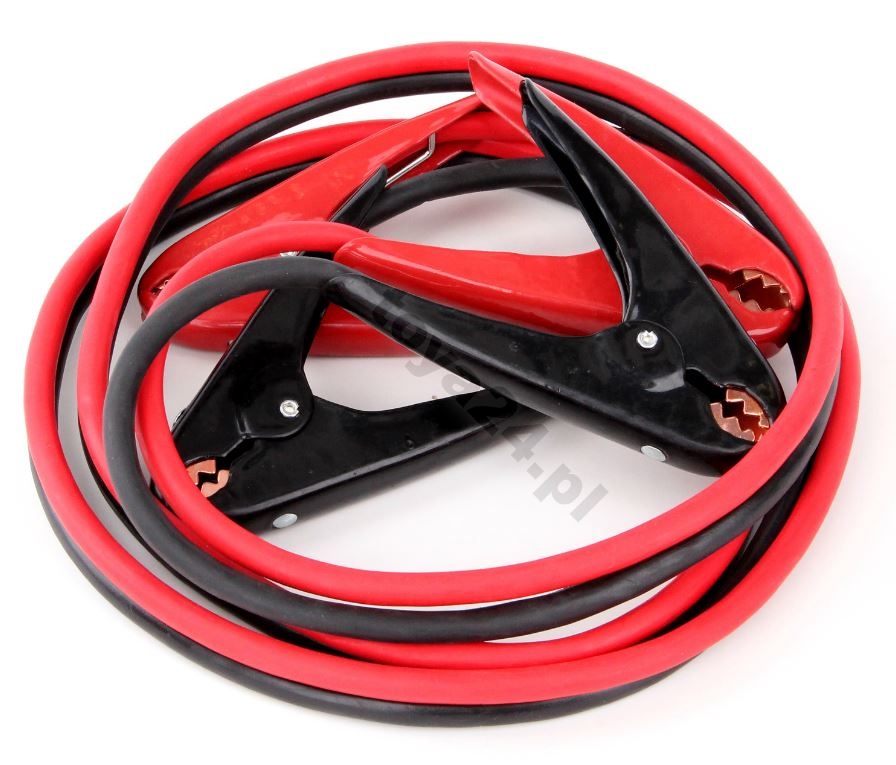

Wires made of copper wire, which guarantees high conductivity and flexibility even at the lowest cross-sections. Cable insulation made of rubber retains high flexibility at low temperatures and perfectly dissipates heat. The cables have been placed in a case that facilitates transport and storage.
Purpose / use
For emergency engine starting from an external battery.
Technical data
Index number YT-83153
EAN 5906083831539
Brand Yato
unit KPL
Gross weight (kg) 1.4500
Master Carton MC 12
Pal 216
length 2.5
Nominal load [A] 600
AMPERAGE: 600A; DIAMETER OF EACH WIRE: 0.32; NUMBER OF WIRES: 235; OUTER DIAMETER: OD 10.5; LENGTH: 2.5M; 300A: VOLTAGE DROP 1.5V, 500A: VOLTAGE DROP 2.5V, 600A: VOLTAGE DROP 3.5V; CUT AREA OF EACH WIRE: 18.5MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC ÷ +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 20MM2
