Description:
Brand:
Description

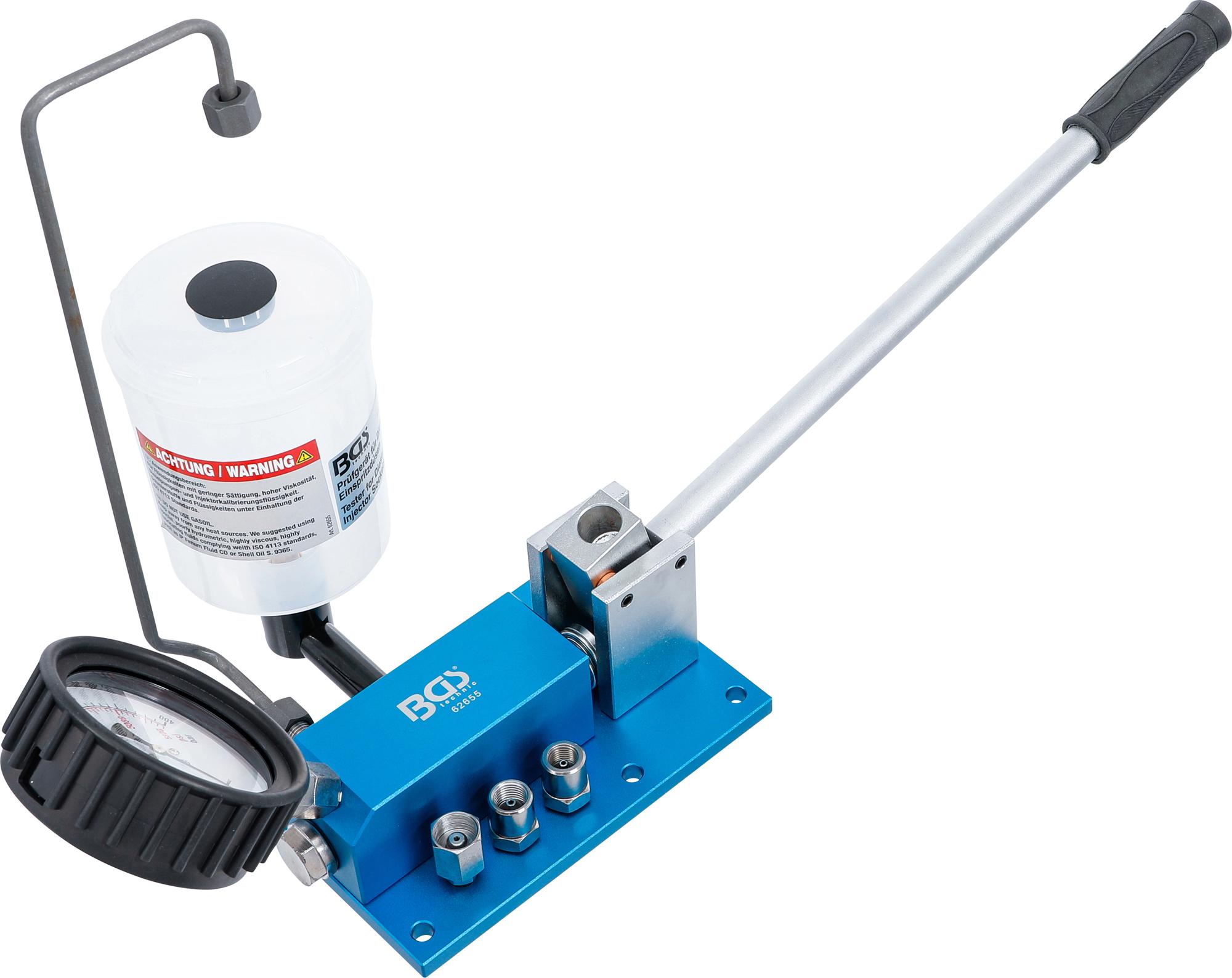

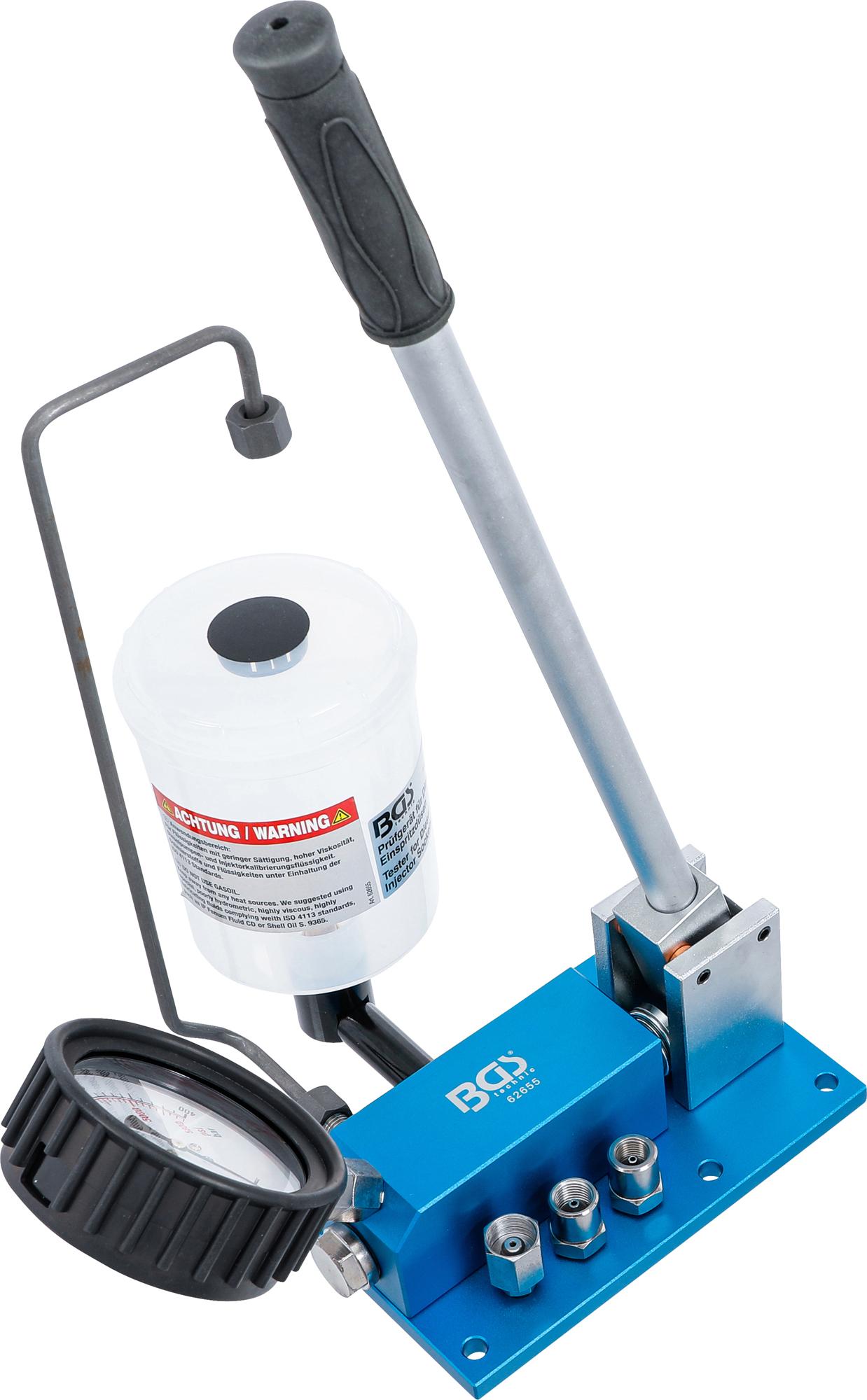

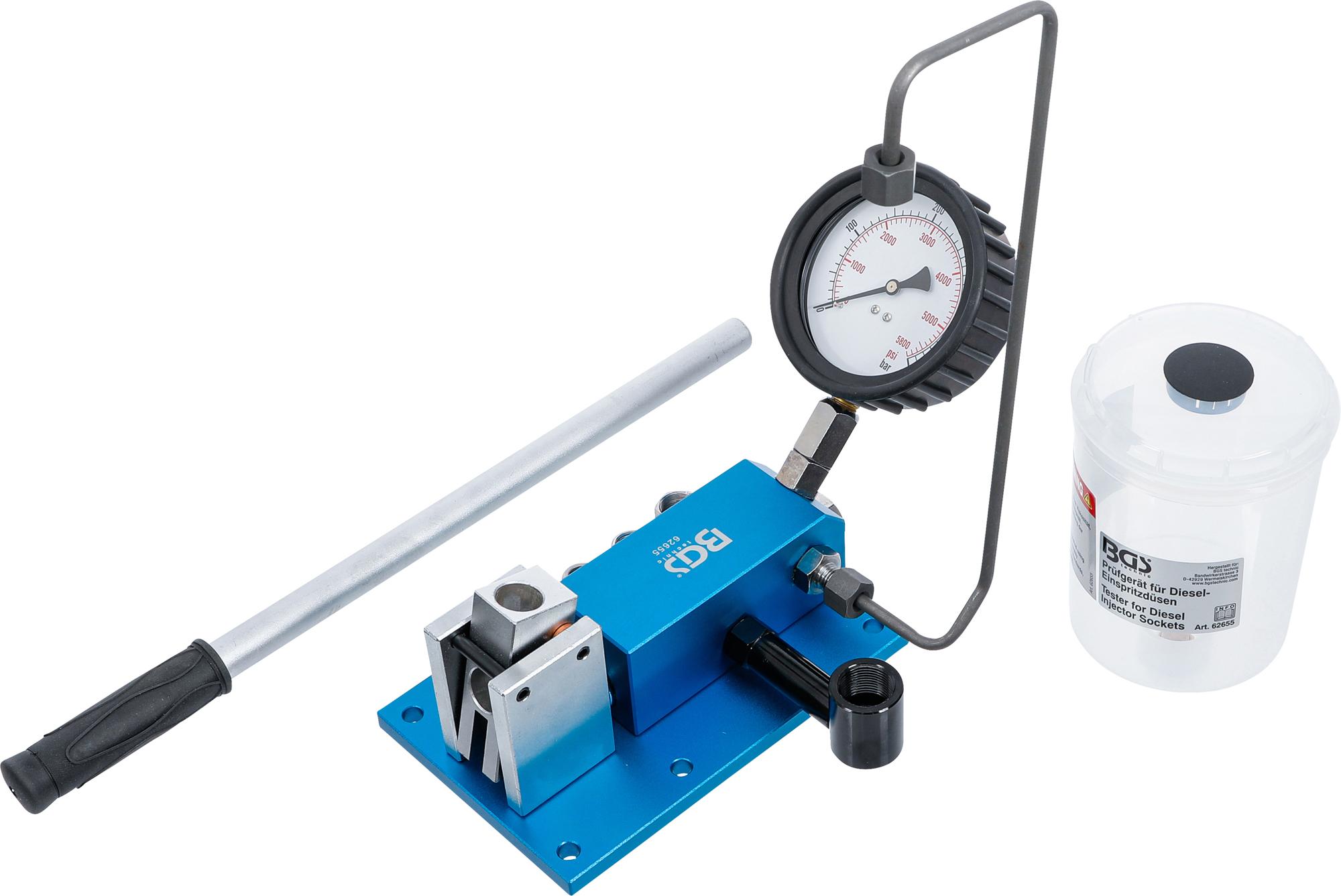

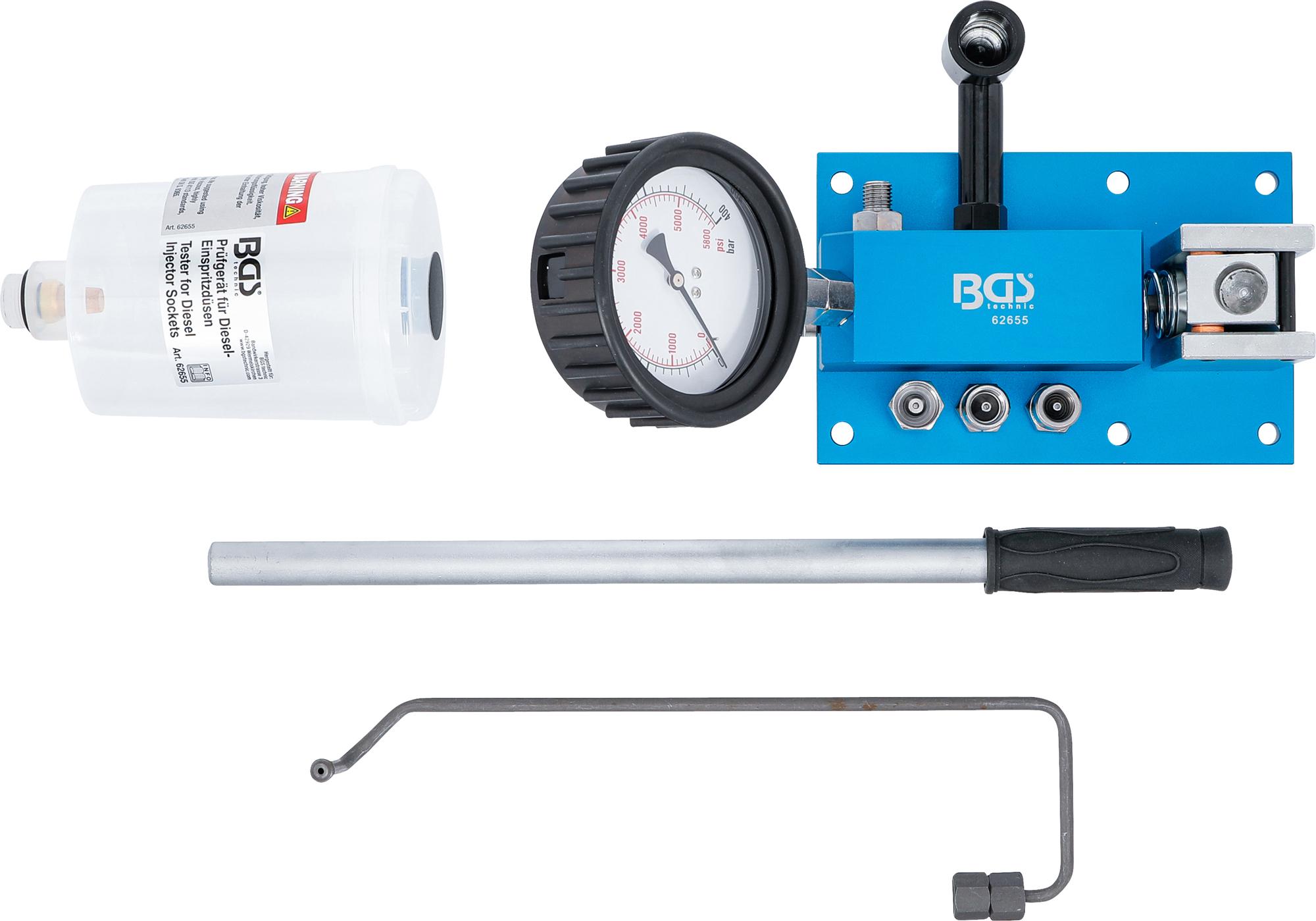

tester contains gas canister, hand lever and pressure gauge with rubber protection
for testing of injector nozzles
suitable for all diesel injector nozzles (except CDI pump-injector elements)
several characteristics of the injector nozzles can be tested:
opening pressure
spraying pattern
tightness of the nozzle
gas spraying pattern
acoustic control (sound pattern)
pressure gauge up to 400 bar
connecting hose and 3 adaptors included M12 x 1.5 mm, M14 x 1.5 mm and M17 x 0.75 mm
large base with adaptation
fuel tank made of plastic with integrated fine filter
Technical data
Gross weight 4656 g
