Description:
Brand:
Index
YG-05554
Barcode
5906083142451
Unit of measure
PCE
Volume
493.626
Weight
55
Attributes
Power
600 W
Tank capacity
66 l
Ice cube tank capacity
22 kg
Voltage
220-240 V
Frequency
50 Hz
Dimensions
610x656x905 mm
Material
304 stainless steel
Supply water pressure
1.3-5.5 bar
Feed water temperature
10-32 ËšC
Functions
ice cube thickness adjustment, automatic cleaning
Capacity
60 kg/24h
Digital control panel
yes
Coolant type
R290
Coolant weight
130 g
Insulation foaming agent
C5H10
Nominal current
2.8 A
Climatic class
4
Electric insulation class
I
Weight
52 kg
Set includes
ice maker, water supply hose, drain hose, ice scoop

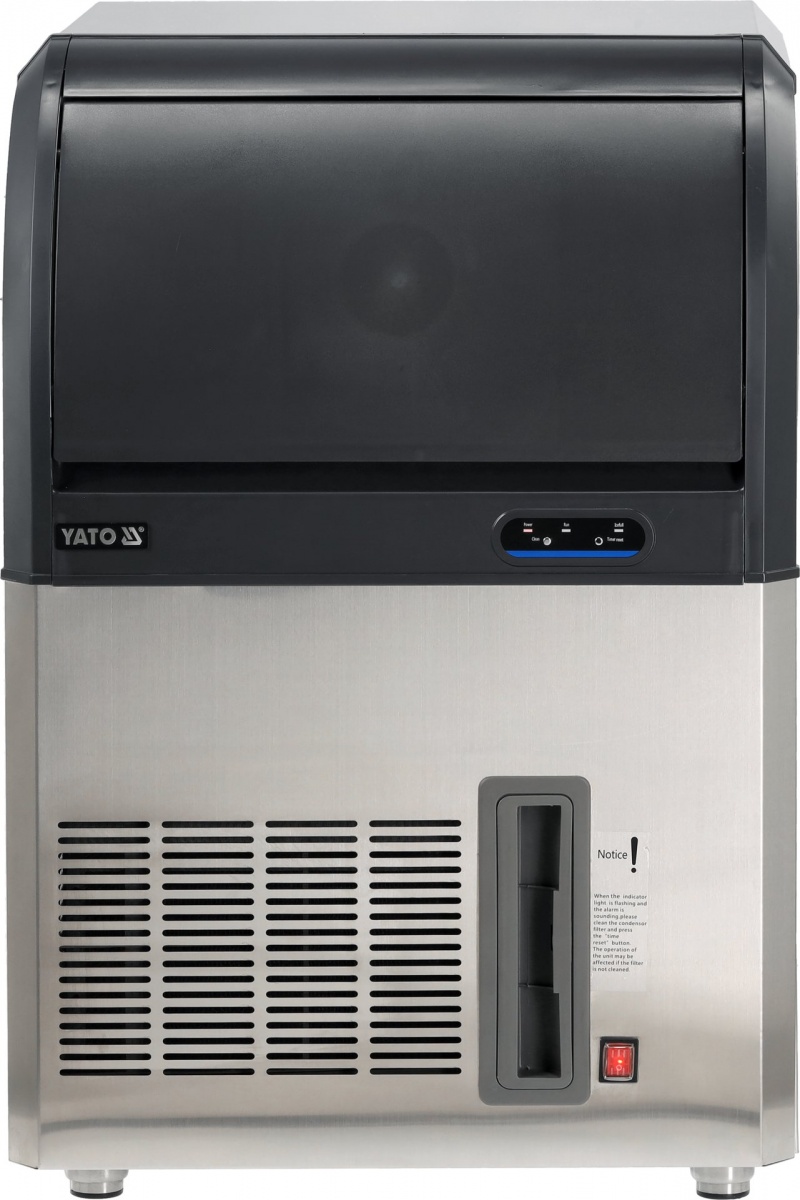

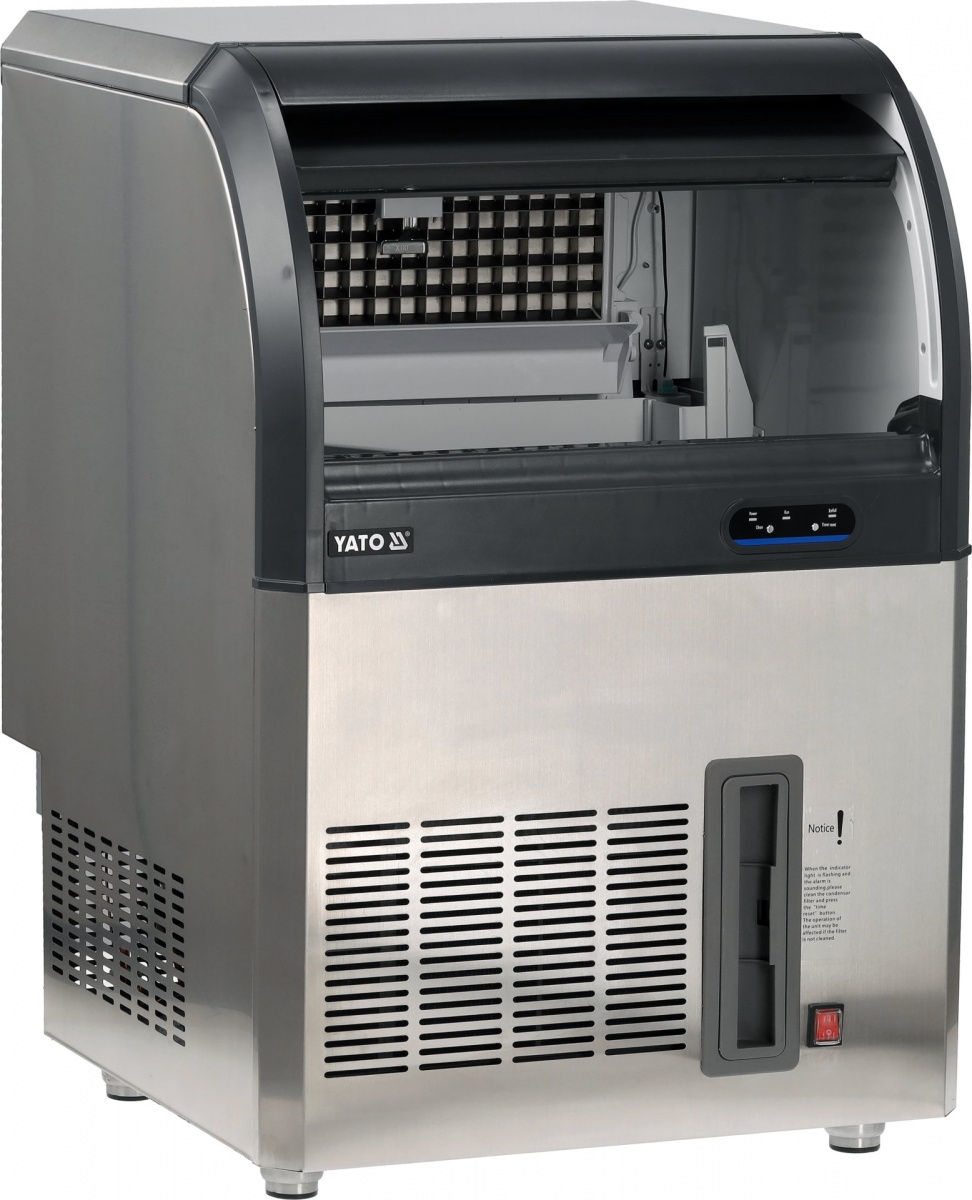

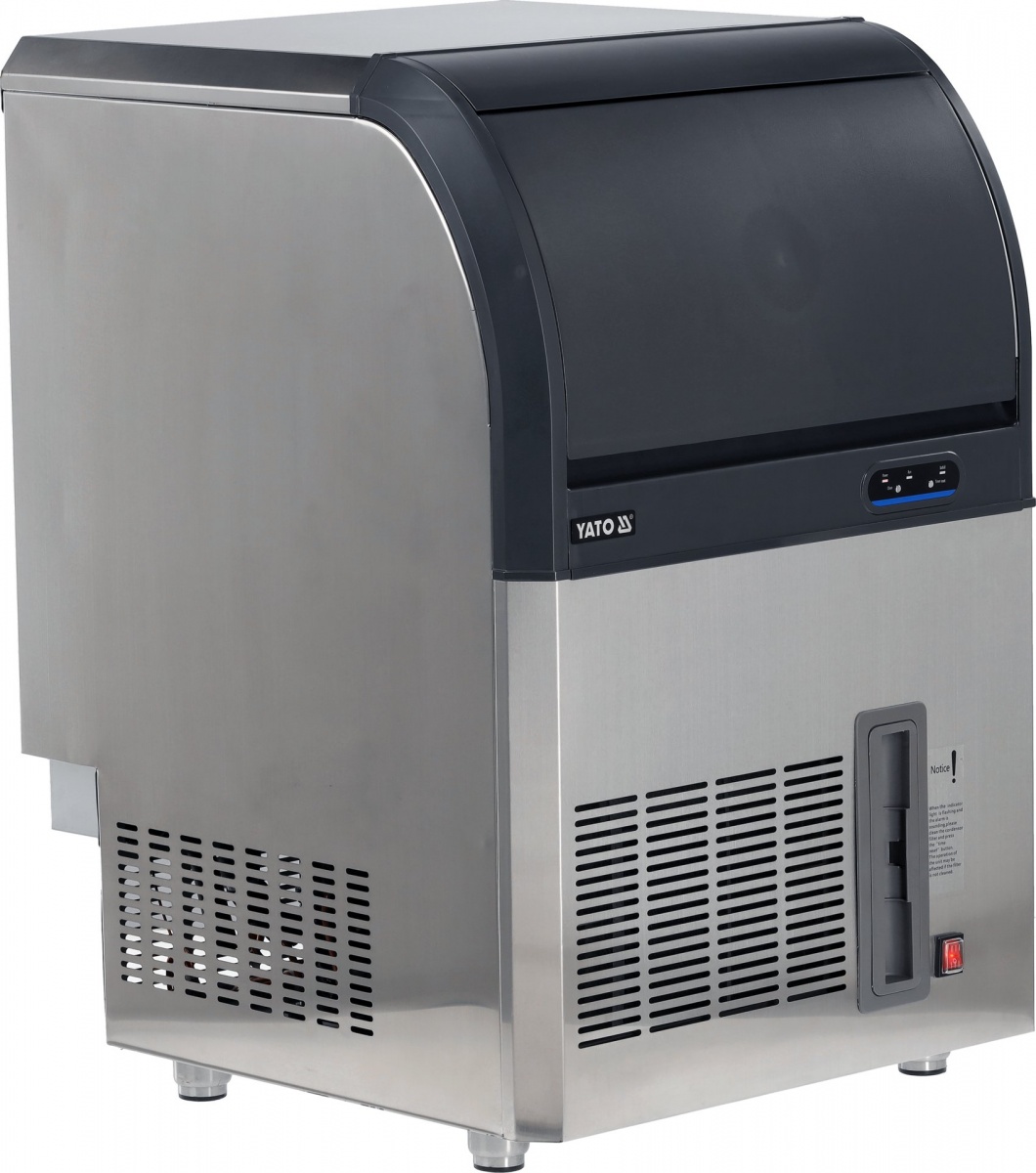

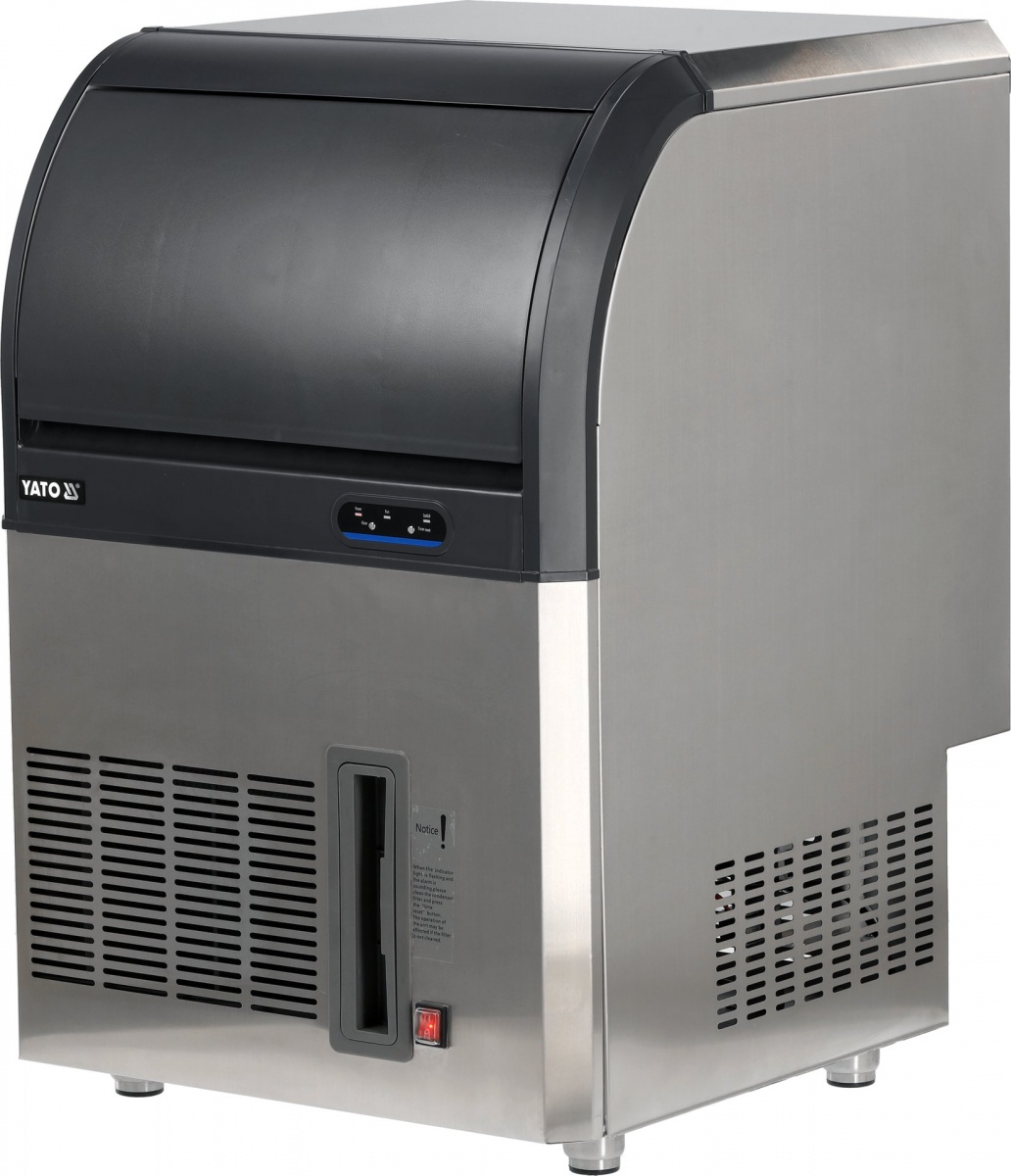

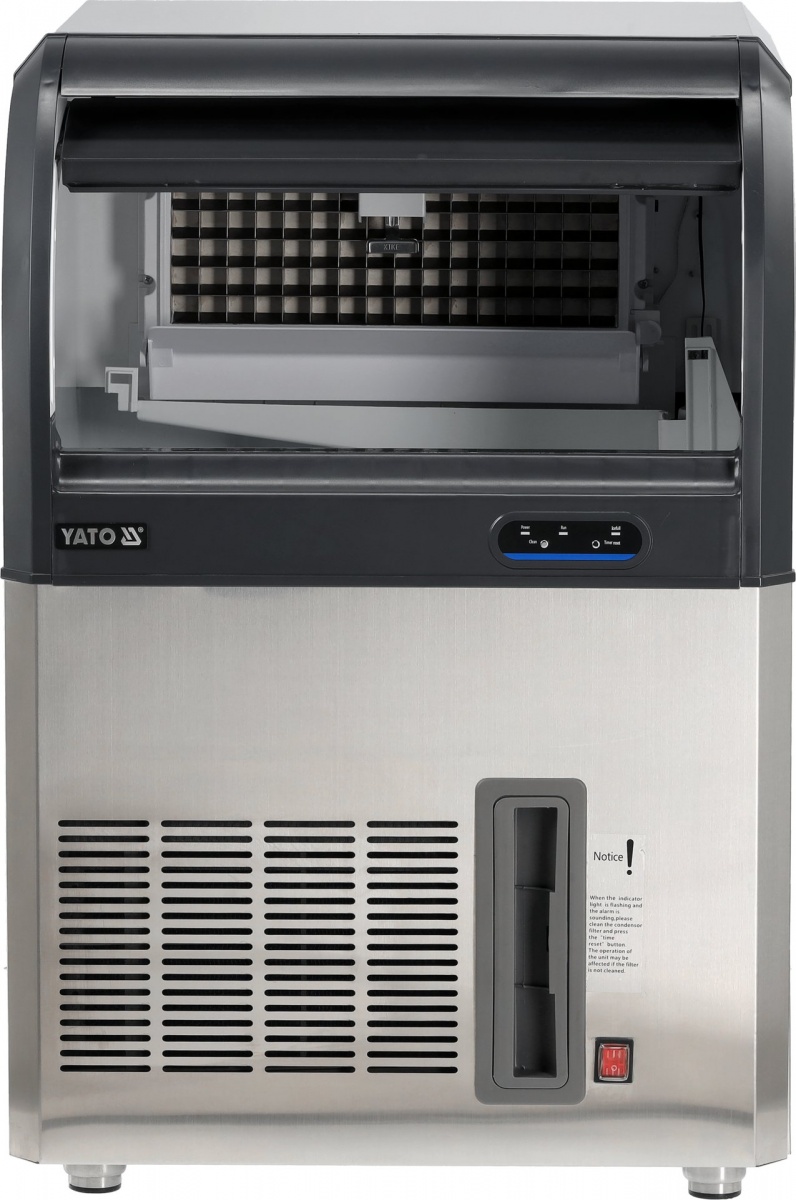

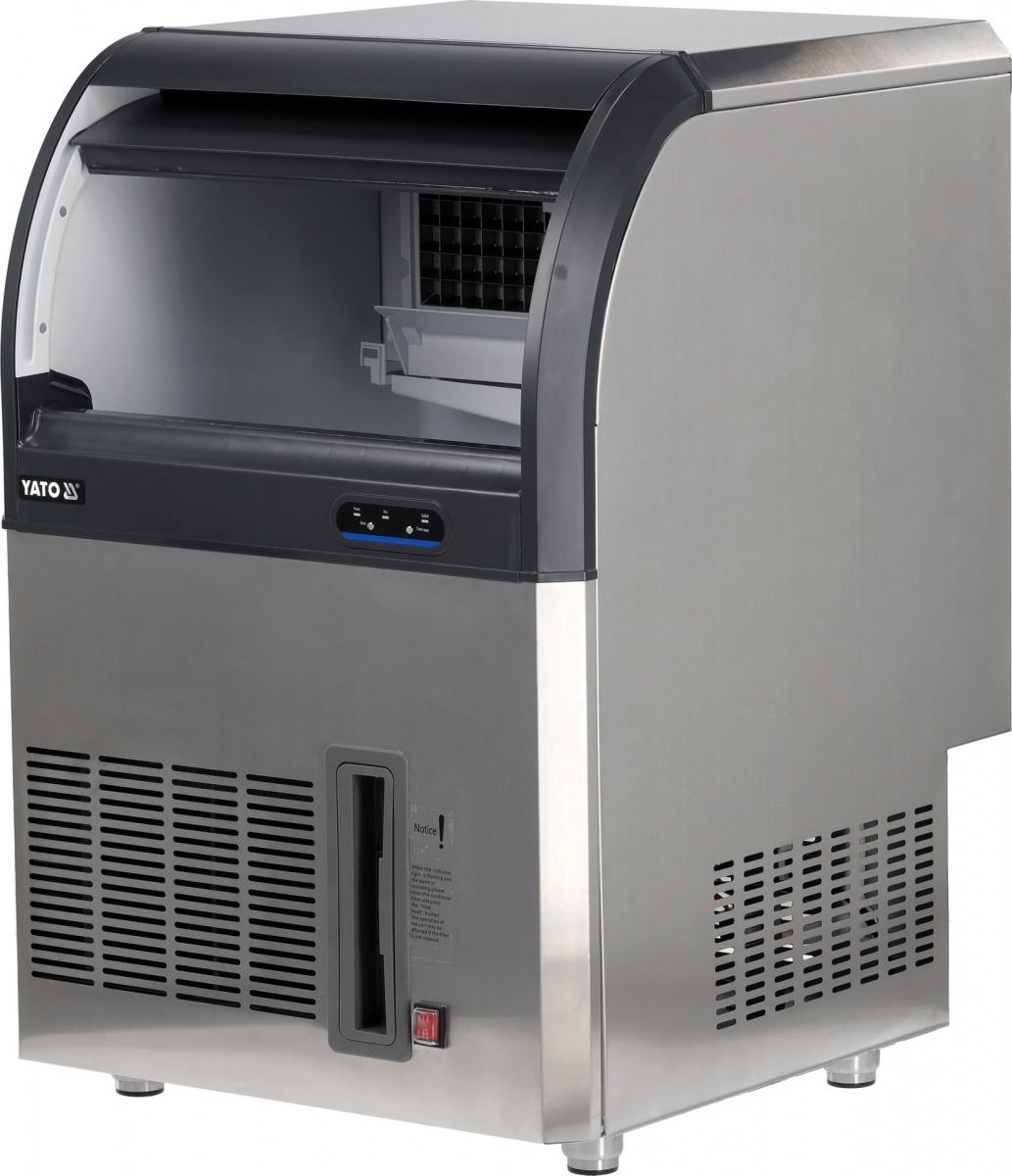

Professional Ice Maker is designed for efficient, automatic production of ice cubes in restaurants, bars, cafes, hotels, and catering points. Thanks to direct connection to the water supply system, the device operates continuously without the need for manual refilling of the tank, ensuring a constant supply of fresh ice.
The housing is made of SS304 stainless steel, which is characterized by high resistance to corrosion, mechanical damage, and intensive use in professional kitchens. The refrigeration system using R290 refrigerant provides effective cooling and high ice production efficiency.

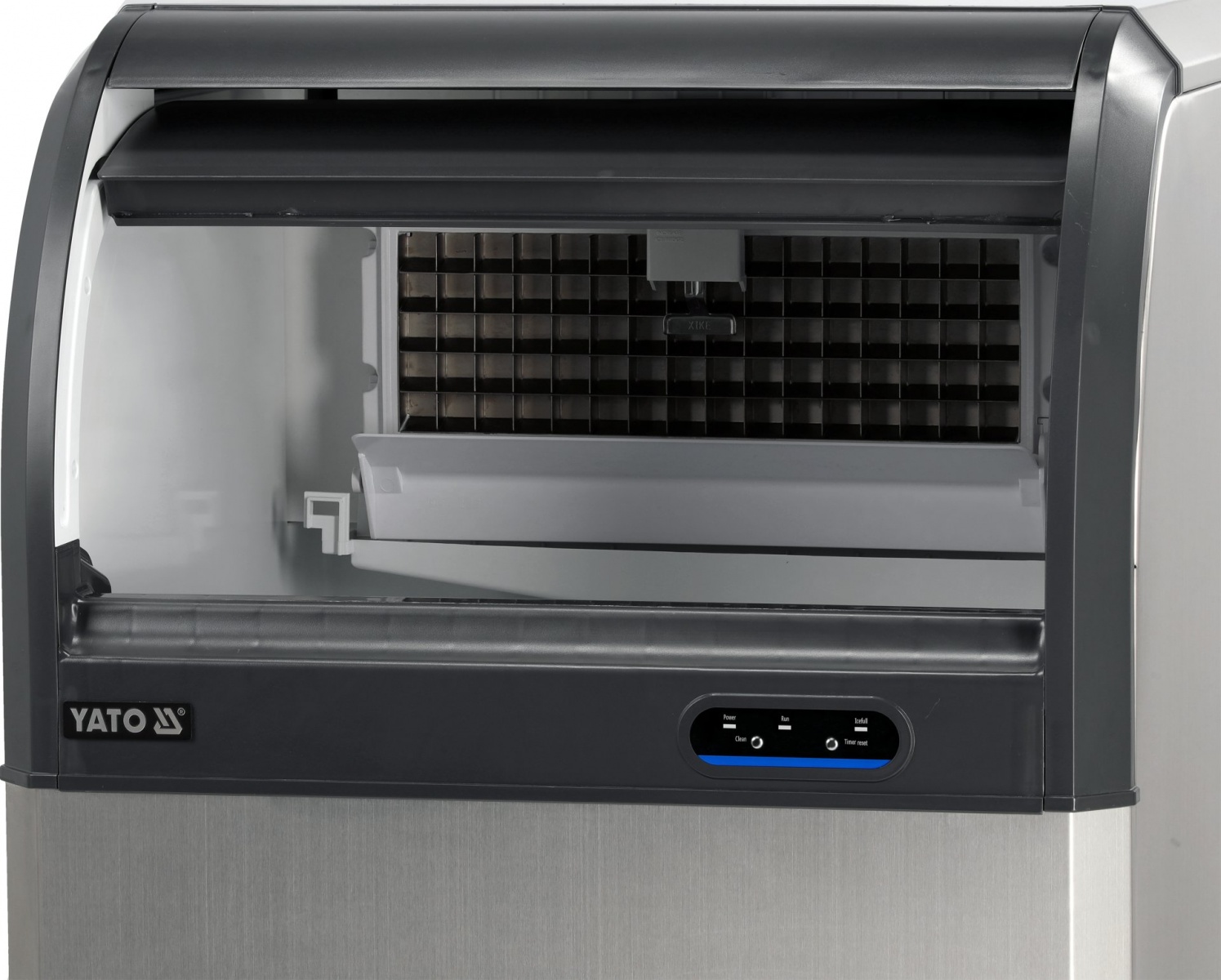

Control panel with LED indicators allows for convenient operation of the device. Ice cube thickness adjustment is done using a regulating screw, allowing customization of the freezing time to individual needs. The ice maker is also equipped with an automatic cleaning function and a container fill sensor that stops production upon reaching the maximum ice level.
Adjustable feet facilitate precise leveling of the device, and the included accessories allow for quick setup for operation.
Main features:
housing made of SS304 stainless steel
direct connection to the water supply system
efficient, automatic ice cube production
adjustable ice cube thickness
control panel with LED indicators
automatic cleaning function
container fill sensor with automatic shut-off
adjustable feet for stable positioning
Technical specifications:
rated voltage: 220-240 V~
rated frequency: 50 Hz
climatic class: 4
water pressure: 1.3-5.5 bar
incoming water temperature: 10-32°C
insulation class: I
YG-05553
rated current: 2.5 A
rated power: 500 W
ice production capacity: 40 kg/24 h
ice storage bin capacity: 16 kg
gross bin capacity: 48 l
refrigerant: R290/105 g
weight: 48 kg
dimensions: 505 x 656 x 905 mm
YG-05554
rated current: 2.8 A
rated power: 600 W
ice production capacity: 60 kg/24 h
ice storage bin capacity: 22 kg
gross bin capacity: 66 l
refrigerant: R290/130 g
weight: 52 kg
dimensions: 610 x 656 x 905 mm
YG-05555
rated current: 3.6 A
rated power: 760 W
ice production capacity: 90 kg/24 h
ice storage bin capacity: 30 kg
gross bin capacity: 90 l
refrigerant: R290/149 g
weight: 57 kg
dimensions: 715 x 656 x 905 mm
Included accessories:
water supply hose
drain hose
ice scoop
