Description:
Brand:
Description

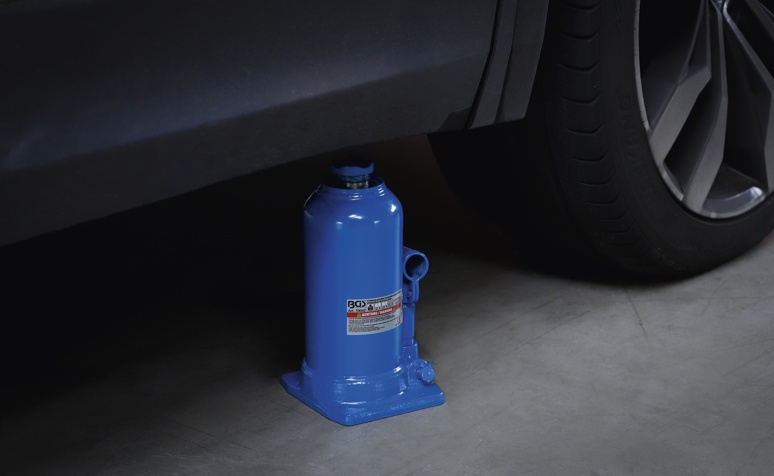

for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve

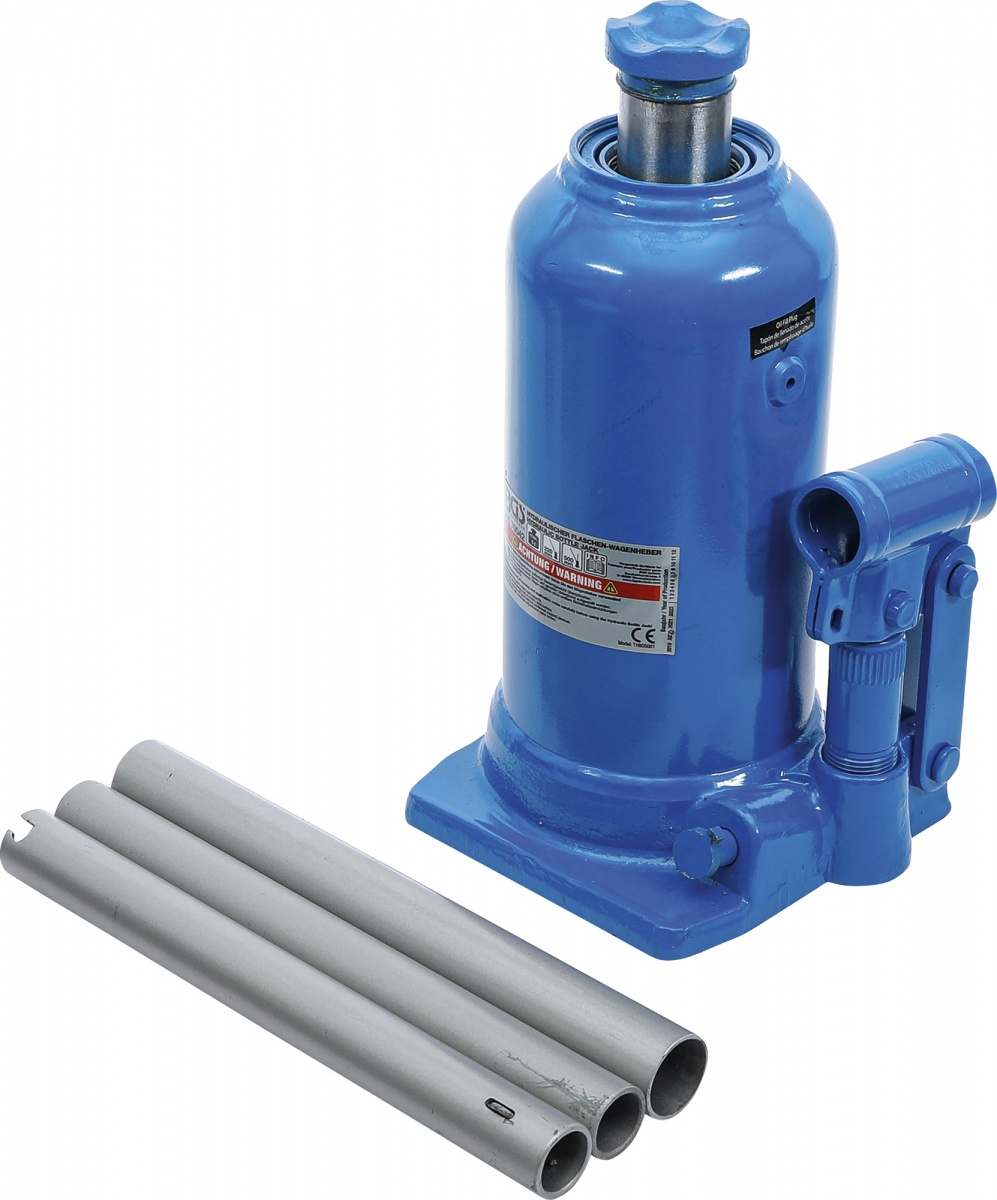

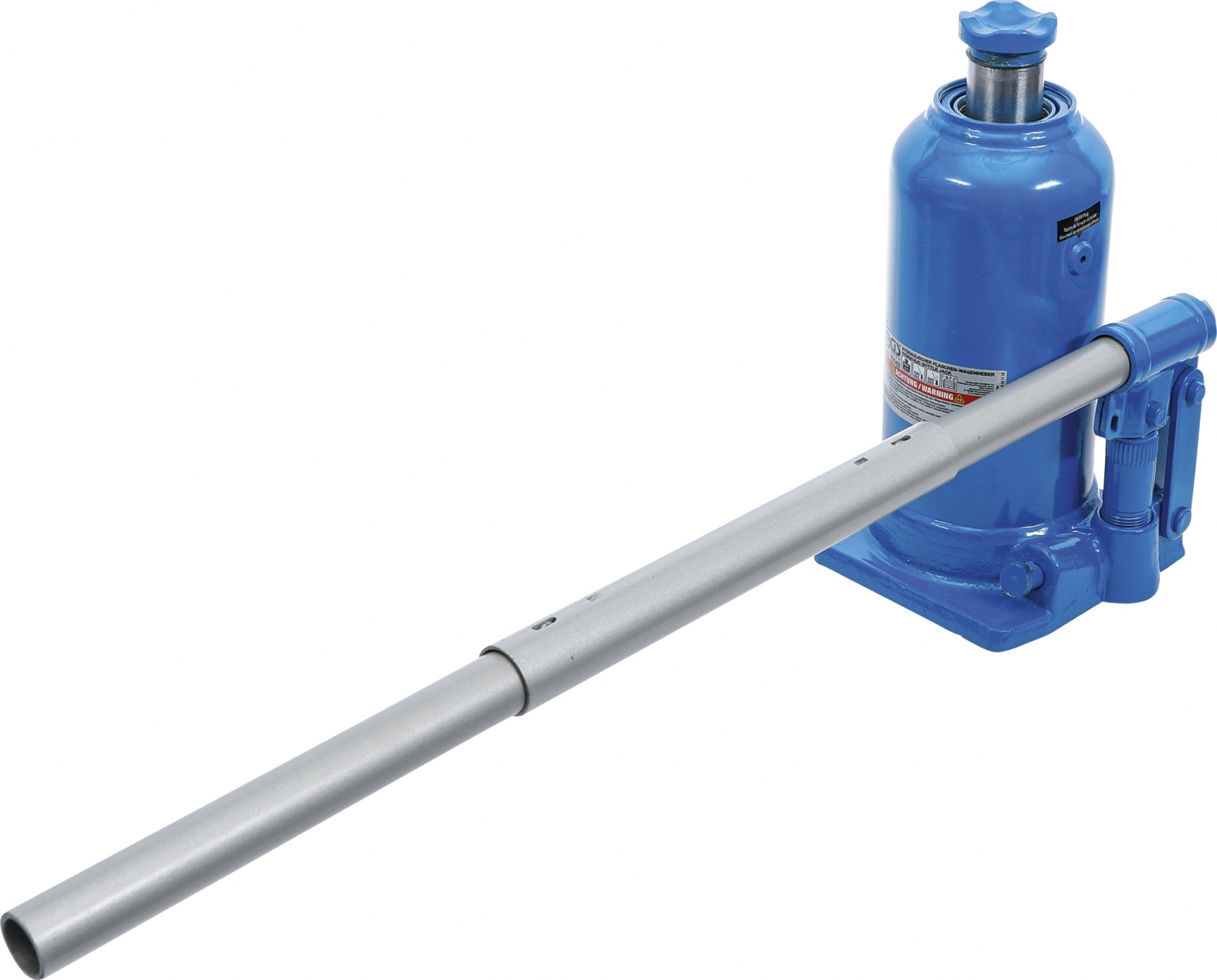

including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
compact design

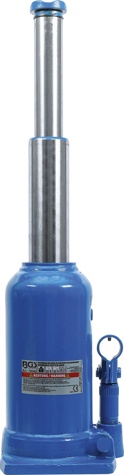

with dual piston and high lifting range
applicable in tight spaces
Technical data
Gross weight 8810 g
Max. load bearing capacity 5 t
Lifting height 280 mm
Min. height 220 mm
Max. height 500 mm
Plunger diameter 45 | 32 mm
Durchmesser Aufnahmeteller 41 mm
Dimensions base plate (W x D x H) 135 x 130 mm
Handle (diameter x length x thikness) 21,8 x 220 x 2,2 | 25,5 x 220 x 1,5 | 21,8 x 220 x 2,2 mm
Lever length 580 mm
2,2 | 1,5 | 2,2 mm
7,2 kg
(1)
