Description:
Brand:
YT-5914
ROPE WINCH 1500 DAN
Mark
Yato
Symbol
YT-5914
Max. pulling power
1500 daN
Rope length
3 m
Rope diameter
6mm
Lever ratio
15:1

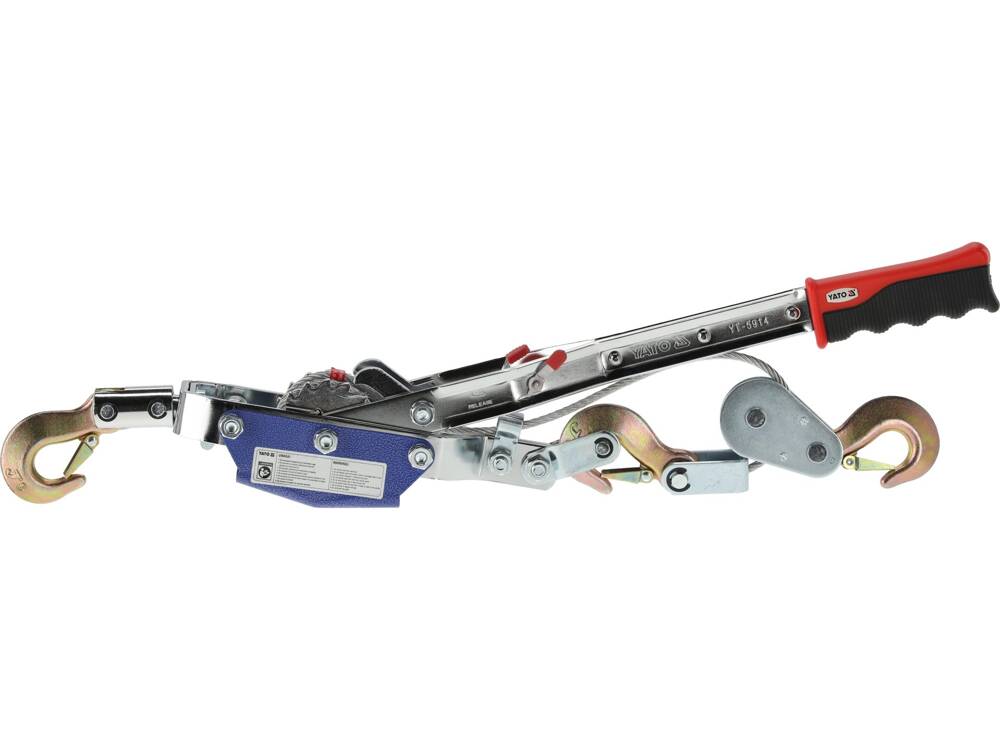

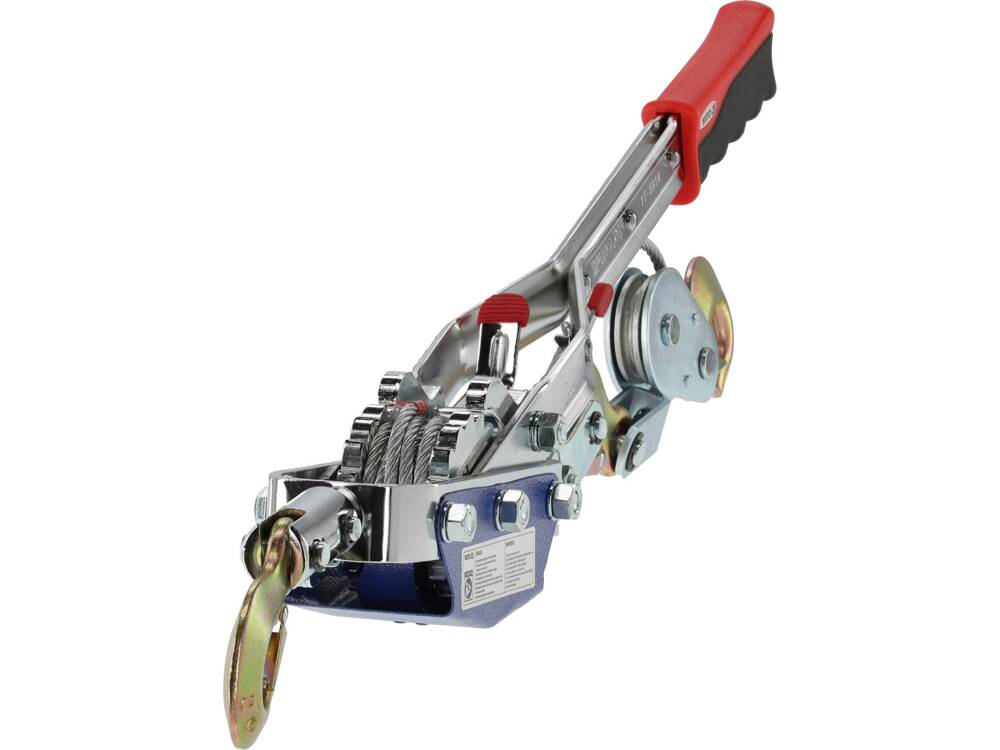

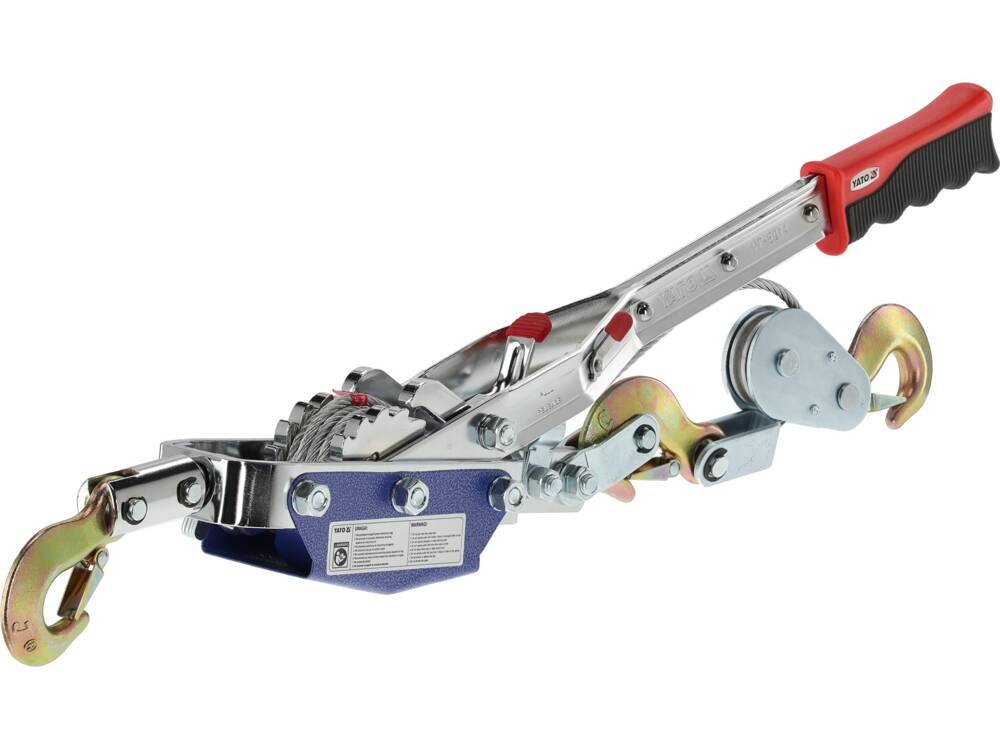

The manually driven rope winch consists of a steel body containing a drum, gears and a ratchet mechanism with a large, appropriately selected gear ratio. The driving lever is used to move the drum and wind the steel rope. The winch can move loads weighing up to approx. 1,530 kg over a distance of approx. 3 m. The rope winch with manual drive is used to transport loads in a horizontal plane, e.g. to drag boxes along a ramp. Due to its construction, it cannot be used for vertical lifting of loads. Pulling the rope: - attach the fixed hook to the fixed base - move the arm lock lever - raise the winch arm slightly - move the drum lock lever - pull the rope to the desired length Moving the load or tensioning the rope: - set the arm lock lever - move the arm until the required tension is achieved rope or load displacement Releasing the rope tension: - move the arm lock lever - move the winch arm to such a position that the protrusion of the arm lock lever releases the drum lock; the drum will jump by one tooth - repeat the operation until the required rope tension is achieved
