Description:
Brand:
Mark
Yato
Symbol
YT-5911
Max. pulling force
1000 daN
Rope length
3 m
Rope diameter
5mm
Lever ratio
15:1

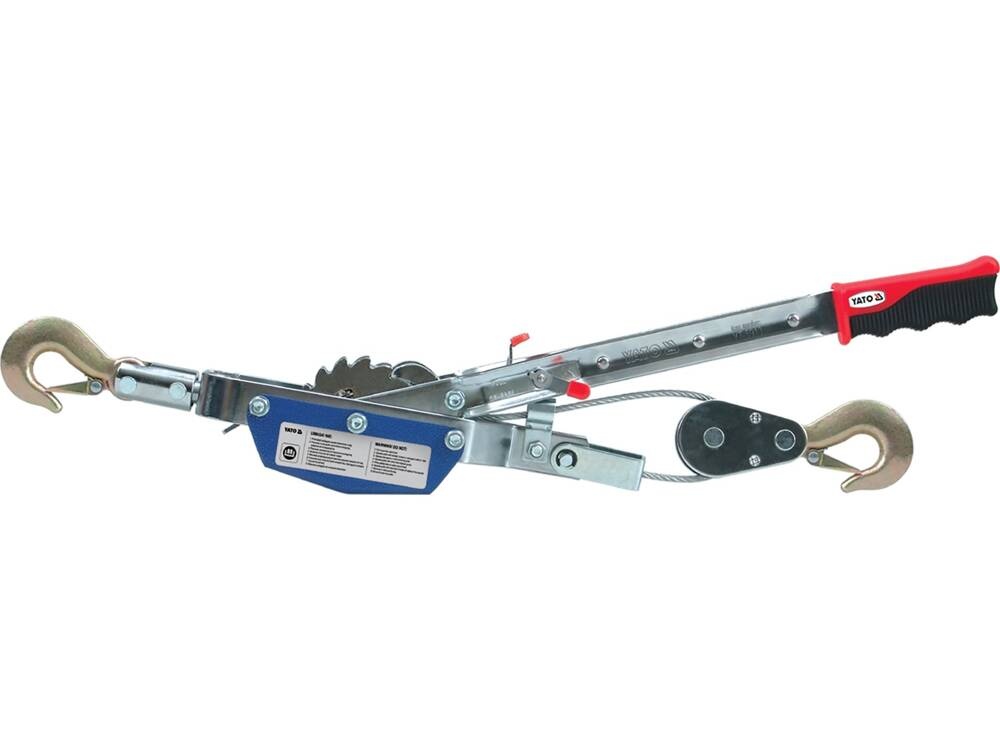

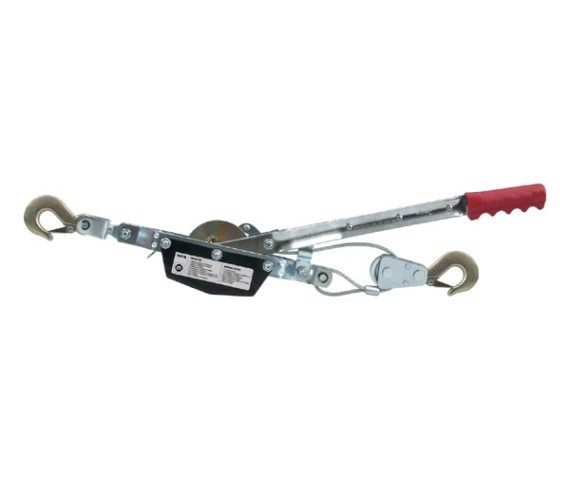

The manually driven rope winch consists of a steel body containing a drum, gears and a ratchet mechanism with a large, appropriately selected gear ratio. The driving lever is used to move the drum and wind the steel rope. The winch can move loads weighing up to approx. 1020 kg over a distance of approx. 3 m. A rope winch with a manual drive is used to transport loads in a horizontal plane, e.g. to drag boxes along a ramp. Due to its construction, it cannot be used for vertical lifting of weights.
