Description:
Brand:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
volume
0.85 l/min
Operating pressure
0.6-0.8 MPa
Required air flow
300 l/min
Outlet grease pressure
30-40 MPa
Compressibility factor
50:1
Grease tank capacity
45 l
External dimensions
400x400x840 mm
Air supply hose inside diameter
3/8" (9.5 mm)
Hose length
4 m
Air connection diameter (PT)
standard
Wheels
yes
Wheel quantity
4
Acoustic pressure
97 ± 3.0 dB(A)
Acoustic power
108 ± 3.0 dB(A)
Weight
17 kg
Set includes
pneumatic lubricator/lubricator, flexible hose, grease gun
Symbol
YT-07069

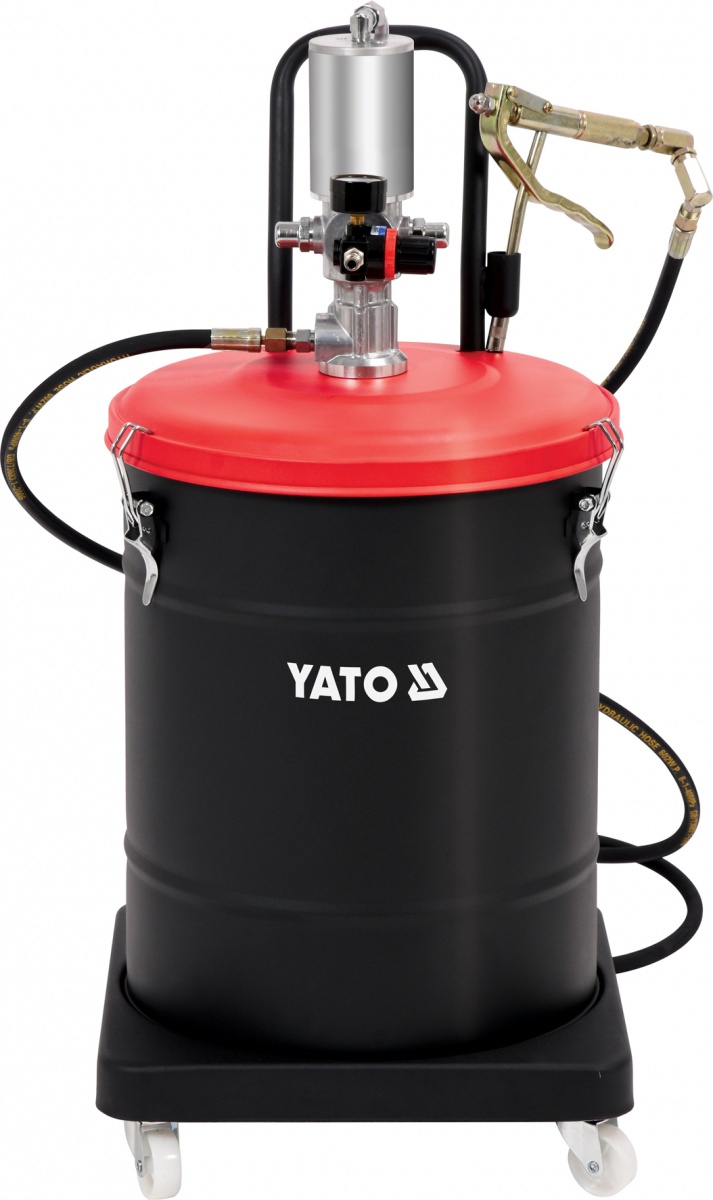

Performance YATO pneumatic grease gun for use in automotive workshops, agriculture, industry.
Designed for maintenance of machinery and equipment having a calamity lubrication system.
When connected to the compressor enables independent operation, without the help of a second person.
Pump pressure at 8 bar of compressed air: 300-400 bar
compression ratio: 50:1
large grease container: 45 l
ended with a metal gun
flexible pipeód with a length of 4 m
kółka for easy transport and maneuvering
Lubricator, pressure hose, grease gun, spare parts
